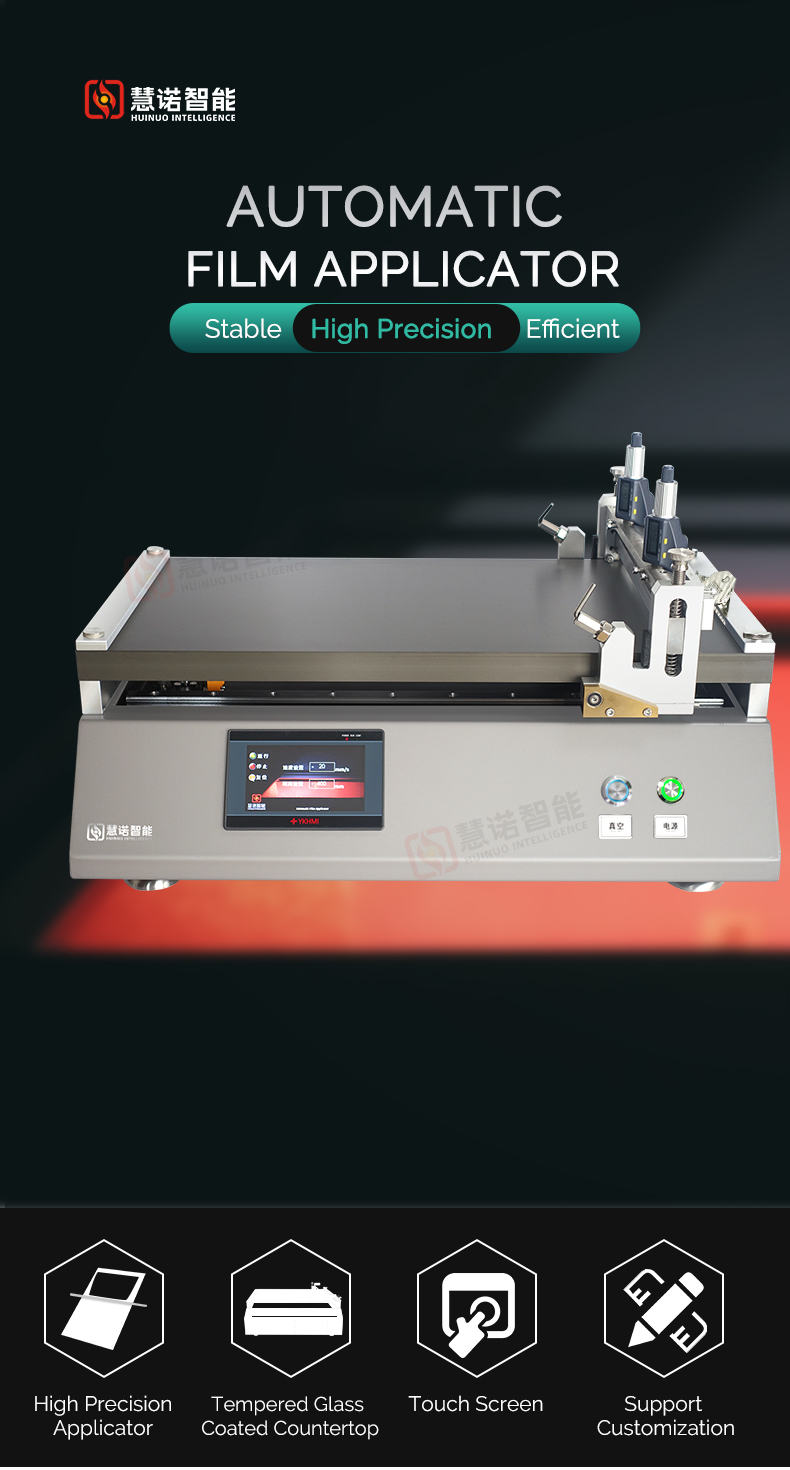

Huinuo TM3200Pro/17 Automatic Film Applicator Wire rod drawdown blade coater Vacuum adsorption Effective area 40 * 23cm
Using wire rod and scraper dual Spreader mode, Spreader speed 1~ 300mm/s stepless speed regulation, film thickness control accuracy of +/- 0.003mm. The clamshell scraper head is designed for easy cleaning and is equipped with vacuum adsorption function, suitable for soft substrates.
HuiNuo
TM3200pro/17
-

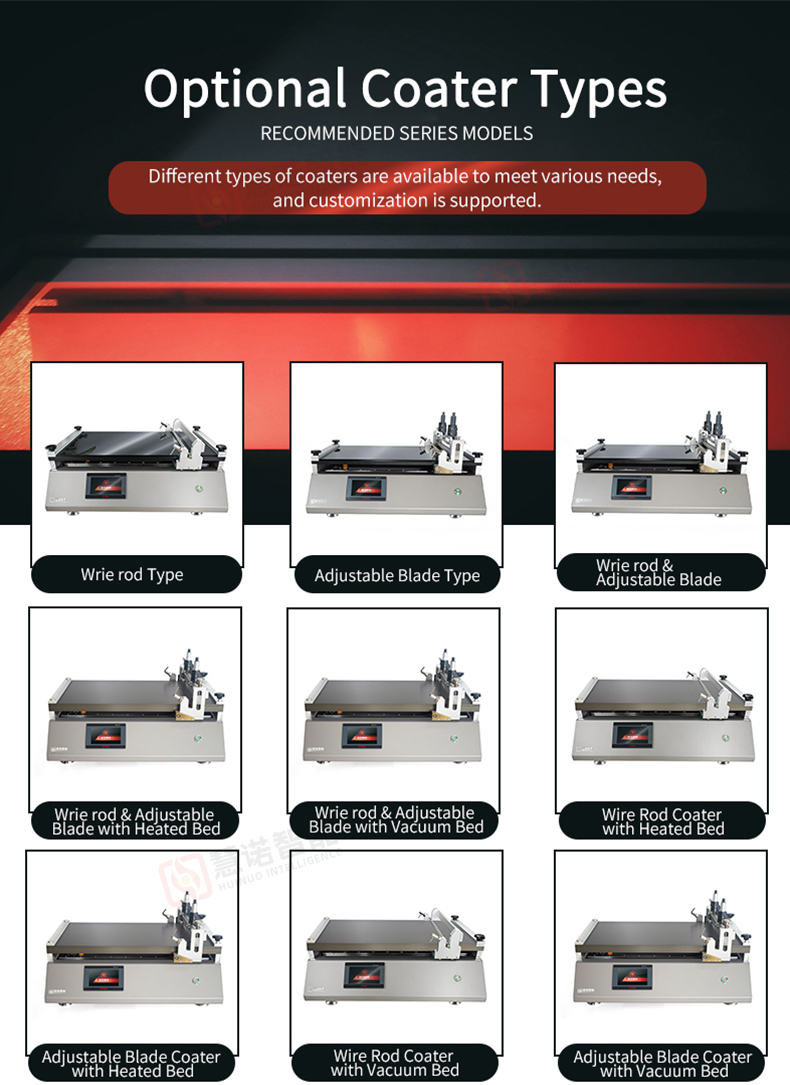

Huino intelligent TM 2300/01 drawdown blade heating vacuum adsorption Film Applicator custom model
Login -
HuiNuo TM3300/07 Multifunctional miniature coater (for glove box) Spreader area 21 * 15cm
$ 5083.00 -
Huinuo TM3200UV/03 metering rod & doctor blade vacuum adsorption coater (with UV curing) effective area 20 * 15cm
$ 4770.00 -
China Battery Automatic Film Applicator Drawdown blade Lab Film Applicator TBJ-GD-JKXB
$ 1951.00 -
HuiNuo TM3300/17 drawdown Bar & blade heating vacuum adsorption coater Effective area 140 * 120cm
$ 23565.00
Product Overview:
Automatic film coating machine is a device used to coat film in the laboratory, replacing manual film coating, automating the film coating, and improving the accuracy and efficiency of film coating. The working principle of the experimental automatic film coating machine is to evenly coat the sample on the substrate by controlling the coating head and coating parameters, forming the desired film.
This coating machine is a wire rod scraper coating machine, using two coating methods of wire rod and scraper, with vacuum adsorption function, the new line rod installation method and clamshell scraper head greatly improve the coating efficiency, easy to clean, support speed control and coating length adjustment, suitable for high-precision automatic coating in the laboratory, in university research institutes, new materials, lithium batteries, glue, hot melt glue and other laboratories for film proofing.
Product Use:
The coating machine is suitable for coatings, inks, paints, pastes, hot melt adhesives, lithium batteries, pressure-sensitive adhesives, resins, glues, polymer materials, etc., and can be scraped on films, cardboard, aluminum foil and copper foil.

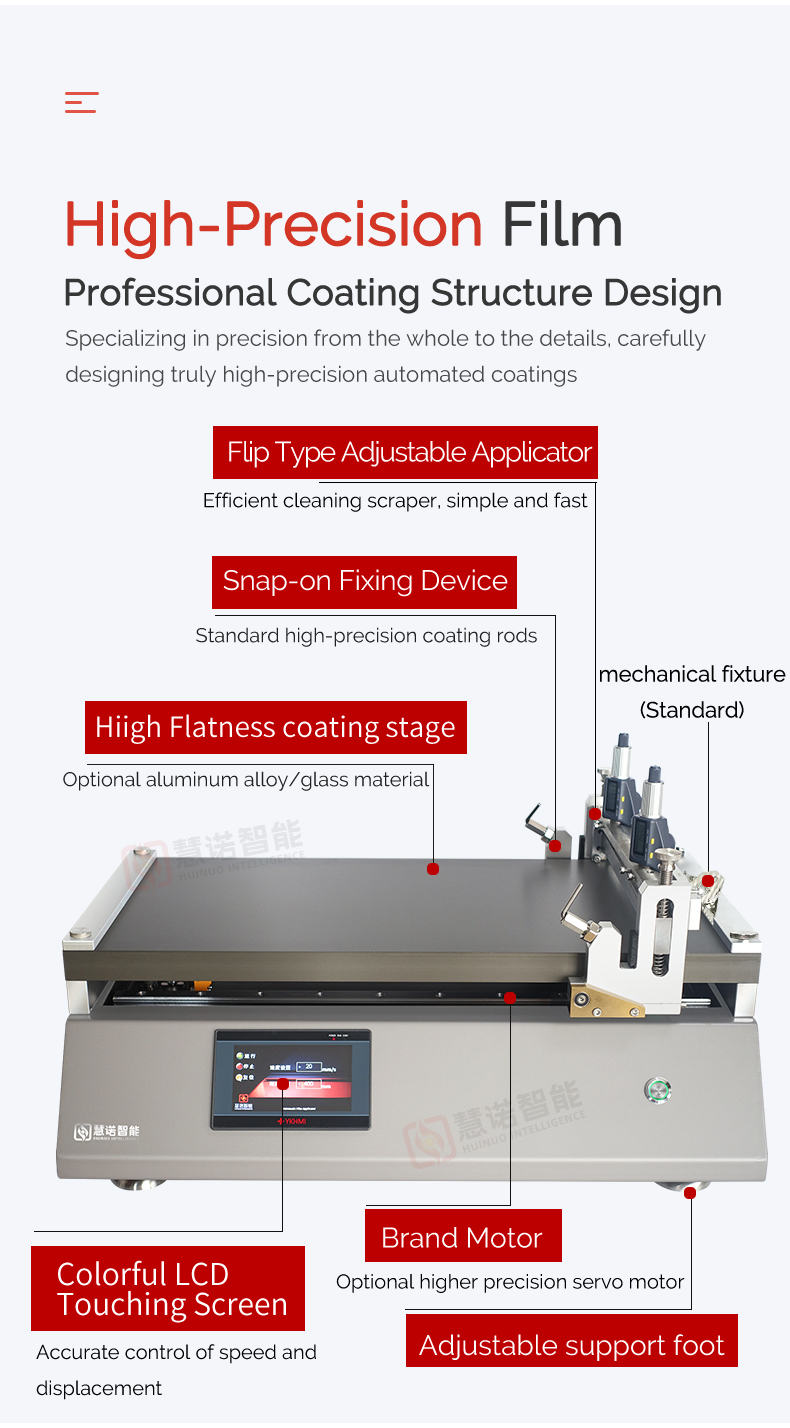

Product features:

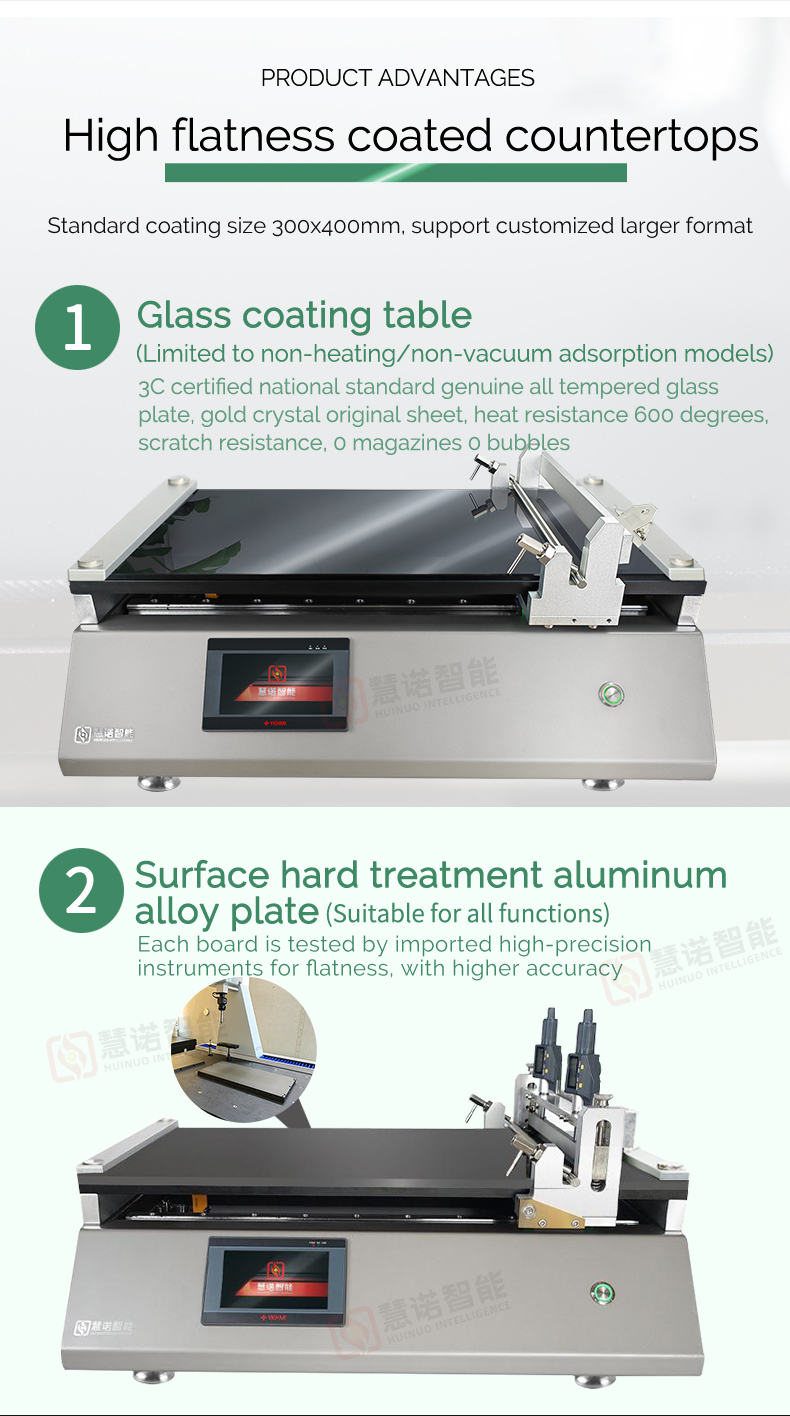

1) Surface hard treatment aluminum alloy countertop, high hardness and wear resistance, and the flatness of the countertop is tested by imported high-precision instruments
2) Big brand differential adjuster, high film thickness control accuracy

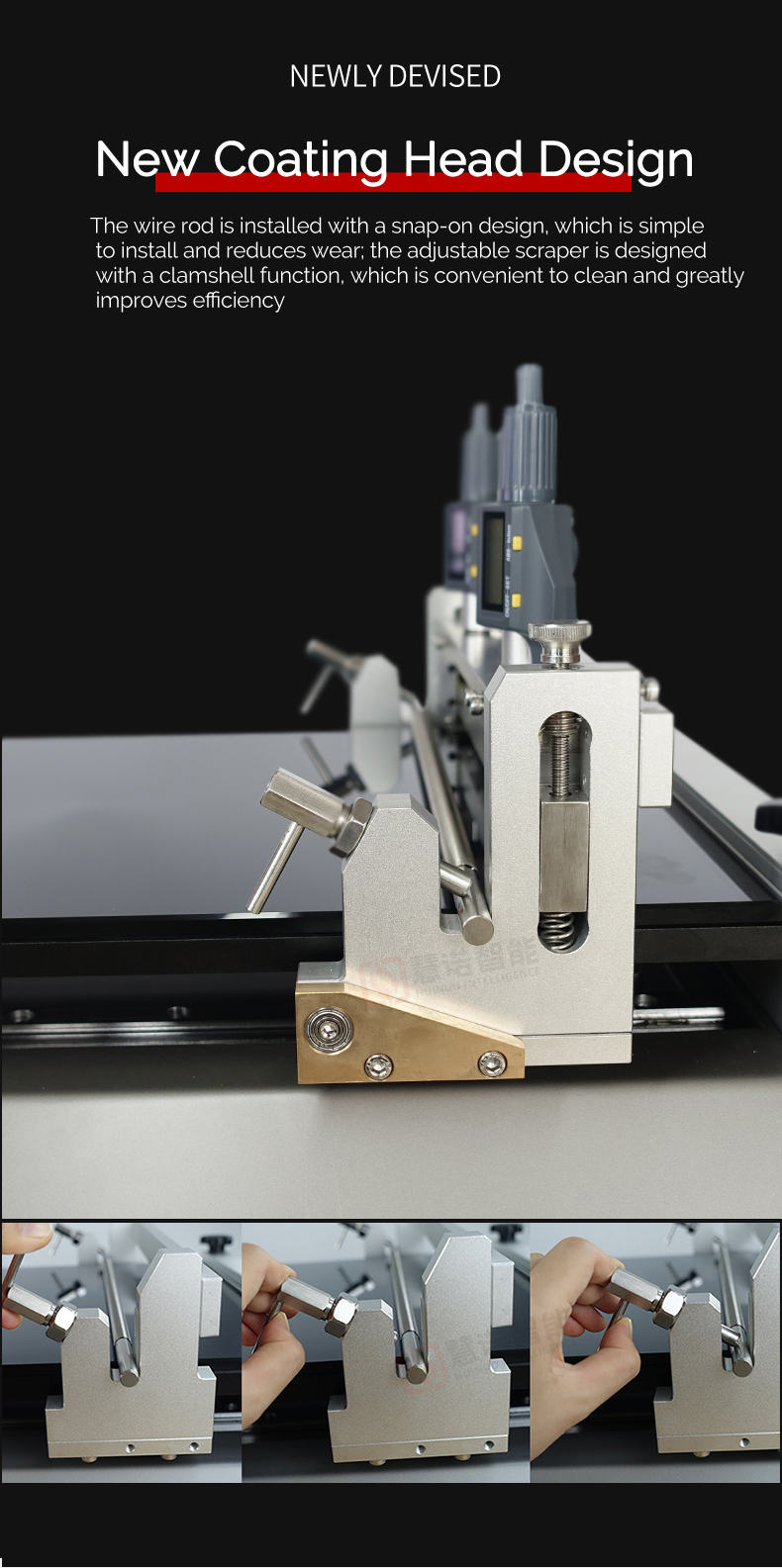

3) Clamshell scraper coating head, easy to clean
4) Equipped with high-precision film applicator, the original imported wire rod coating film is uniform and high accuracy
5) Touch screen control panel, easy to operate
6) The coating length and coating speed can be adjusted freely
7) With vacuum adsorption function, it is suitable for coating soft substrates such as films

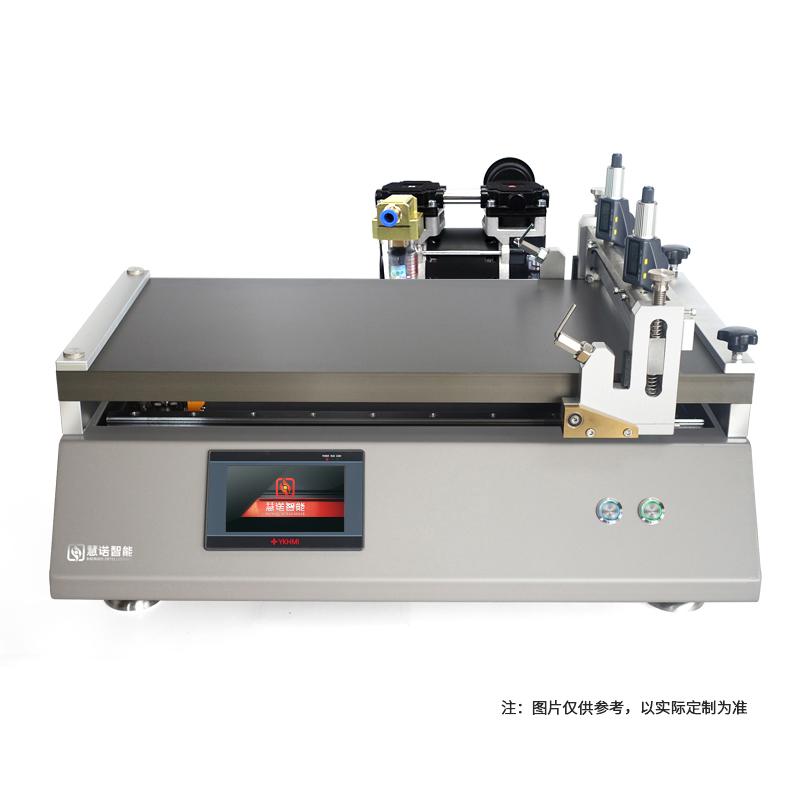

HuiNuo TM3200pro/17 Automatic Film ApplicatorSpecifications
| LIST | VALUE |
|---|---|
| Spreader mode | Wire rod + scraper |

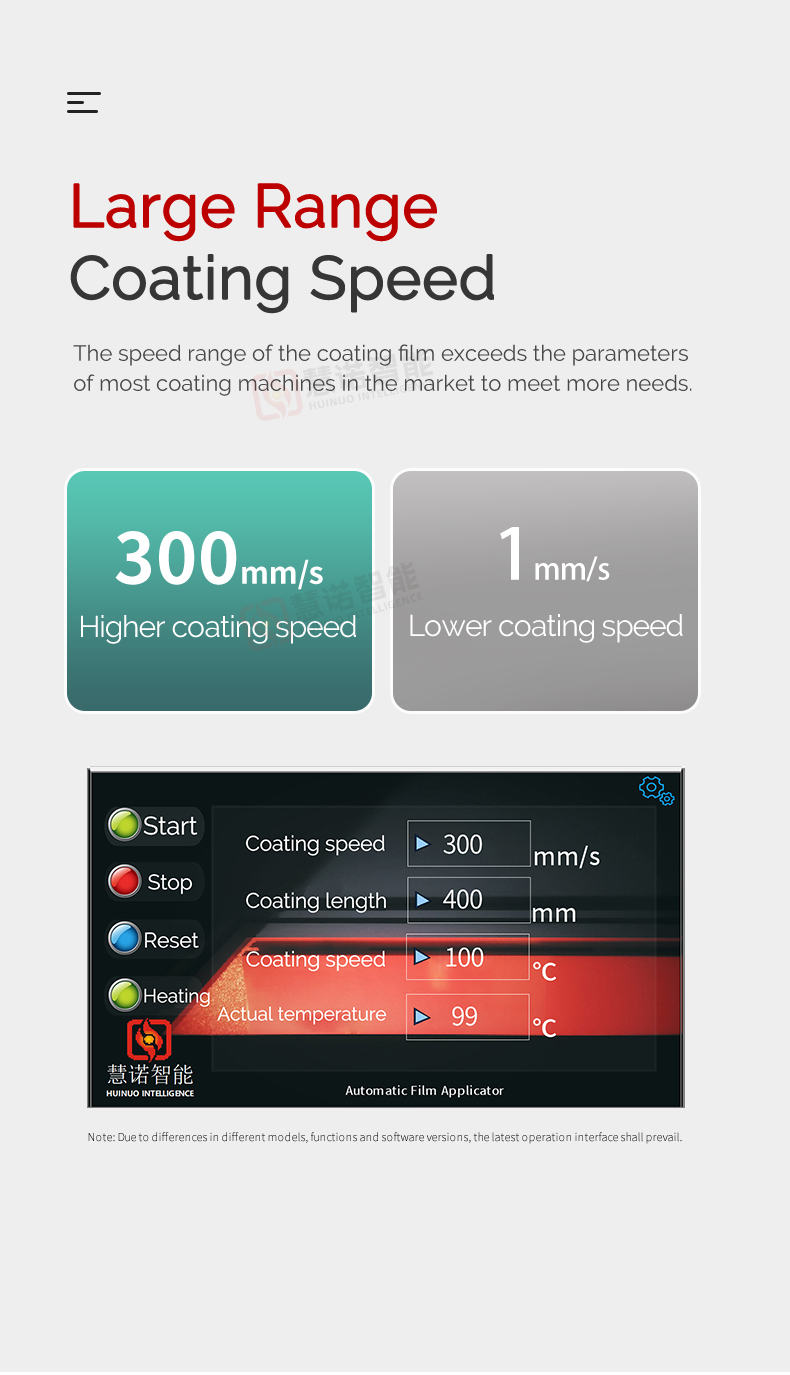

| Spreader rate | 1~ 300Mm/s stepless speed regulation (can be customized) |

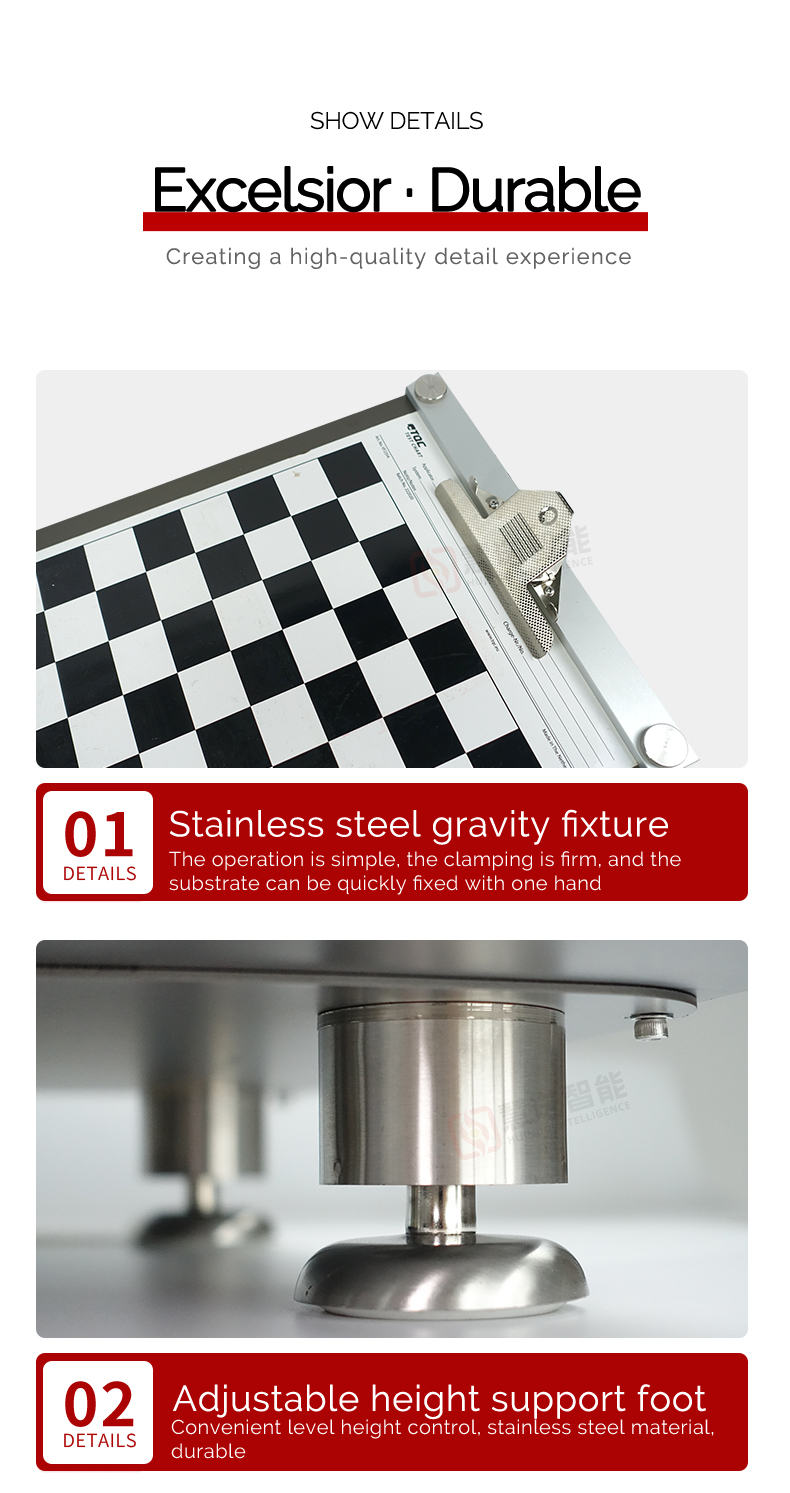

| Substrate fixing method | Vacuum adsorption + fixture |
| Spreader material | Surface hard treatment aluminum alloy |
| Spreader size | 640*260mm |
| Effective Spreader Area | 400 * 230Mm (can be customized) |
| Spreader Film thickness range | Different rod numbers Film thickness is different, with High Accuracy imported wire rod |
| Spreader accuracy | ±0.003mm |
| Spreader Film thickness range | 0.1~ 10Mm (clamshell design is easy to clean) |
| Scraper material | Die steel |
| Spreader Width | 230mm |
| Spreader accuracy | ±0.003mm |
| Vacuum adsorption size | 480*190mm |
| vacuum aperture | Φ1±0.05mm |
| Vacuum hole spacing | 20*20mm |

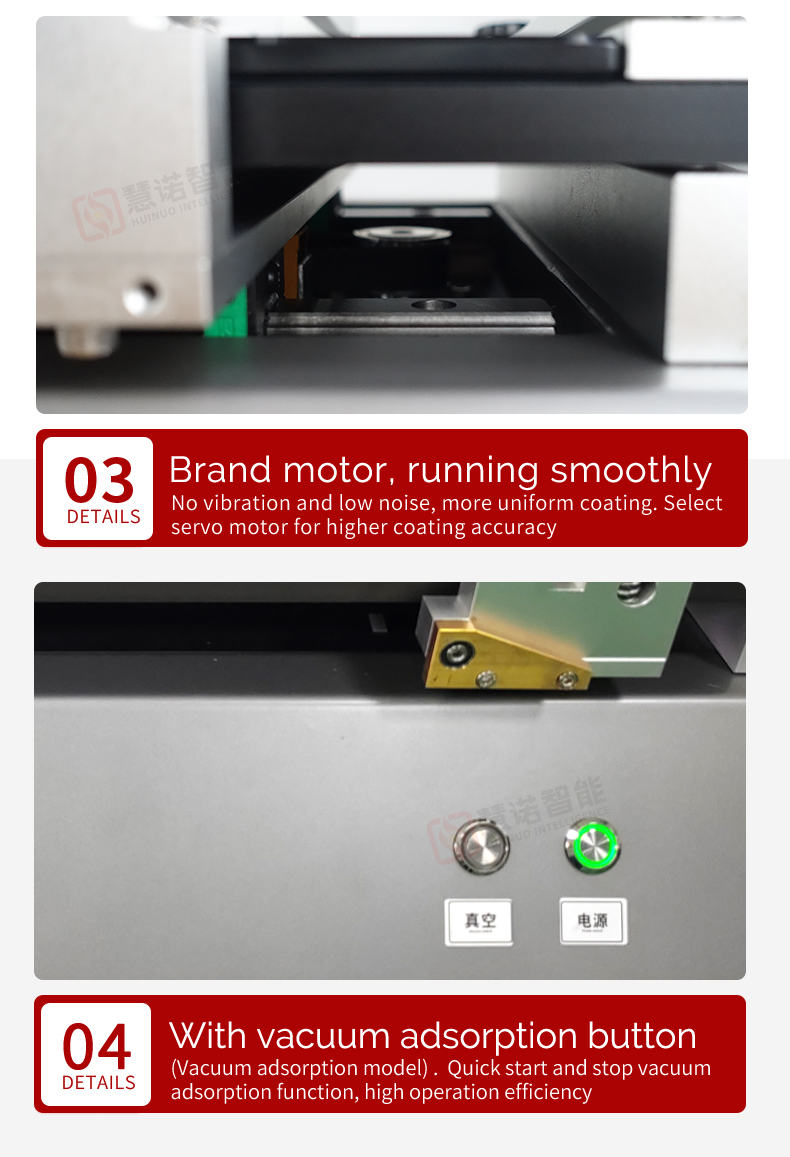

| Drive motor | Servo motor |
| Vacuumpump pumping rate | 5.4m3/h |
| ultimate vacuum | 50KPa |
| Vacuumpump power | 180W |
| Vacuumpump weight | 7.1kg |
| power | 600w |
| operating language | Chinese (can be customized in English) |
| display screen | Color LCD touch screen |
| Host power supply | 220V/50HZ (can be customized 110V/60HZ) |
| Dimension | 660*370*430mm |
HuiNuo TM3200pro/17 Automatic Film Applicator Packing list
Film Applicator x1, Wire Bar x1, Scraper x1, Vacuumpump x1, Manual x1, Certificate x1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
