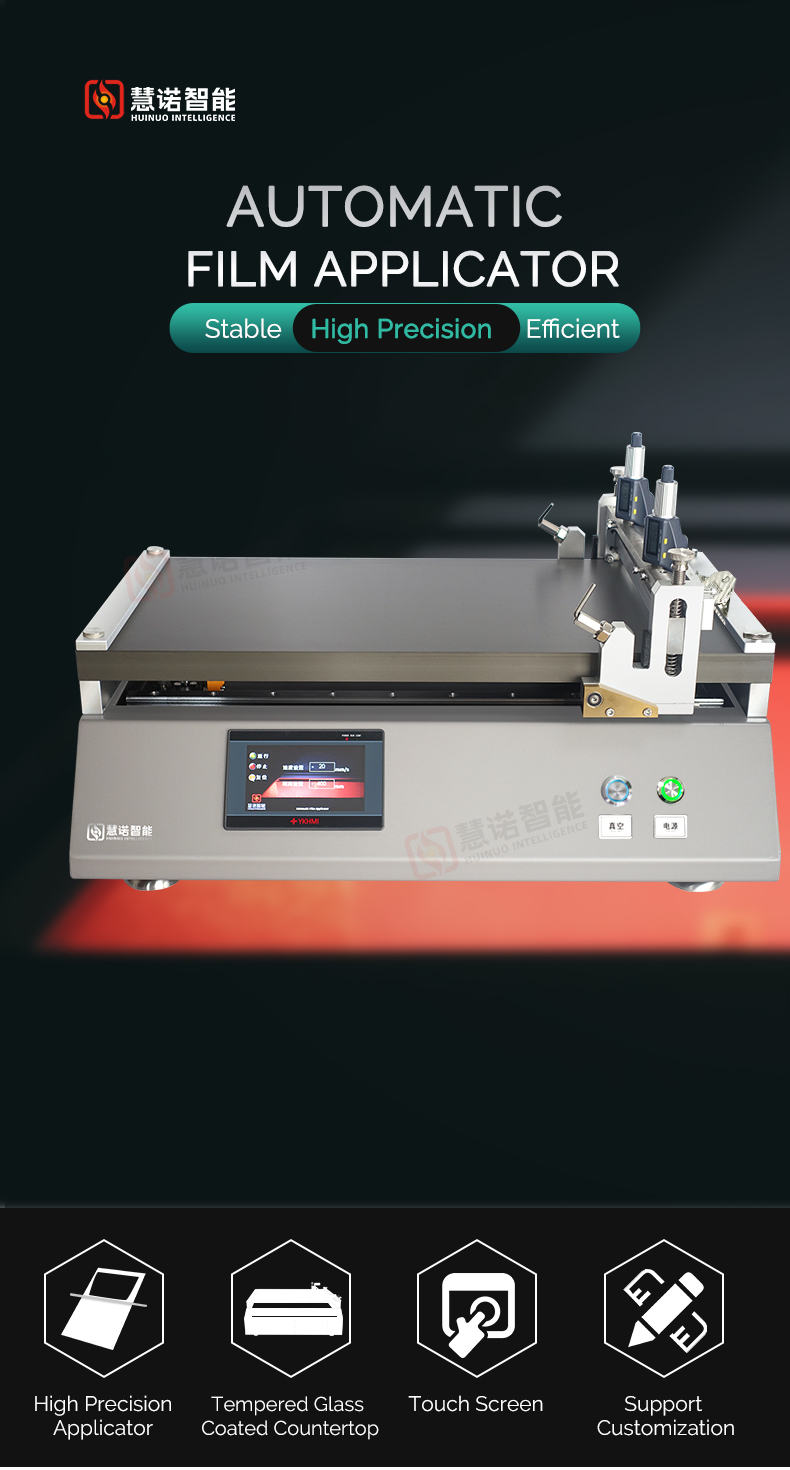

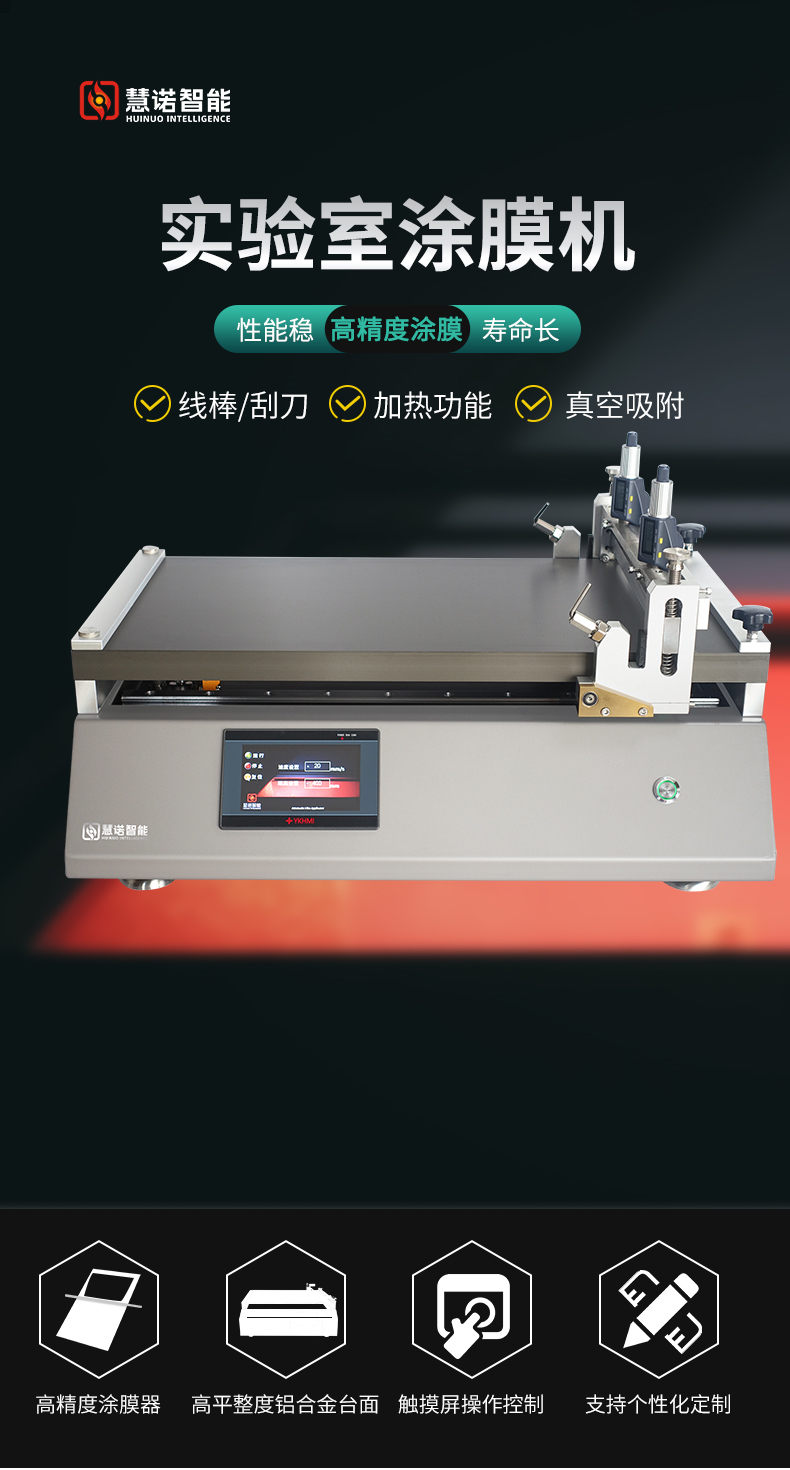

Huinuo TM3300/45D Automatic Film Applicator metering rod & doctor blade heating vacuum adsorption Coater (floor type) Effective Spreader area 100 * 60cm
Support wire rod and scraper two Spreader mode, Spreader speed 1~ 300mm/s stepless speed regulation, scraper Spreader Film thickness range of 0.1~ 10mm. Equipped with clamshell magnetic scraper for easy cleaning, touch screen control and easy operation, and integrated heating and vacuum adsorption functions to meet diverse needs.
HuiNuo
TM3300/45D
-
PUSHEN AFA-V electric vacuum Coater
$ 2421.00 -
China TBJ-X1-DJ4 Removable Drawdown blade Vacuum chuck Film Applicator Laboratory Draw-Down Applicator
$ 3047.00 -
China TBJ-B3-DJ5 Drawdown blade Heating Film Applicator Coating area 400 * 400mm
$ 4144.00 -
Chinese TBJ-B1-DJ7 experimental drawdown blade Coater bracket height adjustable, ECA 400 * 400mm
$ 7119.00 -
Laboratory automatic coating machine TBJ-X3-DJ32 wire rod scraper heating vacuum adsorption coating machine (with automatic feeding system), ECA 400 * 600mm
$ 8842.00
Product Overview
The automatic film coating machine is a device used to coat the film in the laboratory, replacing the manual coating film, and the coating film is carried out automatically, so as to improve the accuracy and efficiency of the coating film. The working principle of the experimental automatic film coater is to evenly coat the sample on the substrate by controlling the coating head and coating parameters to form the desired film.

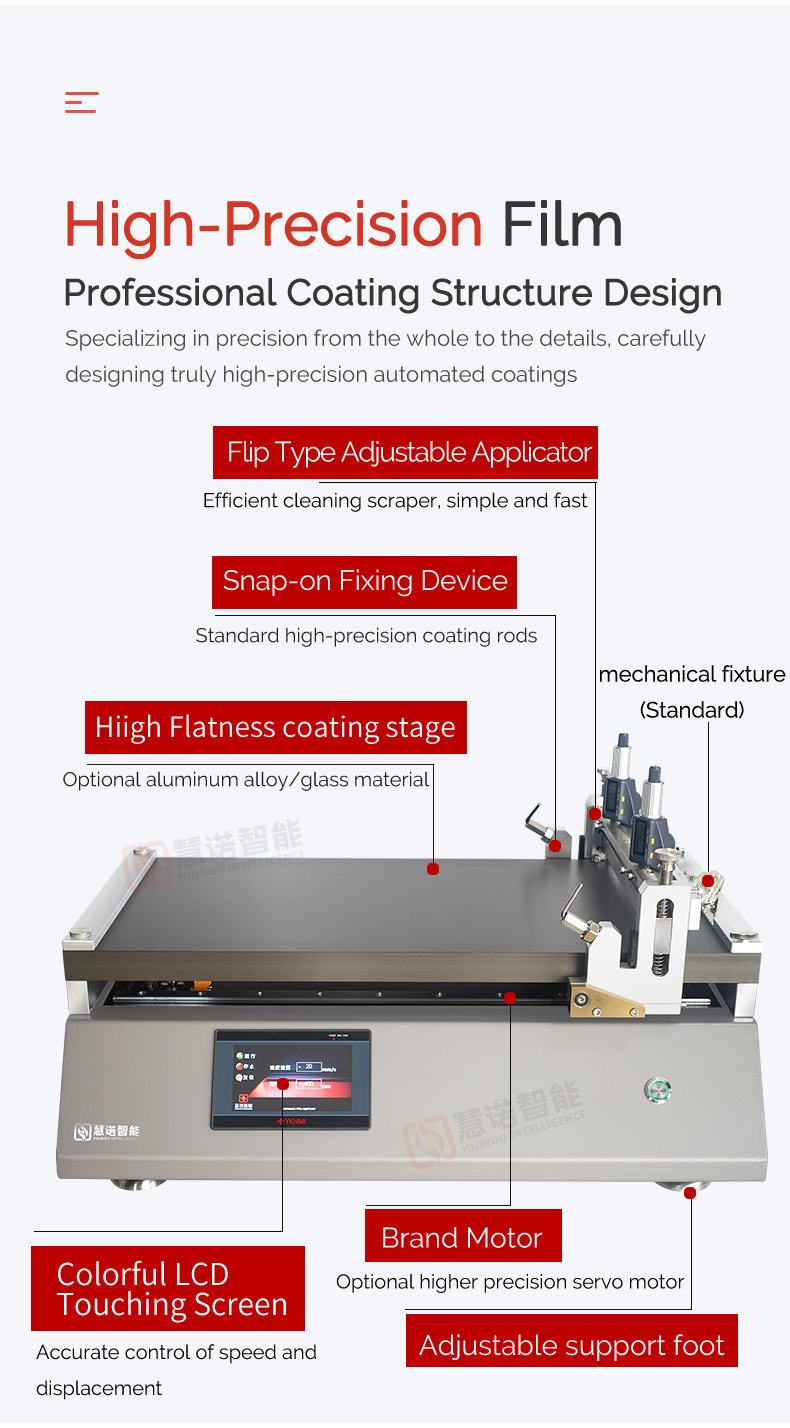

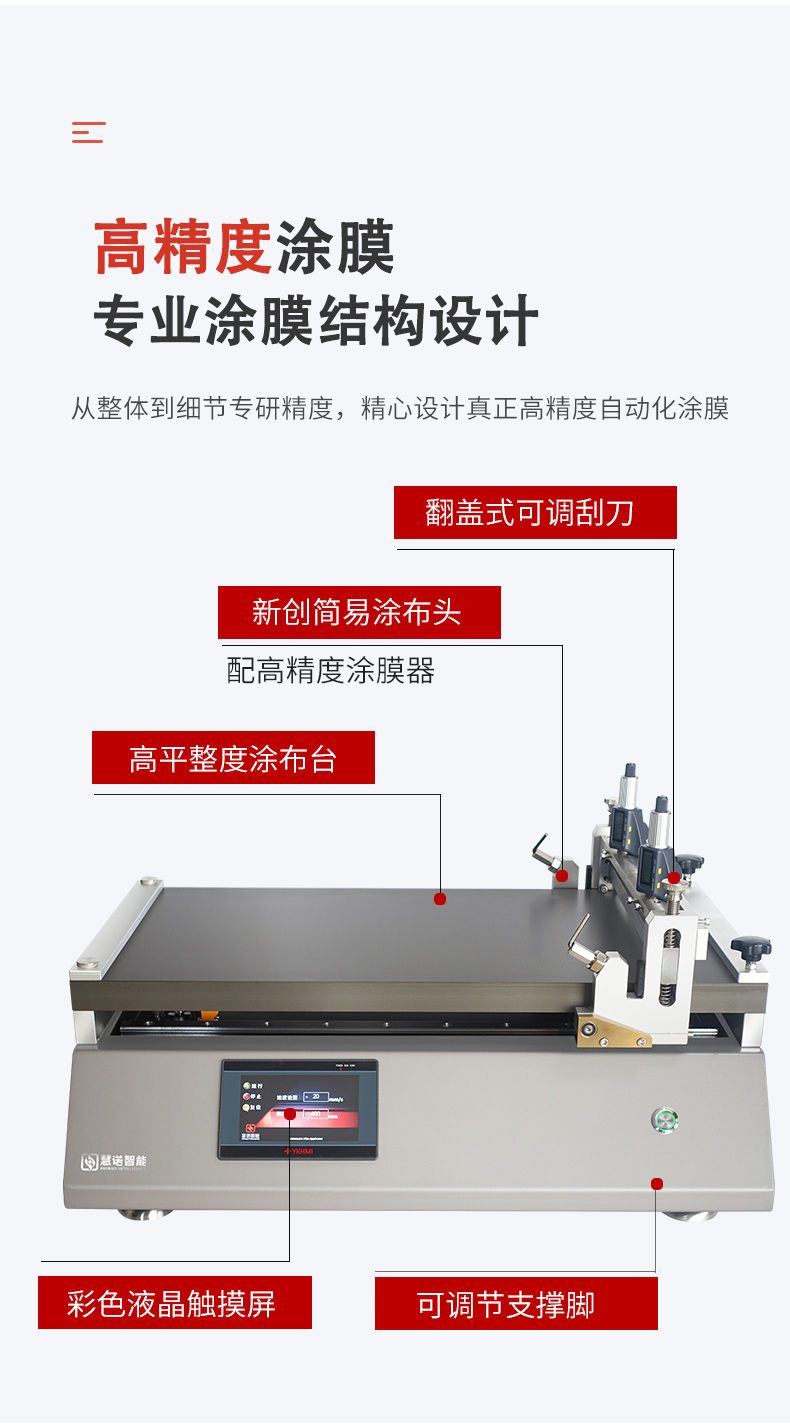

This coating machine is a wire rod scraper coating machine, with two functions of wire rod coating and scraper coating, the new type of wire rod installation method and clamshell scraper head greatly improve the coating efficiency, easy to clean, with speed control and coating length adjustment function, suitable for laboratory high-precision automatic coating, in the university research institute, new materials, lithium battery, glue, resin and other laboratories for film proofing.
Product Use:

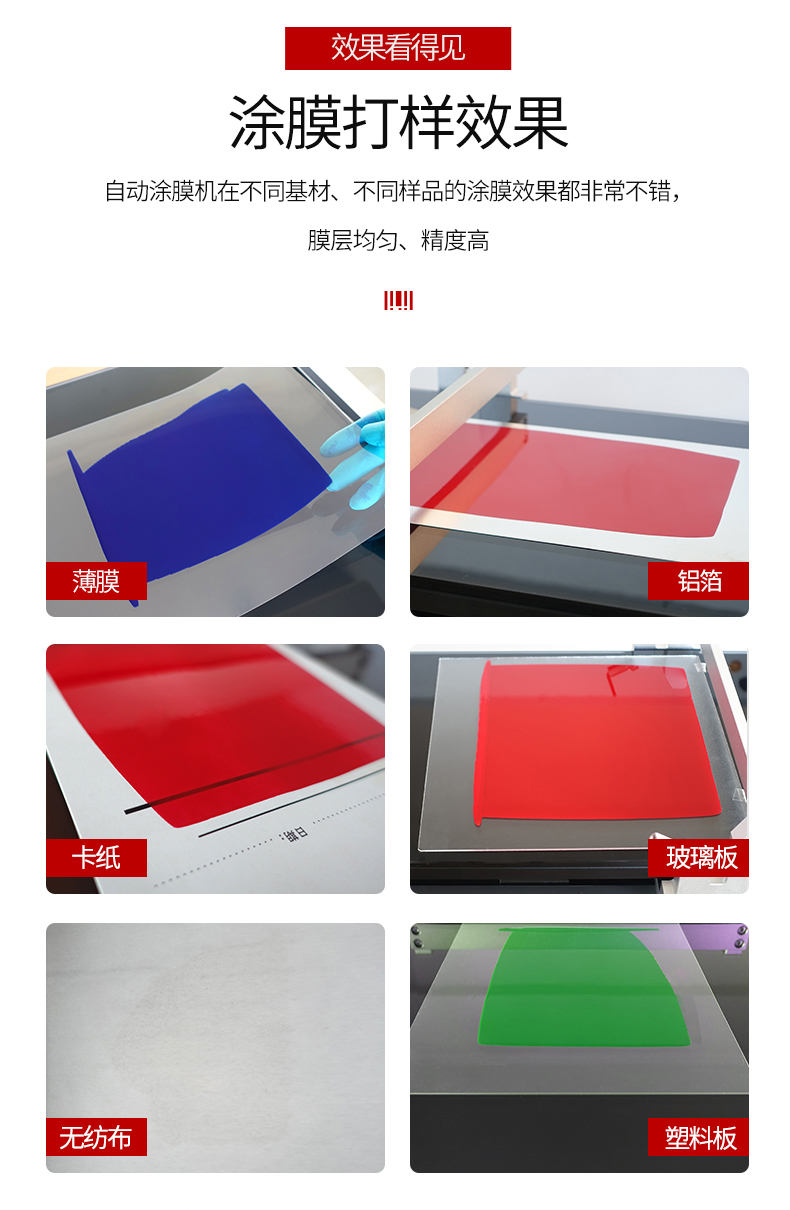

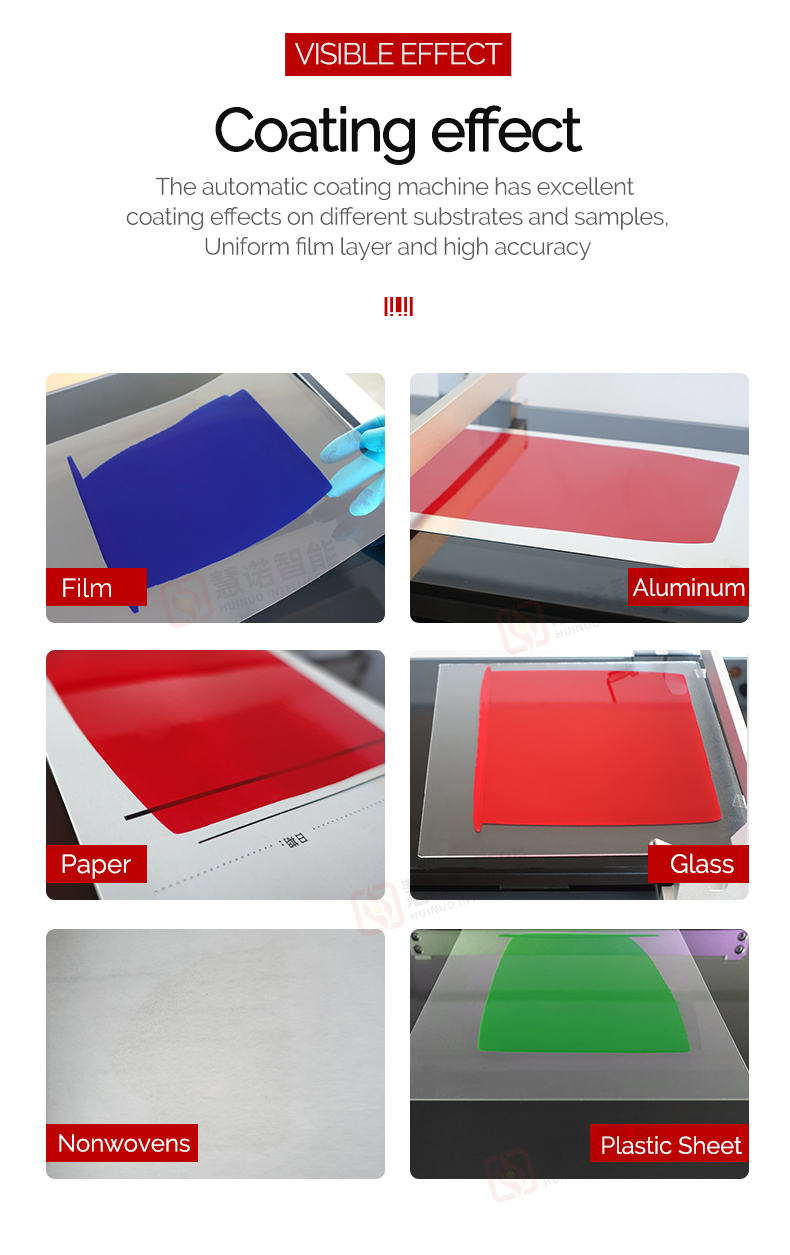

The film coating machine is suitable for coating samples of coatings, inks, paints, pastes, lithium batteries, pressure-sensitive adhesives, resins, glues, polymer materials, chemicals, etc., and can be scraped on glass, cardboard and cloth.
Features:

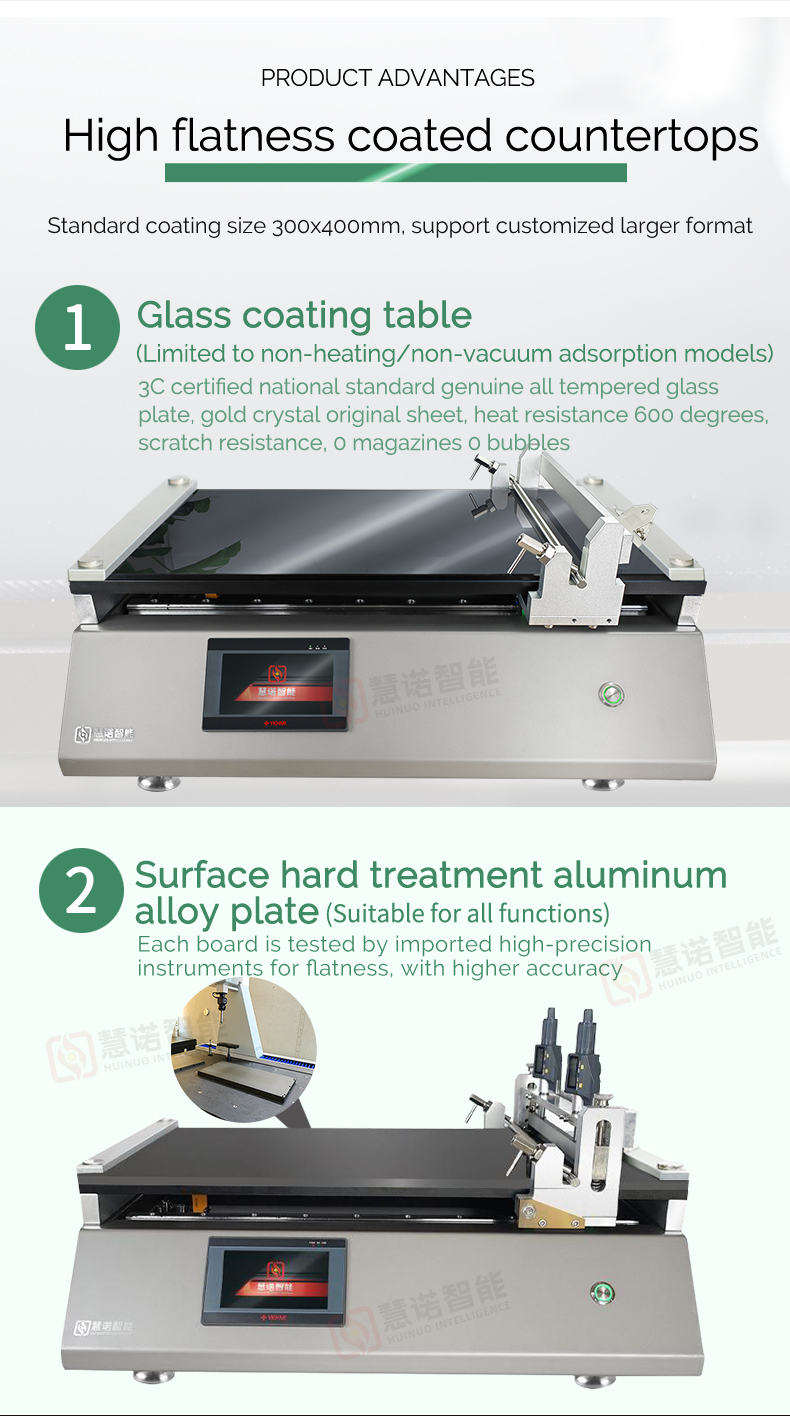

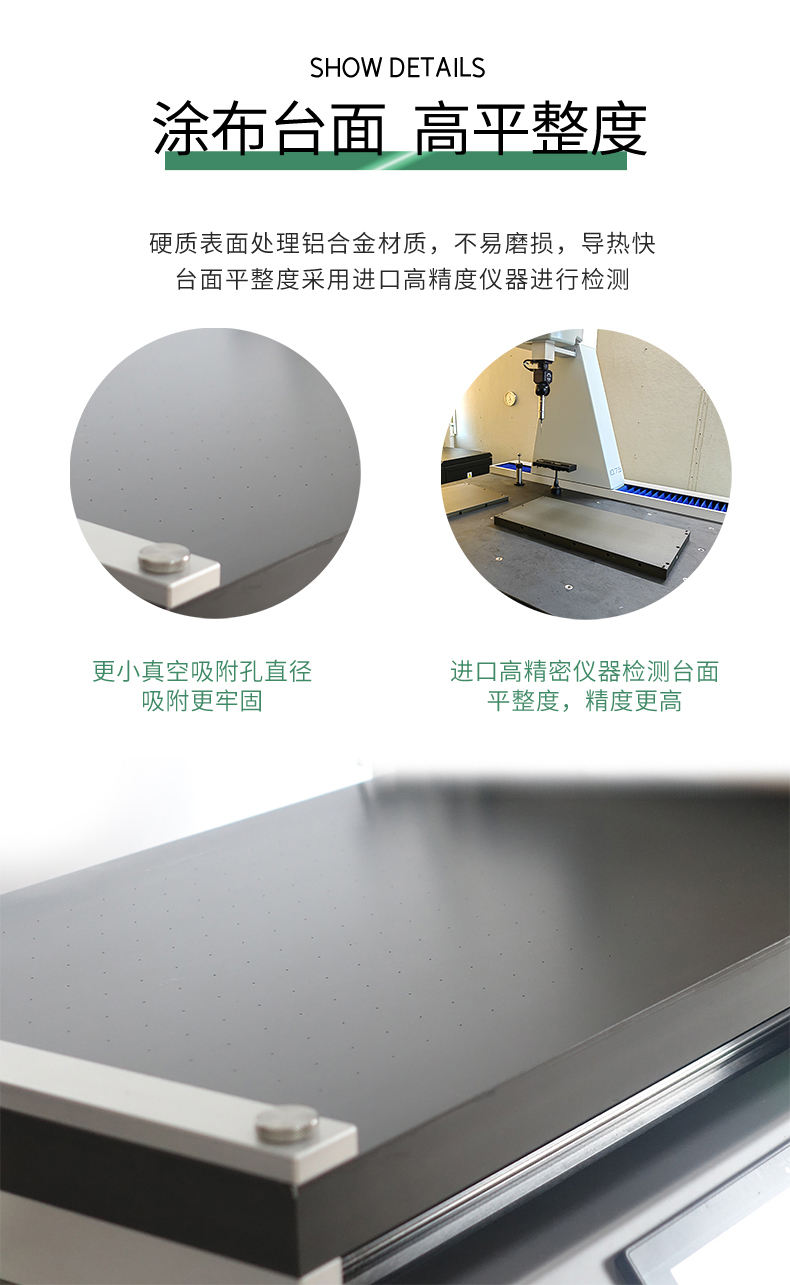

1) The surface is hard treated aluminum alloy table, with high hardness and wear-resistant, and the flatness of the table is tested by imported high-precision instruments.
2) Big brand differential regulator, high film thickness control accuracy

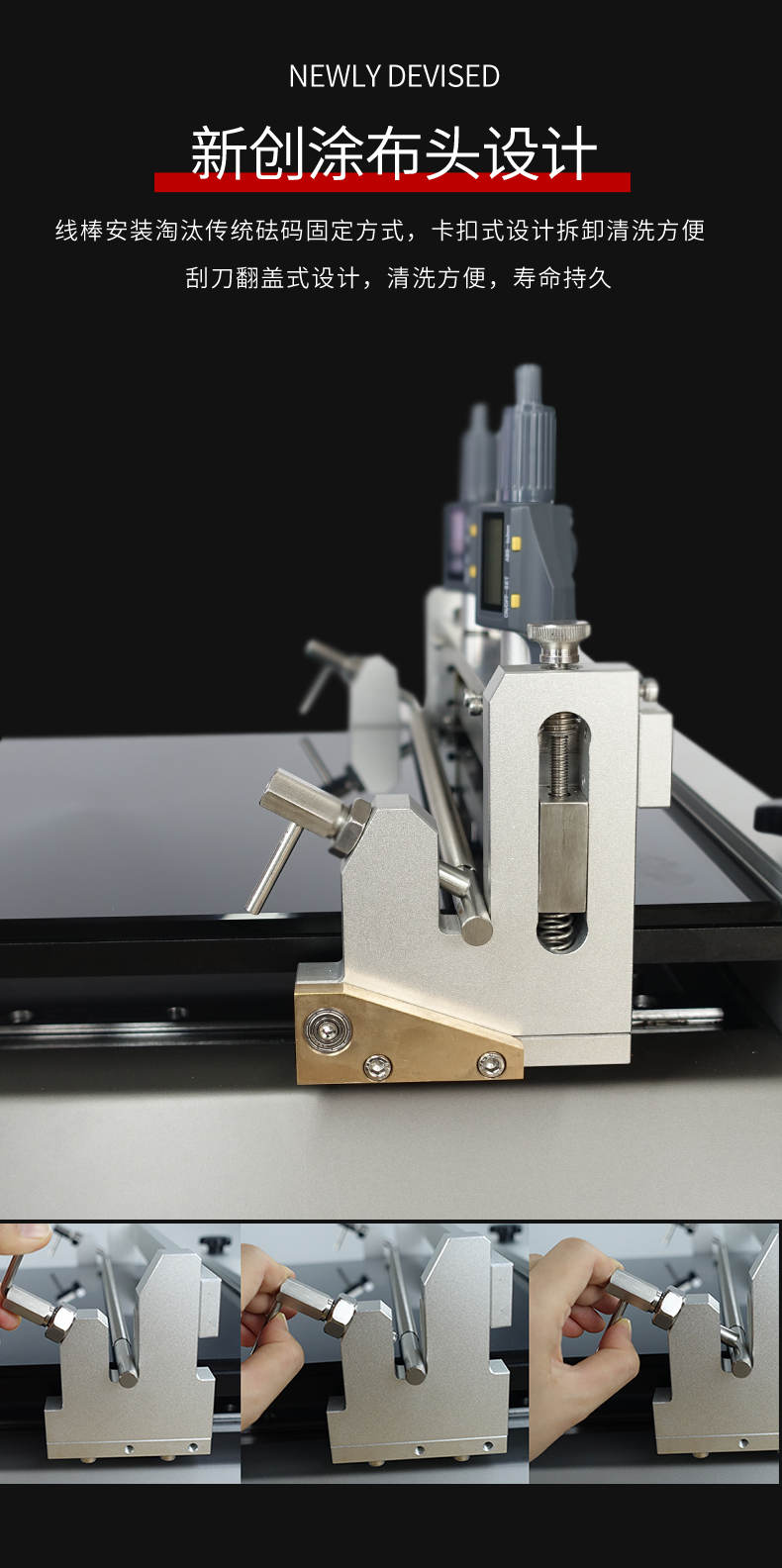

3) Clamshell scraper coating head, easy to clean

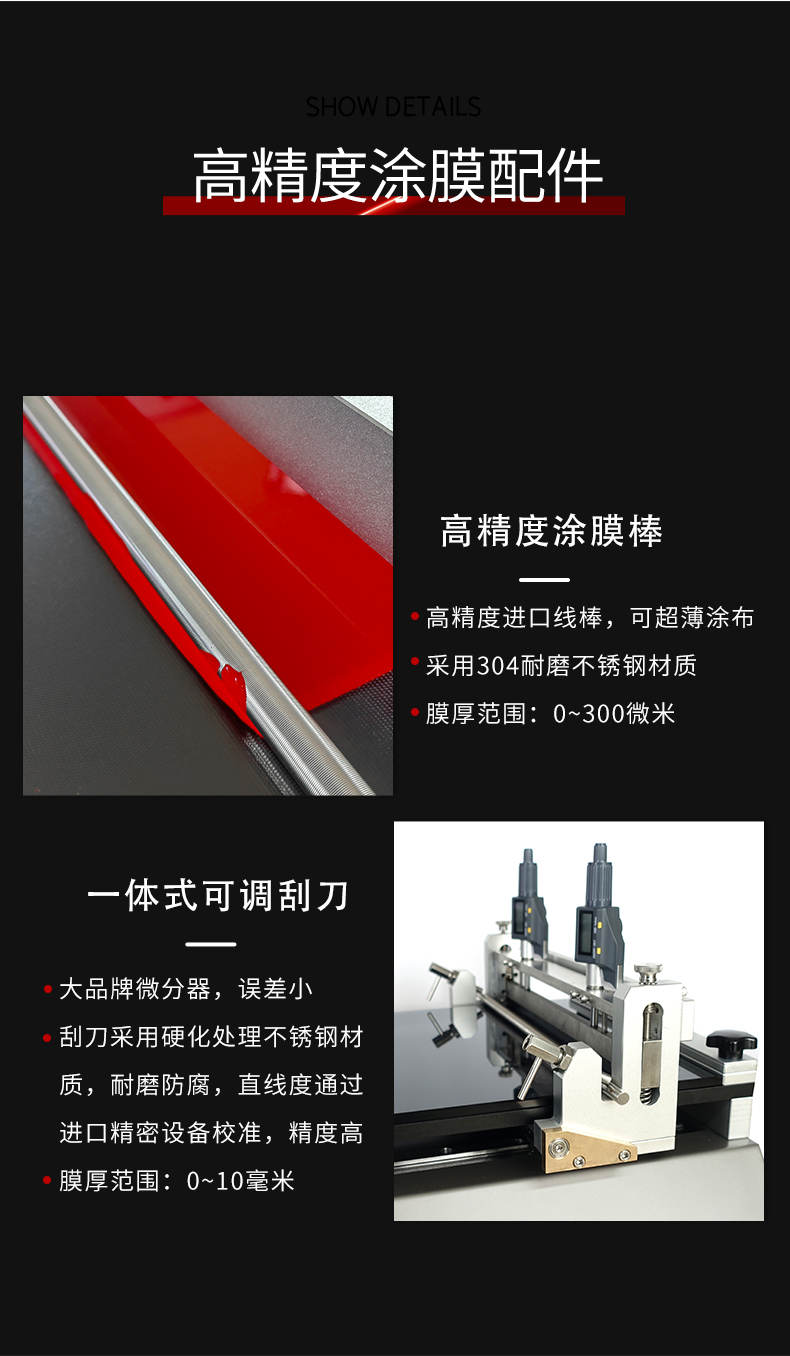

4) Equipped with high-precision Film Applicator, the original imported wire rod coating film is uniform and has high precision
5) Touch screen control panel, easy to operate
6) The coating length and coating speed can be adjusted freely
7) With heating and vacuum adsorption function.

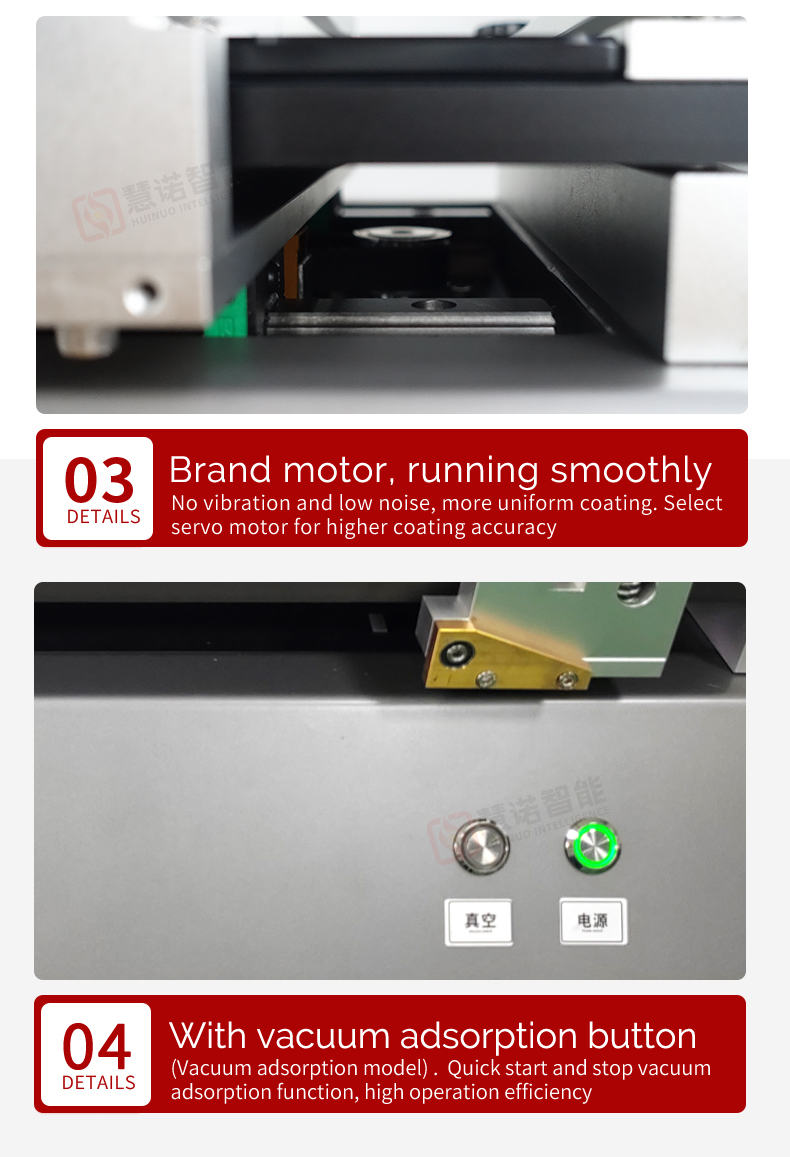

8) Servo motor is adopted, the operation is more stable, and the coating accuracy is higher.
HuiNuo TM3300/45D Automatic Film ApplicatorSpecifications
| LIST | VALUE |
|---|---|
| Spreader mode | Wire rod + scraper |

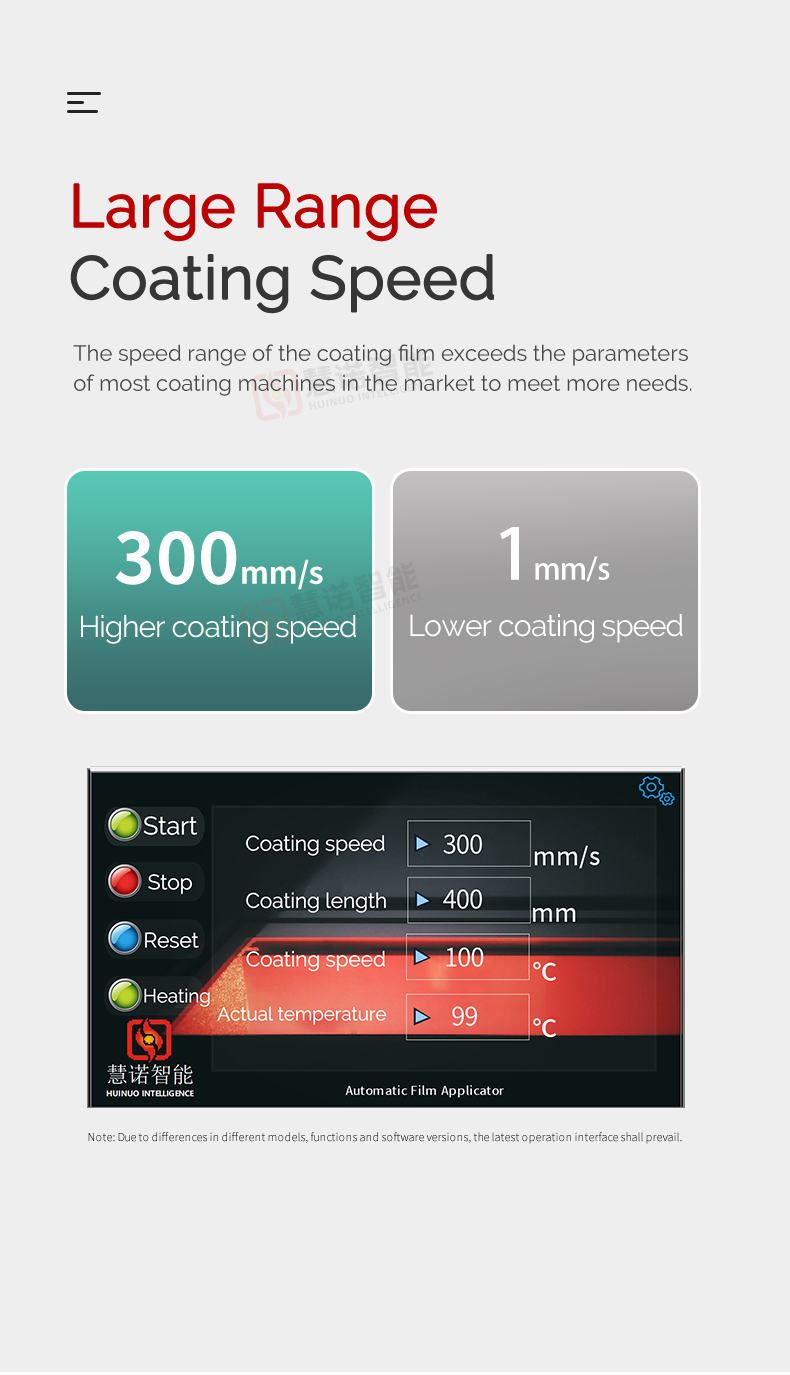

| Spreader rate | 1~ 300Mm/s stepless speed regulation (can be customized) |

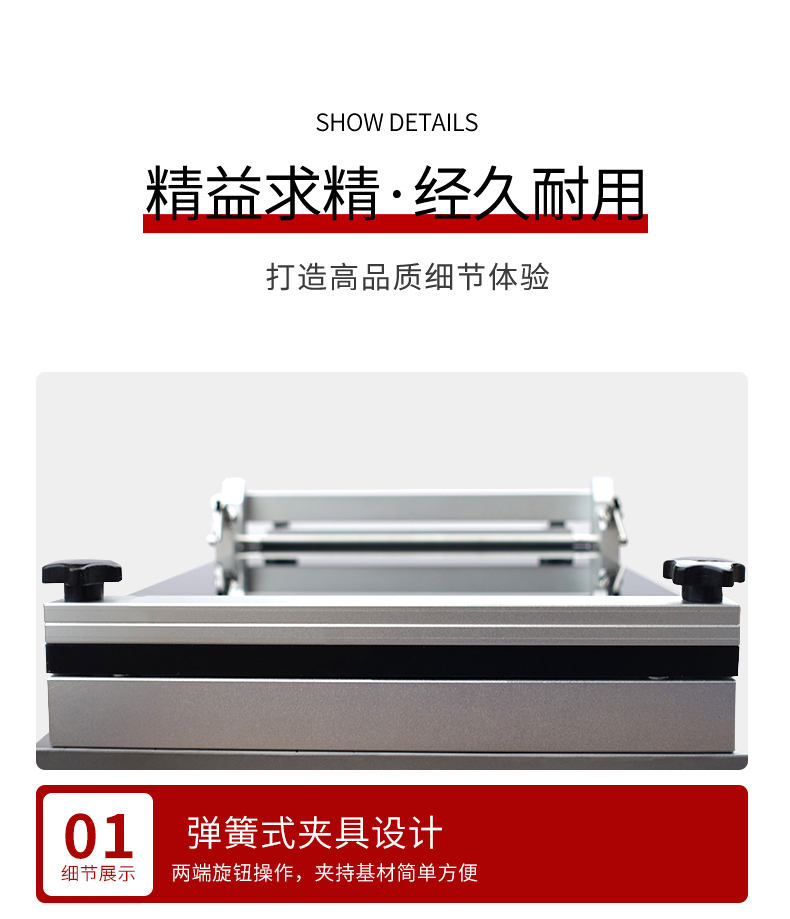

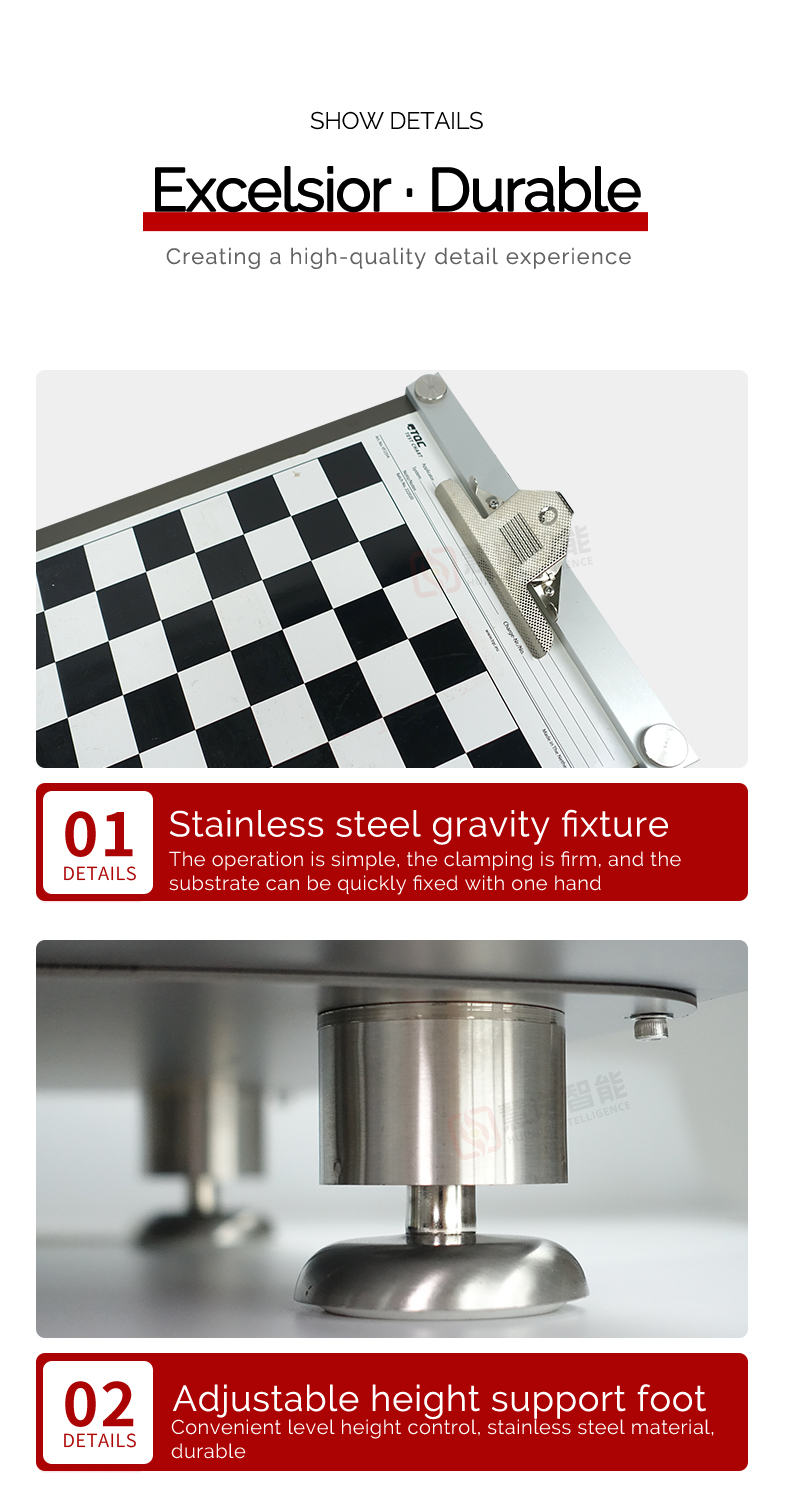

| Substrate fixing method | Vacuum adsorption + fixture |
| Spreader material | Surface hard treatment aluminum alloy |
| Spreader size | 1240*630mm |
| Effective Spreader Area | 1000 * 600Mm (can be customized) |
| Spreader Film thickness range | Different rod numbers Film thickness is different, with High Accuracy imported wire rod |
| Spreader accuracy | ±5% |
| Spreader Film thickness range | 0.1~ 10Mm (clamshell design is easy to clean) |
| Scraper material | Die steel |
| Spreader Width | 300mm |
| Spreader accuracy | ±10% |
| Vacuum adsorption size | 1080 * 560Mm (can be customized) |
| vacuum aperture | Φ0.8mm |
| Vacuum hole spacing | 20*20mm |
| Vacuumpump pumping rate | 5.4m3/h |
| ultimate vacuum | 50KPa |
| Vacuumpump power | 180W |
| Vacuumpump weight | 7.1kg |
| Heating method | Mica sheet heating (optional graphene heating, faster thermal conductivity) |
| Temperature range | RT +~ 180 ℃ (can be customized) |
| Temperature Uniformity | ±1℃ |
| operating language | Chinese (can be customized in English) |
| display screen | Color LCD touch screen |
| Host power supply | 100V~220V/50~60HZ |
| power | 1800w |
| Dimension | 1260*740*940mm |
| weight | 40kg |
HuiNuo TM3300/45D Automatic Film Applicator Packing list
Host X1, manual X1, scraper x1, imported wire rod X1, certificate X1, Vacuumpump X1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
