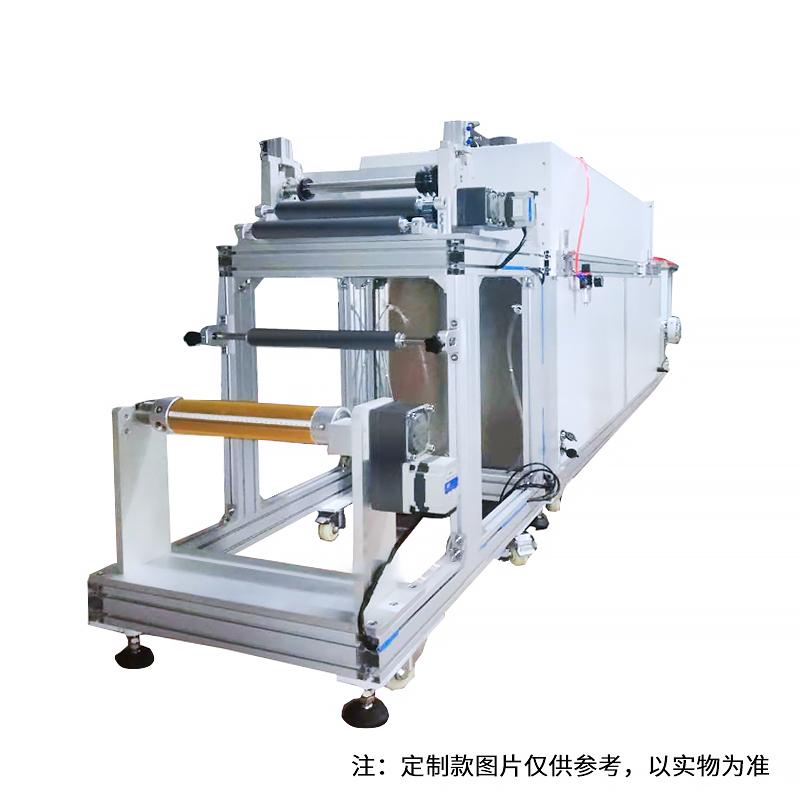

Factory Direct Rva-04/300 Micro Concave Roll Film Applicator 300mm Effective Spreader Width
Effective Spreader width 300mm, production line speed 0.5-10 m/min stepless speed regulation, suitable for PET, PI, copper foil and other flexible substrate precision thin layer Spreader, tension control range 2-50N can be set in sections.
Factory
Rva-04/300
-
Oven coil automatic composite coater with unwinding + scraping + drying + covering + winding function
Login -
CHINA immersion coil drying air-cooled slitting machine Rdc-01/500clcs dip coating machine
$ 28053.00 -
$ 10175.00 -
NBC-SNJ500 touch screen hydrogel coater with slitting
Login -
CHINA immersion coil drying air-cooled slitting machine Rdc-01/500cs dipping coating machine
$ 34271.00
Product Overview:
Micro-concave roll-to-roll coating machine, roll-to-roll micro-concave coating experiment/pilot production line with effective coating width of 300mm. This production line is used for precise, thin layer coating on the surface of flexible substrates (such as PET, PI, copper foil, etc.), and the main process flow is: unwinding → micro-concave coating → drying → winding. The equipment design needs to meet the needs of high precision, high stability, easy operation and maintenance, and future process expansion.
Equipment manufacturing and installation standards
The main structure of the equipment is made of high-quality carbon steel, and the inner wall of the oven and the part in contact with the material are made of stainless steel 304.
The transmission parts (bearings, guide rails, and screws) are made of domestic brands.
The wires and cables comply with CE standards, and the trunking layout is standardized and clearly marked.
The surface of the equipment is treated with anti-rust and spray paint.
Safety and environmental protection requirements
Compliance with machinery safety standards (e.g. CE or GB standards)
Detailed equipment safety operation manuals are provided
Factory Rva-04/300 Micro Concave Roll to Roll Film ApplicatorSpecifications
| LIST | VALUE |
|---|---|
| Production line speed | 0.5 - 10 m/min (stepless speed regulation) |
| Applicable substrate width | Max. 330 mm |
| Effective Spreader Width | 300 mm |
| Spreader Film thickness | Customized according to the parameters of the micro-concave anilox roller |
| Film thickness range | 0.012 - 0.2 mm (e.g. PET: 12-250 μm) |
| Core inner diameter | 3 inches (76mm)/6 inches (152mm) adjustable |
| Maximum unwinding/rewinding diameter | Φ600 mm |
| Tension control range | 2 - 50 N (can be set in sections) |
| Total equipment length (approx.) | 8 - 10 meters (depending on the detailed layout of the drying section) |
| unwinding unit | / |
| Unwinding mechanism | Core inner diameter: 3 "/6" optional; maximum roll diameter: φ 600mm |
| Deviation correction system (EPC) | Correction accuracy ： +/- 0.1mm; Response speed: ≤ 0.2s |
| Tying and buffering | Buffer stroke: ≥ 1.5 meters (to ensure that the process section does not stop for rewinding) |
| tension control | Control range: 2-30N; control accuracy ： +/- 0.5N |
| Micro-concave Spreader Head Unit (Core) | / |
| Micro gravure plate roller | Standard diameter: φ 80mm; mesh range: 80-400 lines/inch (selected according to the process); standard 1 (parameters are mainly customized by customers) |
| Spreader back roller | Diameter: φ 200mm; Silicone Hardness: Shaw A 70 ° +/- 5 ° |
| cleaning | Easy to clean and maintain, maintain local environment |
| Box structure | Total length: 4 meters; Length per temperature zone: 1 meter |
| Dry box unit | / |
| Heating and air circulation | Temperature range: room temperature~ 150 ℃; temperature control accuracy ： +/- 1 ℃; wind speed adjustable: 0.5-3 m/s |
| Exhaust system | Total exhaust air volume: ≥ 1000 m ³/h; |
| winding unit | / |
| Winding mechanism | Maximum roll diameter: φ 600mm; roll accuracy ： +/- 1mm |
| correction system | Correction accuracy ： +/- 1mm |
| tension control | Control range: 5-50N; support taper tension (0-100% can be set) |
| Transmission and Tension System | / |
| Tension partition | The tension of each zone can be set and displayed independently, resulting in a smooth transition |
| Guide roller specification | Roller surface full runout ≤ 2mm; |
| Electrical and control systems | / |
| Control core | Responsible for the logic, synchronization, temperature and tension calculation of the whole line |
| Human Machine Interface (HMI) | Chinese interface |
| motion control | High Response for Stable Speed and Tension |
Factory Rva-04/300 Micro Concave Roll to Roll Film Applicator Packing list
Machine x1, Spreader head x1, manual x1, certificate x1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
