Huinuo TM3200UV/03 metering rod & doctor blade vacuum adsorption Coater (with UV curing) ECA 20 * 15cm
Support two Spreader methods of wire rod and scraper, suitable for different viscosity materials. Spreader speed 1~ 300mm/s stepless speed regulation, scraper Spreader Film thickness range 0.1~ 10mm. Equipped with vacuum adsorption function, clamshell magnetic scraper design is easy to clean.
HuiNuo
TM3200UV/03
-
CHINA Experimental Perovskite Film Applicator TBJ-X3-ABO5 with imported wire rod, with air knife + air knife bracket
$ 5240.00 -
China TBJ-X1 Vacuum chuck Drawdown blade Film Applicator Lithium battery small Coater
$ 2812.00 -
HuiNuo TM1300/01 bar heating vacuum adsorption Coater 180 ℃/50 * 50cm
$ 5553.00 -
HuiNuo TM2000Pro/02 drawdown blade Film Applicator Coating size 400 * 300mm
$ 2421.00 -
HuiNuo TM2200Pro/03 drawdown blade vacuum adsorption high-precision Coater effective Spreader area 400 * 400mm
$ 5397.00
product description

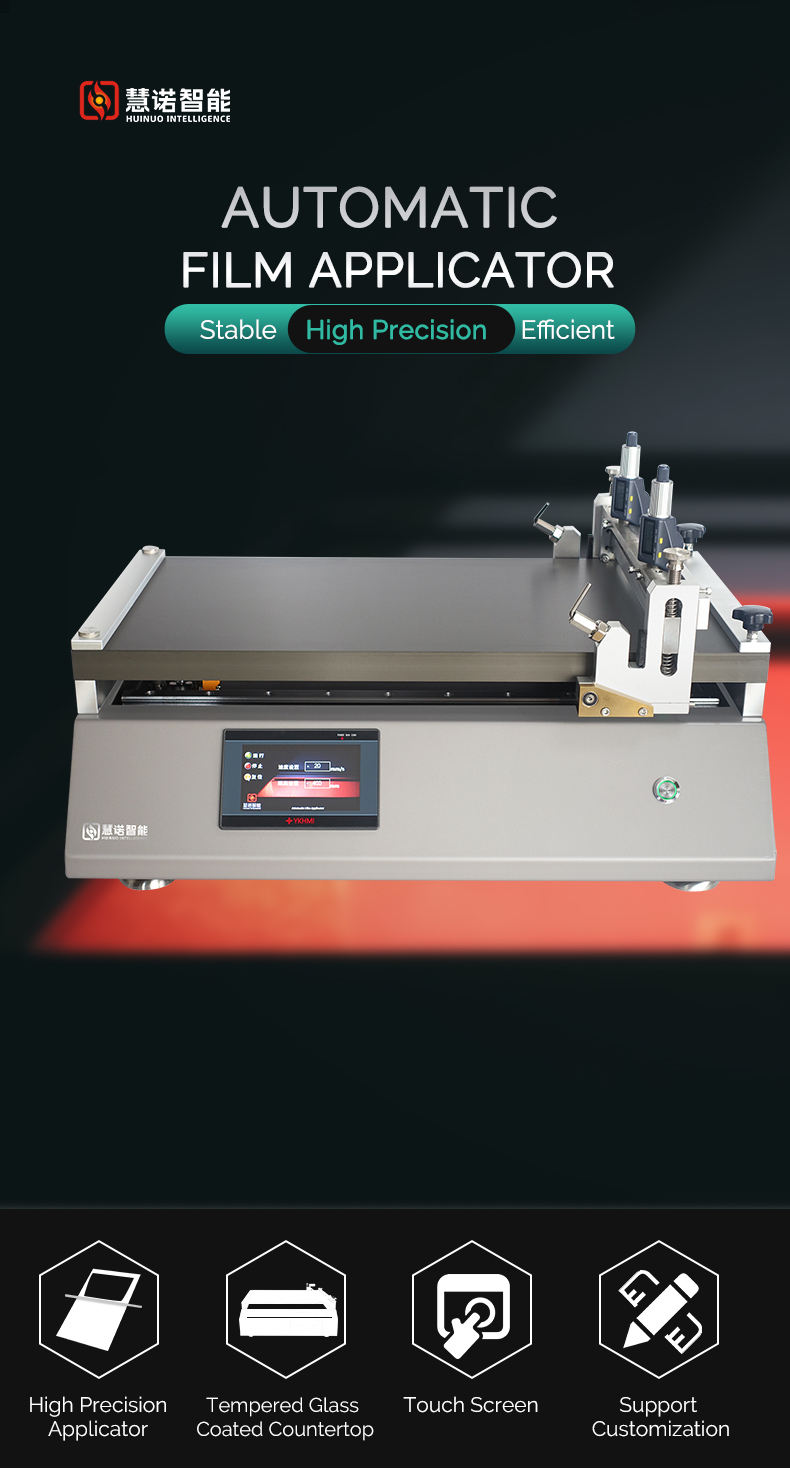

The automatic film coating machine is a device used for coating films in the laboratory. It replaces manual coating and automatically applies film to improve the accuracy and efficiency of coating. The Principle of the experimental automatic film coating machine is to evenly coat the sample on the substrate to form the required film by controlling the coating head and coating parameters.
This coating machine is a wire bar blade coating machine with two functions: wire bar coating and blade coating. The innovative wire bar installation method and flip-type scraper head greatly improve the coating efficiency, facilitate cleaning, and have speed control. And the coating length adjustment function is suitable for high-precision automatic coating in laboratories, and film production and proofing in university research institutes, new materials, lithium batteries, glue, resin and other laboratories.
Applications
The film coating machine is suitable for coating film sample preparation of coatings, inks, paints, slurries, lithium batteries, pressure-sensitive adhesives, resins, glues, polymer materials, pharmaceuticals, etc. It can be applied on glass, cardboard, and cloth.
Features
1) The glass tabletop is a 3C certified national standard authentic fully tempered glass plate, original gold crystal, heat-resistant to 600℃, scratch-resistant and scratch-resistant
2) Big brand differential regulator, high film thickness control accuracy

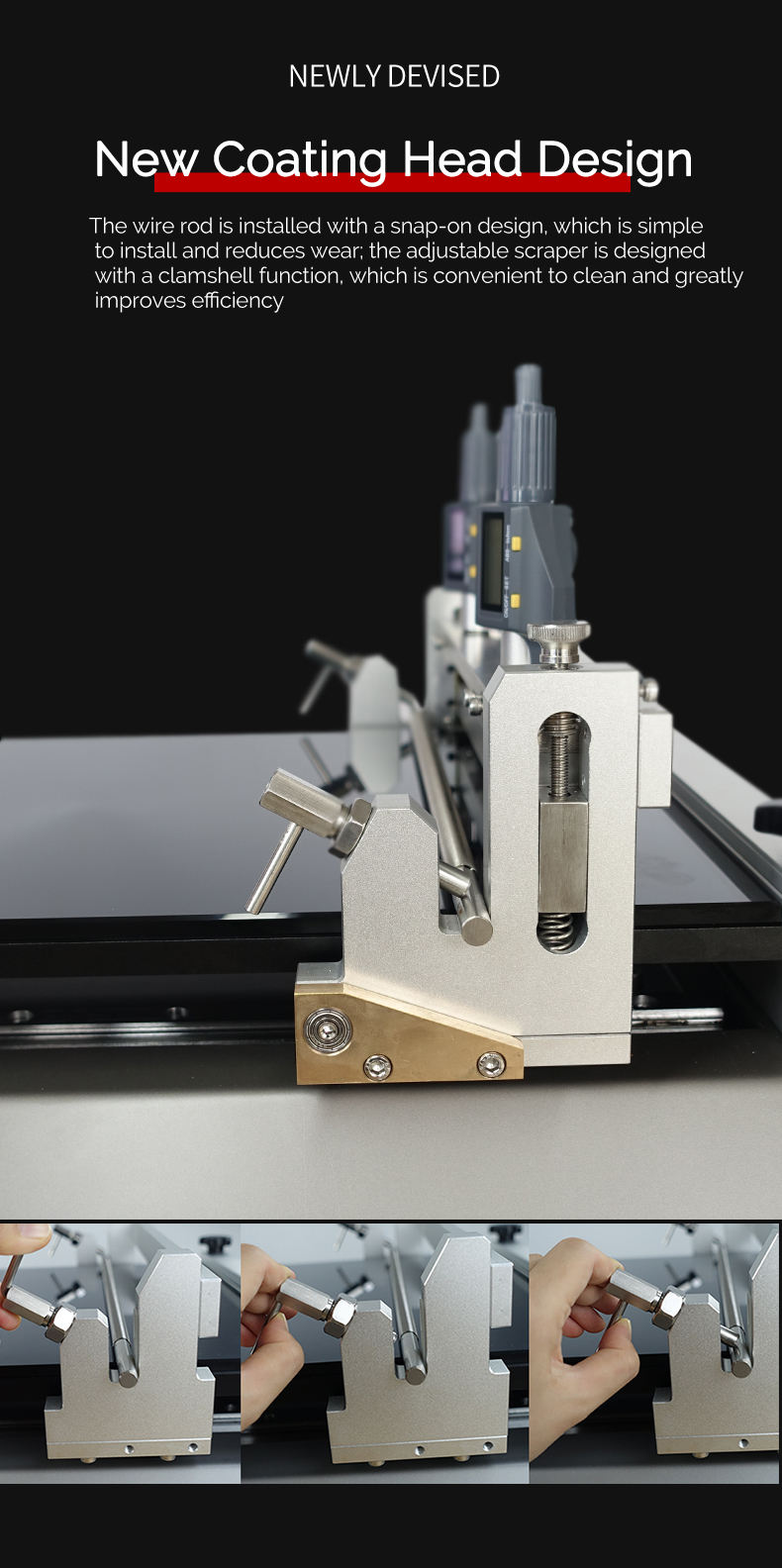

3) Flip-type doctor blade coating head, easy to clean
4) Equipped with a high-precision Film Applicator, the original imported wire rod can apply the film uniformly and with high precision

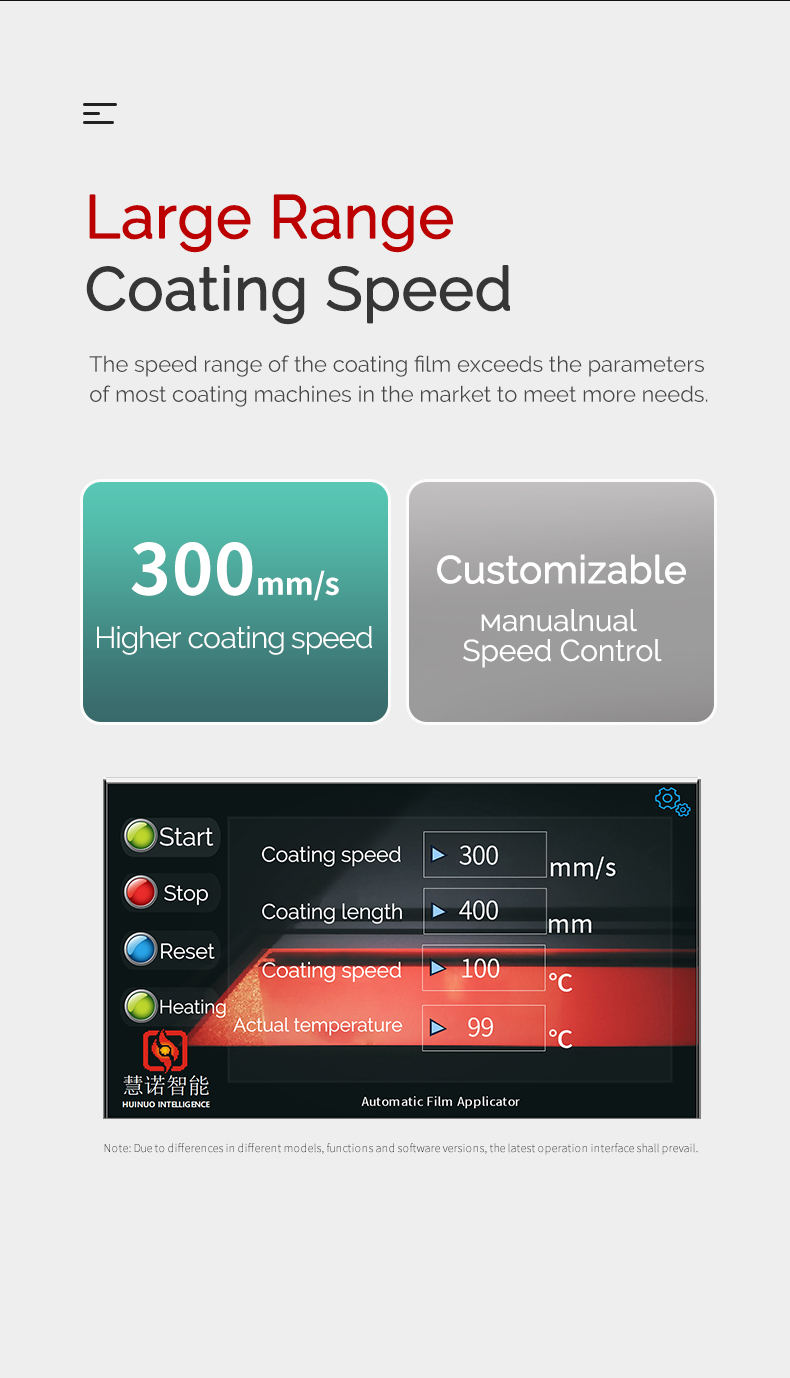

5) Touch screen control panel, easy to operate
6) Coating length and coating speed can be adjusted freely

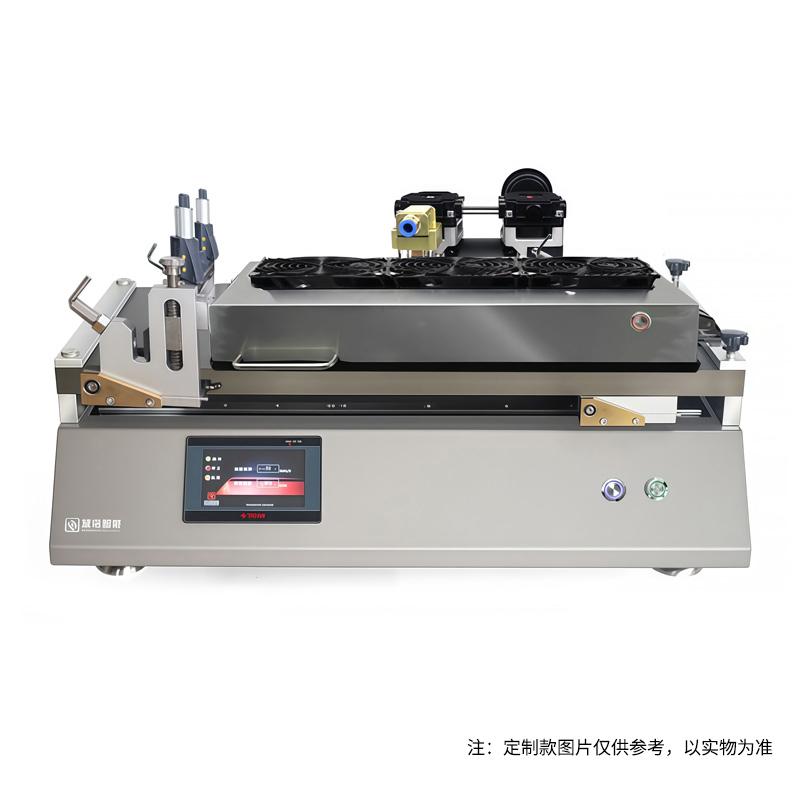

HuiNuo TM3200UV/03 Automatic Film Applicator (with UV curing)Specifications
| LIST | VALUE |
|---|---|
| Spreader mode | Wire rod + scraper |
| Curing method | Heat curing + UV UV curing |
| Spreader rate | 1~ 300Mm/s stepless speed regulation (can be customized) |
| Substrate fixing method | Vacuum adsorption + fixture |
| Spreader material | Surface hard treatment aluminum alloy |
| Spreader size | 440 * 180mm (subject to actual customization) |
| Effective Spreader Area | 200 * 150Mm (can be customized) |
| Spreader Film thickness range | Different rod numbers Film thickness is different, with High Accuracy imported wire rod |
| Spreader accuracy | ±0.001mm |
| Spreader Film thickness range | 0.1~ 10Mm (clamshell design is easy to clean) |
| Scraper material | Die steel |
| Spreader Width | 150mm |
| Spreader accuracy | ±0.003mm |
| Vacuum adsorption size | 280 * 110Mm (subject to actual customization) |
| vacuum aperture | Φ0.8mm |
| Vacuum hole spacing | 20*20mm |
| Vacuumpump pumping rate | 5.4m3/h |
| ultimate vacuum | 50KPa |
| Vacuumpump power | 180W |
| Vacuumpump weight | 7.1kg |
| operating language | Chinese (can be customized in English) |
| UV curing area | 200*150mm |
| UV light main peak wave | 365nm |
| UV light power | 400*2W |
| UV light curing wavelength | 350-450nm |
| switch | Aviation plug/separate switch |
| Light source spacing | 18*18mm |
| Light board height from Spreader | 20Mm (support customized adjustable height) |
| Light type | LED |
| UV energy value | 300-400mj/cm2 |
| display screen | Color LCD touch screen |
| Host power supply | 100V~220V/50~60HZ |
| power | 1800w |
| Dimension | 460 * 290 * 430Mm (subject to actual customization) |
| weight | 40kg |
HuiNuo TM3200UV/03 Automatic Film Applicator (with UV curing) Packing list
Host X1, manual X1, scraper x1, imported wire rod X1, UV UV curing device x1, certificate X1, Vacuumpump X1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
