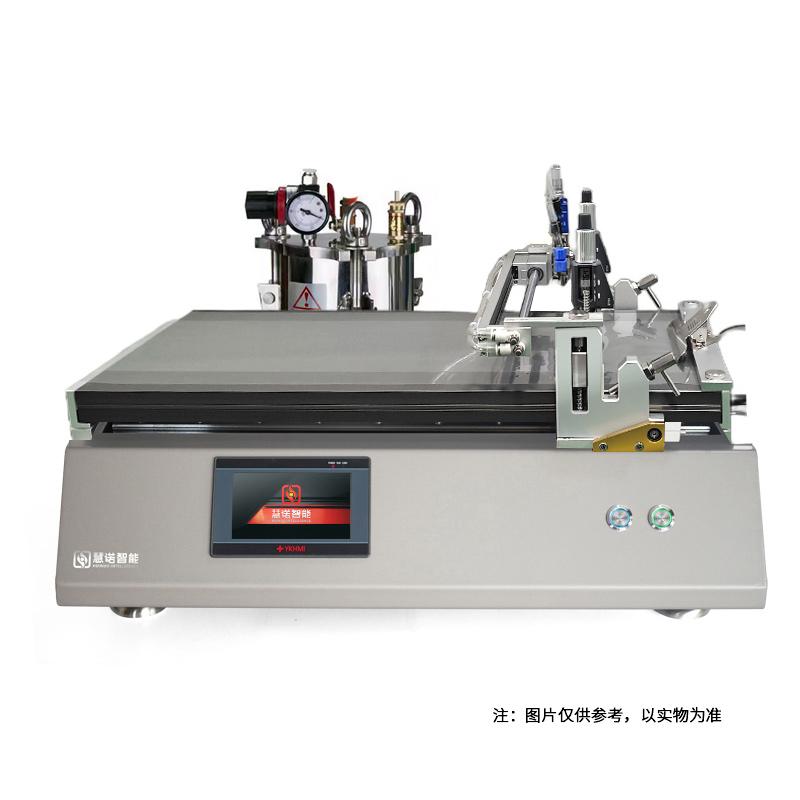

Huinuo TM3300proAF/05 Automatic Film Applicator metering rod & doctor blade heating vacuum adsorption coater (with automatic feeding) Effective area 60 * 60cm

Product Overview:

Automatic film coating machine is a device used to coat film in the laboratory, replacing manual film coating, automating the film coating, and improving the accuracy and efficiency of film coating. The working principle of the experimental automatic film coating machine is to evenly coat the sample on the substrate by controlling the coating head and coating parameters, forming the desired film.

This automatic multi-functional coating machine has an automatic feeding system, supports two coating methods: wire rod coating and scraper coating, suitable for coating materials with different viscosities, high and low viscosity, with heating and vacuum adsorption functions, to meet the coating needs of different materials. The innovative simple wire rod installation method and the clamshell magnetic scraper head greatly improve the coating efficiency and are easy to clean. Touch screen control, simple operation, free to set coating speed and coating length. Coating sizes and coating functions can be customized according to experimental needs.

Product Use:

The film coating machine is suitable for coating and sample of inks, slurries, lithium batteries, adhesives, hot melt adhesives, gels, resins, glues, polymer materials, polymer materials, pharmaceuticals, etc., and can be scraped on different substrates such as glass, cardboard, non-woven fabrics, films, release papers, plastics, silicones, etc.

Product features:

1）Aluminum alloy hard oxidation surface treatment coating base plate,Good wear resistance and high flatness

2) Big brand differential adjuster, scraper film thickness control accuracy is high

3) Simple snap-on wire rod groove, simple to load and unload, avoid wire rod wear

4）New clamshell magnetic scraperdesign, easy and fast to clean

5) Equipped with high-precision film applicator, the original imported wire rod coating film uniformly and high precision

6) Touch screen control panel, easy to operate

7) The coating length and coating speed can be adjusted freely

8) With heating and vacuum adsorption function

9) Servo motor is adopted, which is more stable in operation and higher in coating accuracy

Host X1, manual X1, scraper x1, imported wire rod X1, automatic feeding system x1, 1L barrel x1, certificate X1, Vacuumpump X1

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
