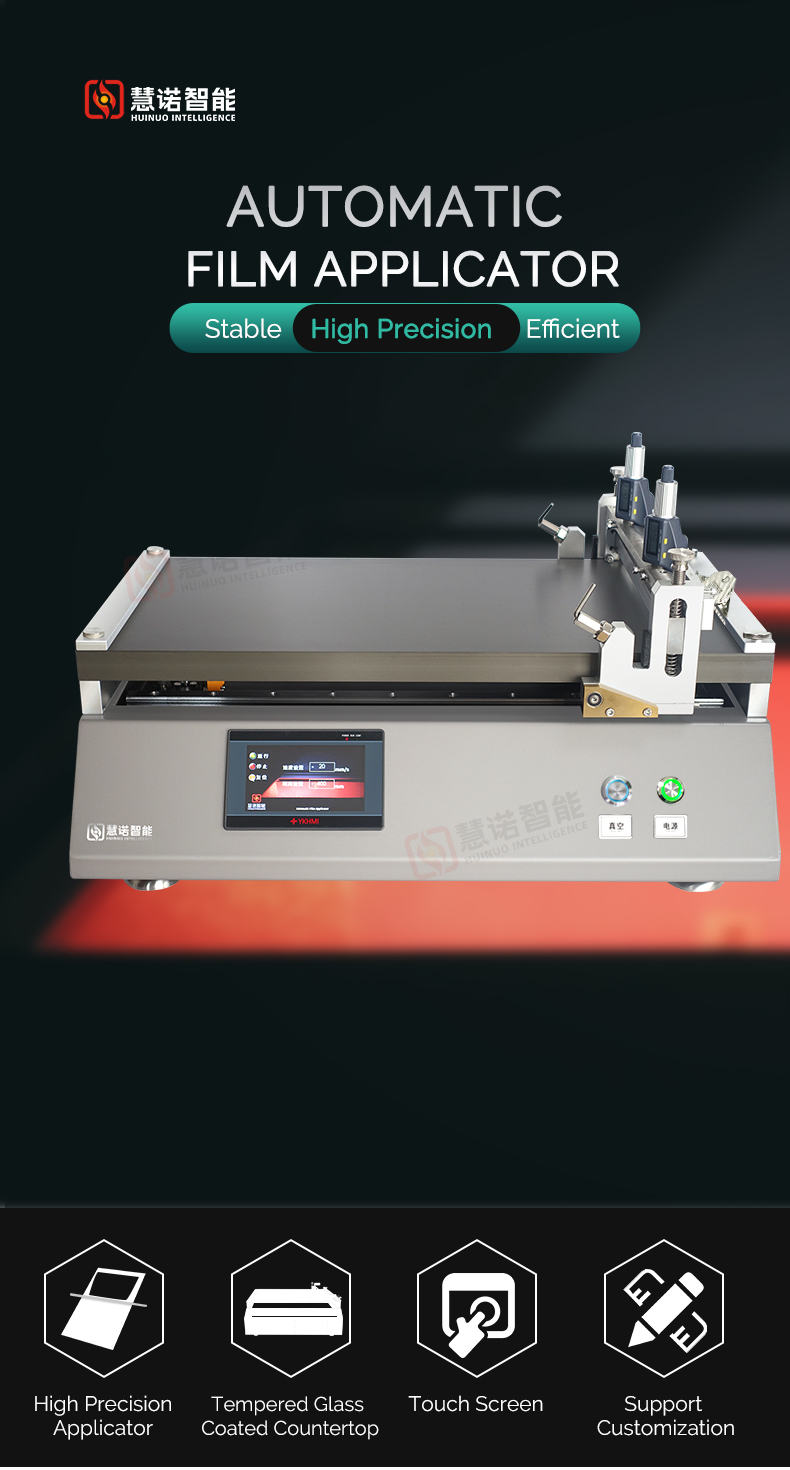

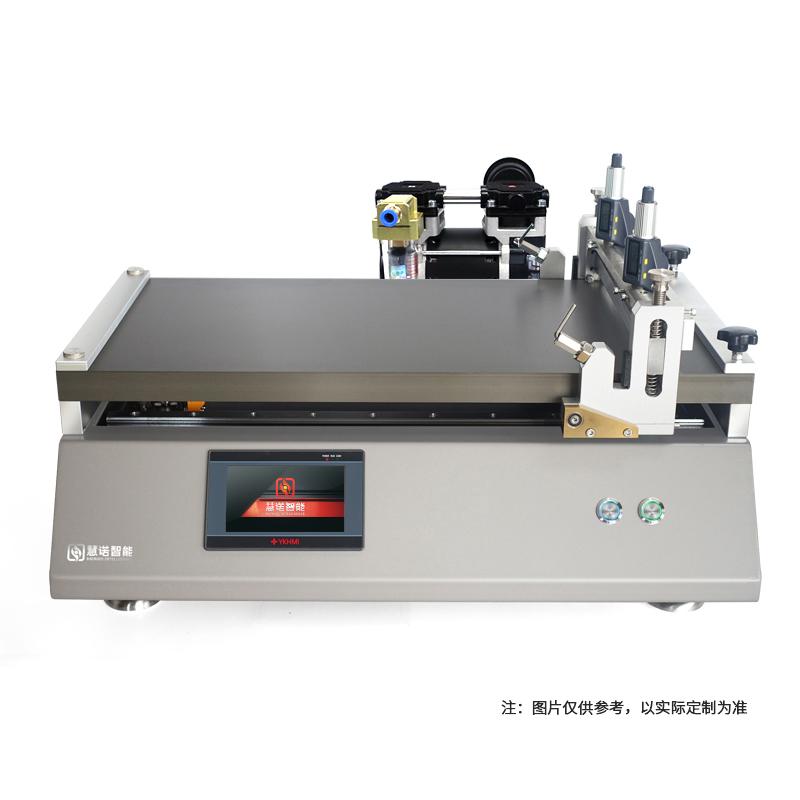

Huinuo TM3200Pro/13 Automatic Film Applicator metering rod & doctor blade vacuum adsorption Coater ECA 52 * 36cm

Spreader speed of 1~ 300mm/s stepless speed regulation, Spreader accuracy of ± 0.003mm. The clamshell scraper head design is easy to clean, and the vacuum adsorption function can stably fix the soft substrate.

Brand

SKU: NB050913

HuiNuo

Model

TM3200pro/13

Price

$ 5914.00

Promotion

Service

The delivery and service By NBchao.Com

Get Quote

HuiNuo shopSE

Information

Datasheet RFQ Contract Video Catalog Manual

What else did others buy

Genuinegoods

HuiNuo TM3200pro/13 Automatic Film ApplicatorOverview
Specifications
Comments
FAQs

TM3200pro/13

Automatic Film Applicator

Overview

Automatic film coating machine is a device used to coat film in the laboratory, replacing manual film coating, automating the film coating, and improving the accuracy and efficiency of film coating. The working principle of the experimental automatic film coating machine is to evenly coat the sample on the substrate by controlling the coating head and coating parameters, forming the desired film.

This coating machine is a wire rod scraper coating machine, using two coating methods of wire rod and scraper, with vacuum adsorption function, the new line rod installation method and clamshell scraper head greatly improve the coating efficiency, easy to clean, support speed control and coating length adjustment, suitable for high-precision automatic coating in the laboratory, in university research institutes, new materials, lithium batteries, glue, hot melt glue and other laboratories for film proofing.

Applications

The coating machine is suitable for coatings, inks, paints, pastes, hot melt adhesives, lithium batteries, pressure-sensitive adhesives, resins, glues, polymer materials, etc., and can be scraped on films, cardboard, aluminum foil and copper foil.

Features

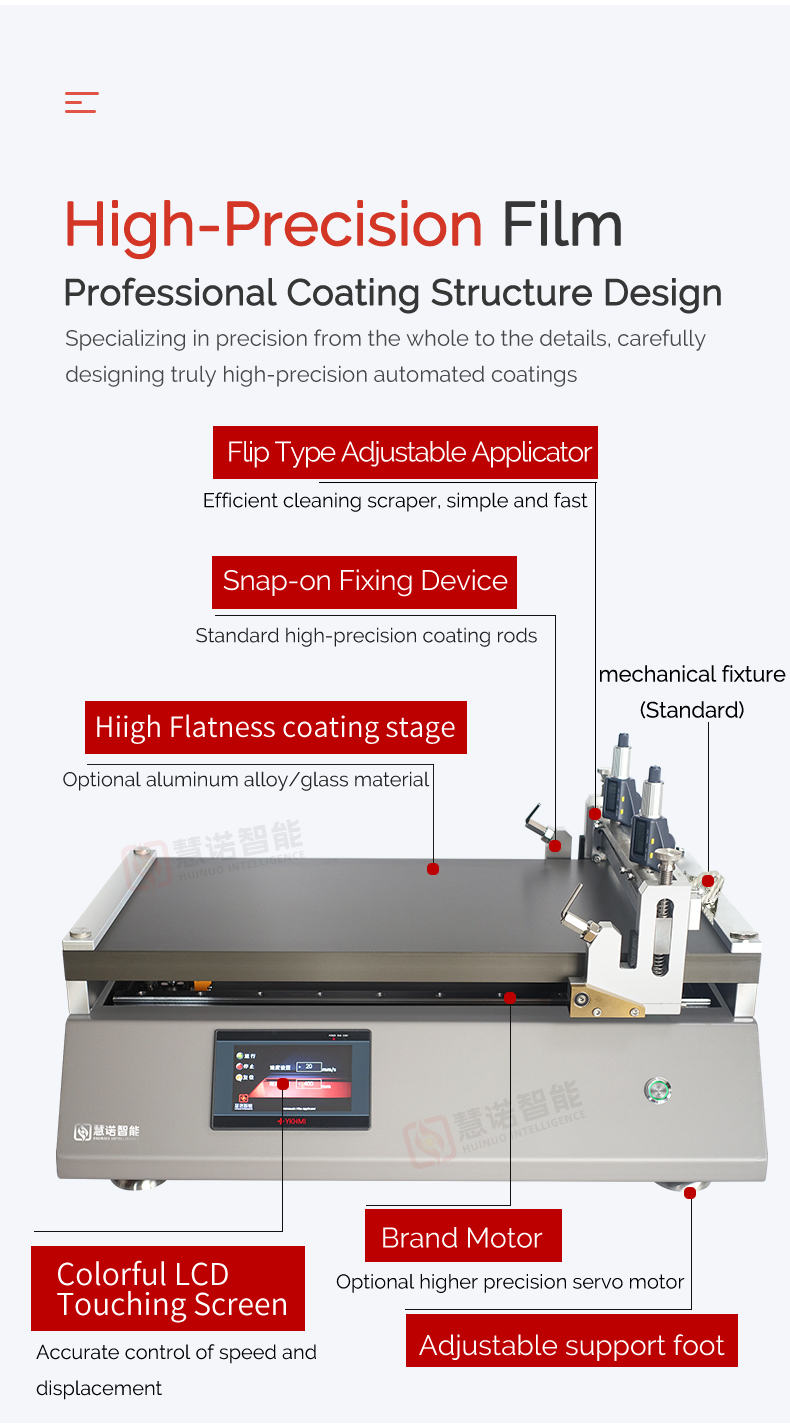

1) Surface hard treatment aluminum alloy countertop, high hardness and wear resistance, and the flatness of the countertop is tested by imported high-precision instruments

2) Big brand differential adjuster, high film thickness control accuracy

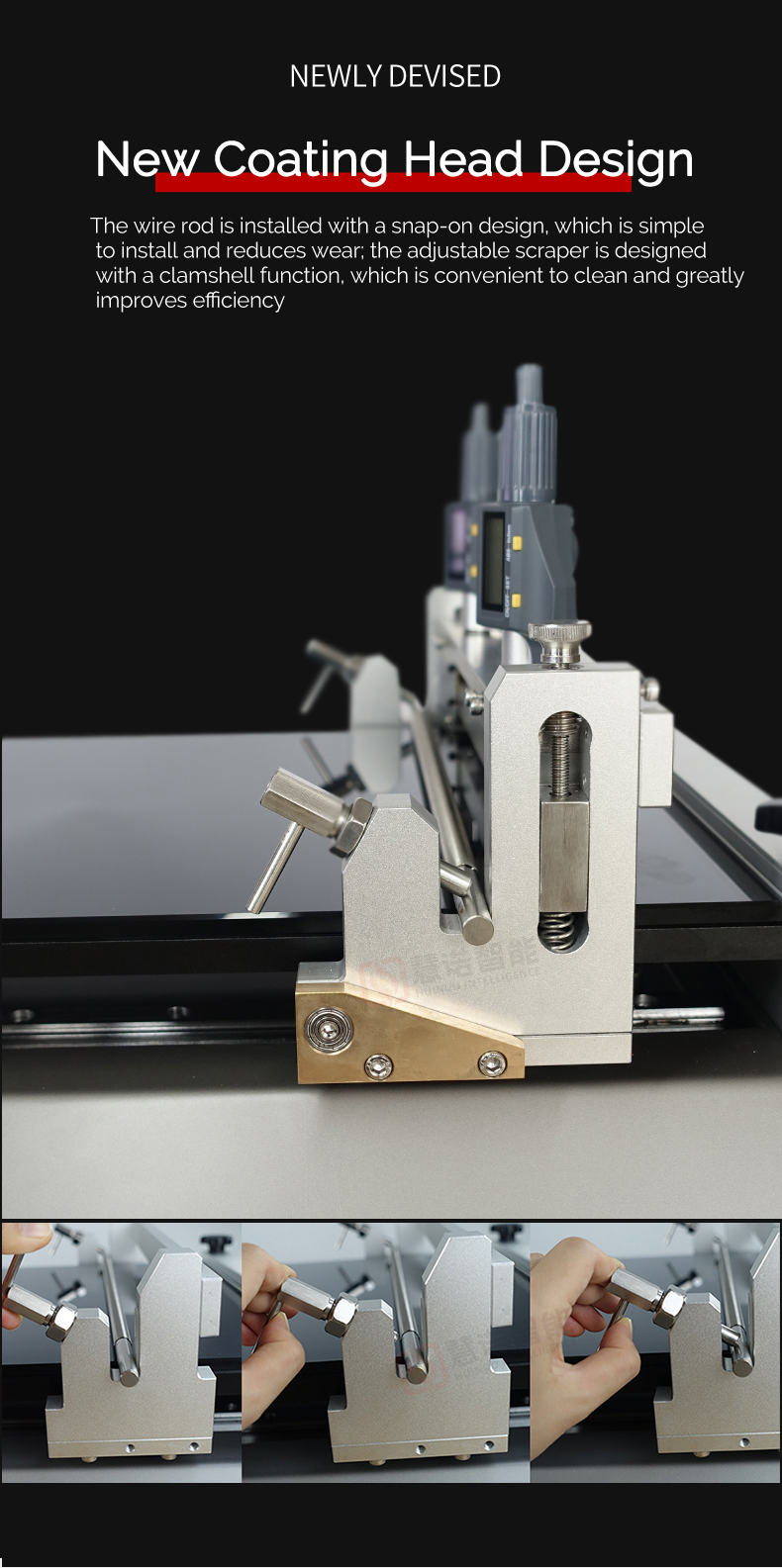

3) Clamshell scraper coating head, easy to clean

4) Equipped with high-precision film applicator, the original imported wire rod coating film is uniform and high accuracy

5) Touch screen control panel, easy to operate

6) The coating length and coating speed can be adjusted freely

7) With vacuum adsorption function, it is suitable for coating soft substrates such as films

HuiNuo TM3200pro/13 Automatic Film ApplicatorSpecifications

LIST	VALUE
coating method	Bar + drawdown blade

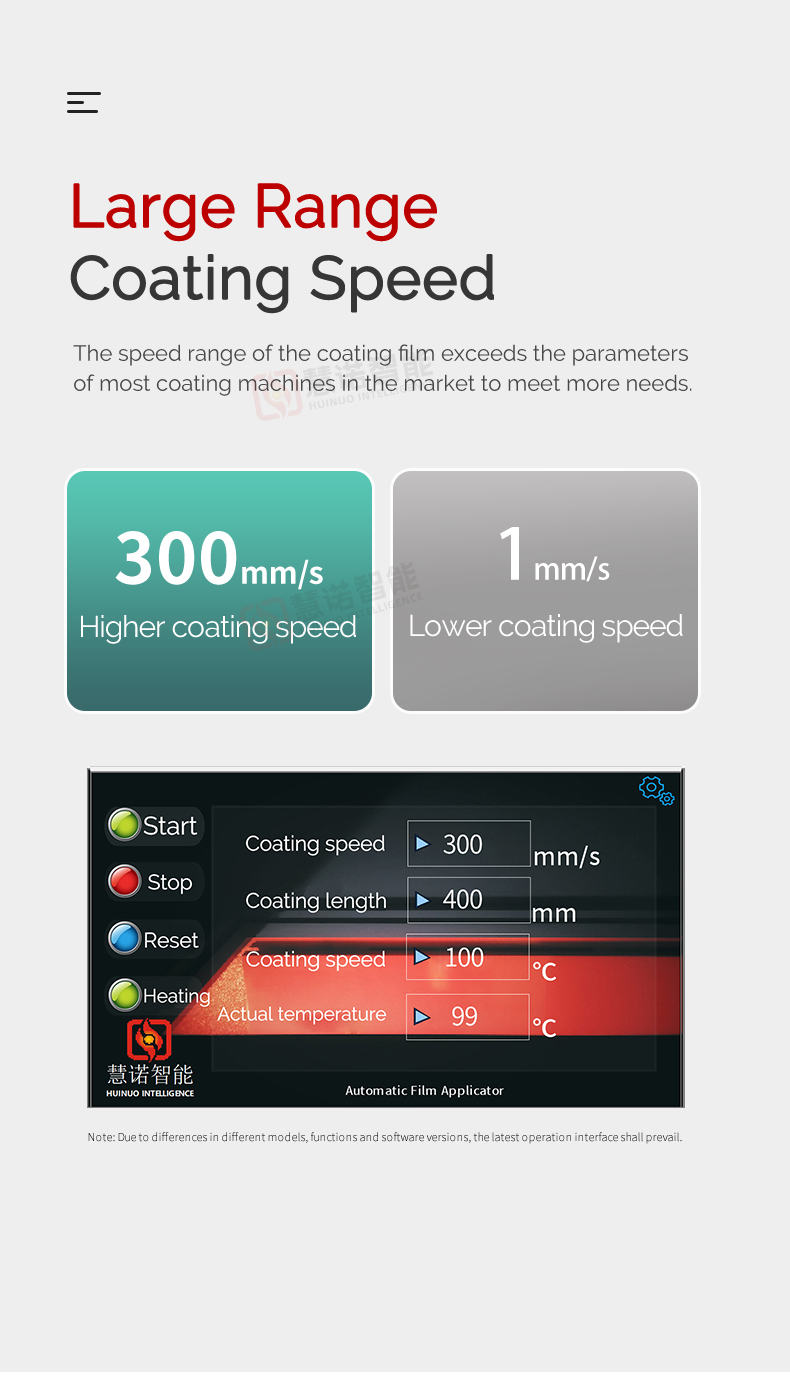

coating speed	1~ 300Mm/s stepless speed regulation (can be customized)
Substrate clamping method	Vacuum chuck + fixture

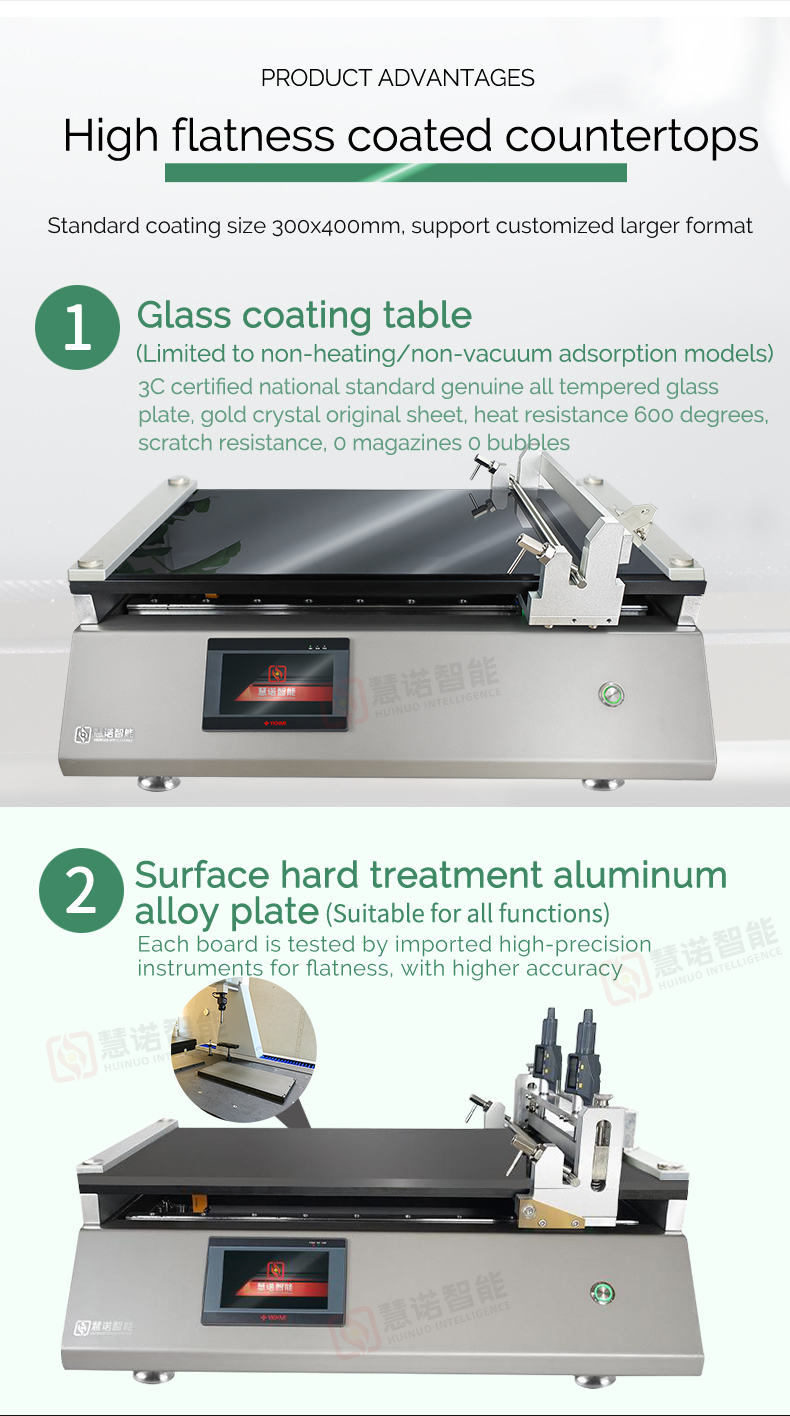

Coating table material	Surface hard treatment aluminum alloy
Coating table size	760*390mm
effective coating area	520 * 360Mm (can be customized)
meyer rod coating thickness range	Different bar sizes have different thicknesses, with High Accuracy imported bars
meyer rod coating accuracy	±0.003mm
Blade Coating Thickness Range	0.1~ 10Mm (clamshell design is easy to clean)
Drawdown blade material	Die steel
Blade Coating Width	360mm
Blade Coating accuracy	±0.003mm
Vacuum Area	600*320mm
Vacuum aperture diameter	Φ1±0.05mm
Vacuum hole pitch	20*20mm

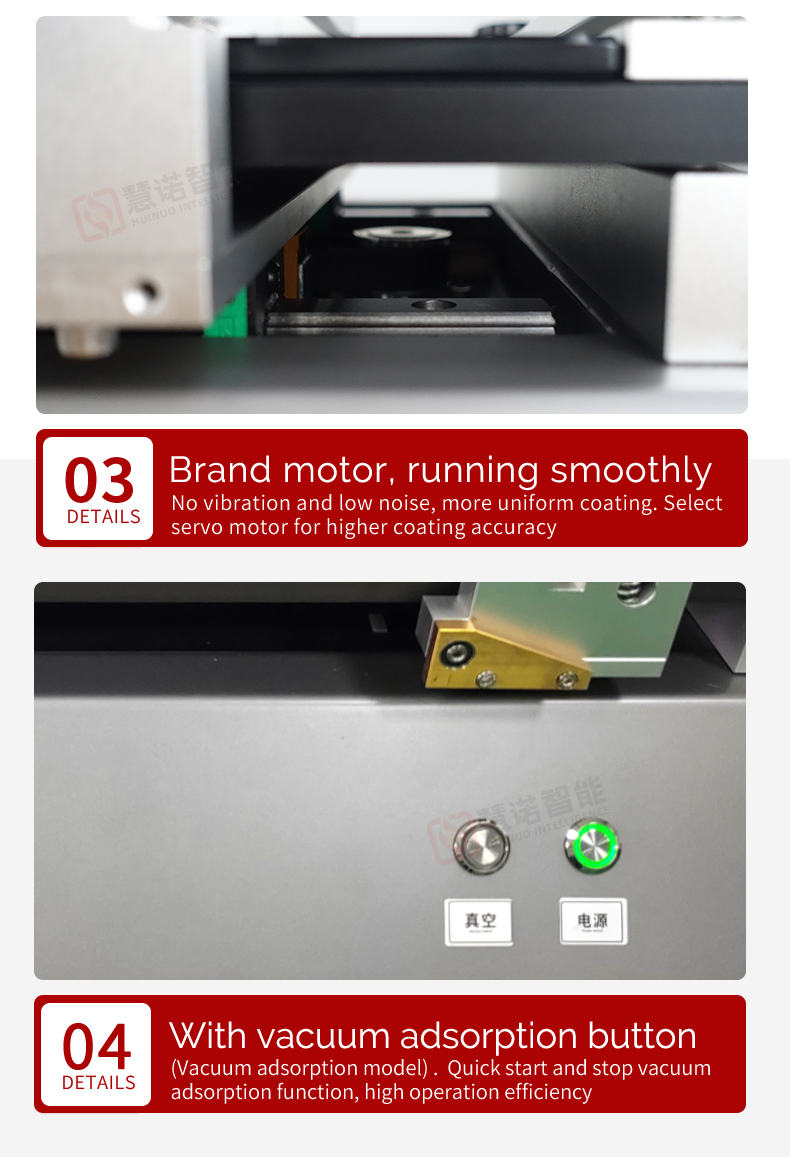

Drive motor	Servo motor
Vacuum pump pumping rate	5.4m3/h
Ultimate vacuum degree	50KPa
Vacuum Pump Power	180W
Vacuum pump weight	7.1kg
Power	600w
Operating language	Chinese (can be customized in English)
display screen	Color LCD Touchscreen
Host power supply	220V/50HZ (can be customized 110V/60HZ)
Dimension	780500430mm

HuiNuo TM3200pro/13 Automatic Film Applicator Packing list

Film Applicator x1, Wire Bar x1, Scraper x1, Vacuumpump x1, Manual x1, Certificate x1

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.

HuiNuo TM3200pro/13 Automatic Film Applicator Library

📄 HuiNuo intelligent TM3300Pro + drawdown Bar & blade heating Vacuum chuck coater instruction manual

📄 HuiNuo intelligent TM3000Pro bar drawdown blade coater album

FAQ

[Q]

I need a Laboratory Automatic Film Applicator. Spreader accuracy is required to handle soft substrates such as thin films. Do you have any recommendations?

[A]

The bar drawdown blade coater with Vacuum chuck function is recommended. Vacuum chuck can firmly fix soft substrates such as thin films to prevent displacement when Spreader; the combination of bar and drawdown blade coating methods, meyer rod coating accuracy can reach +/- 0.003mm, Blade Coating thickness range is wide (0.1-10 mm), suitable for High Accuracy Moulding needs, such as proofing in New material laboratories such as lithium batteries and glues.

[Q]

Our laboratory mainly makes film samples of lithium battery materials, and often scratches Stock on aluminum foil. Which Film Applicator should I choose?

[A]

It is recommended to use the bar and drawdown blade double coating method of Automatic Film Applicator. Lithium battery Stock Spreader requires uniform, controllable thickness, high meyer rod coating accuracy, suitable for thin layer coating; Blade Coating has a wide thickness range (0.1-10 mm), which can adapt to different formula requirements. Coupled with Vacuum chuck function, it can firmly fix the aluminum foil to ensure the stability of Spreader mass.
