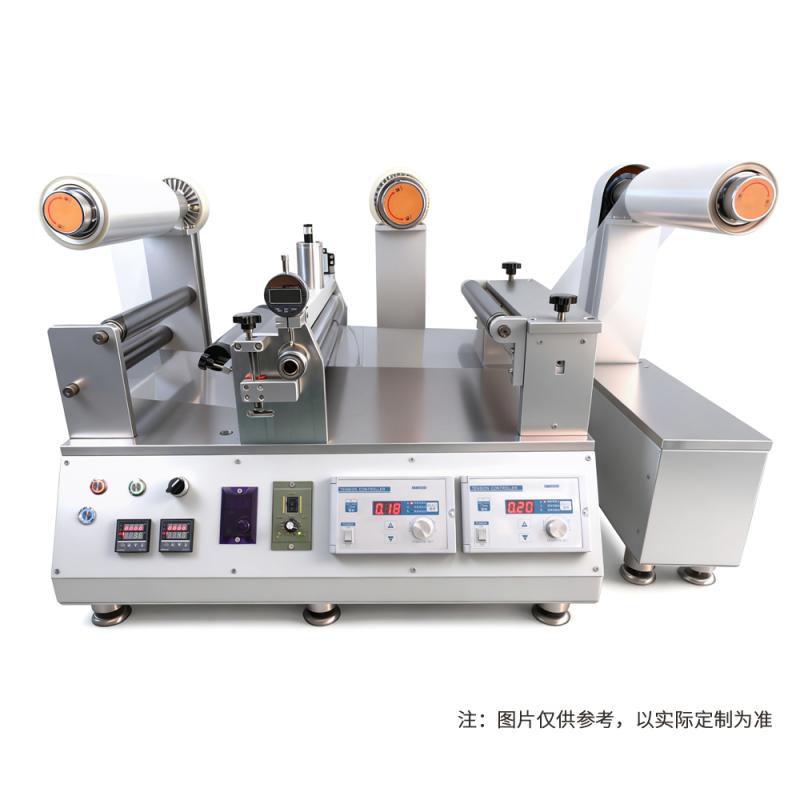

Huinuo JTM-400UV small continuous coater with UV UV curing all-electric precision Spreader Maximum Spreader width 400mm
Using all-electric control without external air source, Spreader Film thickness can be precisely fine-tuned to 0.01mm, and the effective Spreader width can reach 400mm. The modular design supports quick removal of the glue tank and integrates a UV curing module for instant curing.
HuiNuo
JTM-400UV
-
Pilot coil Automatic Film Applicator with unwinding + scraping + drying + winding + automatic feeding function
$ 59144.00 -
Automatic Film Applicator for large coils unwinding + scraping + drying (8m oven) + heating film laminating + trimming + deviation correction + winding function
$ 28053.00 -
Factory direct sales Rgdjy-02/350dcpro immersion coil Automatic Film Applicator wet film thickness 0.005-3mm Continuous experimental Automatic Film Applicator
$ 28053.00 -
Non-woven coil coater Small coil film laminating machine, unwinding → scraping → drying → scraping → drying → film laminating → winding function
$ 21835.00 -
Pharmaceutical Patch Coater Rxg-01/300uvcx pro Spreader cutting Coater
$ 23389.00
Product Introduction
The continuous coating experimental machine is a modular assembly of high-precision modular coating station mechanism, with a separable winding module, which can be added as needed, and the whole machine is fully electrically controlled, without the need for an external air source. Continuous coating proofing or low-volume production of laboratory mini hot melt adhesive coaters. The hot melt pressure-sensitive adhesive can be directly applied to the heat-resistant substrate, or coated on the release paper and then the film transfer map can be applied to different surface materials, or the single-sided coating film of the curing module can also be added. Electronically controlled precision tension control, which can adapt to the needs of different materials. Such as paper, plastic model, metal film, etc.
Configuration brief
(1) The whole machine is a high-precision modular coating station structure, which adopts modular assembly.
(2) Fully electric control, no external air supply required
(3) Use the dial indicator as the index head to accurately fine-tune the coating gap between the upper and lower rubber wheels to control the coating thickness.
(4) The minimum gluing thickness is0.01mm。 After the thickness is set, the downforce is provided by the electric actuator to prevent the gap from changing
(5) The maximum coating width is 400mm (effective coating width is 400mm). The width is adjusted by two pieces of PEEK baffles in the rubber groove. It can be coated and glued for unlimited length, and is automatically rewound.
(6) Forward and reverse stepless variable speed, coating speed: 4.5m/min (speed 2-4.5m/min adjustable), precision electronically controlled discharge reel can adjust the knob of the control panel, accurately change the discharge tension, and keep it continuously.
(7) Quick-release glue tank, the glue wheel and the rubber groove can be quickly disassembled and separated from the machine body to remove the residual glue.
Application of the product
Hot melt adhesives, gels, hydrocolloid dressings, water-based glues, solvent glues, etc
HuiNuo JTM-400UV Small continuous coater (with UV curing)Specifications
| LIST | VALUE |
|---|---|
| Spreader mode | continuous scratch coating |
| Spreader process | Film → Compounding → UV curing → Winding |
| Effective Spreader Width | ≤ 400mm, adjustable through baffle |
| Spreader head | Micro concave reticulated roller painting cloth |
| Spreader roller diameter | Ф50mm |
| Spreader Film thickness | The number of customized items according to customer needs shall prevail |
| Film thickness | 0.01Mm (depending on the slurry, refer to the material requirements) |
| Coating surface density | ≤ +/- 1.5% (including substrate, excluding edge anomalies) |
| Spreader rate | 2~ 4.5M/min forward and reverse stepless transmission |
| Film accuracy | +/- 0.003mm (depending on slurry, reference material requirements) |
| Regulator resolution | 0.001mm |
| Indication display | digital display |
| Compounding device | √ |
| Laminating roll width | ≤400mm |
| bearing | High Accuracy, Heavy Duty Bearings ensure smooth operation. |
| UV curing area | Length 500mm * 300mm |
| UV curing lamp source | LED |
| UV curing speed | Instant curing |
| Width of guide roller | 400mm |
| substrate width | Max.400mm |
| Back roller diameter | Ф150mm |
| Reel diameter | 3 inches. |
| rewinding diameter | Max.Ф450mm |
| Applicable materials | Lithium battery, glue, silicone oil, UV, inks, cataplasm, hot-melt adhesive, gel, plaster, slurry, etc |
| Applicable substrate | Paper, film, aluminum foil, plastic, non-woven fabric, etc |
| Machine power | 1050W |
| Host power supply | AC220V (single phase) 50Hz |
| Machine size | 1600 * 635 * 600mm (subject to actual customization) |
| Machine weight | About 120kg (subject to actual customization) |
HuiNuo JTM-400UV Small continuous coater (with UV curing) Packing list
Equipment machine × 1, dial meter x2, power cord × 1, heating module x1, UV curing module x1, warranty card & manual x1, certificate x1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
