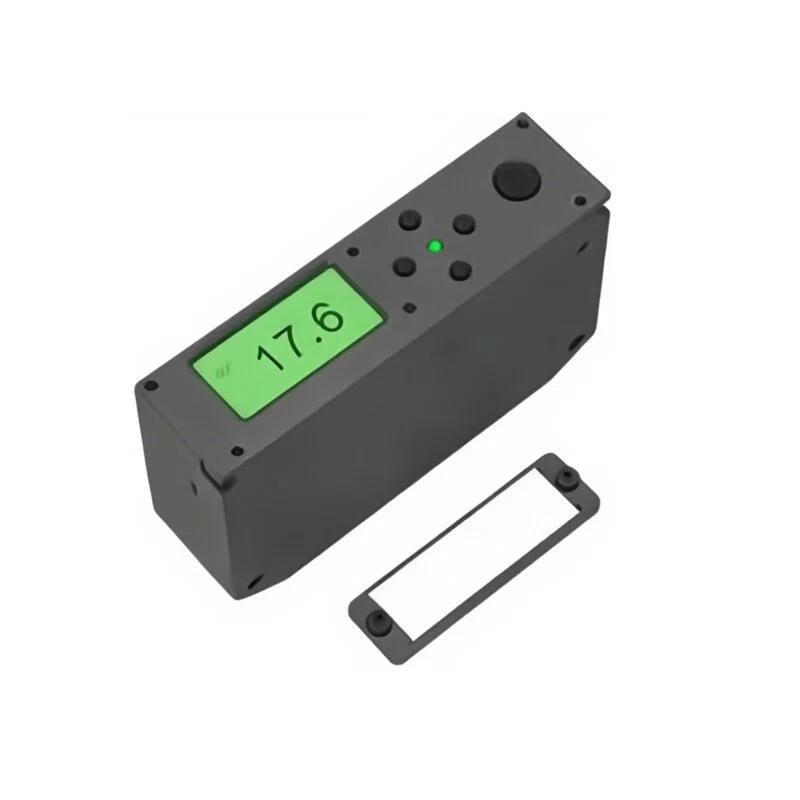

3NH YG60L non-contact glossmeter online non-contact measurement liquid powder

Using non-contact measurement, the distance is 10.0mm +/- 0.1mm, the fastest measurement time is 0.2 seconds, suitable for liquids, powders and vulnerable samples, and can be integrated into automated production lines.

Brand

SKU: NB050937

3NH

Model

YG60L

Get Quote

3NH shop

Information

Datasheet

What else did others buy

QILI SMN26 Two Angle Full smart Glossiness Meter Two Angle Gloss Tester

$ 672.00
3NH YG60S 60 ° Single Angle Glossiness Meter

$ 163.00
JND WGG60-Y4 portable Glossiness Meter

$ 301.00
QILI MN45 (Plastic film) Glossiness Detection Instrument

$ 495.00
Glossmeter AMITTARI AG-1268B 20 °, 60 ° and 85 ° three-angle portable Glossmeter

$ 387.00

Genuinegoods

3NH YG60L Non-contact glossmeterOverview
Specifications
Comments
FAQs

YG60L

Non-contact glossmeter

Product Introduction

Non-contact gloss meter YG60L is an online gloss tester innovatively developed by the company, which is non-contact between the test probe and the tested sample, and realizes non-contact testing of liquids, sauces, powders, fragile objects and other samples. The simple probe design allows the product to be placed anywhere on the automated production line.

The measurement time can be as fast as 0.2 seconds, and it can communicate with other systems via Bluetooth or USB, and a variety of communication interfaces demonstrate routines. Software function customization is possible (additional customization costs will be incurred depending on the situation).

Application industry

It can be used for online gloss measurement and quality inspection in paint ink, coating, paper printing, plastic electronics, furniture, ceramics, electroplating, hardware, marble and other industries. Its unique and innovative design not only provides non-contact measurement solutions directly from the production line, but also guarantees stable and high-precision measurement results.

Product features:

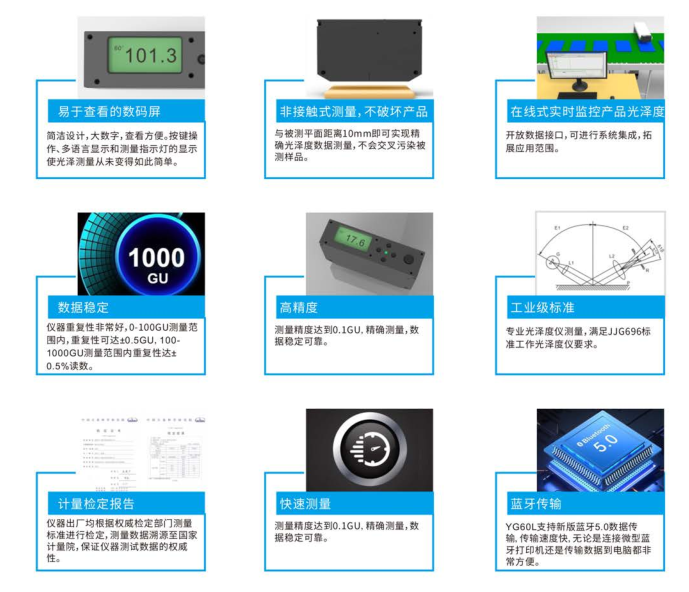

3nh YG60L non-contact gloss meter details Figure 1

3NH YG60L Non-contact glossmeterSpecifications

LIST	VALUE
Measurement Angles	60 °, in line with standards IS02813, ASTMD523, GB/T 9754
Measuring Area (mm)	60°:9X15
Measurement range	60°:0~1000GU
Graduation	0.1GU
non-contact distance	Non-contact distance 10.0mm +/- 0.1, the sample surface and the measurement diameter plane parallel 0.2 degrees
measurement mode	Basic mode, statistical mode, continuous mode, quality control mode
Measurement time	0.2 seconds/1 second
Sexual repeability accuracy	0~ 100GU: +/- 0.5GU; 100~ 1000GU: +/- 0.5% GU, under 10mm verification tooling (ensure test distance 10 and parallelism) interval 5 seconds test
accuracy	Meet JJG696 glossmeter requirements
Automatic shutdown time	30 seconds, 60 seconds, 90 seconds, two minutes or never shut down
Long time calibrated	With automatic check calibration standard plate function/manual calibrating
language	Simplified Chinese, English, Traditional Chinese
Store data	35,000 items (15,000 items in basic mode and continuous mode, 10,000 items in quality management mode, 10,000 items in statistical mode)
display screen	2.3 inch black and white display
size	140X83X38mm
weight	Approx. 500g
power supply	USB Power Adapter
interface	USB, Bluetooth
PC software	Quality control report printing, more function expansion
standard attachment	Power Adapter, quality management software (downloaded from the official website or provided after sales), calibration standard board, calibration bracket
optional accessories	Micro printer
Note	The technical parameters are for reference only, and the actual products sold shall prevail.

3NH YG60L Non-contact glossmeter Packing list

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.

FAQ

[Q]

Excuse me 60 °, measurement range 0-800, measurement of copper foil gloss, non-contact glossmeter is recommended?

[A]

YG60L is OK.
