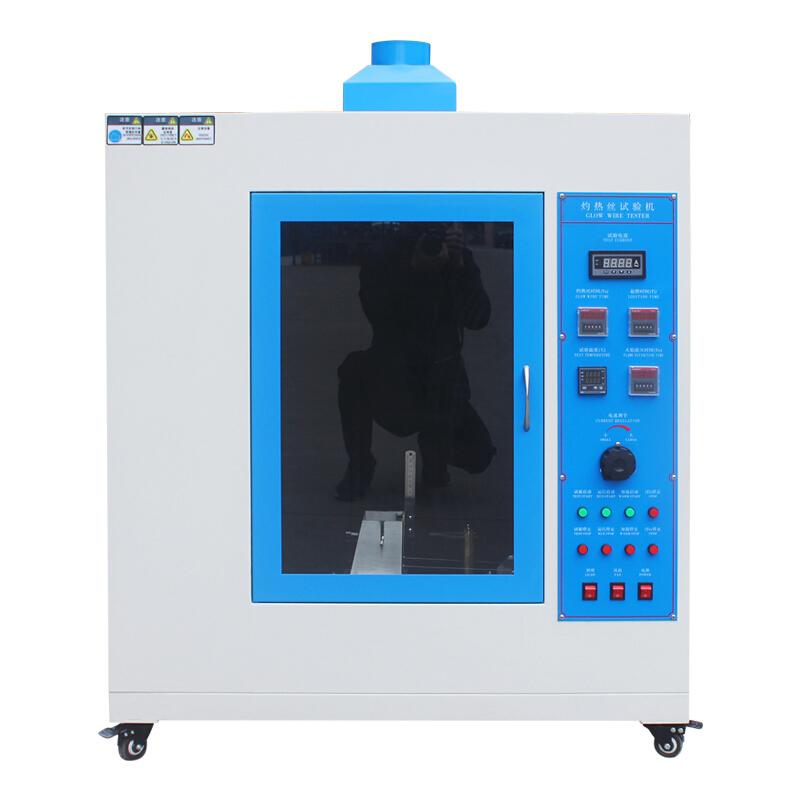

AISRY ASR-4324 Glowing Wire Testing Machine, Plug and Socket Rubber Plastic Tester
The diameter of 4.0mm nickel-chromium wire ring, heating temperature up to 1000 ℃, temperature measurement using 0.5mm high temperature armored Thermocouple, test force 0.8~ 1.2N and control the pressure depth, suitable for material flame retardant performance evaluation.
AISRY
ASR-4324
-
YOUKE YK3051 horizontal and vertical combustion Tester (touch screen)
$ 1808.00 -
YOUKE YK3054 Glow Wire Tester (Touch Screen)
$ 1808.00 -
YOUKE YK3050 Horizontal and vertical combustion Tester
$ 1414.00 -
CHINA NBC-4321 Wire and cable horizontal vertical combustion testing machine, wire flame retardant Test Chamber
$ 676.00 -
YOUKE YK3260 single line vertical combustion testing machine
$ 1193.00
Product Introduction
Glow wire testing machine is used for electricians and their components and components, and is also suitable for solid electrical insulation materials or other solid combustible materials, in line with GB/T5169.10~13, IEC60695-2-1/0~2-1/3, GB2099, VDE 0620, GB4706, UL817 test standards. Test method: Heat the specified temperature with a specification resistance wire ring, and then make the glow wire contact with the test sample under the test conditions.
Plug socket glow wire testing machine is commonly used in electricians and their components and components, and is also suitable for solid electrical insulation materials or other solid combustible materials, in line with GB/T5169.10~13, IEC60695-2-1/0~2-1/3, GB2099, VDE 0620, GB4706, UL817 test standards. Test method: Heat to the specified temperature with a specification resistance wire ring, and then make the glow wire and the test sample contact the plug socket rubber plastic and other products under the test conditions.
AISRY ASR-4324 Glowing wire testing machineSpecifications
| LIST | VALUE |
|---|---|
| Interior volume | 0.5M3 |
| size | Width x depth x height: 1000 * 650 * 1150 |
| Glowing wire | 4.0Mm diameter rings made of nickel/chrome wire |
| Temperature measuring device | 0.5Mm armored filament Thermocouple, capable of high temperature of 1050 ℃ |
| Heating current | When the temperature is 960 ° C, the current is between 120 and 150A |
| The force applied to the test | 0.8~ 1.2N, and limit the pressing depth to at least 7mm |
| time | Ignition Duration (Ti) and Flame Extinction Time (T) |
| temperature range | 500~ 1000 ℃, adjustable digital display |
| temperature error | +/- 10 ℃ (500~ 750 ℃)， +/- 1 5 ℃ (750~ 1000 ℃), the temperature is the meter degree +/- 0.5 level |
| Note | Material and size can be customized according to customer requirements. |
AISRY ASR-4324 Glowing wire testing machine Packing list
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
