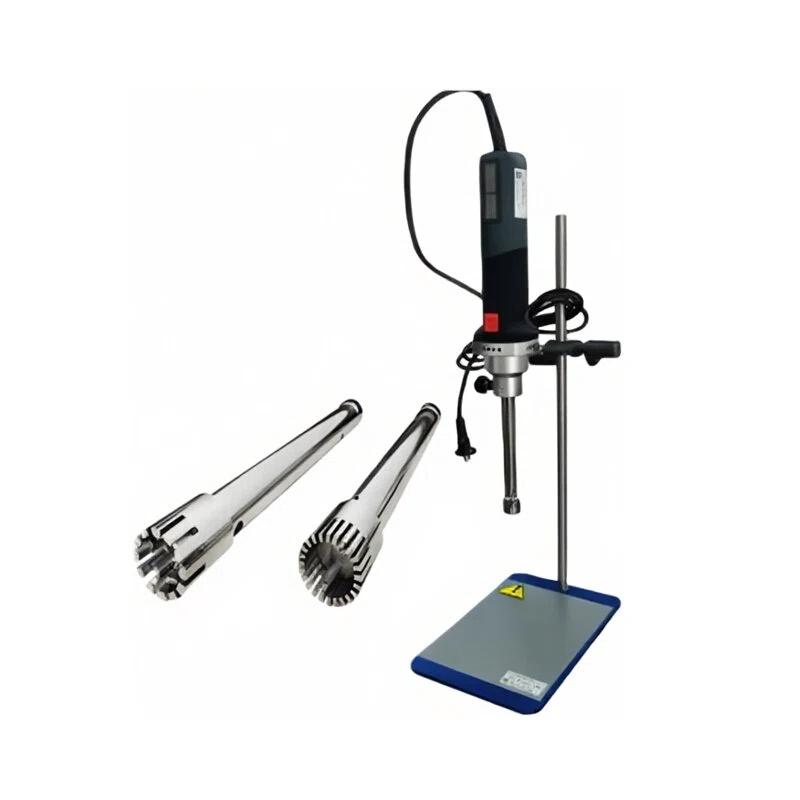

MUXUAN MS-C25 emulsification Homogenizer, high speed motor, no load speed 30000rpm
No-load speed up to 30000rpm, line speed up to 27m/s. Modular design, easy to operate, can operate for a long time, easy to complete the dispersion, emulsification, homogenization, grinding and high viscosity material processing and other experimental processes.
MuXuan
MS-C25
-
Huxi FJ300-SH Digital Display Constant Speed High Speed Dispersion Homogenizer Φ28/36mm
$ 605.00 -
Lanyu 24G Homogenizer can be equipped with optional dispersion head
$ 443.00 -
LYD500W-T LABOratory High Shear Dispersion Homogenizer 24G/80-5000ml
$ 973.00 -
Lanyu 30G Homogenizer can be equipped with optional dispersion head
$ 503.00 -
HUXI HX-4M Pat Homogenizer, Upgraded
$ 1051.00
Equipment introduction
High-speed motor, optional with a variety of working heads, no-load speed up to 30000rpm, line speed up to 27m/s
Applicable processes
According to the different working heads, a variety of different processes can be completed, including dispersion, emulsification, homogenization, grinding, mixing, dispersion, homogenization of high-viscosity materials, crushing of animal and plant tissues, homogenization, etc.
Features of the Native Machine
It integrates dexterity, convenience and high scalability, with a modular structure of the whole machine, easy to operate, and can operate for a long time, easily meeting a variety of high-demand dispersion emulsification experiments, and enjoying the fun of laboratory dispersion emulsification.

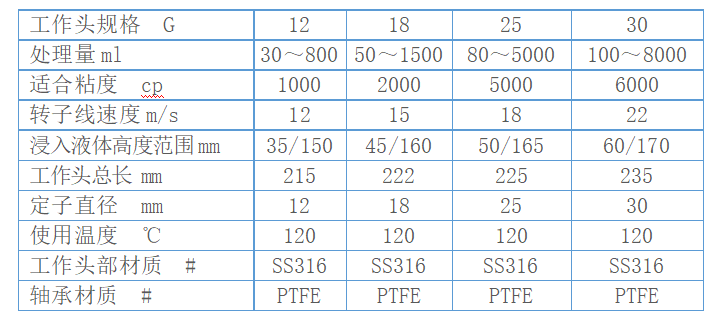

Emulsification homogenization head selection table
Application industry
Fine chemicals: pigments, dyes, textile auxiliaries, adhesives, silicone oil emulsification, glues, slurries, surfactants, dyes
Petrochemical: lubricating oil, heavy oil emulsification, diesel emulsification, modified asphalt, catalyst, wax emulsification, etc.
Coating inks: printing inks, paints, latex paints, architectural coatings, nano coatings, coating additives, carbon black dispersion, inks, etc.
Pesticides: pesticides, herbicides, medicinal emulsions, fertilizers, pesticide additives, etc.
Nanomaterials: dispersion and depolymerization of nanomaterials.
Food industry: juice, jam, ice cream, dairy products, food additives, tea drinks, soy milk, flavors, milk, etc.
Daily chemical products: liquid detergents, creams, lipsticks, facial cleansers, daily fragrances, skin care products, cosmetics, etc.
Device aliases
Breaking machine Homogenizer Emulsifier Laboratory emulsifier Laboratory high shear emulsifier Laboratory homogenizer Laboratory homogenizer Laboratory dispersion homogenizer
MuXuan MS-C25 Emulsification HomogenizerSpecifications
| LIST | VALUE |
|---|---|
| rated voltage | AC220V50/60 Hz |
| power | Input: 1550 output 1300 W brushless motor |
| Speed adjustment range (no load) | 8000～28000 rpm |
| Speed control type | Scale stepless speed regulation |
| Work head material | Stainless steel 316 # |
| Standard working head configuration mm | 25G work head selection, please see the work head selection table |
| Permissible Ambient Temperature | Not more than 40 ° C |
| Allowable relative humidity | Not more than 80% |
| Machine dimensions | 215×310×720 mm |
| Machine weight | 9.7 kg (gross weight: 11.0 kg) |
| Standard | The set comes standard, host + knife head + tablet bracket (one 25G knife head) |
MuXuan MS-C25 Emulsification Homogenizer Packing list
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
