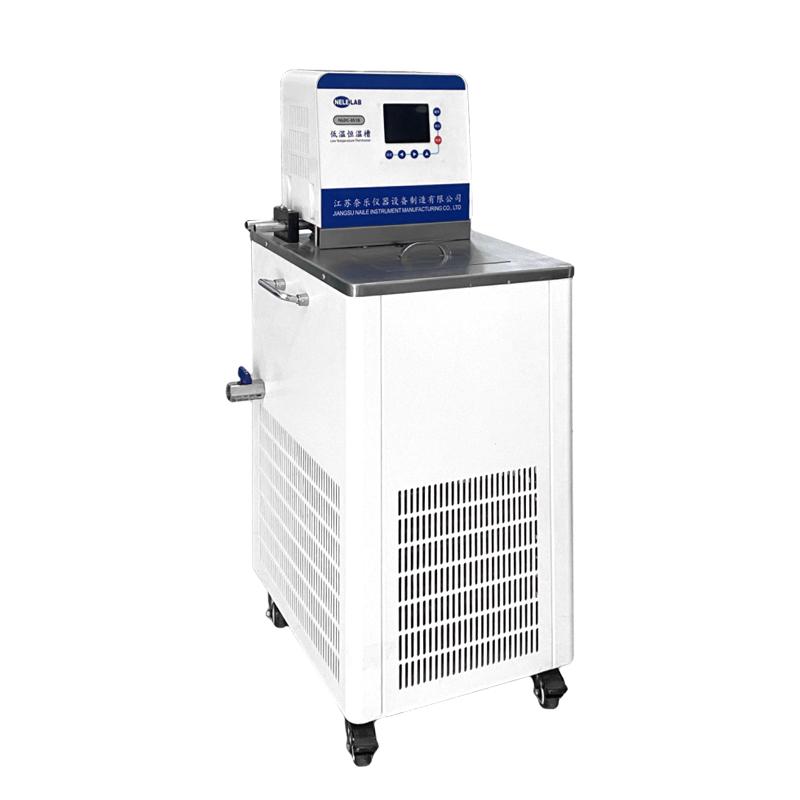

NELE NLDC-05100F Low Temperature Circulating Bath High Accuracy Temperature Control domestic circulation external circulation
Temperature range -5~ 100 ℃, Temperature Fluctuation and Uniformity are up to +/- 0.05 ℃. Support internal/external circulation, external circulation 15L/min, equipped with multiple safety protection functions, suitable for scenes with high temperature accuracy requirements.
Nele
NLDC-05100F
-
NELE DC-40100-II Temperature Cycling Unit 100L/-40 ℃
$ 7779.00 -
QIWEI DHC-1005-A Thermostatic Bath -10 ℃/0.1 ℃
$ 645.00 -
CNSHP DC-0520T Thermostatic Water Bath -5 ℃/20L
$ 1197.00 -
NELE DC-0515 Thermostatic Bath Thermostatic Bath 15L/-5 ℃ +/- 0.05 ℃
$ 1044.00 -
YIHENG MPG-13A Circulating Heating Bath
$ 646.00
Product Introduction
NLDC-05100F cryogenic thermostatic chamber is equipped with German Heraeus chip PT100 sensor, temperature control range - 5~100°C, support silicone oil, alcohol, pure water and other temperature-controlled media, temperature fluctuation and uniformity up to ±0.05°C, digital display resolution 0.01°C; Equipped with LCD screen and Naile high-precision temperature control motherboard, support RS485 interface and modbus protocol remote control, the inner groove is made of SUS304 stainless steel, the capacity is 93L, the inner groove size is 645*580*250mm, which can realize inward/external circulation, the external circulation flow rate is 15L/min, and the head is 4 meters; The whole machine has a power of 6500W and a voltage of 380V 50Hz, and has multiple protection functions such as power loss protection, upper and lower limit temperature alarms, and low water level protection against dry burning, making it suitable for laboratories and industrial scenarios with high temperature control accuracy requirements.
Nele NLDC-05100F Low Temperature Circulating BathSpecifications
| LIST | VALUE |
|---|---|
| Sensor | PT100, German Heraeus chip |
| temperature range | -5~ 100 ℃ (below 40 ℃ can turn on compressor cooling) |
| temperature control medium | 1. Silicone oil (-5~ 100 ℃) 2. Alcohol (-5~ 40 ℃) 3. Pure water (5~ 95 ℃) (quotation does not include medium) |
| Temperature Fluctuation | +/- 0.05 ℃ (inner tank and outlet) |
| uniformity | ±0.05℃ |
| Digital display resolution | 0.01℃ |
| Control screen | LCD screen, NELE High Accuracy temperature control main board |
| remote control | RS485 interface, moudbus protocol |
| Inner slot size | 645*580*250mm |
| total capacity | 93L |
| Tank size | 500 * 550Mm, depth 250mm |
| heating power | 6500W |
| Cooling capacity (pure water at 20 degrees Celsius) | 2000W |
| total power | 6500W |
| circular mode | Internal/external circulation, external circulation 15L/min, head 4 meters |
| voltage | 380V，50Hz |
| Drainage port | Yes. |
| Inner groove material | SUS304 stainless steel |
| Enclosure Material | Galvanized sheet spraying |
| protection function | 1. With power-off protection function 2. With upper and lower limit temperature alarm setting function 3. Low water level protection and alarm function 4. Temperature runaway protection and alarm function 5. Heating device with low water level anti-dry burning function |
Nele NLDC-05100F Low Temperature Circulating Bath Packing list
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
