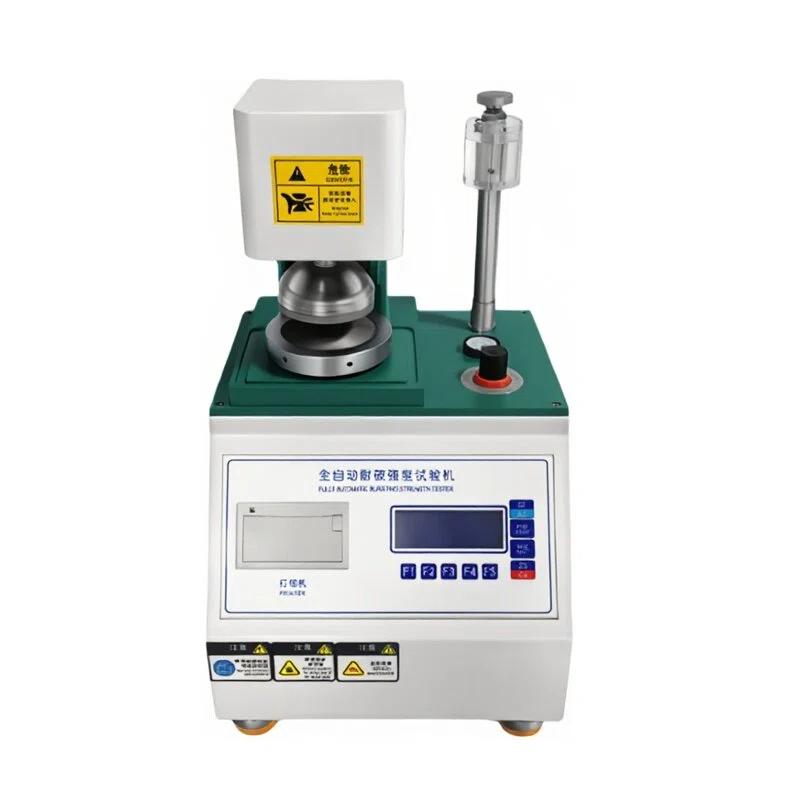

Factory Direct NBC-8502S Automatic Burst Strength Tester, Pneumatic Clamping LCD Display
Using pneumatic clamping sample, the test accuracy Indication Error is better than +/- 1% FS. With automatic shutdown, one-button operation, data storage and printing and emergency stop safety protection functions, the operation is convenient and reliable.
Factory
NBC-8502S
-
CHENCHI NPD-2D Cardboard Burst Tester
$ 1627.00 -
Essence LD - NP-WL Cardboard Burst Strength Tester, Vertical Button Edition
$ 943.00 -
Essence LD-NP-02 Burst Strength Tester Cardboard Classic, Horizontal Touch Screen Version
$ 1191.00 -
HENGPIN HP-NPD1600Q Paper Burst Tester, in line with GB/T454 and ISO2758
$ 2203.00 -
Yunda YD-NPY1 Automatic Burst Strength Tester ≤ 1200kPa
$ 1256.00
Product Introduction
In line with relevant standards, pneumatic clamping specimens and liquid crystal display are used, which is suitable for the determination of breakage resistance of cardboard, corrugated cardboard and other sheet plates.
Adopt standards
ISO 2759 "Determination of Breakage Resistance --- Cardboard"
GB/T 1539 "Determination of breakage resistance of cardboard"
QB/T 1057 "Determination of Breakage Resistance of Paper and Cardboard"
GB/T 6545 "Determination of the bursting strength of corrugated paper"
GB/T 454 "Determination of paper breakage resistance"
ISO 2758 Determination of Paper --- Breakage Resistance
Product features:
1. After the cardboard is crushed, it automatically stops and returns to the initial position;
2. Fully automatic one-touch operation;
3. It can store 40 sets of data at the same time;
4. Equipped with micro printing, the test results can be printed;
5. Equipped with emergency stop button to improve operation safety;
6. Equipped with air pressure gauge to monitor the pressure at any time;
7. High-definition LCD screen display.
Factory NBC-8502S Automatic Burst Strength TesterSpecifications
| LIST | VALUE |
|---|---|
| induction method | pressure converter |
| savings outcome | With printing function, it can print 10 sets of data to automatically calculate the average value |
| display mode | High definition LCD display, digital A/D value progress rate 100 times/S, high test accuracy |
| Unit of strength | Kgf/cm2, Lbf/in2, Kpa, Pa, MPa (with unit switching function) |
| measurement range | Cardboard 250~ 5600kPa paper 50~ 1600 KPa |
| resolution | 1kPa |
| Measurement accuracy | Indication Error: Better than +/- 1% FS indication Variability: Better than +/- 1% |
| Oil pressure speed | High voltage 170 +/- 10ml/min |
| Film resistance | Raise 10mm, 170kPa~ 220kPa Raise 18mm, 250kPa~ 350kPa |
| Clamp ring material | stainless steel |
| clamping force | > 690Kpa (adjustable) |
| Inner diameter of upper clamp ring hole | φ（31.5±0.05）mm |
| Inner diameter of lower clamp ring hole | φ（31.5±0.05）mm |
| Upper chuck diameter: | 95mm |
| Lower chuck diameter: | 135mm |
| Hydraulic oil | silicone oil |
| volume | 465*465*500mm |
| weight | About 67KG |
| power supply | 1∮,AC220V |
| Standard configuration | 2 pieces of rubber film, 1 wrench, 1 pack of correction pieces, 1 bottle of silicone oil, and 1 rubber hammer. |
Factory NBC-8502S Automatic Burst Strength Tester Packing list
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
