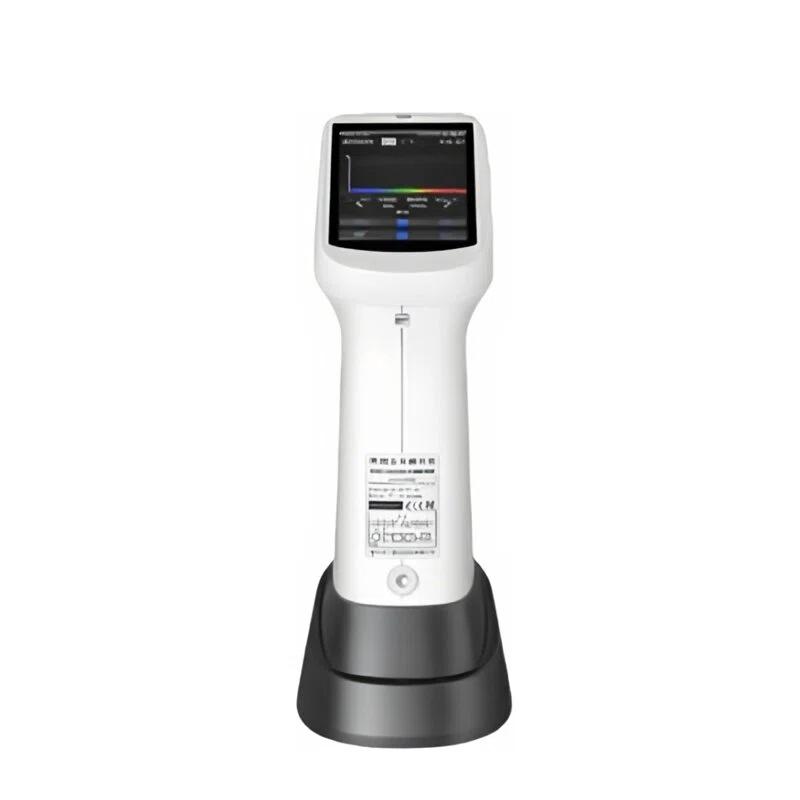

3NH CR10 color reader Large area silicon photodiode array inductor Inter-instrument Agreement AE * ab ≤ 0.4
Large area silicon photodiode array sensor, measurement repeatability control within 0.05, Inter-instrument Agreement ≤ 0.4, equipped with dual aperture switching and 3.5 inch capacitive Touchscreen, support a variety of observation Illuminant and measurement indicators.
3NH
CR10
-
IWAVE WF28 Colorimeter 8mm caliber, suitable for Spinning & weaving, Chemical, Plastic, Food, Hardware, Printing and Dyeing, etc
$ 703.00 -
KINGWELL JZ-300 general Colorimeter 8mm diameter, plastic, lame plating, Eletroplating, printing industry special
$ 301.00 -
CHNSPEC powder measurement fixture
$ 229.00 -
IWAVE micro printer Colorimeter
$ 215.00 -
CHNSPEC Powder measurement fixture - Transparent Glass
$ 81.00
Product Introduction
Large-area silicon photodiode array sensors and industrial-grade MCUs are used to ensure the stability and accuracy of measurement data with powerful data processing capabilities. Simple measurement, simple display, repeatability AE*ab control within 0.05, inter-table difference AE*ab control within 0.4, can be used for fast color measurement under various occasion conditions, large touch screen is more convenient to view measurement results, instrument measurement data is consistent with other competitors in Japan, the United States, Europe and so on.
Application of the product
Spectrophotometers are widely used in plastics, electronics, paints and inks, textile and garment printing and dyeing, printed paper products, automobiles, cosmetics and food and other industries. The instrument is equipped with high-end color management software and can be used in connection with a computer for further functional expansion.
Key features:
1. Large-area silicon photodiode array
2. Adopt full-band balanced LED light source
3. Intelligent automatic calibration (contact type)
4. Novel and fashionable appearance design based on ergonomics
5. Dual-caliber switching, large and small samples can be measured
6. Excellent inter-stage difference and repeatability
7. A variety of observation light sources and measurement indicators
8. Adopt international D/8 measurement technology
9. Computer software support
3NH CR10 color readerSpecifications
| LIST | VALUE |
|---|---|
| Lighting method | D/8 (diffuse illumination, 8 ° direction reception) |
| Measurement structure | SCI includes specular reflection |
| Meet the standard | CIE NO.15,GB/T 3978,GB 2893,GB/T 18833,ISO7724-1,ASTM E1164,DIN5033 Teil7 |
| Measurement repeability * | 0.05 |
| Inter-instrument Agreement ** | AE*ab≤0.4 |
| Display accuracy | 0.01 |
| Measurement/Lighting Aperture *** | Single diameter: φ 8mm/φ 10mm platform |
| Measurement index | CIE-Lab, CIE-LCh, XYZ, Yxy, RGB, difference (AE * ab, AE * cmc, AE * 94, AE * 00), degree (ASTM E313-00, ASTM E313-73, CIE/ISO, AATCC, Hunter, Taube Berger Stensby), yellowness (ASTM D1925, ASTME313-00, ASTME313-73), colour fastness, color fastness, (some indicators are realized by the host computer) |
| Illuminant condition | D65,A,C,D50,F2,F7,F11 |
| show | Sample chromatic value, color difference value/plot, pass/fail result, Color simulation, Color bias |
| Illuminant | Combination LED Illuminant |
| Measurement and positioning method | Stabilizer, visual |
| calibrate | Intelligent auto calibration (contact) |
| Accuracy Guarantee | Measurement qualified |
| Field of view | 2°,10° |
| integrating sphere diameter | 40mm |
| Sensor | Large Area Silicon Photodiode Array (Dual Row 20 Group) |
| Measurement wavelength range | 400-700mm |
| Measurement range L | 0-200 |
| resolution | 0.01% |
| Measurement method | Single measurement, average measurement (2~ 99 times) |
| Measurement time | About 1 second |
| size | Length X width X height = 114X70X208mm |
| weight | Approx. 435g (without calibration seat) |
| Battery level | Lithium battery, 3.7V, 5000mAh, 8500 cycles in 8 hours |
| Illuminant life | More than 1.50 million measurements in 10 years |
| display screen | TFT True Color 3.5inch, Capacitive Touchscreen |
| interface | USB |
| Store data | 500 master standards, 10,000 samples; PC mass storage |
| Software Support | Windows |
| language | Simplified Chinese, English, Traditional Chinese |
| Operating temperature range | 0~ 40 ° C, 0~ 85% RH (no condensation), altitude: less than 2000m |
| Storage temperature range | -20~ 50 ° C, 0~ 85% RH (no condensation) |
| standard attachment | Power Adapter, data cable, manual, quality management software (official website download), calibration box, protective cover, wristband, measurement caliber |
| optional accessories | Micro printer, powder test box |
| Remarks | * After the whiteboard is calibrated, the measurement of the whiteboard 30 times Standard Deviation at 5 second intervals; ** BCRA series Il12 color plate measurement average; ** * The illumination diameter is the actual diameter opening size of the instrument; |
3NH CR10 color reader Packing list
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
