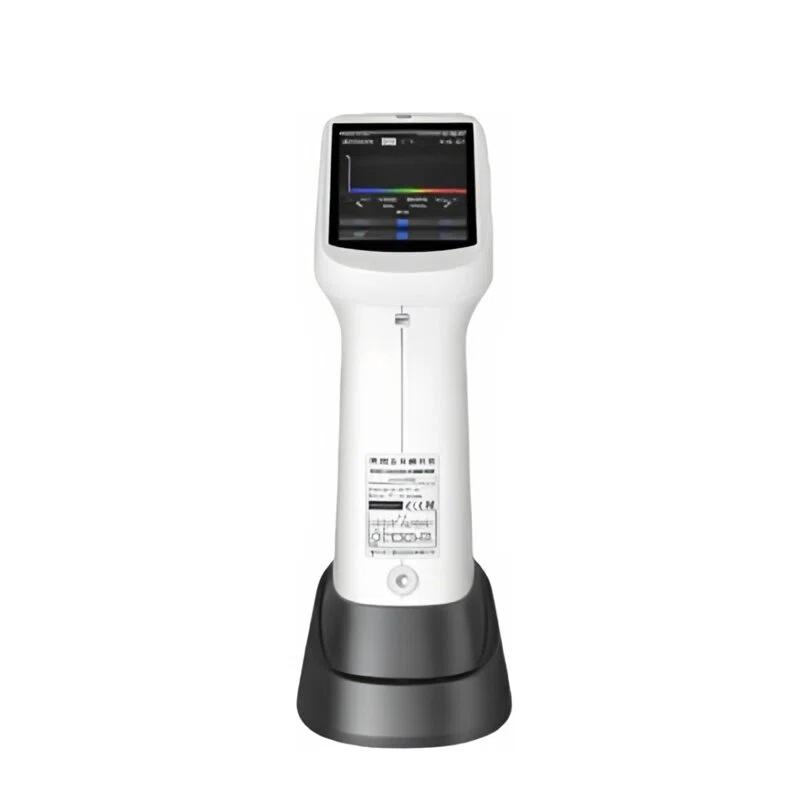

3NH CR10Plus color reader Dual aperture Touchscreen silicon photodiode array sensor Inter-instrument Agreement AE * ab ≤ 0.3

Using large area silicon photodiode array inductor and industrial grade MCU, measurement repeability Delta E * ab control within 0.05, Inter-instrument Agreement Delta E * ab control within 0.4, equipped with dual aperture switching and large size Touchscreen, support a variety of observation Illuminant and measurement indicators.

Brand

SKU: NB050979

3NH

Model

CR10plus

Get Quote

3NH shop

Information

Datasheet

What else did others buy

Genuinegoods

3NH CR10plus color readerOverview
Specifications
Comments
FAQs

CR10plus

color reader

Product Introduction

CR10Plus adopts a large-area silicon photodiode array sensor and an industrial-grade MCU, and its powerful data processing capabilities ensure the stability and accuracy of measurement data. CR10Plus is simple to measure, simple to display, repeatability AE*ab is controlled within 0.05, and the inter-table difference AE*ab is controlled within 0.4, which can be used for fast color measurement under various occasion conditions, and the large-size touch screen is more convenient to view the measurement results, and the instrument measurement data is consistent with other competitors in Japan, the United States, Europe, etc.

Application of the product

Spectrophotometers are widely used in plastics, electronics, paints and inks, textile and garment printing and dyeing, printed paper products, automobiles, cosmetics and food and other industries. The instrument is equipped with high-end color management software and can be used in connection with a computer for further functional expansion.

Key features:

1. Large-area silicon photodiode array

2. Adopt full-band balanced LED light source

3. Intelligent automatic calibration (contact type)

4. Novel and fashionable appearance design based on ergonomics

5. Dual-caliber switching, large and small samples can be measured

6. Excellent inter-stage difference and repeatability

7. A variety of observation light sources and measurement indicators

8. Adopt international D/8 measurement technology

9. Computer software support

3NH CR10plus color readerSpecifications

LIST	VALUE
Lighting method	D/8 (diffuse illumination, 8 ° direction reception)
Measurement structure	SCI/SCE includes specular reflection/excludes specular reflection; includes UV measurement/excludes UV measurement
Meet the standard	CIE NO.15,GB/T 3978,GB 2893,GB/T 18833,ISO7724-1,ASTM E1164,DIN5033 Teil7
Measurement repeability *	0.04
Inter-instrument Agreement **	AE*ab≤0.3
Display accuracy	0.01
Measurement/Lighting Aperture ***	Dual diameter: φ 8mm/φ 10mm platform + φ 4mm/φ 5mm platform
Measurement index	CIE-Lab, CIE-LCh, XYZ, Yxy, RGB, difference (AE * ab, AE * cmc, AE * 94, AE * 00), degree (ASTM E313-00, ASTM E313-73, CIE/ISO, AATCC, Hunter, Taube Berger Stensby), yellowness (ASTM D1925, ASTME313-00, ASTME313-73), colour fastness, color fastness, (some indicators are realized by the host computer)
Illuminant condition	D65,A,C,D50,F2,F7,F11
show	Sample chromatic value, color difference value/plot, pass/fail result, Color simulation, Color bias
Illuminant	Combined Full Light spectrum LED Illuminant, UV Illuminant
Measurement and positioning method	Camera viewfinder positioning, stabilizer, visual
calibrate	Intelligent auto calibration (contactless automatic lifting)
Accuracy Guarantee	First Class Measurement Pass
Field of view	2°,10°
integrating sphere diameter	40mm
Sensor	Large area silicon photodiode array (dual row 24 groups)
Measurement wavelength range	400-700mm
Measurement range L	0-200
resolution	0.01%
Measurement method	Single measurement, average measurement (2~ 99 times)
Measurement time	About 1 second
size	Length X width X height = 114X70X208mm
weight	Approx. 435g (without calibration seat)
Battery level	Lithium battery, 3.7V, 5000mAh, 8500 cycles in 8 hours
Illuminant life	More than 1.50 million measurements in 10 years
display screen	TFT True Color 3.5inch, Capacitive Touchscreen
interface	USB, Bluetooth
Store data	500 master standards, 20,000 samples; PC mass storage
Software Support	Windows, Android, I0S, Hongmeng, WeChat Mini Program, color scheme cloud
language	Simplified Chinese, English, Traditional Chinese
Operating temperature range	0~ 40 ° C, 0~ 85% RH (no condensation), altitude: less than 2000m
Storage temperature range	-20~ 50 ° C, 0~ 85% RH (no condensation)
standard attachment	Power Adapter, data cable, manual, quality management software (official website download), calibration box, protective cover, wristband, measurement caliber
optional accessories	Micro printer, powder test box
Remarks	* After the whiteboard is calibrated, the measurement of the whiteboard 30 times Standard Deviation at 5 second intervals; BCRA series Il12 color plate measurement average; * The illumination diameter is the actual diameter opening size of the instrument;

3NH CR10plus color reader Packing list

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.

FAQ

[Q]

Is the price listed on the website the final cost for overseas purchases?

[A]

No, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.

[Q]

What is the specific process for purchasing the product?

[A]

First, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.

[Q]

What should I do if the instrument I purchase needs repair?

[A]

After-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
