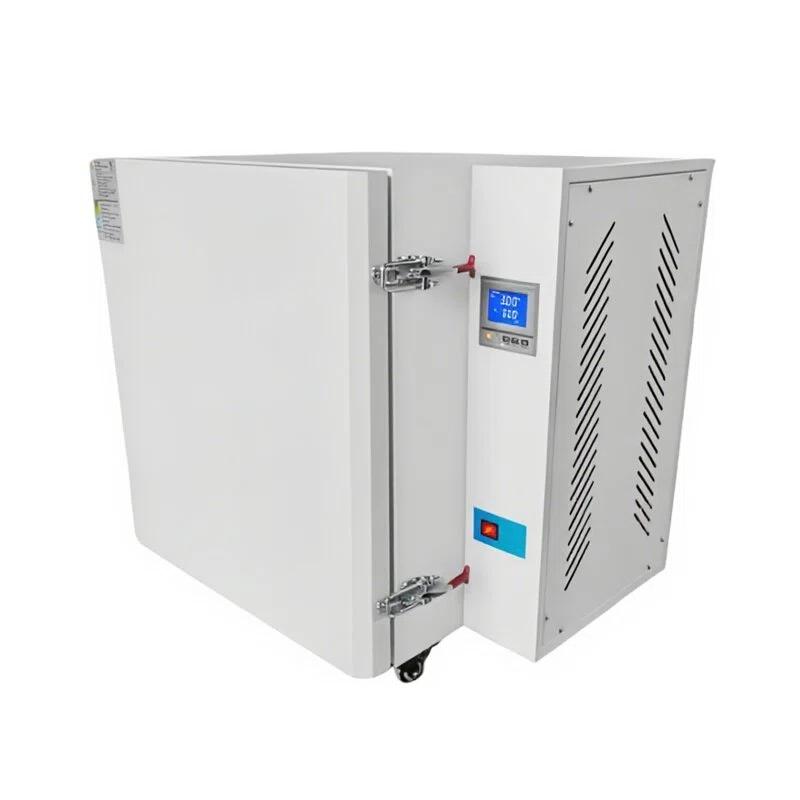

BOZHEN XCT-1 high temperature electric air blowing dryer interior salt resistant corrosion resistant 316 stainless steel liner

Product Introduction

The high-temperature test chamber is also called a high-temperature oven, a high-temperature oven, and a high-temperature aging test chamber. It is widely used in factories, scientific research, enterprises and institutions, mainly used for baking, drying and other heating effects on various items (test products), such as the drying of transformer cores or coils, the drying of motor stator windings, the preheating of welding rods before welding, the drying of casting sand molds, and the drying of parts.

Product features:

1. The box body is made of 316 stainless steel argon arc welding, and the outside of the box is made of high-quality steel plate, which is beautiful and novel.

2. The microcomputer temperature controller with temperature control protection and LCD display is adopted, with timing function, accurate and reliable temperature control.

3. The hot air circulation system consists of a fan that can operate continuously at high temperature and a suitable air duct. The temperature in the working room is uniform.

4. Independent temperature limit alarm, automatic interruption when the temperature limit is exceeded, to ensure that the experiment is carried out safely without accidents (optional).

5. It has an RS485 interface that can be connected to the recorder and computer, and can record the changes of temperature and humidity parameters (optional).

Temperature control instrument

    The product adopts comprehensive electromagnetic compatibility design and humanized menu design, and adopts adaptive temperature control technology for temperature control, which solves the shortcomings such as temperature overshoot and has a good temperature control effect. LCD high-brightness wide window digital display, clear and intuitive value. Microcomputer intelligent control, after setting the temperature, the instrument controls the heating by itself, and displays the heating status, and the temperature control is accurate and stable. Over-temperature alarm and automatically cut off the heating power supply. There is a timer function with a timer time of up to 9999 minutes. It has parameter memory and call recovery function to protect data loss due to power outage and dead state.

Insulation

    High-performance insulation structure. From the inside to the outside, there is an inner cavity, an inner shell, 800-degree aluminum silicate fiber, and less heat loss in the inner tank. The outer box and door cylinder mechanism of the inner cylinder of the box door are unique, which greatly reduces the heat transmission of the inner cavity. The temperature of the box door is close to the ambient temperature. Ensure safe operation.

Cabinet internal structure

  The heat of the electric heater placed at the bottom of the box is discharged forward through the side air duct, forming a reasonable air duct, which can fully convection the hot air and make the temperature in the box as uniform as possible. The height of the shelves in the workshop can be adjusted according to the user's requirements, as well as the number of shelves. The liner is made of stainless steel material

Cabinet external structure

    It adopts a tabletop structure design, the shell is made of cold-rolled steel plate, and the surface is electrostatic sprayed;

sensors

    K-type thermocouple;        Heating method: finned stainless steel electric heating tube

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
