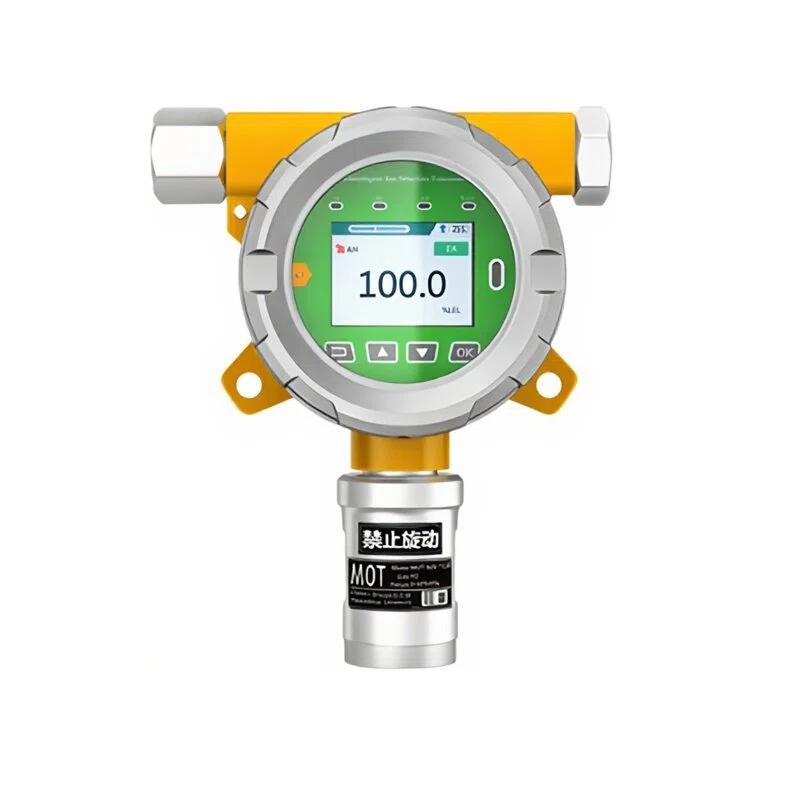

KORNO MOT200-B-HCN Online Hydrogen Cyanide Detection Alarm Instrument Electrochemical sensor Remote monitoring
Electrochemical sensor, detection accuracy ≤ +/- 3% F. S, Response Time ≤ 30 seconds. It has a variety of signal output and transmission methods, supports remote monitoring, and has multiple circuit protection functions such as overvoltage and lightning protection.
KORNO
MOT200-B-HCN
-
BOSEAN GQ-DX101-PH3 Fixed phosphating hydrogen Gas Detector 0~20ppm
$ 261.00 -
HONEYEAGLE HNAG1000-CO Fixed Carbon Monoxide Detector 2000PPM
$ 353.00 -
GUOYUGRA GY/VGD-200-SO2F2-G (0-100ppm) Sulfuryl Fluoride Detector
$ 703.00 -
GUOYUGRA GY/VGD-200-HCN-G (0-10ppm) hydrogen cyanide Detector
$ 274.00 -
SMART SENSOR AS8800A Combustible gas concentration Detector measurement range 1.2-225 mm
$ 138.00
Product Description:
MOT200 hydrogen cyanide detection alarm instrument, suitable for hydrogen cyanide gas concentration detection in various environments, using electrochemical gas sensor and microcontroller technology, fast response speed, high measurement accuracy, good stability and repeatability. The instrument adopts a 2.4-inch industrial-grade color screen to display various technical indicators and gas concentration values. At the same time, it has a variety of extremely strong circuit protection functions to effectively prevent the damage of the instrument caused by various human factors and uncontrollable factors. You can choose to use the online environmental detection platform developed by our company, through 3-4 core cables, optical fibers, network cables, Wiff, Bluetooth, GPRS, mobile APP, and other transmission methods to access the Municipal Environmental Protection Bureau, enterprise server, central control alarm, user mobile phone, Baidu Cloud, Alibaba Cloud, etc., and with powerful data analysis software, it can realize remote monitoring, remote control, remote alarm, and can be used on user computers, mobile phones, Ipads and other devices for real-time data query, historical data query, data export, Data printing and other operations
Instrument features
(1) Ultra-low power 32-bit microprocessor using new semiconductor nanoprocess
(2) It adopts a 2.4-inch industrial-grade color screen with a resolution of 320x240, and the three concentration units of PPM, %VOL, and mg/m3 can be switched freely
(3) A variety of signal outputs are optional: 4-20mA, RS485, 0-5V, 0-10V, frequency signal, switching signal
A variety of transmission methods are available: 3-4 core cables, optical fibers, network cables, GPRS transmission, wireless transmission, and video transmission
Multiple data reception methods: user computer, control alarm, PLC, DCS, mobile phone, tablet, etc
(4) It has a status indicator function and comes with 4 sets of LED status indicators
(5) It has the functions of over-voltage protection, lightning protection, short circuit protection, reverse connection protection, anti-static interference, and anti-magnetic field interference
And it has an automatic recovery function to prevent any external causes, man-made reasons, natural disasters, etc. from causing damage to the instrument
(6) With temperature and humidity detection function, it can detect the temperature and humidity value of gas in the site or pipeline (optional)
(7) Full software automatic calibration, sensor up to 6 levels of target point calibration function, to ensure the accuracy and linearity of measurement, and with data recovery function
(8) Full Chinese/English operation menu, simple and practical, with temperature compensation function
(9) Optional infrared remote control for lid-free remote control operation
KORNO MOT200-B-HCN Online hydrogen cyanide detection alarm instrumentSpecifications
| LIST | VALUE |
|---|---|
| Detect gas | Hydrogen cyanide (HCN) |
| detection range | 0-30/50/100PPM can be configured on demand |
| resolution | 0.01PPM |
| Detection principle | electrochemistry |
| Detection method | Diffusion, flow, pump suction optional |
| detection accuracy | ≤ +/- 3% F. S (depending on Sensor) |
| Response Time | ≤ 30 seconds (T90) |
| recovery time | ≤ 30 seconds |
| Installation method | Wall-Mounted, Pipeline Type (Thread Size: M40X1.5mm) |
| linearity error | ≤±1% |
| Zero drift | ≤ +/- 1% (F. S/year) |
| repeatability | ≤±1% |
| signal output | ① 4-20mA signal: standard 16-bit accuracy 4-20mA output chip, transmission distance 1Km ② RS485 signal: using standard MODBUS RTU protocol, transmission distance 2Km ③ Voltage signal: 0-5V, 0-10V output, can be set by yourself ④ Pulse signal: also known as frequency signal, frequency range adjustable (optional) ⑤ Switching signal: standard 2 sets of relays, optional third set of relays, relay passive touch point, capacity 220V3A AC/24VDC 3A |
| transmission method | ① Cable transmission: 3-core, 4-core cable, long-distance transmission (1-2 kilometers) ② TCP/IP transmission: support TCP/IP protocol, use optical fiber, network cable, long-distance real-time transmission through intranet, extranet (optional) ③ GPRS transmission: can be built-in GPRS module, real-time remote transmission of data, without distance restrictions (optional) ④ Wireless transmission: support 433Mhz, radio transmission mode, transmission distance 2-10Km, depending on different power (optional) ⑤ Video transmission: can support security surveillance cameras, when the device is alarmed, on-site capture and forensics (optional) |
| receiving device | User computer, control alarm, PLC, DCS, user mobile phone, Ipad, etc |
| Alarm method | On-site sound and light alarm, external alarm, SMS alarm, remote controller alarm, computer data collection software alarm, mobile app notification |
| Alarm settings | Standard configuration two-level alarm, optional three-level alarm; alarm mode can be set: conventional high and low alarm, interval control alarm |
| Explosion-proof sign | ExdII CT6 (flameproof) |
| Protection Rating | IP66 |
| Power Supply | 24VDC（12～30VDC） |
| Size weight | 200 * 149 * 79Mm (L × W × H) 1.5Kg (instrument net weight) |
| shell material | Die casting aluminum + sand blasting oxidation/fluorocarbon paint, explosion-proof and corrosion-proof |
| operating temperature | -30 ～ 60℃ |
| operating humidity | ≤ 95% RH, non-condensing |
| Operating Pressure | 0 ～ 100Kpa |
| standard accessories | manual, certificate of conformity |
KORNO MOT200-B-HCN Online hydrogen cyanide detection alarm instrument Packing list
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
