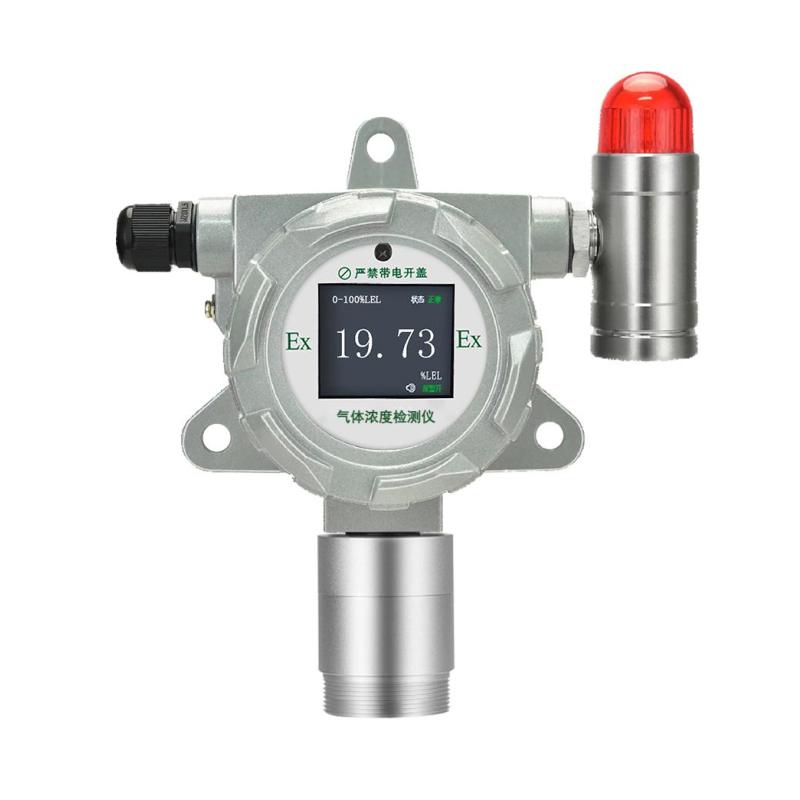

GUOYUGRA GY/VGD-200-C2H2-G acetylene detector 0-100% LEL explosion-proof gas concentration detector
Modular design with low power consumption, support 4-20mA, RS485 and switch and other signal output, easy access to various industrial control systems. With remote control without opening the lid operation function, Protection Rating up to IP66, Response Time ≤ 30 seconds.
GUOYUGR
GY/VGD-200-C2H2-G (0-100%LEL)
-
GUOYUGRA GY/VGD-200-CH2O-G (0-10ppm) Formaldehyde Detector
$ 261.00 -
KORNO MOT500-CO2-Y (infrared 2%) carbon dioxide Detector 0-1000ppm
$ 515.00 -
GUOYUGRA GY/VGD-200-CH4O-G (0-50ppm) methanol Detector
$ 400.00 -
Baoshi'an BH-50 wall-mounted gas control cabinet, dual-channel host
$ 147.00 -
GUOYUGRA GY/VGD-200-BCL3-G (0-10ppm) boron trichloride Detector
$ 893.00
Product Introduction
The gas concentration detector is a detector with low-power modular design, intelligent sensor detection technology, overall flameproof (D) structure, and fixed installation. The standard configuration is LCDTFT high-definition liquid crystal display, three-wire 4~20mA analog, RS485 digital and switching signal output, according to user needs to provide customized products, but also support output signal fine-tuning and other functions, convenient system networking and maintenance.
The rugged explosion-proof housing of the gas concentration detector is widely used in petroleum, chemical, metallurgy, fire protection, coal mine, cement, spraying, metal grinding, electric power, shipbuilding, environmental protection, telecommunications, biochemical and other industries.
Features:
The customizable range intelligent sensor is used to ensure the advantages of high sensitivity, high accuracy, linear stability and fast response of the detector.
The MCU chip is used, highlighting the low power consumption, safe and reliable performance, accurate data conversion, stable signal output, etc. 4-20mA, RS485, switching volume and other signal outputs, convenient to access PLC, DCS, DDC and other industrial control systems, or a single machine can link fans, solenoid valves and other control equipment through the switching volume;
Support customized wireless signal transmission: Zigbee, LORA, 433M, 4G, WiFi, NB, GPRS, etc.;
Dot matrix high-definition LCDTFT LCD display, Chinese and English operation interface can be switched by yourself;
The detector can be operated by remote control without opening the lid to alarm value, zeroing, calibration, reset, modifying address code and other functions;
Local integrated sound and light alarm indication, which can realize remote mobile phones, computers, monitoring rooms, third-party platforms, etc. alarm prompts through alarm control host or wireless signal, and can also be infrared remote control one-click silence;
Aluminum alloy casting explosion-proof shell, strong and durable;
It has passed a variety of international certifications such as CMA, CNAS, CE, ROHS, SIL, UL report safety, etc.
Explosion-proof certificate rating: Ex db IIC T6 Gb;
Degree of protection: IP66
Product dimensions
Product installation recommendations
GUOYUGR GY/VGD-200-C2H2-G (0-100%LEL) Acetylene detectorSpecifications
| LIST | VALUE |
|---|---|
| Output signal | "① 4-20mA signal: standard 12-bit accuracy 4-20mA output chip, transmission distance 1Km ② RS485 signal: using standard MODBUS RTU protocol, transmission distance 1Km ③ Voltage signal: 0.4-2 V, 0-5V, 0-10V output, optional (voltage output and current output choose one) ④ Switching signal: standard 1 group of passive touch point relays, capacity 220VAC 3A/24VDC 3A ⑤ GPRS, 4G, WIFI, LORA, ZigBee and other wireless signals" |
| receiving device | User computer, control alarm, PLC, DCS, DDC, etc |
| way of working | diffusion |
| detection medium | EX, CO, H2S, O2, NH3, SO2, CO2, NOx, H2, H202, VOC... |
| Detection principle | Catalytic combustion, electrochemistry, infrared NDIR, PID photoion |
| detection range | 0-100% LEL, 0-20PPM, 0-100PPM, 0-1000PPM, 0-5000PPMJ-10000PPM, 0-30% VOL, 0-50% VOL, 0-100% VOL (depending on the Sensor principle) |
| resolution | 0.001, 0.01, 0.1, 1 (depending on the range) |
| detection error | ≤ 3% F. S (≤ 3% in full scale) |
| Repeatability | ≤+2% |
| Linearity | ≤+2% |
| Response Time | ≤30S |
| Operating voltage | DC24V(12V~30V) |
| Operating temperature | -20 ° C~ 50 ° C (Special requirements: (-40 ° C~ + 70 ° C) |
| Operating humidity | 10-95% RH (non-condensing) |
| Sensor Shou | 2~ 3 years (depending on the environment used) |
| Explosion-proof form | Probe Transmitters and Sensors are Flameproof |
| connecting cable | 4~ 20mA choose three-core Shielding cable, RS485 choose four-core, when the distance exceeds 1000 meters (with a detector), the single wire diameter is ≥ 1.5mm, and the Shielding layer is connected to the earth. Wireless transmission: can be built-in LORA, Zigbeg module, short-range wireless transmission; can be external GPRS/4G module, remote data transmission to the cloud platform, can view history on computer and mobile phone, without distance restrictions (choose |
| Alarm mode | On-site sound and light alarm, external alarm, remote controller alarm, computer data collection software alarm, etc |
| Alarm settings | Standard configuration two-level alarm; Alarm mode can be set: conventional high and low alarm, interval control alarm |
| Dimension | 182*201*92 (L*W*H) |
| electrical interface | Default M20X1.5 female thread, optional 3/4NPT, 1/2NPT |
| Measurement certificate | Optional, the fee is paid by the customer. |
| Accessories | Encasement box, manual, certificate of conformity, and shipping order each |
| Optional Accessories | "Humidity measurement, 220V to 24V Power Adapter. Computer monitoring accessories: free host computer software, USB to RS485 conversion cable, if you want network transmission, you need RS485 to network converter" |
GUOYUGR GY/VGD-200-C2H2-G (0-100%LEL) Acetylene detector Packing list
host X1, manual X1, certificate X1, warranty card X1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
