ZIBO KLB701 Closed flash point automatic measuring instrument 1ml micro sample, electric ignition automatic test
Using 1ml micro sample test, electric ignition does not require combustible gas, with automatic heating, sweeping, ignition and atmospheric pressure correction functions, repeatability error +/- 1.5 ° C.
zibo
KLB701
-
Jilin Haimai JLHM-202 Automatic Open Cup Flash Point Tester Temperature Control: Room Temperature~ 400 ℃
$ 2598.00 -
ZIBO KLB301 closed flash point automatic measuring instrument Measurement range: room temperature~ 350 ℃
$ 2070.00 -
Jilin Haimai JLHM-201 Automatic Closed Cup Flash Point Tester Temperature Measurement: Room Temperature~ 400 ℃
$ 2598.00 -
Zibo Coulomb KLK301 open flash point automatic measuring instrument, measuring range 40~400 ℃
$ 2070.00
Product Introduction

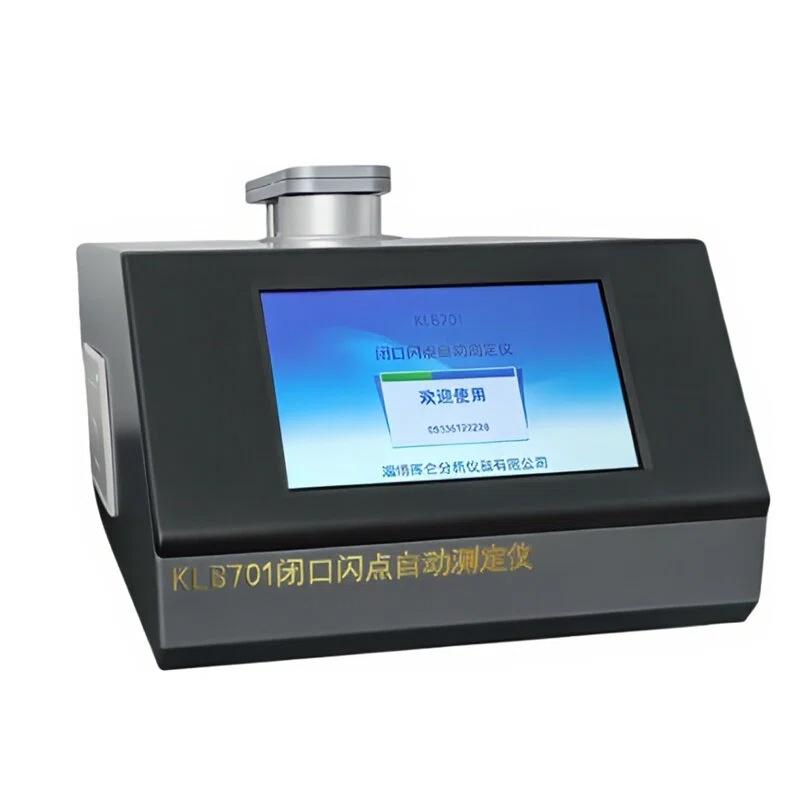

KLB701 closed-mouth flash point automatic analyzer is a new type of closed-mouth flash point automatic analyzer designed with ARM microprocessor technology, using German technology small size, light weight, required sample volume of 1ml-2m1, very suitable for flash point determination of special industries, special samples, and valuable samples.
The instrument adopts large screen color LCD display, Chinese menu touch screen control, PID self-tuning technology, fully electric ignition mode, no need for any combustible gas. It has automatic heating up, automatic sweeping, automatic ignition, standard program timely selection, automatic temperature tracking display, automatic locking of flash point value and automatic printing of results, atmospheric pressure correction and forced air cooling functions.
The instrument has a reasonable structure, simple operation, stable and reliable measurement results, and is a reliable instrument for closed-mouth flash point determination, which is widely used in electric power, petroleum, chemical industry, scientific research and other departments.
zibo KLB701 Closed flash point automatic measuring instrumentSpecifications
| LIST | VALUE |
|---|---|
| display | 5 inch Color Capacitive Touchscreen |
| Measurement range | Room temperature~ 300 ° C |
| detection type | Closed flash point |
| sample dosage | Lml--2ml (commonly used 2ml) |
| Temperature detection | Arc Electrode |
| margin of error | Sexual repeability +/- 1.5 ° C, reproducibility +/- 3.0 ° C |
| Ignition method | Electric ignition, automatic air injection |
| Ignition interval | Adjustable 0.1-10 ° C |
| information storage | Embedded file system, can export data from USB flash drive |
| Chill down | Forced Air-Cooled |
| printer | Point array thermal printer |
| self-test function | Air tightness detection, ignition detection |
| power supply | AC 220V +/- 11V, frequency 50Hz +/- 2.5Hz |
| power | ≤600VA、240W |
| Ambient Temperature | 10~ 35 ° C, relative humidity not more than 90% |
| exterior size | 288mmX 188mmX135mm |
| weight | 3.4 kg |
zibo KLB701 Closed flash point automatic measuring instrument Packing list
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
