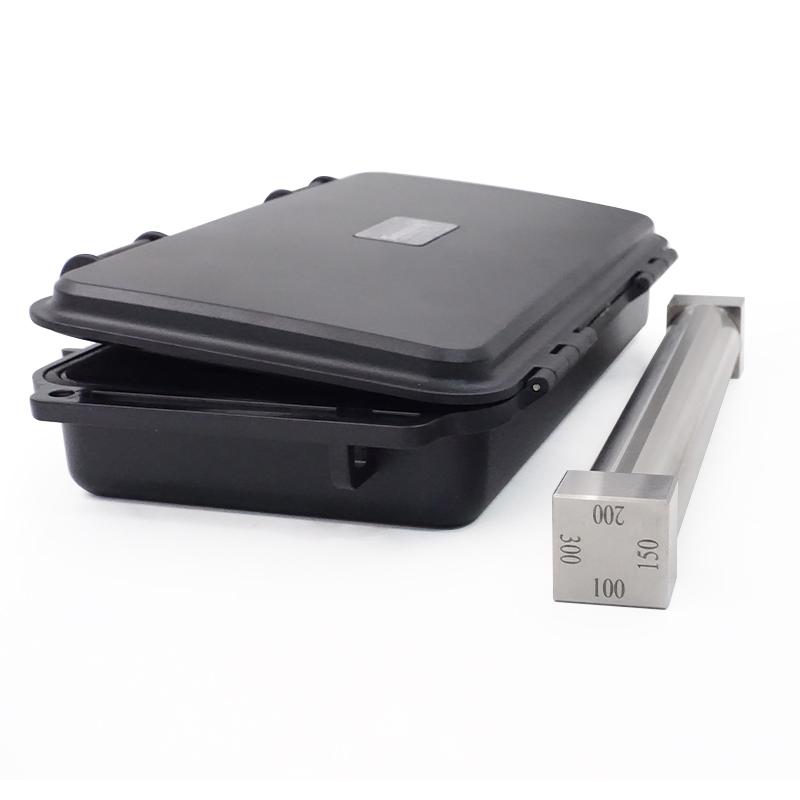

HuiNuo SZQ-280 500/600/800/1000 4-sided Applicator Extended 4-sided film applicator 280mm application width +/- 2μm accuracy

Hardness 9Cr18Mo stainless steel material, Hardness up to 50~ 55HRC, wear and corrosion resistance. Accuracy up to +/- 2 microns, application width 280mm, total length 300mm, support a variety of wet film thickness specifications, and with factory test report.

Brand

SKU: NB051004

HuiNuo

Model

SZQ-280 500/600/800/1000

Price

$ 482.00

Promotion

Service

The delivery and service By NBchao.Com

Get Quote

HuiNuo shop

Information

Datasheet RFQ Contract

What else did others buy

Genuinegoods

HuiNuo SZQ-280 500/600/800/1000 4-sided ApplicatorOverview
Specifications
Comments
FAQs

SZQ-280 500/600/800/1000

4-sided Applicator

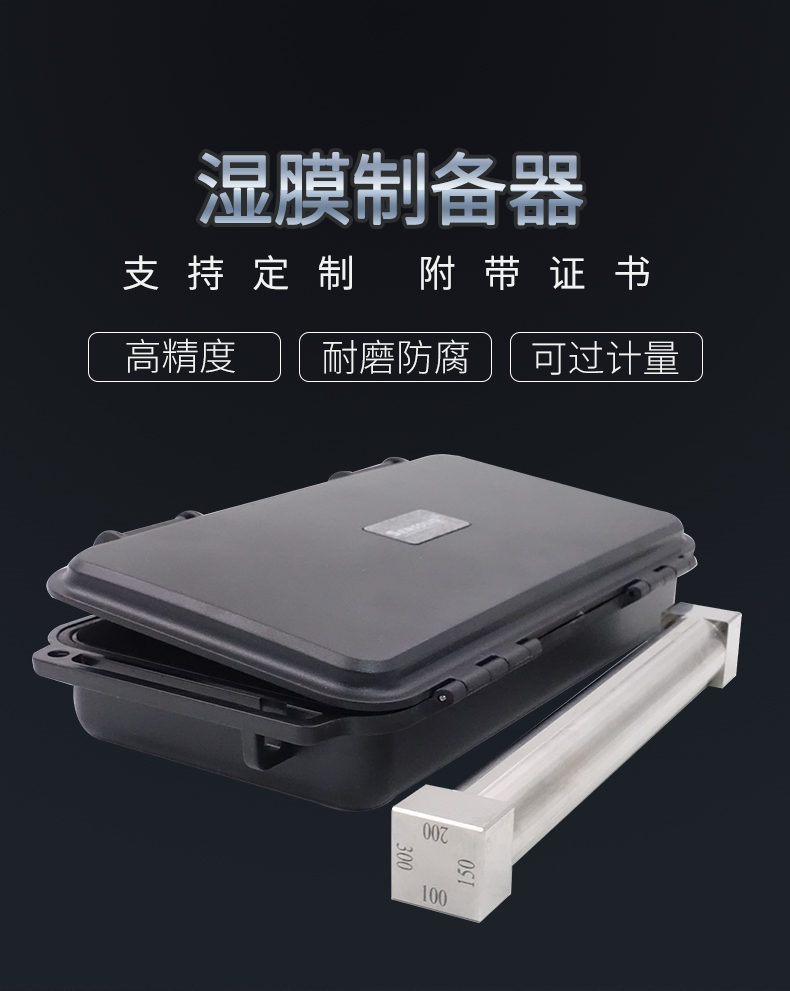

Huinuo SZQ-280 500/600/800/1000 Four-Sided Preparer Details Figure 1

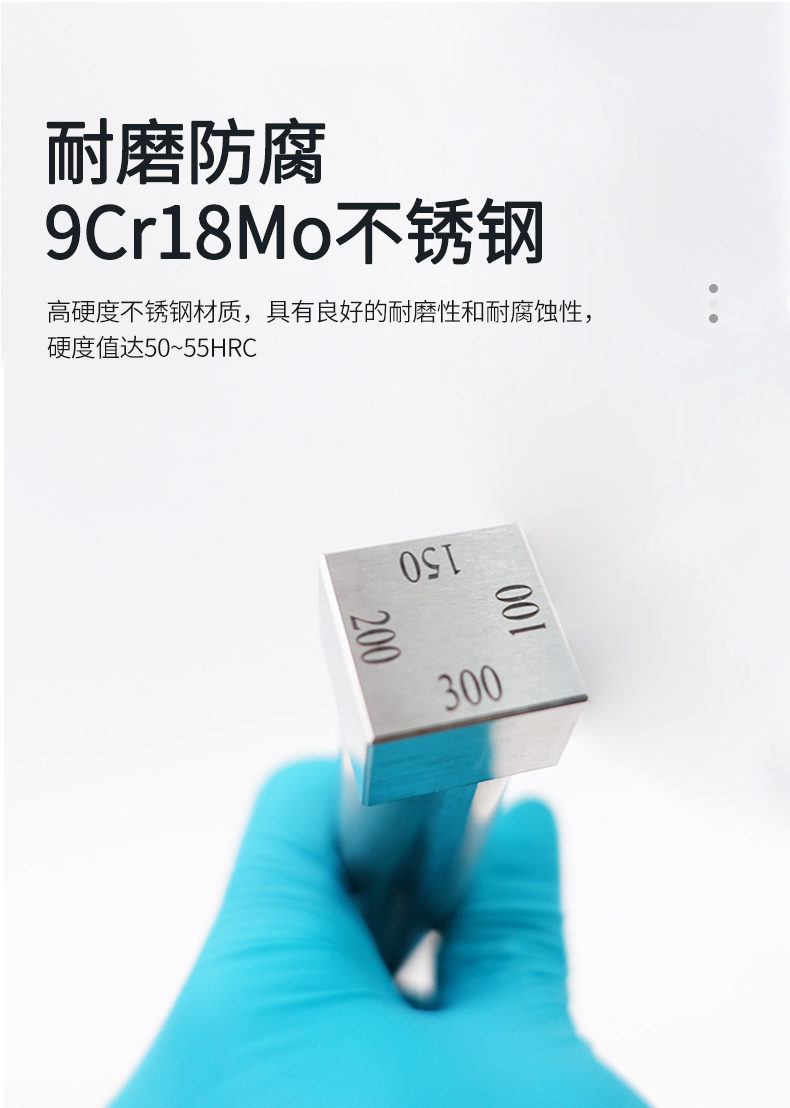

Huinuo SZQ-280 500/600/800/1000 Four-sided Preparer Details Figure 2

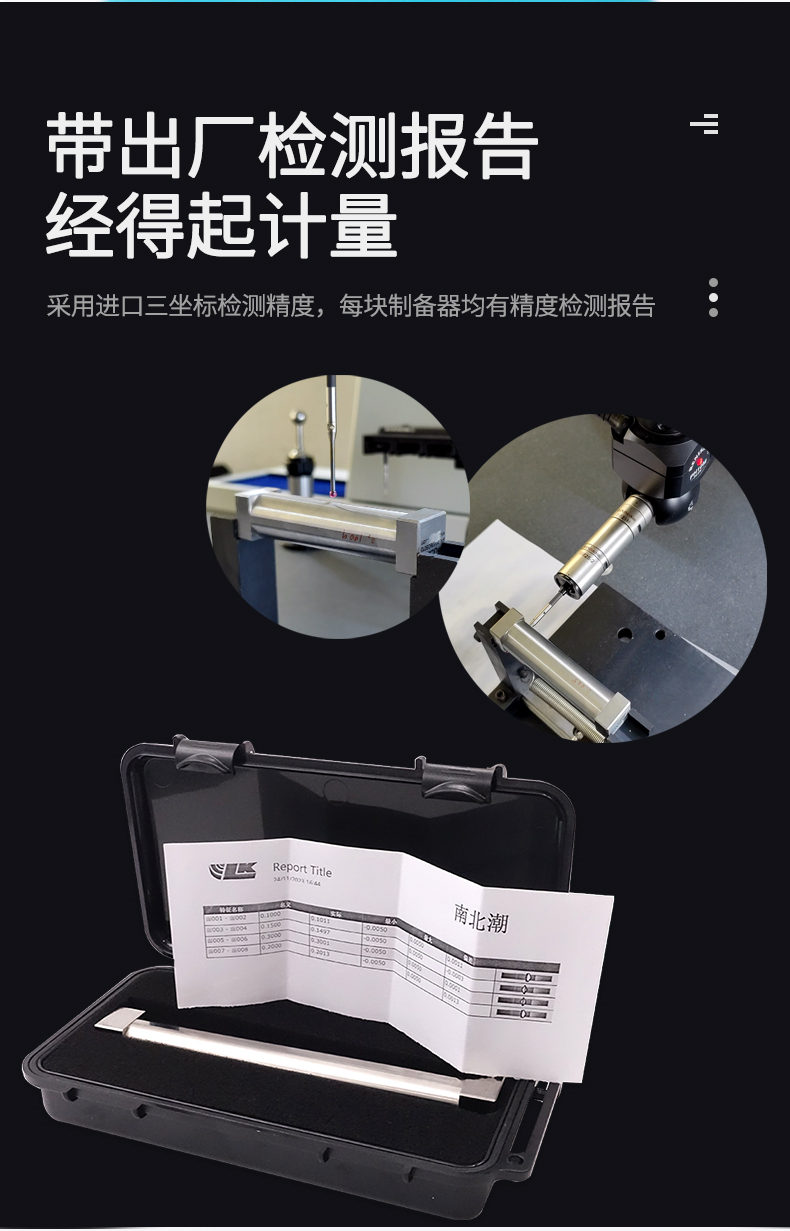

Huinuo SZQ-280 500/600/800/1000 four-sided preparer details Fig. 3

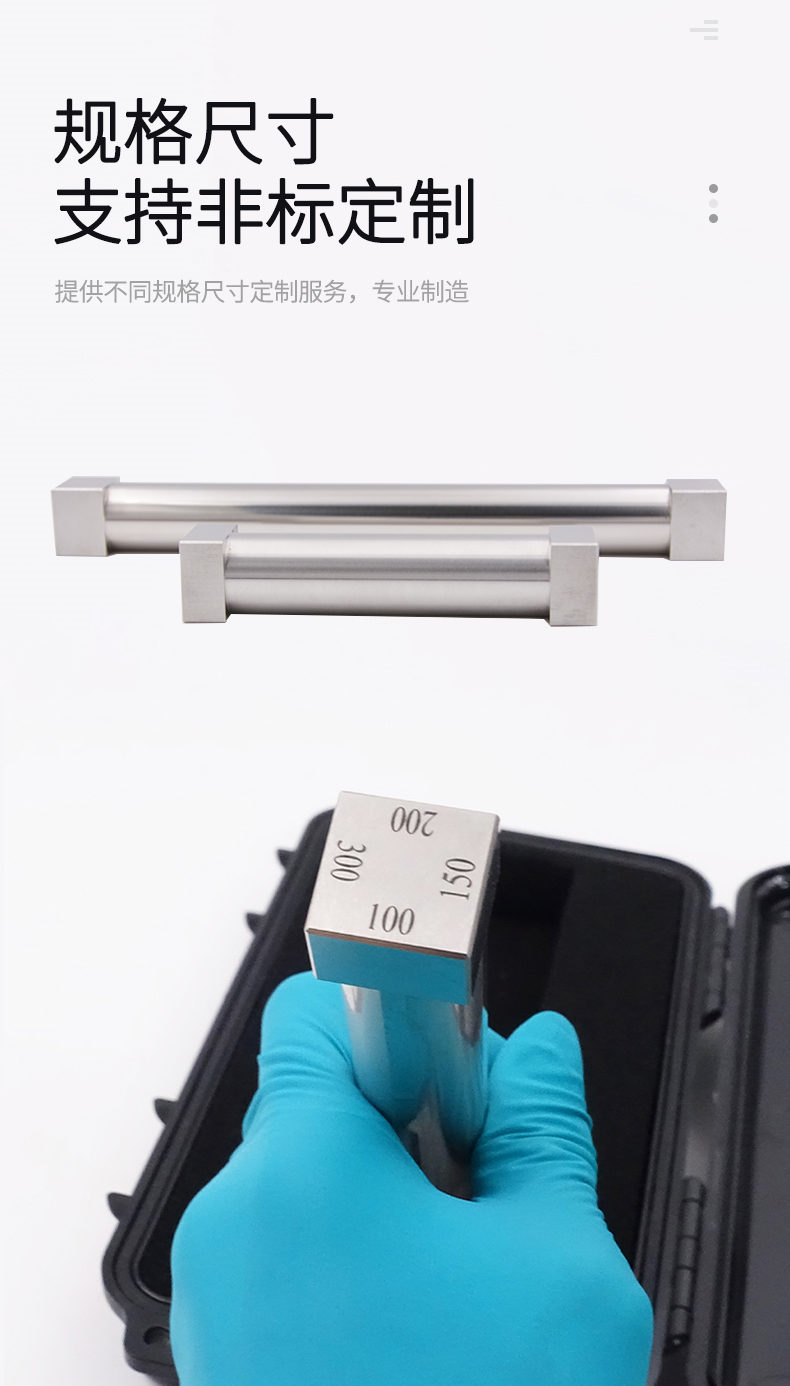

Huinuo SZQ-280 500/600/800/1000 four-sided preparer details Figure 4

Product Introduction

The four-sided applicator is an experimental coating device with an accuracy of ±2 microns, with two coating widths of 80 and 160mm, and is made of high-carbon-chromium wear-resistant stainless steel, which has good corrosion resistance. The wet film preparation machine will be tested for accuracy before leaving the factory, using imported three-coordinate testing, and with a factory testing data report, which can withstand measurement. SZQ four-sided film applicator is suitable for sample film proofing in resins, coatings, glues, new materials, polymer materials, and other fields. Support non-standard customization. It can also be equipped with laboratory automatic coating machine for automatic coating.

SZQ-280 500/600/800/1000μm is an extended four-sided preparer with a coating thickness of 500μm, 600μm, 800μm, and 1000μm, and a coating width of 280mm.

Features:

1. 9Cr18Mo high-hardness stainless steel, with good wear resistance and corrosion resistance, hardness value up to 50~55HRC.

2. The accuracy is up to ±2μm to ensure the accuracy of the experiment

3. The surface is smooth, the style is diverse, the application range is wide, and customized specifications are supported

4. Adopt imported three-coordinate testing accuracy, bring factory test report, and stand up to measurement

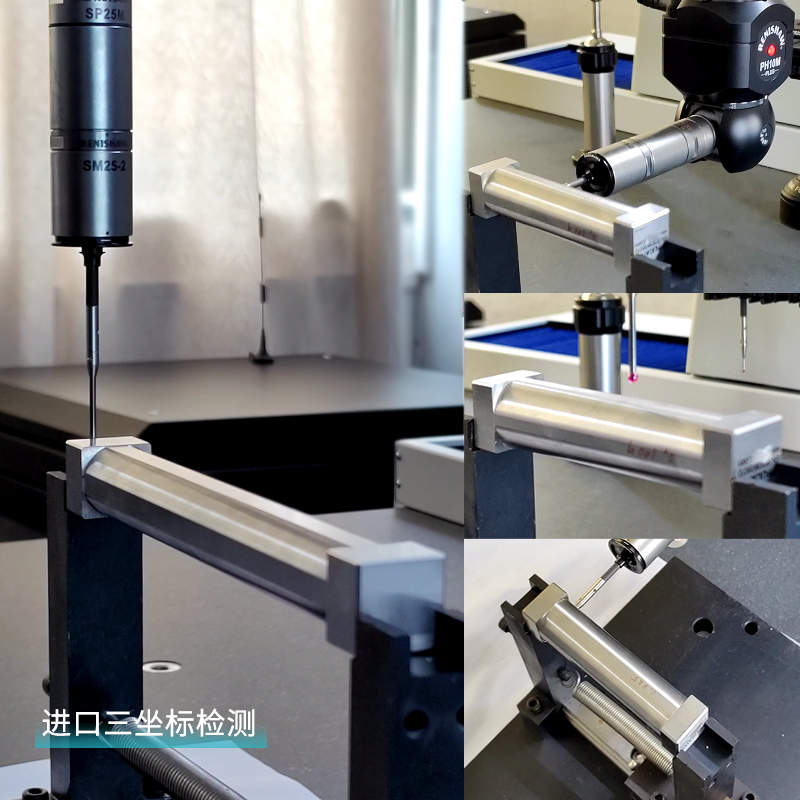

Huinuo SZQ-280 500/600/800/1000 Four-Sided Preparer Details Fig. 5

Preparer series parameter table

Name	Specification mm	Wet film thickness μm
Single-sided prep	The total length is 80, and the coating width is 50 and 75	50、75、100、125、150、175、200
Duplex prep	Total length 100, coating width 80	25、50、75、100、150、175、200、300、400
Frame preparer	Total length 90, coating width 80	30、50、60、90、120、150、200
Eight-sided preparer	Total length 90, coating width 68	50、75、100、125、150、175、200
Eight-sided preparer	Total length 100, coating width 80	50、75、100、125、150、175、200
Square preparer	25x25, coating width 16	37、50、75、100
Square preparer	50x50, coating width 41	50、100
Standard four-sided preparer	Total length 100, coating width 80	All specifications and sizes support non-standard customization
Extended four-sided preparer	Total length 190, coating width 160

HuiNuo SZQ-280 500/600/800/1000 4-sided ApplicatorSpecifications

LIST	VALUE
type	4-sided
wet film thickness	500μm- 600μm- 800μm- 1000μm
application width	280mm
accuracy	±2μm
material	9Cr18Mo stainless steel
total length	300mm

HuiNuo SZQ-280 500/600/800/1000 4-sided Applicator Packing list

Applicator x1, test report X1
