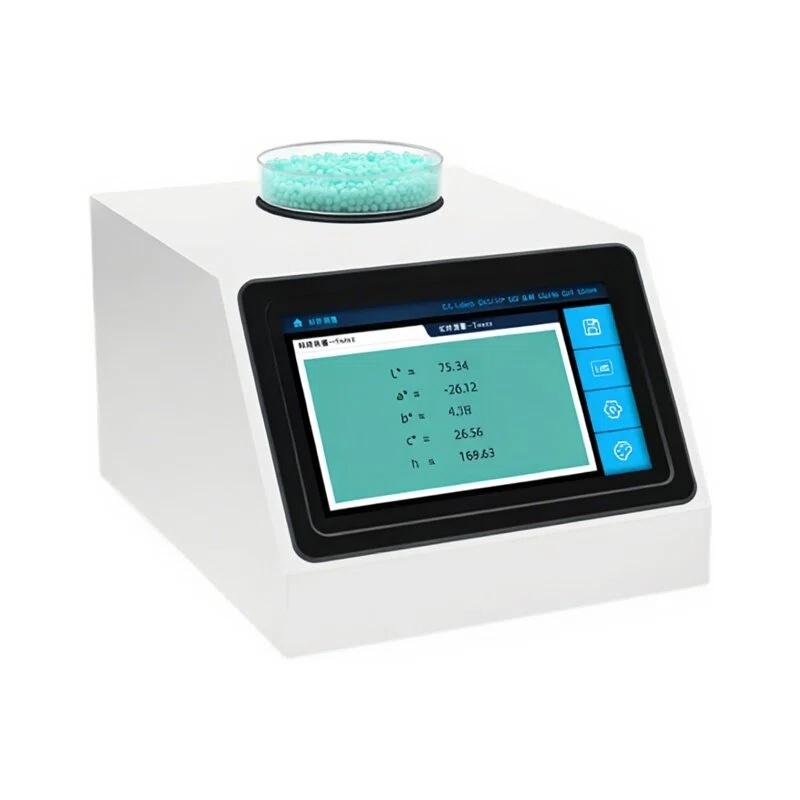

CHNSPEC DS-807 Spectroscopic color difference meter 50mm large diameter, powder Masterbatch Color measurement
Color measurement problems of non-uniform samples such as powder can be effectively dealt with by using 50mm large measurement diameter. Illuminant life of the instrument is 2 million times, and the test port is fully sealed to effectively prevent the intrusion of particle dust and ensure long-term use Stability.
CHNSpec
DS-807
-
Jin Zhun JZ-610 High Precision Colorimeter Small Hole 4mm
$ 687.00 -
QILI BSL-30 color difference meter series D/8 structure 27 kinds of measurement indicators Delta ≤ 0.05
$ 328.00 -
IWAVE WR-10 Colorimeter suitable for Spinning & weaving, chemical, leather, food, plastic, paints, toys, etc
$ 384.00 -
3NH NR200 NR series computer Colorimeter portable Colorimeter
$ 830.00 -
IWAVE WF30-8mm Colorimeter CHINA universal color difference instrument with USB communication interface Chinese and English system 2.8TFT true color screen
$ 1019.00
Product Use:
Specializing in measuring powder and masterbatch color and color aberration
Product images
Features:

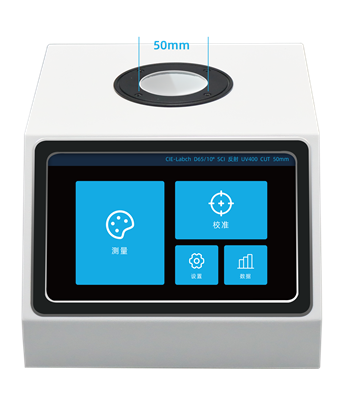

50mm ultra-large measuring caliber for better measurement of uneven samples
2 million light source life, no fear of light source damage
10,000 pieces of data storage, you can save it whenever you want
The test port is fully sealed to prevent particles and dust from falling into the instrument
CHNSpec DS-807 Spectroscopic color difference meterSpecifications
| LIST | VALUE |
|---|---|
| Lighting method | D/8, including specular reflection (SCI) |
| integrating sphere diameter | 100mm |
| Illuminant | Full Band EQ LED Illuminant |
| Wavelength range | 400-700nm |
| Measurement range of reflectance | 0-200%, resolution 0.01% |
| wavelength interval | 10nm |
| Measurement caliber | 50nm |
| Available Light Sources | A,B,C,D50,D55,D65,D75,F1,F2,F3,F4,F5,F6,F7,F8,F9,F10,F11,F12,CWF,U30,U35,DLF,NBF,TL83,TL84,ID50,ID65,LED-B1,LED-B2,LED-B3,LED-B4,LED-B5,LED-BH1,LED-RGB1,LED-V1,LED-V2,LED-8 |
| Standard Observer | 2 ° Standard Observer and 10 ° Standard Observer |
| Measurement time | About 1 second |
| Color space | CIE LAB,CIE LUV,LCh,Hunter Lab,Yxy,XYZ,Musell,s-RGB,βxy |
| Chroma indicator | WI (ASTM E313-20, ASTM E313-73, CIE, AATCC, Hunter, Taube, Berger Stensby), YI (ASTM D1925, ASTM E313-20, ASTM E313-73), Tint (ASTM E313-20), Metamerism index Milm, colour fastness, discoloration fastness, ISO luminance, R457, A density, T density, E density, M density, hiding power, force, strength |
| Color difference formula | delta E * ab, delta E * CH, delta E * uv, delta E * cmc, delta E * 94, delta E * 00, delta Eab (Hunter), 555 shade classification |
| Repeatability | Standard Deviation Delta E * ab, within 0.03 (Measurement conditions: after preheating correction, the average value of 30 whiteboard measurements at intervals of 3s) |
| Inter-instrument Agreement | Delta E * ab ≤ 0.4 (BCRA II series 12 color brick measurement average) |
| Maximum data storage capacity | 10000 |
| size | 202*264*152mm |
| weight | About 3kg |
| power supply | 100~240V 50/60HZ |
| Measurement mode | Single measurement, average measurement |
| Illuminant life | 10 years 2 million times |
| display screen | 7-Inch IPS full-view LCD screen |
| system language | Simplified Chinese, English |
| Interface | USB port |
| Temperature range | 5~ 40 ℃, relative humidity 80% or less (at 35 ℃), no water vapor condensation |
| Temperature range | -20~ 45 ℃, relative humidity 80% or less (at 35 ℃), no water vapor condensation |
| Standard | Culture dish, black cavity, whiteboard, data cable, power cord |
| Accessories | 800 quartz cylindrical Cuvette (optional) plastic culture dish (1 standard) |
CHNSpec DS-807 Spectroscopic color difference meter Packing list
host X1, manual X1, certificate X1, warranty card X1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
