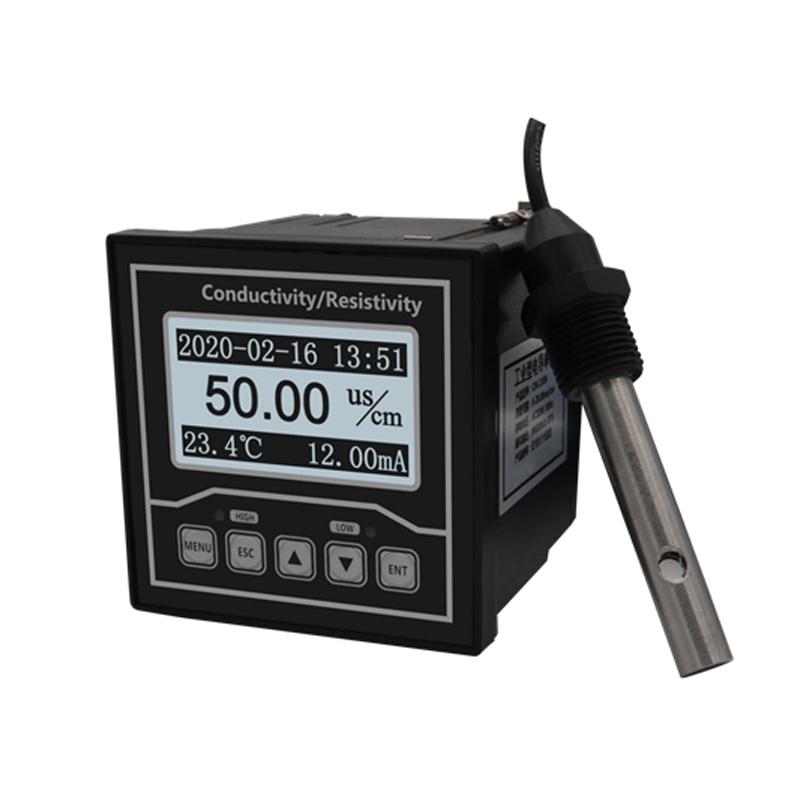

AOLILONG DDG-96F Conductivity Meter Online Conductivity Meter High Accuracy measurement RS485 communication
High Accuracy AD conversion and MCU processing, conductivity, resistivity and temperature measurement, with automatic temperature compensation and data storage functions, strong anti-interference ability, support RS485 communication.
AOLILONG
DDG-96F
-
DDKSIC CON201 Conductivity Detector electrode for laboratory and outdoor measurement of conventional water samples
$ 97.00 -
HANNA HI7031L Conductivity Detector calibrating liquid 1413μS/cm
$ 124.00 -
Bante950-DL Laboratory conductivity /TDS/salinity/resistivity meter
$ 534.00 -
LEICI DDS-307A Conductivity Meter conductivity TDS Temperature Class 1.0
$ 498.00 -
DDKSIC DJS-0.01V Low Range Conductivity Detector electrode for pure water, ultrapure water distillation water, etc
$ 167.00
Product Overview:
Conductivity sensor, strong environmental adaptability, clear display, easy operation and excellent test performance make it very cost-effective. It can be widely used in thermal power, chemical fertilizer, metallurgy, environmental protection, biochemical, food and tap water and other solutions for continuous monitoring.
Functional features:
High intelligence: It adopts high-precision AD conversion and microprocessing technology, which can complete various functions such as conductivity and resistivity values, temperature measurement, and automatic temperature compensation.
Time display: Chinese online conductivity meter has a built-in clock chip, which can display the current time.
Data storage: The memory chip built into the instrument can save historical data from the past two days, making it easy for users to find.
Flushing relay: The instrument is equipped with a flushing relay, which can clean the conductivity electrode regularly by installing a solenoid valve.
25°C conversion: The conductivity value at the current temperature is converted to 25°C, which realizes the display of the conductivity value at 25°C, which is suitable for the measurement of various water quality in power plants.
Strong anti-interference ability: new devices with impedance up to 10-12Ω; The current output adopts photoelectric coupling isolation technology, which has strong anti-interference ability and realizes long-distance transmission. It has good electromagnetic compatibility.
Simultaneous display of multiple parameters: The time, conductivity value or resistivity value, temperature, and output current value are displayed simultaneously on the LCD screen. It adopts a high-brightness 128*64 LCD display module, which is eye-catching and has a long viewing distance.
RS485 communication interface: MODBUS RTU communication protocol can be easily connected to a computer for monitoring and communication.
Industrial-controlled watchdogs: Make sure the meter doesn't freeze.
AOLILONG DDG-96F Conductivity MeterSpecifications
| LIST | VALUE |
|---|---|
| execution standard | JB/T6855-93 Industrial Conductivity Meter |
| Conductivity measurement range | 10.0μS/cm～20.0mS/cm |
| Electronic unit intrinsic error | Conductivity +/- 0.5% FS, temperature +/- 0.5 ℃ (0~ 60 ℃) |
| Instrument intrinsic error | Conductivity +/- 1.0% FS, temperature +/- 1.0 ℃ (0~ 60 ℃) |
| tested water sample | 0～99.9℃，0.6MPa |
| Automatic temperature compensation range | 0~ 99.9 ° C, 25 ° C as the reference |
| Electronic unit repeatability error | ±0.2% |
| stability | ±0.2% |
| current isolated output | 4～20mA |
| Output current error | ≤±1%FS |
| High and low alarm relay | AC220V、3A |
| data storage | 60 points, 2 days of data |
| RS485 communication interface | MODBUS RTU protocol; isolation (optional) |
| Power supply | AC220V +/- 22V, 50 +/- 1Hz; optional DC24V +/- 2.4V |
| Protection Rating | IP54 |
| dimensions | 96 (L) × 96 (W) × 110 (D) mm |
| opening size | 92×92 mm |
| instrument weight | Transmitter: 0.8kg |
| Operating Conditions | Ambient Temperature: 0~ 60 ℃ relative humidity: < 85% |
| Electrode line length | Standard 5 meters |
AOLILONG DDG-96F Conductivity Meter Packing list
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
