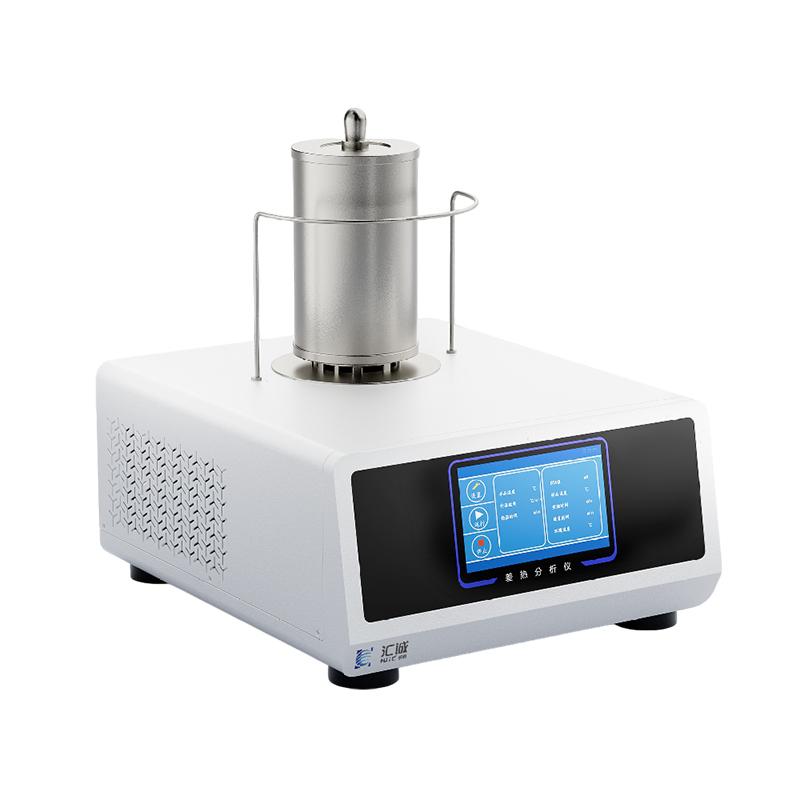

Huicheng DTA-1250S Differential Thermal Analyzer High Frequency Ceramic Furnace Body K/E Sensor 12 Order Program Temperature Control Temperature range Room temperature to 1250 ℃

Instrument introduction

Differential thermal analysis is a technique that measures the temperature difference between substances and reference objects and the temperature relationship under the control of the program. The differential thermal analysis curve describes the relationship between the temperature (△T) between the sample and the reference object with temperature or time. In DTA testing, changes in sample temperature are caused by endothermic or exothermic effects of phase transitions or reactions. Such as: phase transition, melting, transformation of crystal structure, boiling, sublimation, evaporation, dehydrogenation reaction, fracture or decomposition reaction, oxidation or reduction reaction, destruction of crystal lattice structure and other chemical reactions.

Instrument use

Phase transition, melting, transformation of crystal structure, boiling, sublimation, evaporation, dehydrogenation reactions, fracture or decomposition reactions, oxidation or reduction reactions, destruction of lattice structures and other chemical reactions.

Key features:

• Equipped with imported high-frequency enclosed ceramic insulation furnace structure, it greatly improves signal sensitivity and resolution, and can obtain a more stable baseline.

• The kernel controls the processor, which is faster and more efficient.

• The sensor is designed with imported materials, and the equipped K-type or E-type sensor can be switched arbitrarily through software, and the sensor type can be flexibly selected for different test occasions, especially suitable for phase change and glass experiments on polymer materials.

• Independent atmosphere control can be intelligently set by software, and the instrument automatically switches the air circuit system, which is more efficient in experiments.

• The lower and upper computers of the equipment system have multi-point temperature correction functions at the same time, which meets the needs of different experimental occasions and improves the accuracy of temperature testing.

• It has two experimental modes of FTC and STC, which can be set to meet the needs of different experiments in different application scenarios, control the temperature during the experimental process more accurately, analyze the sensor signal more efficiently, and accurately control the experimental effect.

• The full temperature control system adopts the optimized dynamic PID algorithm, which greatly avoids the shortcomings of the traditional PID algorithm and improves the robustness of dual-mode temperature control.

• The 12-step program temperature control setting makes the experimental methods more diverse, and the equipment has a cyclic scanning function, the number of cyclic scans can be set up to 9999 times, and the data is automatically saved.

• The sampling frequency of the sensor signal can be set from 1~10Hz, making the experimental method more flexible and the data more controllable.

• The dual temperature sensor design concept can test the internal temperature of the furnace body and the sample temperature separately at the same time.

• The equipment system can do experiments on heating, cooling and isothermal related materials.

• The instrument adopts USB two-way communication, intelligent software design, baseline deduction function, automatic drawing of the experimental process, and intelligent processing of various data, such as glass transition temperature, oxidation induction period, melting point and crystallization of substances, etc.

Reference Standards

GB/T 19466.3 – 2004 / ISO 11357-3: 1999 Part 3: Determination of melting and crystallization temperature and thermal enthalpy.

host X1, manual X1, certificate X1, warranty card X1

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
