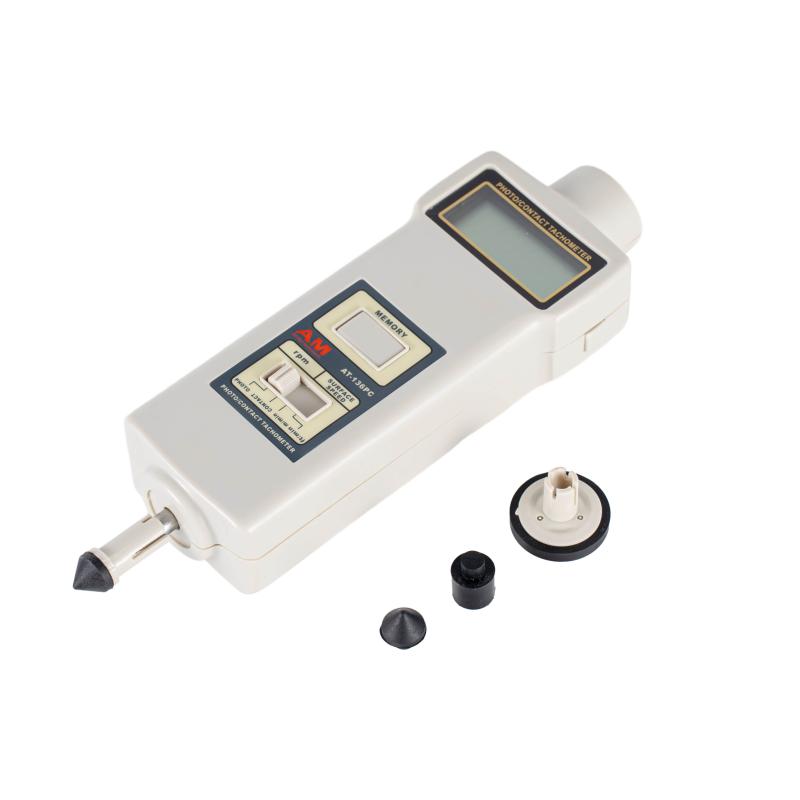

AMITTARI AT-136PC Multifunctional Rotation speed meter, photoelectric contact dual-use Rotation speed Measurement Instrument
Photoelectric Measurement range 2.5-9999 9r/min, contact measurement 0.5-1999 9r/min, with automatic memory MAX Maximum, MIN Minimum and last Measured value functions, lightweight and sturdy construction.
AMITTARI
AT-136PC
AT-137PC
-
CHINA NBC-1200 household appliance stability test bench 1200 * 1200mm
$ 1061.00 -
QIWEI QW-SZF-06A fat measuring instrument
$ 568.00 -
KOSON KS-75 In-situ double shear instrument, masonry shear strength Detector 75KN thrust
$ 665.00 -
Leakage marking Tester (touch screen) pure platinum electrode purchased separately
$ 1781.00 -
AMITTARI MT-200D Gaussian meter, magnetic field Measurement Instrument
$ 173.00
An Miao tachometer is used to measure the rotational speed, linear speed or frequency of the motor; it is widely used in the manufacturing industries of motors, electric fans, papermaking, plastics, chemical fibers, washing machines, automobiles, aircrafts, ships, etc.
Features
* Wide measurement range, high resolution; digital display, no parallax.
* Automatically memorize the maximum, minimum and last measured value during the measurement period.
* Multifunction. It can be used as a photoelectric tachometer for non-contact speed measurement (r/min); it can also be used as a contact tachometer for contact measurement of speed and linear speed (m/min, ft/min).
* Sturdy and delicate structure, easy to carry. The whole machine adopts durable professional electronic components; the outer shell is made of light and hard ABS plastic, which is beautiful in shape and easy to use.
* With automatic shutdown and manual shutdown functions; underVoltage alarm indication function.
AMITTARI AT-136PC Rotation speed meterSpecifications
| LIST | VALUE |
|---|---|
| Measuring range | Laser: 2.5-99,999 r/min; Contact: 0.5-19,999 r/min; Line speed: 0.05-1999.9m/min; 0.2-6560ft/min |
| Photoelectric distance measurement | 50-600mm |
| Accuracy | :±(0.05%n+1d) |
| resolution | Speed: 0.1 rev/min (0.5~ 999.9 rev/min) 1 rev/min (above 1000 rev/min); Line speed: 0.01 m/min (0.05~ 99.9 m/min) 1 m/min (100 m/min or more) or 0.1 feet (0.1~ 999.9 feet/min) 1 inch (1000 inches/min or more) |
| Measurement Accuracy | ±（0.05%n+1d） |
| Sampling Time | 1.0 seconds (under 60 rpm) |
| Range selection | Automatic switching |
| Memory function | MAX Maximum, MIN Minimum and last measurement during automatic memory measurement |
| time base | Quartz crystal |
| Effective distance | 50~150mm (typical) up to 300 mm depending on luminous tube brightness |
| Power | 4X1.5vAA (UM-3 battery) |
| Dimensions | 210*60*38 mm |
| Weight | 180G (without battery) |
AMITTARI AT-136PC Rotation speed meter Packing list
host x1, wire speed wheel x1, tapered adapter x1, round adapter x1, portable case x1, instruction manual x1.
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
FAQ
- Anmiao AT-136PC-CN-fold Multifunctional Tachometer Operation Instructions
- Anmiao AT-136PC Multifunctional Tachometer Operation Instructions
