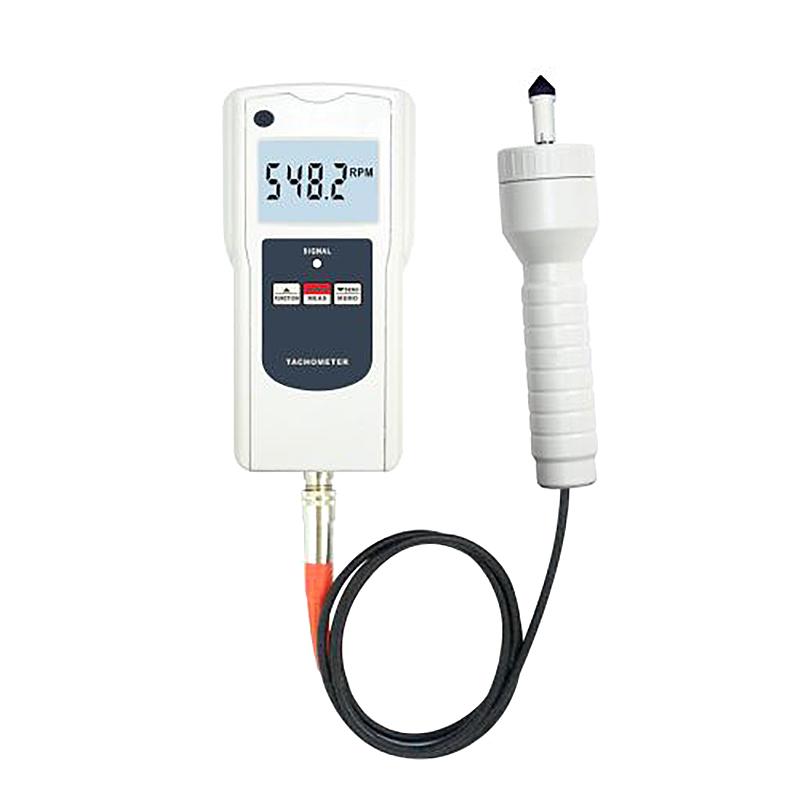

AMITTARI AT-137PC intelligent Rotation speed meter, photoelectric contact dual-use 2.5-9999 9r/min
Measurement range 2.5-9999 9r/min, photoelectric contact dual-use design, automatic memory MAX Maximum, MIN Minimum and final Measured value ， +/- 0.05% high-precision, 1 second fast sampling, sturdy and portable.
AMITTARI
AT-137PC
AT-136PC
-
TRUIT TR 3301/3 Penetration Cup, test area 30cm ²
$ 130.00 -
Huicheng DSC-600C/-40~600 Differential Scanning Calorimeter -40 ℃~ 600 ℃
$ 8730.00 -
XINGHUO ZTT-910 Reflective film adhesion performance Tester
$ 560.00 -
YUZHOU DPF-2 electrolysis polishing corrosion instrument chemical final polishing
Login -
Huicheng DSC-600 Differential Scanning Calorimeter DSC 600 ℃
$ 3537.00
The tachometer is used to measure the rotational speed, linear speed or frequency of the motor; it is widely used in the manufacturing industries of motors, electric fans, papermaking, plastics, chemical fibers, washing machines, automobiles, airplanes, ships, etc.
Features
* Wide measurement range, high resolution; digital display, no parallax.
* Automatically memorize the maximum, minimum and last measured value during the measurement period.
* Multifunction. It can be used as a photoelectric tachometer for non-contact speed measurement (r/min); it can also be used as a contact tachometer for contact measurement of speed and linear speed (m/min, ft/min).
* Sturdy and delicate structure, easy to carry. The whole machine adopts durable professional electronic components; the outer shell is made of light and hard ABS plastic, which is beautiful in shape and easy to use.
* With automatic shutdown and manual shutdown functions; underVoltage alarm indication function.
AMITTARI AT-137PC Rotation speed meterSpecifications
| LIST | VALUE |
|---|---|
| Measuring range | Laser: 2.5-99,999 r/min; Contact: 0.5-19,999 r/min; Line speed: 0.05-1999.9m/min; 0.2-6560ft/min |
| Photoelectric distance measurement | 50-600mm |
| Accuracy | :±(0.05%n+1d) |
| resolution | Speed: 0.1 rev/min (0.5~ 999.9 rev/min) 1 rev/min (above 1000 rev/min); Line speed: 0.01 m/min (0.05~ 99.9 m/min) 1 m/min (100 m/min or more) or 0.1 feet (0.1~ 999.9 feet/min) 1 inch (1000 inches/min or more) |
| Measurement Accuracy | ±（0.05%n+1d） |
| Sampling Time | 1.0 seconds (under 60 rpm) |
| Range selection | Automatic switching |
| Memory function | MAX Maximum, MIN Minimum and last measurement during automatic memory measurement |
| time base | Quartz crystal |
| Effective distance | 50~150mm (typical) up to 300 mm depending on luminous tube brightness |
| Power | 4X1.5vAA (UM-3 battery) |
| Dimensions | 210*60*38 mm |
| Weight | 180G (without battery) |
AMITTARI AT-137PC Rotation speed meter Packing list
host x1, wire speed wheel x1, tapered adapter x1, round adapter x1, portable case x1, instruction manual x1.
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
