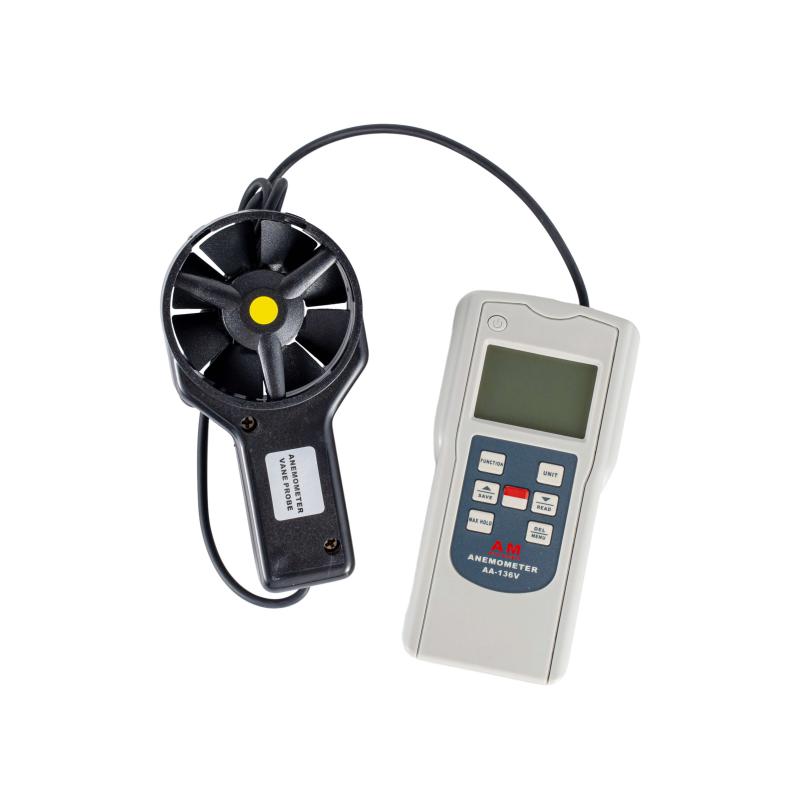

AMITTARI AA-136V impeller anemometer
The AMITTARI AA-136V impeller anemometer can remember 24 groups, Sampling rate is about 1 second, data is maintained MAX Maximum, AA-136V impeller anemometer is widely used in boiler, cooling, HVAC, ventilated pipeline, environment monitoring, nautical measurement data collection.
AMITTARI
AA-136V
Introduction
The impeller anemometer is widely used in data acquisition in boilers, refrigeration, HVAC, ventilation ducts, environmental monitoring, navigation survey, as well as data acquisition in weather forecast, field operations and fire department.
Features
* Multiple measurement unit conversion.
* With maximum value hold function.
* With storage function, can store 24 sets of data.
* High sensitivity and accurate measurement, the sensor adopts ultra-low friction bearing.
* The wind speed measuring handle can be separated from the fuselage for easy measurement.
* Not only can measure wind speed, but also can measure wind temperature, wave height, wind level and wind volume, etc.
* The automatic shutdown function can be set by yourself (adjustable from 0 to 9 minutes).
* Use USB data line output to communicate with PC.
* In addition, an optional Bluetooth data output option is provided.
AMITTARI AA-136V Impeller AnemoMeterSpecifications
| LIST | VALUE |
|---|---|
| Measurement Units | Flow: CMM (m 3/min); CFM (ft 3/min) Wind Scale: Beaufort Scale; Wave Height: m; Temperature: ℃ & ° F |
| data retention | MAX Maximum |
| Memory | 24 groups |
| Sampling rate | About 1 second |
| Sensors | Wind Speed/Flow: Low Friction Bearing Impeller; Temperature: Thermal Resistance |
| Automatic shutdown | Set arbitrarily between 0-9 minutes |
| Operating temperature | -10℃ ~ 50℃(14℉ ~ 122℉) |
| Operating humidity | Up to 80% RH |
| Power | 4X1.5vAAA 7 #battery |
| size | Host: 140x70x30mm; Impeller: Diameter 72mm |
| Weight | About 195 grams, including Sensors |
AMITTARI AA-136V Impeller AnemoMeter Packing list
host x1, portable portable case x1, instruction manual x1, probe x1.
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
