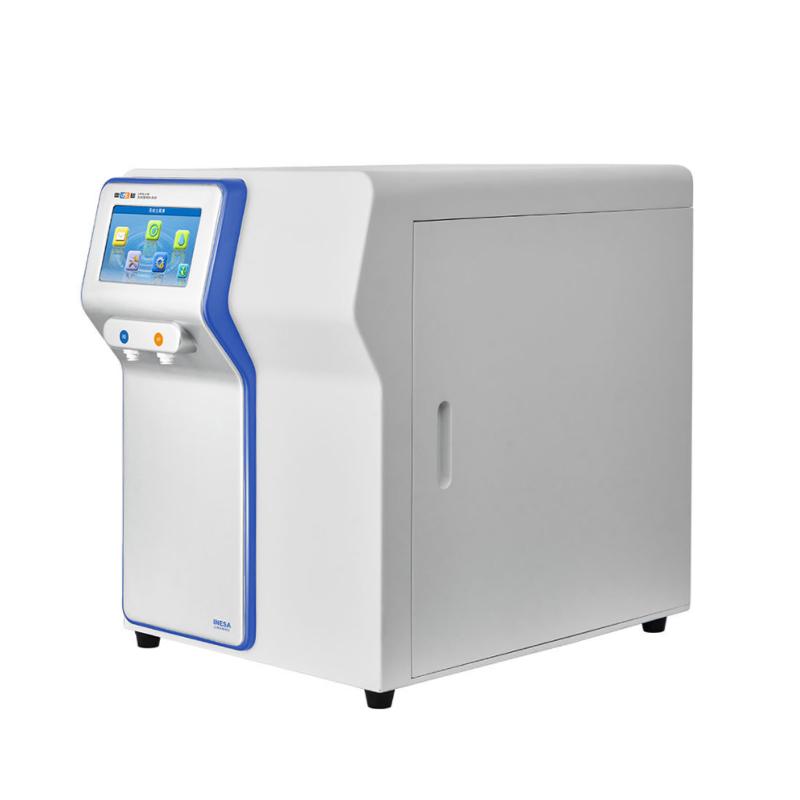

LEICI UPW-Y20 Pure Water System Modular Design 7-inch Color Touchscreen 20L/h
Modular design, 7-inch color Touchscreen, magnetic suction door, quick plug pipeline, multi-channel pure water/ultrapure water, 2.5G pressure bucket, real-time water quality monitoring, alarm function, consumable life management, GLP specification, USB data output.
Brand
SKU: NB051741
LeiCiModel
UPW-Y20
Price
$ 2252.00
Promotion
Service
The delivery and service By NBchao.Com
VS
What else did others buy
-
Tianma UPTM-B40 vertical ultrapure water mechanism water volume 40L/H
$ 2217.00 -
Tianma UPTM-B10 Benchtop Ultrapure Water Mechanism Water Quantity 10L/H
$ 1506.00 -
Tianma UPTM-C10 laboratory ultrapure water mechanism water volume 10L/H
$ 3510.00 -
MOLECULAR MU-10L biochemical ultra-pure water machine, water production rate 10L/h
$ 4048.00 -
Tianma UPTM-C100 vertical ultrapure water mechanism Water volume 100L/H
$ 5223.00
Genuinegoods
UPW-Y20
Pure water system
Modular design, 7-inch color Touchscreen, magnetic suction door, quick plug pipeline, multi-channel pure water/ultrapure water, 2.5G pressure bucket, real-time water quality monitoring, alarm function, consumable life management, GLP specification, USB data output.
Modular design
7-inch color touchscreen
Rotating magnetic door design, filter cartridge pipeline with color management, quick-insert pipe connection, quick disassembly for easy maintenance
Pretreatment column, reverse osmosis column, purification column, ultrapure column, dual-wavelength UV lamp, modular terminal filter design, ready to use with water
Multi-channel design supports both pure and ultrapure water channels
Built-in 2.5G pressure tank, it has dual functions for water storage and pressurization. The fully enclosed structure effectively isolates air and supports both quantitative and direct water intake
Automatic control design
Real-time display of water quality information, water usage data, and machine status
Sensors monitor influent water in real time, RO pure water, and UP ultrapure water quality and temperature
Supports raw water quality alarms, pure and ultrapure water quality alarms, ensuring stable water quality
Features automatic cleaning and flushing cycle settings
Consumable life management function: real-time display of remaining consumables, automatic replacement reminders upon expiration
Triggers low pressure alarm, water full alarm, water quality exceeds limit alarm
GLP specification
Password login
Flow monitoring function records RO pure water/UP ultrapure water usage
USB output of water data provides a basis for traceability of water samples
Reference standards
GB/T 6682-2008 Specifications and test methods for water used in analytical laboratories
GB/T 33087-2016 Specifications and Test Methods for High-Purity Water Used in Instrument Analysis
VS
LeiCi UPW-Y20 Pure water systemSpecifications
| LIST | VALUE |
|---|---|
| System water production (25 ° C) | 20L/h |
| Flow velocity | （1.5~2）L/min |
| Water ingress requirement | Tap water: conductivity < 400 μS/cm, (5~ 45) ℃, (0.02~ 0.25) MPa, pH (3~ 10) |
| UP ultrapure water index | / |
| resistivity | ＞18.25MΩ∙cm（25℃） |
| conductivity | ＜0.055μS/cm（25℃） |
| Heavy metals ions | ＜0.01ppb |
| Total organic carbon (TOC) | ＜5ppb |
| Heat source/endotoxin | N/A |
| Microbial bacteria | ＜0.1CFU/mL |
| ribonuclease | N/A |
| deoxyribonuclease | N/A |
| Particulate matter (PM) > 0.22 µm | ＜1/mL |
| RO pure water index | / |
| conductivity | ＜1μS/cm（25℃） |
| TDS value | RO water TDS (total solids solubility, ppm) < influent TDS × 1% (desalination rate > 99%) |
| Divalent ion separation rate | > 99% (when using new RO membrane) |
| Organic matter separation rate | > 99% (when MW > 200Dalton) |
| inorganic ion retention rate | 98% to 99% (when using new RO film) |
| Soluble organic matter retention rate | ＞99%（MW＞300Dalton） |
| Particle/bacterial removal rate | ＞99% |
| Reverse osmosis (RO) maximum water yield | 2.0 L/min (open pressure tank) |
| Operating Pressure Monitoring | （0~1）MPa，（0~150）psi |
| Digital water quality monitoring | Online resistivity, conductivity, water temperature monitoring |
| Size, weight | 420 × 595 × 550mm, about 33kg |
| Power, Power | AC 220V, 50Hz, Power 120W |
LeiCi UPW-Y20 Pure water system Packing list
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
