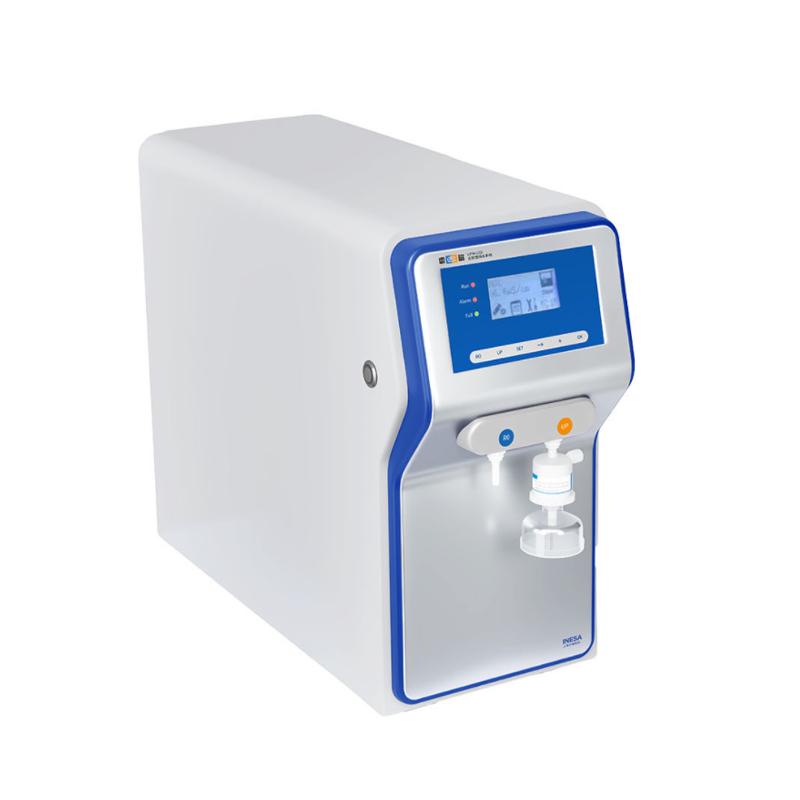

LEICI UPW-U15 pure water system Modular design, LCD screen operation, quick plug pipeline, button model, 15L/h
Modular design, LCD button operation, 15L/h, water intake 1.5-2 L/min, UP resistivity > 18.25MΩ · cm, conductivity < 0.055μS/cm, TOC < 10ppb, bacteria < 0.1CFU/mL, RO conductivity < 20μS/cm, desalination rate ≥ 96%, quick insertion pipeline, Color management, automatic cleaning, water quality alarm, consumable life reset, password Sign in.
LeiCi
UPW-U15
-
Tianma UPTM-B10 Benchtop Ultrapure Water Mechanism Water Quantity 10L/H
$ 1516.00 -
Tianma UPTM-B60 vertical ultrapure water mechanism water volume 60L/H
$ 2498.00 -
GUOHUA SYZ-B quartz sub-boiling high purity water distillation, water output: 800~ 1000ml/h
$ 576.00 -
LEICI UPW-Y45 Pure Water System 45L/H 7-inch Touchscreen Modular Design
$ 2545.00 -
Tianma UPTM-C100 vertical ultrapure water mechanism Water volume 100L/H
$ 5258.00
Modular design
LCD screen, button operation
Rotating magnetic door design, filter cartridge pipeline with color management, quick-insert pipe connection, quick disassembly for easy maintenance
Pretreatment column, reverse osmosis column, purification column, ultrapure column, and terminal filter are modular in design, ready for use with water
Multi-channel design supports pure and ultrapure water channels, with both quantitative and direct water intake
Automatic control design
Real-time display of water quality information, water usage data, and machine status
Sensors monitor RO pure water and UP ultrapure water quality and temperature in real time
Supports pure and ultrapure water quality alarms to ensure stable water quality
Supports automatic cleaning and manual rinsing
Indicator lights indicate low pressure alarm, water full alarm, and water quality limit warning
Consumable life reset function
Password login
Reference standards
GB/T 6682-2008 Specifications and test methods for water used in analytical laboratories
GB/T 33087-2016 Specifications and Test Methods for High-Purity Water Used in Instrument Analysis
LeiCi UPW-U15 Pure water systemSpecifications
| LIST | VALUE |
|---|---|
| System water production (25 ° C) | 15L/h |
| Flow velocity | （1.5~2）L/min |
| Water ingress requirement | City tap water: conductivity < 400 μS/cm, (5~ 45) ℃, (0.02~ 0.25) MPa, pH (3~ 10) |
| UP ultrapure water index | / |
| resistivity | ＞18.25MΩ•cm（25℃） |
| conductivity | ＜0.055μS/cm（25℃） |
| Heavy metals ions | ＜0.01ppb |
| Total organic carbon (TOC) | ＜10ppb |
| Heat source/endotoxin | N/A |
| Microbial bacteria | ＜0.1CFU/mL |
| ribonuclease | N/A |
| deoxyribonuclease | N/A |
| Particulate matter (PM) (> 0.22 µm) | ＜1/mL |
| RO pure water index | / |
| conductivity | ＜20μS/cm |
| TDS value | RO water TDS (total solid solubility, ppm) ≤ influent TDS × 4% (desalination rate ≥ 96%) |
| Divalent ion separation rate | 95% to 99% (when using new RO film) |
| Organic matter separation rate | > 99% when MW > 200Dalton |
| Particle and bacterial separation rate | ＞99% |
| Operating Pressure Monitoring | （0~1）MPa，（0~150）psi |
| Digital water quality monitoring | Resistivity, conductivity, water temperature monitoring |
| Size, weight | 240 × 600 × 460mm, about 33kg |
| Power, Power | Power Adapter (Input: AC 100-240V, Output: DC 24V), Power 120W |
LeiCi UPW-U15 Pure water system Packing list
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
