AIC ADW-0502-B Laboratory Ultrapure Water System
American AIC ADW-0502-B laboratory ultra-pure water machine, ultra-pure water machine suitable for basic physical and chemical experiments, secondary reverse osmosis (RO), with 5L/H pure water production, ultra-pure exchange capacity 3000L.
AIC
ADW-0502-B
-
BIO0021 Puro80 Laboratory Water Purification System, three-stage water 80L/H water storage tank 100L
$ 9449.00 -
BIO0021 Puro10 Laboratory Water Purification System, three-stage water 10L/H water storage tank 30L
$ 5515.00 -
BIO0021 Puro80 Laboratory Water Purification System, three-stage water 80L/H water storage tank 60L
$ 8974.00 -
BIO0021 Puro10 Laboratory Water Purification System, three-stage water 10L/H water storage tank 100L
$ 6137.00 -
BIO0021 Puro10 Laboratory Water Purification System, three-stage water 10L/H water storage tank 60L
$ 5659.00
Features
ØTap water enters, and water is produced automatically and continuously, which greatly meets the water needs of the laboratory;
Ø Quickly reach 18.25MΩ stable water quality after startup, saving water, electricity and time;

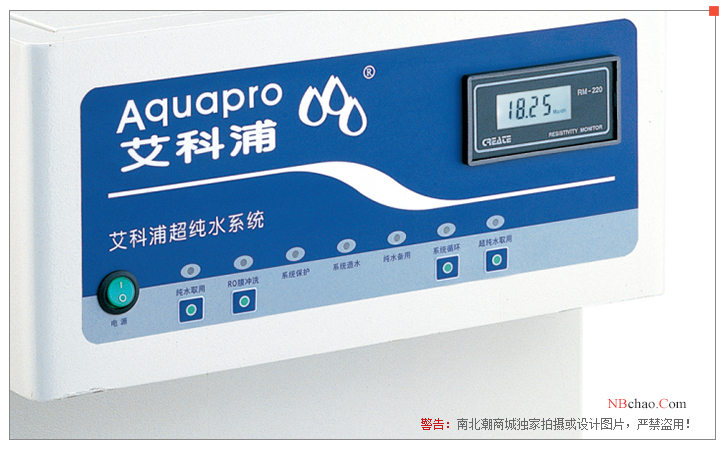

ØThe microcomputer chip fully automatically controls the operation of the equipment and meets GLP safety requirements;
ØPower-on self-check, water shortage protection alarm, automatic reset after power outage, automatic shutdown when pure Water Tank is full, ultra-low Voltage protection, UV lamp failure alarm and other functions;
ØUsing imported RO membrane, ion exchange resin, polished nuclear grade resin, silent high-pressure pump, solenoid valve, etc., product performance is maximized;
ØRO automatically flushes and sterilizes regularly to maximize the service life of accessories;
ØWater quality online monitoring system can instantly measure the quality of produced water.
Scope of use
Glass dish cleaning, potter, autoclave, heating pot, hydrogen generator, hydroponics, wind erosion resistance Tester, chemical oxygen demand, dissolution test, pH value measurement, surface tension experiment, aquarium.
Features
ØThe important parts are imported with original packaging, and the materials comply with the standards of NSF and Water Quality Association of the United States;
ØStrictly implement the ISO9001:2008 quality management system to ensure uniform and stable product quality;
ØStandardized module design and production makes product maintenance more secure;
ØThe "preventive maintenance" after-sales service system, combined with the Ecopu EMOAS network management platform, computerizes the historical operating status of the equipment to ensure long-term stable operation of the equipment.
plan
configuration list
| Serial number | name | Model specifications | quantity | unit | Remark |
| 1 | PP fiber filter | Supporting | 1 | set | Aquapro |
| 2 | activated carbon filter | Supporting | 1 | set | Aquapro |
| 3 | booster pump | Supporting | 1 | set | Aquapro |
| 4 | RO membrane module | Water production: 5 L/h | 2 | set | Aquapro |
| 5 | pure Water Tank | 40L, PE | 1 | set | Aquapro |
| 6 | Pump | Supporting | 1 | set | Aquapro |
| 7 | purification column | Supporting | 1 | set | Aquapro |
| 8 | Terminal ultrafiltration membrane | Supporting | 1 | set | Aquapro |
| 9 | Product water quality resistance meter | RCT-3200 | 1 | set | ROC |
| 10 | Control System | Supporting | 1 | set | Aquapro |
AIC ADW-0502-B Laboratory ultrapure water machineSpecifications
| LIST | VALUE |
|---|---|
| Flow Rate | 5L/h |
| Flow velocity | 1.0~1.5 L/min |
| Pure water quality | Conductivity: 2-10μs/cm25 ℃ (raw water TDS < 200ppm), in line with the Chinese laboratory water specification GB/T6682-2008 tertiary water standard |
| Ultrapure water quality | Electrical resistivity 18.25MΩ .cm@25 ℃; particles (> 0.2um) < 1/ml |
| Pure water storage bucket | 40L |
| Inlet source | Municipal tap water, raw water conductivity < 1000μs/cm@25 ℃, total hardness < 200ppm, PH: 6.5-8, free chlorine < 1ppm |
| inlet pressure | 2-5Kg, water temperature 5-35 ℃ |
| Operating Environment | Temperature 5~ 40 ℃, avoid direct sunlight |
| Power | 220V/50HZ, Power: 350W |
| Host size | 540*380*480mm |
| Application standard | ISO9001:2008 Mass management system, NSF and Water Quality Association standards |
| Produced water quality | tertiary water |
AIC ADW-0502-B Laboratory ultrapure water machine Packing list
host x1, manual x1, certificate x1, warranty contract x1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
FAQ
- How to choose the right high-quality experimental ultra-pure water machine?
- It is definitely not wrong to buy a laboratory ultra-pure water machine like this.
- How to choose the right ultra-pure water machine?
- About the quantitative water intake function of Aikepu ultra-pure water machine
