        Home> Ultrapure Water System> AIC> AIC AD2L-10-OR Laboratory ultrapure water machine

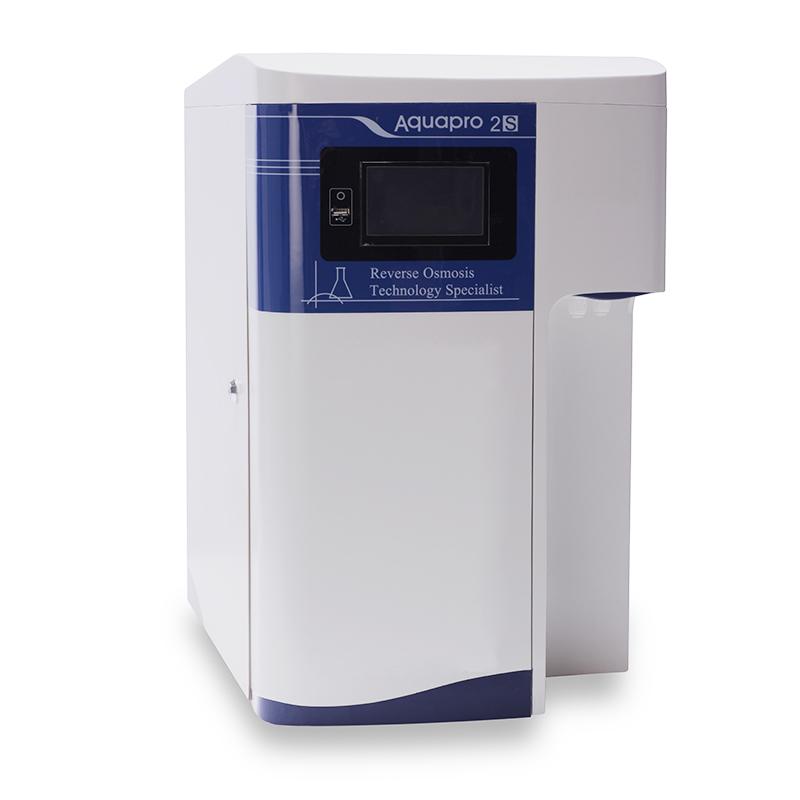

        AIC AD2L-10-OR Laboratory ultrapure water machine

        AIC AD2L-10-OR laboratory Ultrapure Water System, water production speed 10 L/h

        The AIC AD2L-10-OR laboratory Ultrapure Water System is a pure water machine for basic physical and chemical experiments equipped with a fully intelligent monitoring system. The water production speed is 10 L/h, and the 10L patented sterile pure water storage device can simultaneously produce three-stage water and ultrapure water.

        Brand
        SKU: NB005225
        United States AIC
        Get Quote
        VS
        AICLOGO

        AIC

        Information
        Datasheet Catalog
        What else did others buy
        Genuinegoods

        • AIC AD2L-10-OR Laboratory ultrapure water machineOverview

        • Specifications
        • Comments
        • FAQs
        AD2L-10-OR
        Laboratory ultrapure water machine

        Features

        ◆The innovative and patented fully intelligent control system adopts a fully automatic embedded microcomputer integrated control system (ARM9 high-end processor), a true-color TFT LCD touch screen, and a graphical human-machine interface. The operation is simple, convenient and fast, bringing the user closer. Just like using a smartphone;

        ◆Online display of real-time operation data of water production and water intake in the whole system (raw water quality, temperature, pressure, third-level water quality, third-level water intake volume/raw water flow rate, ultrapure water quality, ultrapure water intake volume/water intake rate, Water Tank Dynamic display of water volume and level). System data self-analysis and comparison, trend prediction, and preventive reminders to avoid experiments being interrupted without warning;

        ◆Tertiary water/ultrapure water can be taken out quantitatively respectively. The range of quantitative water taking is any integer volume, with an error of ±2ml (<500ml) or 1% (≥500ml);

        ◆Two-stage reverse osmosis, patented special depth desalination treatment technology, ensures stable output of pure water quality ≤5 us/cm@25℃;

        ◆All monitoring data of the whole system are collected and recorded in real time, without the need for external computer storage, and the data within one year can be directly queried on the water machine;

        ◆Cloud service system. Data is collected and stored in real time. Users can directly export the data from the device through a USB flash drive, and upload it to the Aikopu cloud service center via the network every month for backup and diagnosis, and then trace it back to Aikopu professional engineers. Analyze the uploaded data and provide diagnostic reports and preventive maintenance recommendations to users based on the analysis results;

        ◆Patented sterile water storage tank for easy cleaning and disinfection;

        ◆ABS casing, anti-corrosion, safety insulation performance meets GLP safety requirements.

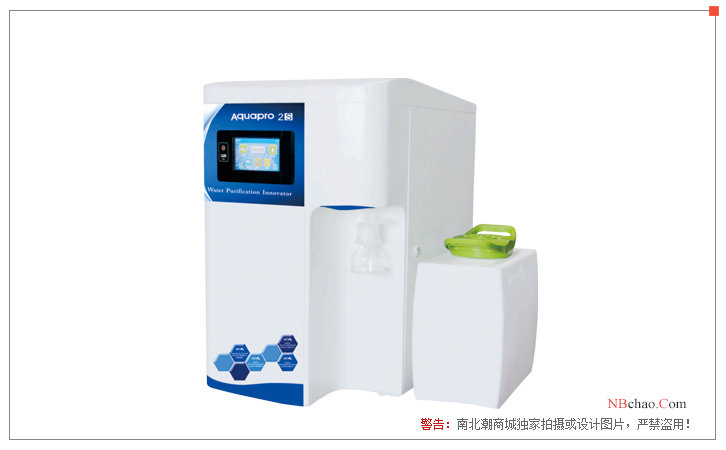

        Product display picture

        Aikopu AD2L-10-OR laboratory Ultrapure Water System display

        Features

        1. Important parts are imported with original packaging, and the materials comply with the standards of the American NSF and Water Quality Association;

        2. Standardized module design and production makes product maintenance more secure;

        3. The "preventive maintenance" after-sales service system, combined with the Ecopu EMOAS network management platform, computerizes the historical operating status of the equipment to ensure long-term stable operation of the equipment.

        Application

        Glass dish cleaning, titrator, autoclave, biochemical oxygen demand, heating pot, hydrogen generator, hydroponics, Kedar analysis, stability test, wind erosion resistance Tester, chemical oxygen demand, dissolution test , gene chip analysis, particle analyzer, pH value measurement, surface tension experiment, animal water, aquarium and other basic physical and chemical experiment water.

        AD2L-10-OR system configuration list

        Serial number

        name

        Model specifications

        quantity

        unit

        Remark

        1

        PP fiber filter

        Supporting

        1

        set

        Aquapro

        2

        activated carbon filter

        Supporting

        1

        set

        Aquapro

        3

        booster pump

        Supporting

        1

        set

        Aquapro

        4

        RO membrane module

        Water production: 10 L/h

        1

        set

        Aquapro

        5

        Patented sterile pure water

        storage device

        10L

        1

        set

        AIC

        6

        Pump

        Supporting

        1

        set

        Aquapro

        7

        purification column

        Supporting

        1

        set

        Aquapro

        8

        terminal filter

        0.22um

        1

        set

        Sartorius

        9

        SMART-ANGEL

        Fully intelligent monitoring system

        Supporting

        1

        set

        AIC

        10

        touch system

        Supporting

        1

        set

        AIC

        AD2L series parameter comparison

        modelAD2L-05-ORAD2L-05-CEAD2L-05-BEAD2L-10-ORAD2L-10-CEAD2L-10-BE
        applicationBasic physical and chemical experimentsPhysical and chemical experimentsBiological experimentsBasic physical and chemical experimentsPhysical and chemical experimentsBiological experiments
        Pure water production5L/H10L/H
        Ultrapure water resistivity18.2MΩ.cm
        Pure water conductivity1-5us/cm
        Total organic carbon TOC-<10ppb<5ppb-<10ppb<5ppb
        bacteria-<1CFU/ml-<1CFU/ml
        Bacterial endotoxin--<0.001EU/ml--<0.001EU/ml
        particulate matter<1 piece/ml
        Inorganic ion removal rate≥99.5%
        heavy metal ion≤0.1ppb
        Silicon removal rate＞99%
        Incoming water sourceMunicipal tap water, conductivity <1000 µS/cm@25℃, total hardness <200ppm, pH: 6.5-8.5, residual chlorine <1ppm, pressure: 0.2MPa-0.5MPa, temperature: 5-35℃.
        power supply220V/50Hz, 250W
        Dimensions395*535*580mm
        Application-BECell culture, nuclease-free applications, polymerase chain reaction, DNA sequencing, electrophysiology, endocrine blockade analysis, immunohistochemistry, histology, microbial culture media, nucleic acid electrophoresis, pyrogen-free water, toxicology research, etc. Experimental water.
        Application - CEHistology, effective liquid chromatography, ultrahigh pressure liquid chromatography, mass spectrometer, atomic emission spectrometry, protein electrophoresis, capillary electrophoresis, spectrophotometry, gas chromatography analysis, atomic absorption spectrometry, integrated circuits, chromatography mass spectrometry, NP analyzer, TOC Analysis, VOC analysis, Western blot method and other physical and chemical experiments and general biological experiments water.
        Application - ORGlass dish cleaning, titrator, autoclave, biochemical oxygen demand, heating pot, hydrogen generator, hydroponics, Kedar analysis, stability test, wind erosion resistance Tester, chemical oxygen demand, dissolution test , gene chip analysis, particle analyzer, pH value measurement, surface tension experiment, animal water, aquarium and other basic physical and chemical experiment water.
        VS

        AIC AD2L-10-OR Laboratory ultrapure water machineSpecifications

        LIST VALUE
        Flow Rate 10L/h
        Flow velocity 1.0~1.5 L/min
        Pure water quality Conductivity ≤ 5μs/cm@25 ℃, in line with the Chinese laboratory water specification GB/T6682-2008 tertiary water standard
        Ultrapure water quality Electrical resistivity: 18.2MΩ .cm@25 ℃; particles (> 0.2um) < 1/ml
        Pure water storage bucket 10L
        Inlet source Municipal tap water, raw water conductivity: < 1000μs/cm@25 ℃, total hardness < 200ppm, PH: 6.5-8, free chlorine < 1ppm
        inlet pressure 1-5Kg, water temperature 5-35 ℃
        Operating Environment Temperature 5~ 40 ℃, avoid direct sunlight
        Power 100-240VAC/50-60Hz, Power: 221W (max)
        Host size 580*395*535mm
        Packing Weight 36Kg
        Application Glass dish cleaning, titrator, autoclaving device, biochemical oxygen demand, heating pot, hydrogen generator, hydroponics, Kedar analysis, stability test, wind erosion Tester, chemical oxygen demand, dissolution test, gene chip analysis, particle analyzer, ph value measurement, surface tension experiment, animal water, aquarium and other basic physical and chemical experiment water
        Application standard ISO9001:2008 Mass management system, NSF and Water Quality Association standards
        Produced water quality tertiary water

        AIC AD2L-10-OR Laboratory ultrapure water machine Packing list

        host x1, manual x1, certificate x1, warranty contract x1

        [Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
