AIC AD3L-16-03-CE biochemical Ultrapure Water System, suitable for various chromatograph experiments

Features

●Equipped with complete purification unit:

a. Tap water pre-purification unit;

b. Two-stage reverse osmosis desalination pre-purification unit for tap water;

c. Sterile pure water storage unit (non-pressure barrel type);

d.Ultra-purification unit;

e. Post-processing unit;

f. Fully intelligent monitoring unit.

●Fully intelligent control system, supports multi-language mode, multi-user use, and independent pricing. True color LCD touch screen, graphical human-machine interface, operation and information online query in one step. (Non-RS232 port external computer operation query)

●Multi-point full-line monitoring: source water quality/pressure/temperature/flow; pre-purification unit water flux accumulation; pre-purified water quality/water consumption; pure water storage capacity; ultrapure water quality/water consumption accumulation; UV life; Ultrafiltration water flux accumulation.

●The setting of actual consumable operation confirmation data serves as a standard for online diagnosis to facilitate maintenance; reminders are displayed for consumable replacement. (Non-time set consumable reminder)

●Abnormal operation of the entire system (water quality and quantity of source water, pre-purified water, ultrapure water) online self-diagnosis, warning or automatic system stop operation, important system components (solenoid valve, booster pump, UV lamp, sensor, etc.) Intelligent fault judgment and online replacement instructions.

●Two-stage reverse osmosis depth desalination, the raw water quality is less than 2000μs, the system salt removal rate is ≥99.5%, and the raw water utilization rate reaches 60-80%.

●Tertiary water/ultrapure water are each quantitatively drawn. The quantitative water drawing range is any integer volume, and the error is ±2ml (<500ml) or 1% (≥500ml).

●The Zhencai display screen displays water quality, total water intake and flow rate online, allowing users to understand the water intake status at a glance.

●All monitoring data of the entire system are collected in real time and can be viewed online without the need for external computer storage. The data storage capacity can reach more than one year.

●Data is uploaded to the cloud service center via USB every month for backup and diagnosis. Professional engineers will retrospectively analyze the uploaded data and provide diagnostic reports and preventive maintenance recommendations to customers based on the analysis results.

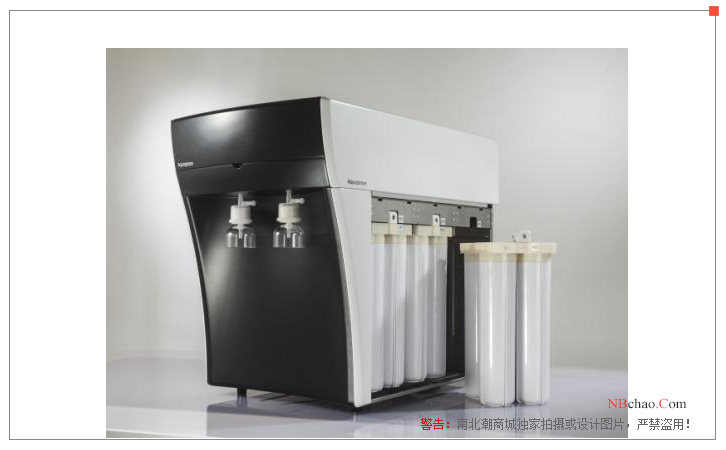

●The plug-and-play modular design of the system purification unit and components makes calibration, maintenance, cleaning, disinfection, and sampling during system validation easier.

Features

1) The whole machine is imported with original packaging and complies with the standards of NSF and Water Quality Association of the United States;

2) Strictly implement the ISO9001:2008 quality management system to ensure uniform and stable product quality;

3) Standardized module design and production to ensure product maintenance and repair;

4) A "preventive maintenance" after-sales service system, combined with the Ecopu EMOAS network management platform, computerizes the historical operating status of the equipment to ensure long-term stable operation of the equipment.

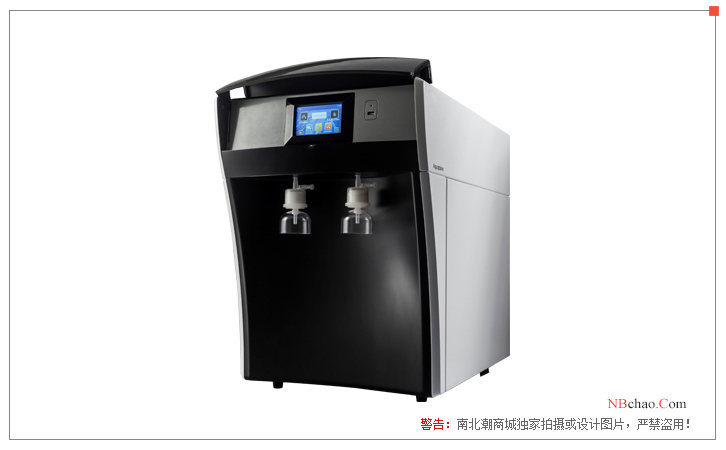

Product display picture

Scope of application

Atomic absorption spectroscopy, histology, effective liquid chromatography, mass spectrometry, atomic emission spectroscopy, protein electrophoresis, ultrahigh pressure liquid chromatography, atomic absorption, capillary electrophoresis, clinical and biomedical laboratories, spectrophotometry, meteorological chromatographic analysis, atomic Absorption spectrum, integrated circuit, chromatography mass spectrometry, TOC analysis, VOC analysis, NP analyzer, CDC, drug testing institute, quality inspection institute, environmental supervision station, university scientific research, Western blotting method and other physical and chemical tests and general biological experiment water.

AD3L-16-03-CE system configuration list

host x1, manual x1, certificate x1, warranty contract x1

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
