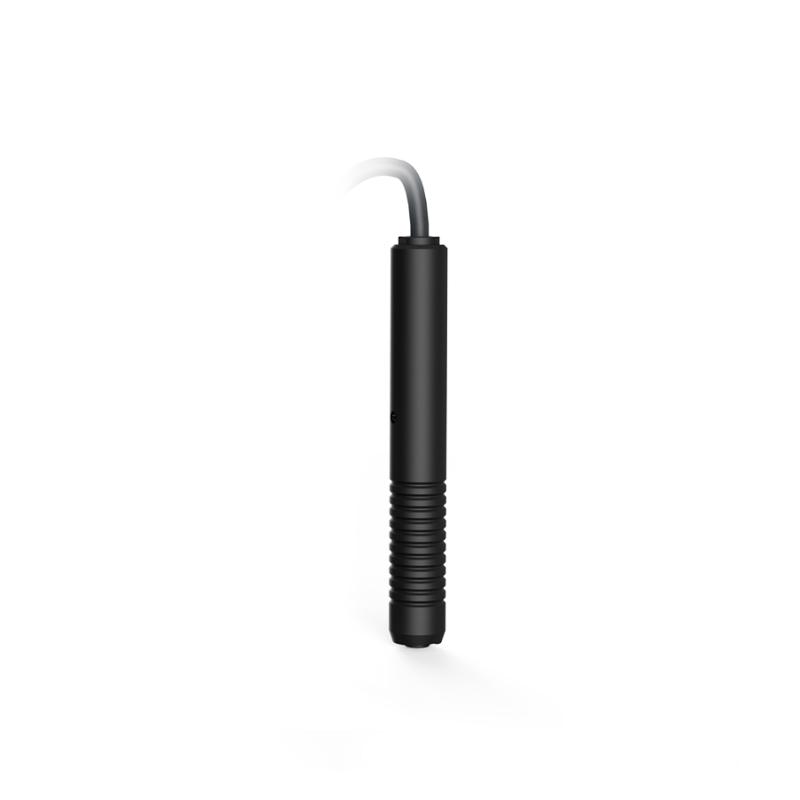

Linshang NF1600-X0 eddy Current Coating thickness gauge Probe
EDDY Current Principle, Range 0-1600μm, Non-ferrous Probe, Ultra-small Probe, Suitable for small workpiece anodic oxidation layer, Plug-in type, Digital Probe technology, High Hardness Probe
LinShang
NF1600-X0
NF2000-X2
FNF2000-X1
FNF20000-X0
FNF5000-X0
FNF2000-X0
F600-X0
-
LINSHANG LS201 Digital Glass Thickness Meter, single-sided nondestructive measurement 0.1mm accuracy
$ 675.00 -
LANDTEK CTG-CF coating calibrated diaphragm
$ 112.00 -
DONGRU DR15A large-range anti-corrosion layer thickness gauge, iron-based single-purpose 0.1-15 mm electromagnetic induction principle
$ 695.00 -
LANDTEK CM8829F magnetic film thickness gauge Handheld thickness gauge, integrated, thickness range 0~ 3mm
$ 466.00 -
DONGRU DR330 Coating thickness gauge measurement of metal surface platings
$ 368.00
Product Introduction
The F600-X0 is a thickness gauge probe based on eddy current, with a range of 0-600μm, and is a non-iron-based straight probe , Ultra-small probe, suitable for measuring anodic oxide layers on small workpieces.
Meets the standards
GB/T 4956-2025 Measurement of Thickness of Non-magnetic Covering Layer on Magnetic Substrate—Magnetic Method
GB/T 4957-2025 Measurement of Non-conductive Coating Thickness on Non-Magnetic Matrix Metals - Amplitude-Sensitive Eddy Current Method
DIN EN ISO 2808 Determination of coating and varnish film thickness
JJG-818-2018 Verification Procedures for Magnetic and Eddy Current Cover Thickness Measuring Instruments
Product features
1. Plug-in probe design.
2. Utilizes advanced digital probe technology, with digital signal processing performed directly on the probe, making the probe less susceptible to interference and providing excellent testing accuracy.
3. High-hardness probe ensures long-term effective use of the instrument
Probe selection
| Probe model | Range | Features |
| F600-X0 | 0-600μm | Iron-based, straight probe, ultra-small probe, suitable for measuring the thickness of thin coated coatings on small workpieces |
| NF1600-X0 | 0-1600μm | Non-iron-based, straight probe, ultra-small probe, suitable for anodized layer measurement on small workpieces |
| FNF2000-X0 | 0-2000μm | Dual-base, straight probe, standard range, suitable for coating and paint thickness measurement |
| FNF5000-X0 | 0-5000μm | Dual-base, straight probe, large range, suitable for coating and paint thickness measurement |
| FNF20000-X0 | 10-20000μm | Dual-base, straight probe, ultra-wide range, suitable for measuring fireproof coatings and coating thickness |
| FNF2000-X1 | 0-2000μm | Dual-base, 90° right-angle probe, suitable for measuring coating thickness on holes and slits |
| F2000-X2 | 0-2000μm | Iron-based, 90° long rod probe, suitable for measuring coating thickness on pipe inner walls and fine grooves |
| NF2000-X2 | 0-2000μm | Non-iron-based, 90° long-rod probe, suitable for measuring coating thickness on pipe inner walls and fine grooves |
Actual test demonstration
LinShang NF1600-X0 Coating thickness gauge (Coating Thickness Gauge)Specifications
| LIST | VALUE |
|---|---|
| Probe type | Conventional straight |
| Measurement principle | eddy current induction |
| matrix material | Non-ferromagnetic metal |
| Measurement range | 0.0~600μm |
| resolution | 0.1μm： (0μm-99.9μm)，1μm：(100μm-600μm) |
| accuracy | +/- (2% H + 0.3μm) Five point calibrated, H is Standard value |
| time interval | 0.4s |
| minimum matrix thickness | 0.03mm |
| minimum radius of curvature | Convex surface 1.5mm |
| Probe weight | About 55g |
LinShang NF1600-X0 Coating thickness gauge (Coating Thickness Gauge) Packing list
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
