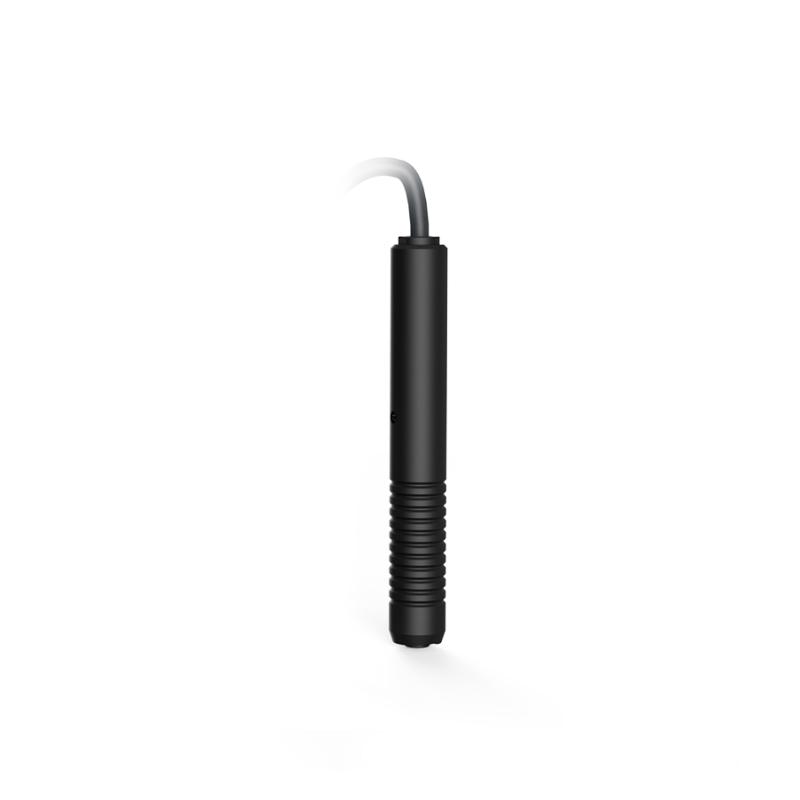

LinShang FNF2000-X0 Coating thickness gauge (Coating Thickness Gauge)

Linshang FNF2000-X0 Coating thickness gauge Probe

Magnetic Induction and eddy Current Dual Base Straight Probe, range 0~ 2000μm, resolution 0.1μm, accuracy +/- (2% H + 1μm), digital signal processing, anti-interference, High Hardness Probe, plug-in design.

Brand

SKU: NB052664

LinShang

Model

Price

$ 290.00

Promotion

Service

The delivery and service By NBchao.Com

Get Quote

LinShang shopSE

Information

Datasheet RFQ Contract

What else did others buy

Genuinegoods

LinShang FNF2000-X0 Coating thickness gauge (Coating Thickness Gauge)Overview
Specifications
Comments
FAQs

FNF2000-X0

Coating thickness gauge (Coating Thickness Gauge)

Product Introduction

The FNF2000-X0 is a dual-base straight probe for magnetic induction and eddy current, capable of simultaneously measuring both magnetic and non-magnetic metal substrates, with a range of 0~2000μm. It is suitable for measuring coating and paint thickness and is an optional probe for the LS227 coating thickness gauge.

LS2277 coating thickness gauge + probe diagram

Meets the standards

GB/T 4956-2025 Measurement of Thickness of Non-magnetic Covering Layer on Magnetic Substrate—Magnetic Method

GB/T 4957-2025 Measurement of Non-conductive Coating Thickness on Non-Magnetic Matrix Metals - Amplitude-Sensitive Eddy Current Method

DIN EN ISO 2808 Determination of coating and varnish film thickness

JJG-818-2018 Verification Procedures for Magnetic and Eddy Current Cover Thickness Measuring Instruments

Product features

1. Plug-in probe design.

2. Utilizes advanced digital probe technology, with digital signal processing performed directly on the probe, making the probe less susceptible to interference and providing excellent testing accuracy.

3. High-hardness probe ensures long-term effective use of the instrument

Probe selection

Probe model	Range	Features
F600-X0	0-600μm	Iron-based, straight probe, ultra-small probe, suitable for measuring the thickness of thin coated coatings on small workpieces
NF1600-X0	0-1600μm	Non-iron-based, straight probe, ultra-small probe, suitable for anodized layer measurement on small workpieces
FNF2000-X0	0-2000μm	Dual-base, straight probe, standard range, suitable for coating and paint thickness measurement
FNF5000-X0	0-5000μm	Dual-base, straight probe, large range, suitable for coating and paint thickness measurement
FNF20000-X0	10-20000μm	Dual-base, straight probe, ultra-wide range, suitable for measuring fireproof coatings and coating thickness
FNF2000-X1	0-2000μm	Dual-base, 90° right-angle probe, suitable for measuring coating thickness on holes and slits
F2000-X2	0-2000μm	Iron-based, 90° long rod probe, suitable for measuring coating thickness on pipe inner walls and fine grooves
NF2000-X2	0-2000μm	Non-iron-based, 90° long-rod probe, suitable for measuring coating thickness on pipe inner walls and fine grooves

Actual test demonstration

LS2277 coating thickness gauge + probe application scenario diagram

LinShang FNF2000-X0 Coating thickness gauge (Coating Thickness Gauge)Specifications

LIST	VALUE
Probe type	Conventional straight
Measurement principle	Magnetic Induction/Eddy Current Induction
matrix material	Ferromagnetic metal/non-ferromagnetic metal
Measurement range	0.0~2000μm
resolution	0.1μm： (0μm-99.9μm)，1μm：(100μm-2000μm)
accuracy	H < 1000 μm ： +/- ( 2% H + 1 μm), H ≥ 1000 μm: +/- 3% H (five point calibrated, H is the Standard value)
time interval	0.8s
minimum matrix thickness	Fe:0.2mm / NFe:0.05mm
minimum radius of curvature	Convex 3mm
Probe weight	About 52g

LinShang FNF2000-X0 Coating thickness gauge (Coating Thickness Gauge) Packing list

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
