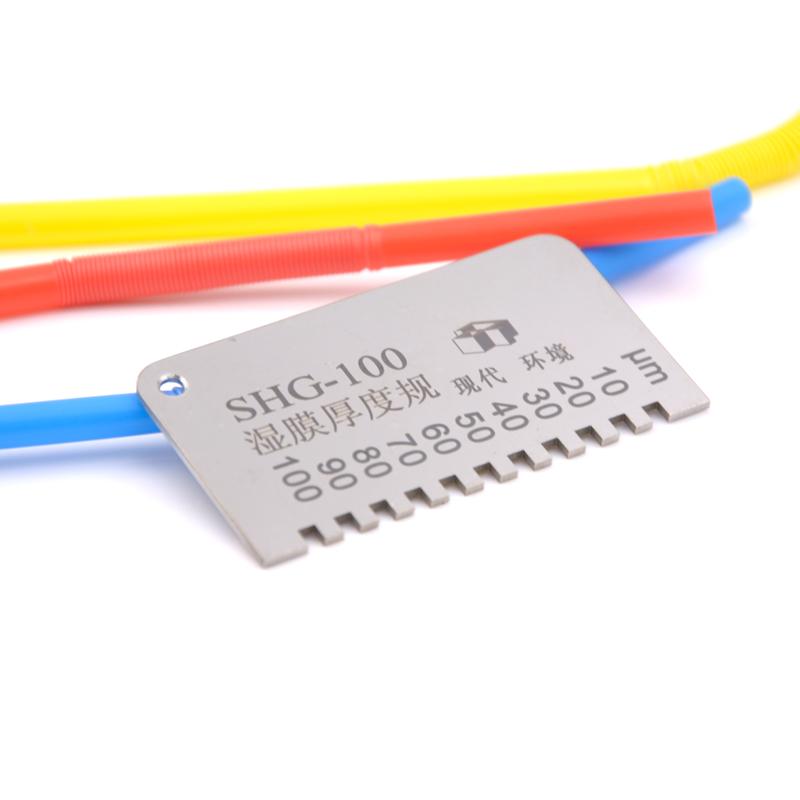

MODERNER SHG-100 WFT gauge 0~100μm range 10μm scale
MODERNER SHG-100 wet Film Thickness Gauge can measure wet film thickness coatings in 0~100μm, with a difference of 10μm per tooth, which is used for the measurement of the thickness of Paints, varnishes and other Coatings during construction.
Moderner
SHG-100
-
TRUIT TR 5502/1200 Double-sided wet-film gauge WFT gauge comb type 50~1200μm
$ 110.00 -
Pushen SHG 50-750 Comb type WFT gauge, single-sided wet film 50-750μm
$ 105.00 -
Germany Erichsen 234 R/V wet-film thickness measurement wheel WFT measurement Thickness Wheel
$ 926.00 -
SHG-700 wet-film gauge YONGLIDA film thickness range is 250~700μm
$ 114.00 -
TRUIT TR 5508/100 Stainless Steel Wet Film Wheel Range 0~100μm
$ 184.00
Introduction
The SHG wet Film Thickness Gauge is a thickness measurement tool during the construction of various coatings such as paints and varnishes. Values ââare expressed in micrometers (μm). SHG Thickness Gauges are available in a variety of ranges to meet the needs of different industries.
Specifications
| model | Thickness Gauge range (μm) | Difference per tooth (μm) |
| SHG-100 | 0~100 | 10 |
| SHG-150 | 0~150 | 15 |
| SHG-200 | 0~200 | 20 |
| SHG-275 | 50~275 | 25 |
| SHG-700 | 250~700 | 50 |
| SHG-750 | 300~750 | 50 |

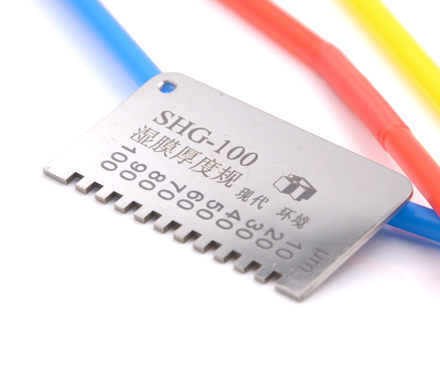

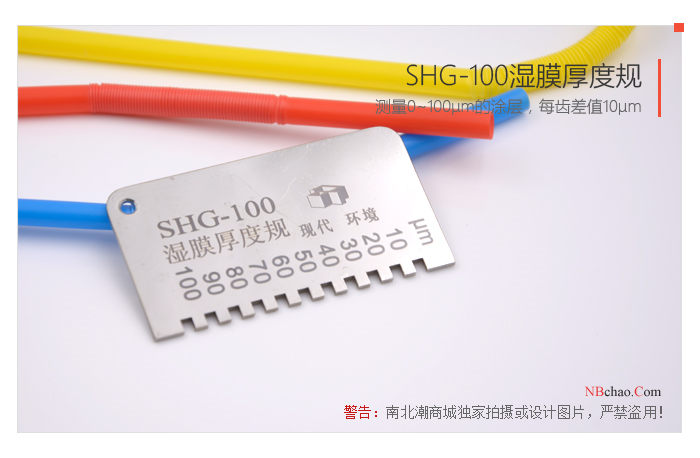

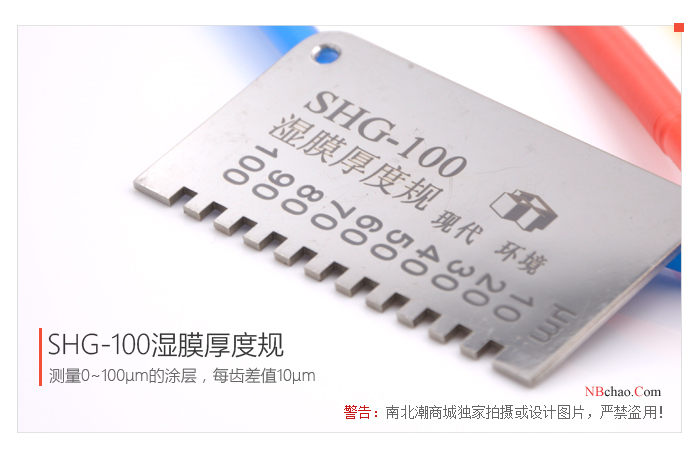

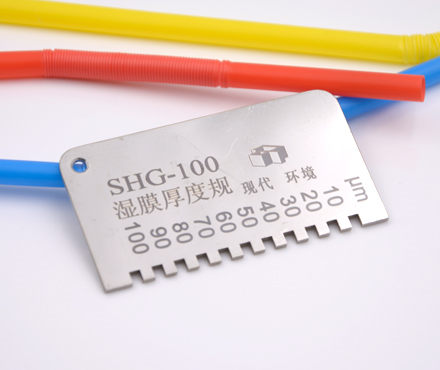

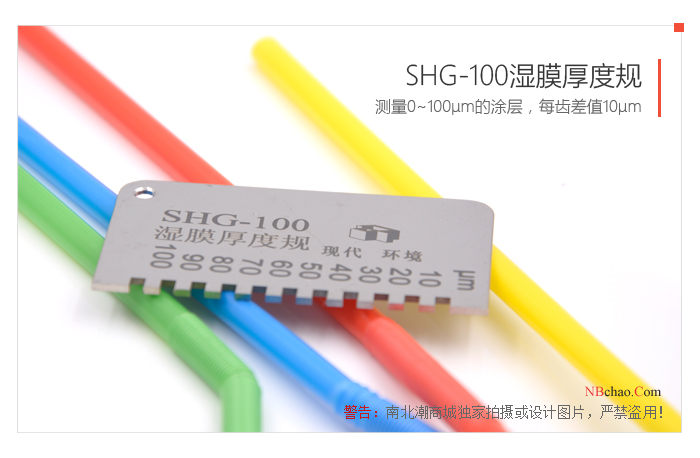

Real shooting
Instructions
Measurement methods:
Immediately after the application of various coatings, place the toothed measuring surface of the wet Film Thickness Gauge firmly and vertically on the flat workpiece coating surface, and then remove it. Observe the tooth end with the largest value in contact with the wet film surface. The tooth scale value is the wet film thickness value. Measure twice in the same way at different positions to obtain representative results within a certain range.
Maintenance:
After use, clean the wet Film Thickness Gauge, wipe it dry, and place it in a box cover. If the tooth end is damaged or worn, it should be corrected or updated in time.
Moderner SHG-100 Wet Film Thickness GaugeSpecifications
| LIST | VALUE |
|---|---|
| Range | 0~100μm |
| Graduation | 10μm |
| Appearance size | 65*36*1.5mm |
Moderner SHG-100 Wet Film Thickness Gauge Packing list
Wet-film gauge x1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
