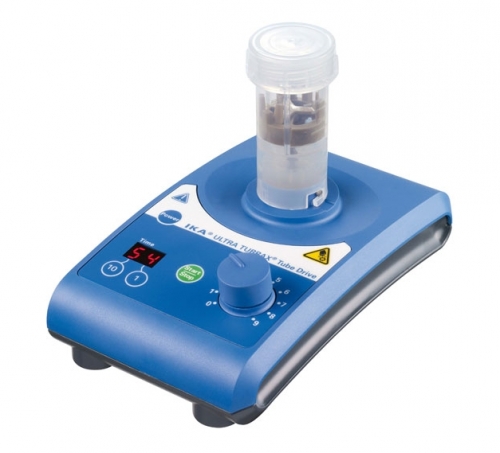

Germany IKA testtube Disperser UTTD ULTRA-TURRAX dispersion/mixing/homogenizing/grinding
Germany IKA testtube Disperser UTTD ULTRA-TURRAX is a set of dispersion, mixing, homogenization and grinding in one, the motor input Power 20W, using sealing Sample Handling testtube.
IKA-
PUSHEN JSF-750B Stirring and Dispersing Machine (Explosion-proof)
$ 1377.00 -
MUXUAN MXF-A4 Manual Lifting Disperser
$ 1610.00 -
QIWEI JFS-400 Variable Frequency Disperser 400W/2800rpm Automatic Lifting
$ 497.00 -
QIWEI JFS-750B Inverter Disperser 750W/2800rpm Manual Lift
$ 618.00 -
QIWEI JFS-550B Frequency Converter Disperser 550W/2800rpm Manual Lift
$ 464.00
Introduction
The unique IKA® UTTD tube dispersing machine combines dispersion, mixing, homogenization and grinding, and protects the user from infectious, toxic and odorous samples by means of completely enclosed tubes, all of which can be performed by pre-setting parameters such as time, speed and capacity.
The tube can be connected to the host computer with a single twist, and the desired speed and processing time are set, and the experiment can begin; There will be a sound prompt at the end of the experiment; All experiments are reproducible at all times, and there is no cross-contamination between samples.
- Single-machine dispersion, mixing, homogenization and ball milling;
- No cross-contamination occurs;
- Sealed sample handling tubes;
- No need to clean;
- High safety factor for operators;
- Suitable for handling a single sample or a series of samples;
- γ sterilization tubes;
- tubes with perforated membrane caps;
- Two sizes of tubes are available, 2-15 ml for small tubes and 15-50 ml for large tubes;
- Anti-locking function;
- 24V low Voltage, safer;
- Chemically resistant plastic for test tubes;
- Simple and safe handling of samples;
- IKA Global Service Guarantee;
- Suitable for repeatability testing;
- Intellectual property protection;

Scope of application
, Pathology, Veterinary Medicine, Institute of Zoology, Clinical Diagnostic Research, Food Testing Experiments, Diagnostic Laboratory, Toxicology, Medical Research, Research, Biological Research, Tumor Biology, Immunology, Chemistry, Cosmetics, etc.
Technical parameters
Motor input power | 20 W |
Motor output power | 17 W |
Maximum viscosity | 5000 mPas |
Speed range | 300 - 6000 rpm |
Rotational speed deviation | 10 % |
Rotational speed display | scale |
Rotational speed control | Stepless |
Noise (no dispersion head) | 50 dB(A) |
The type of operation | Batching |
Dimensions | 100 x 40 x 160 mm |
weight | 0.75 kg |
Allowable ambient temperature | 5 - 40 °C |
Relative Humidity is allowed | 80 % |
DIN EN 60529 protection method | IP 20 |
Voltage | 100 - 240 V |
frequency | 50/60 Hz |
Instrument input power | 20 W |
24 V= | |
800 mA |
IKA UTTD ULTRA-TURRAX Testtube DisperserSpecifications
| LIST | VALUE |
|---|---|
| Motor Power | Input 20 W; Output 17 W |
| Speed regulation range | 300~6000rpm |
| Power supply Voltage | 100~240 V |
| Dimension | 100*40*160mm |
| Host Weight | 0.75kg |
| Max. Processing Viscosity | 5000mPa.s |
| Rotation speed deviation | 10% |
| Display mode | scale |
| Speed regulation mode | stepless speed regulation |
| Noise level | 50dB (A) (without dispersion head) |
| Process type | batch processing |
| Operating temperature | 5~40℃ |
| Relative Humidity | 80% |
| Protection level | IP 20 |
| Frequency | 50/60 Hz |
IKA UTTD ULTRA-TURRAX Testtube Disperser Packing list
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
