Germany IKA T65 D Industrial Disperser 2~ 50L

The German IKA T65D Industrial Disperser is a high-power Disperser with a dispersion capacity of 2 to 50L. The dispersion tool adopts a plug-in connection method for easy disassembly.

Brand

SKU: NB005554

IKA

Model

T65 D

Get Quote

IKA

Information

Datasheet

What else did others buy

TRUIT TR 2602/2 Coating Rapid Dispersion Tester, Vertical, Bottle Clamp

$ 1543.00
High Speed Disperser Qiwei FS-400D Digital Display High Speed Disperser

$ 323.00
QIWEI JFS-550B Frequency Converter Disperser 550W/2800rpm Manual Lift

$ 467.00
MUXUAN MXF-A2.2 Small batch mixing Disperser Frequency conversion Disperser Processing capacity 10-70L

$ 1252.00
MODERNER P-40 dispersion blade, diameter 40mm

Login

Genuinegoods

IKA T65 D DisperserOverview
Specifications
Comments
FAQs

T65 D

Disperser

Introduction

T 65 D high-power disperser with a dispersion capacity of 2-50 L (H2O); Medium trial.

- Three rotor/stator combinations, available separately

- The dispersion tool is plug-in for easy disassembly

- Speedometer is optional

- Dispersers for industrial use

- The power cord and plug are separated

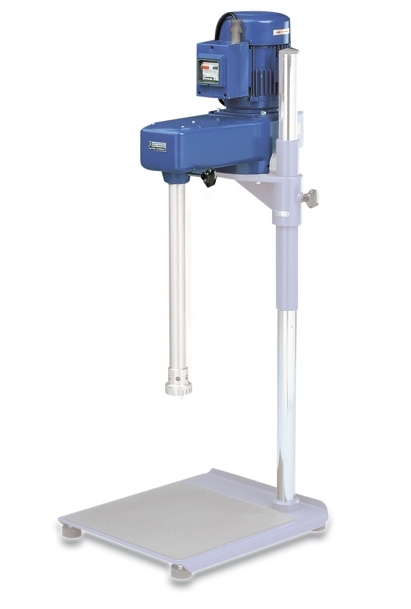

German IKA T65 D disperser display diagram

Technical parameters

Motor input power	1800 W
Motor output power	1500 W
Minimum Capacity (H2O)	2 l
Maximum Capacity (H2O)	50 l
Maximum viscosity	5000 mPas
Maximum rotational speed	7200 rpm
Noise (no dispersion head)	75 dB(A)
The type of operation	Batching
Dimensions	190 x 380 x 580 mm
weight	28 kg
Allowable ambient temperature	5 - 40 °C
Relative Humidity is allowed	80 %
DIN EN 60529 protection method	IP 54
Voltage	3 x 400 Y / 3 x 230 V
frequency	50 Hz
Instrument input power	1800 W

IKA T65 D DisperserSpecifications

LIST	VALUE
Motor Power	Input 1800w; output 1500w
Speed regulation range	7200rpm
Processing Capacity	2~50L
Power supply Voltage	3 x 400 Y/3 x 230 V
Dimension	190380580mm
Host Weight	28kg
Max. Processing Viscosity	5000mPa.s
Noise level	75dB (A) (without dispersion head)
Process type	batch processing
Operating temperature	5~40℃
Relative Humidity	80%
Protection level	IP 54
Frequency	50 Hz

IKA T65 D Disperser Packing list

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
