German IKA A11 Grinder Basic, Shear/Impact Working Principle

The German IKA A11 Grinder is a batch type Grinder with a shear/impact operating principle, a motor input Power 160W, and a maximum Rotation speed of 28000 rpm.

Brand

SKU: NB005557

IKA

Model

Get Quote

IKA

Information

Datasheet

What else did others buy

PUSHEN PS 2825 Laboratory horizontal sand mill grinding volume 0.5L

$ 3180.00
HUXI HMD-400 Multifunctional freezing grinding instrument 15ml stainless steel grinding tank

$ 5527.00
HUXI HM-96 Multi-sample tissue grinding instrument 96 samples

$ 3335.00
MUXUAN MXY-D-4 Electric Lifting Basket Grinder Wet Dispersion Grinding Equipment

$ 5512.00
MODERNER LSM-2.2B basket sand mill, frequency conversion explosion-proof 20L

Login

Genuinegoods

IKA A11 GrinderOverview
Specifications
Comments
FAQs

A11

Grinder

Introduction

Batch Grinder, there are 2 grinding methods:

Impact grinding: suitable for hard, brittle or inelastic substances. The grinding head is made of stainless steel with a hardness of 6 Mhos and has been installed in the grinding machine;

Shear bits :(sold separately) to shear and grind flexible fibrous substances

- Aqueous or colloidal substances can be ground by adding water.

- A 11.4 250 ml grinding cup is optional.

- A 11.5 80 ml grinding cup made of Tefel (PTFE, glass-cured) and stainless steel (1.4571) for grinding where liquid nitrogen is required

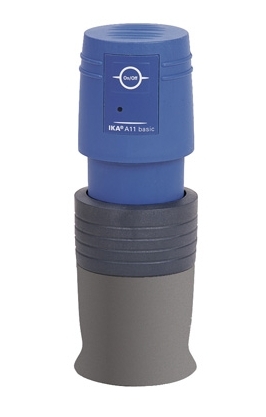

Illustration of the IKA A11 Grinder in Germany

Technical parameters

The type of operation	Batching
Operating Principle	Shear/impact
Motor input power	160 W
Motor output power	100 W
Maximum rotational speed	28000 rpm
Maximum circumferential speed	53 m/s
Maximum usable volume	80 ml
Maximum feed hardness	6 Mohs
Maximum feed particles	10 mm
Impact/shear bit material	Stainless steel 1.4034
grinding chamber material	Stainless steel 1.4571
Operating Time are on	1 min
Operating Time off	10 min
Grinding chamber, which can be cooled with water	No
The abrasive material can be cooled with dry ice in the grinding chamber	be
The abrasive material can be cooled with liquid nitrogen in the grinding chamber	be
Dimensions	85 x 240 x 85 mm
weight	1.5 kg
Allowable ambient temperature	5 - 40 °C
Relative Humidity is allowed	80 %
DIN EN 60529 protection method	IP 43
Voltage	220 - 230 / 100 - 115 V
frequency	50/60 Hz
Instrument input power	160 W

IKA A11 GrinderSpecifications

LIST	VALUE

IKA A11 Grinder Packing list

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
