QILI CMN268 universal Glossmeter projection angle 20 °/60 °/85 ° charging type

Introduction

Its CMN268 universal gloss meter is a digital display portable gloss meter designed according to ISO2813, ASTMD523, DIN67530, GB9754 and GB7706 standards, using rechargeable lithium battery as the light source, the measurement projection angle is 20°/60°/85°, and the measurement range is 0~1999GU.

Note: Its vertical gloss meterDifferent batches of shells are different in color, thereforeThe color of the shell is random.

Product structure diagram

Features

· The ultra-small design can be placed in the pocket, which is more convenient to carry, and it is currently the smallest and lightest gloss meter in CHINA.

· The ultra-power-saving design can be operated using a No. 5 battery (rechargeable battery or alkaline battery). A fully charged battery can be used continuously for more than 60 hours, about 10,000 data can be measured, and the sonorous battery type can work continuously for more than 150 hours.

· The special moisture-proof process allows you to use it in a variety of harsh environments with peace of mind.

· Immediate measurement, no waiting time, stable value, no drift, convenient for fast measurement.

· Long-life light source that does not need to be replaced.

· Quartz crystal standard: accurate, wear-resistant, stable gloss value without change.

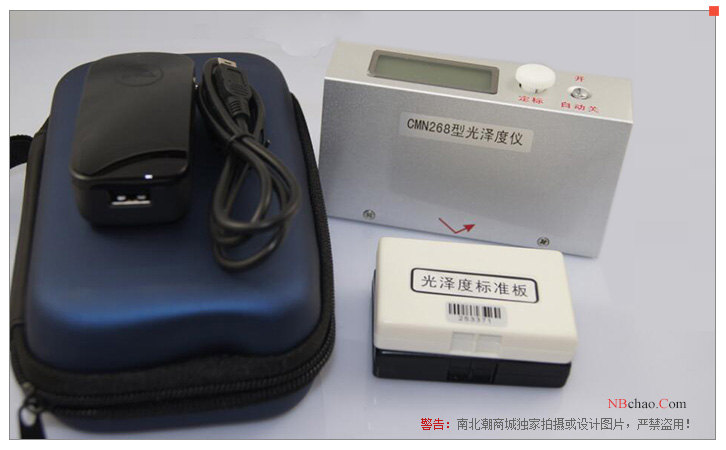

Presentation diagram

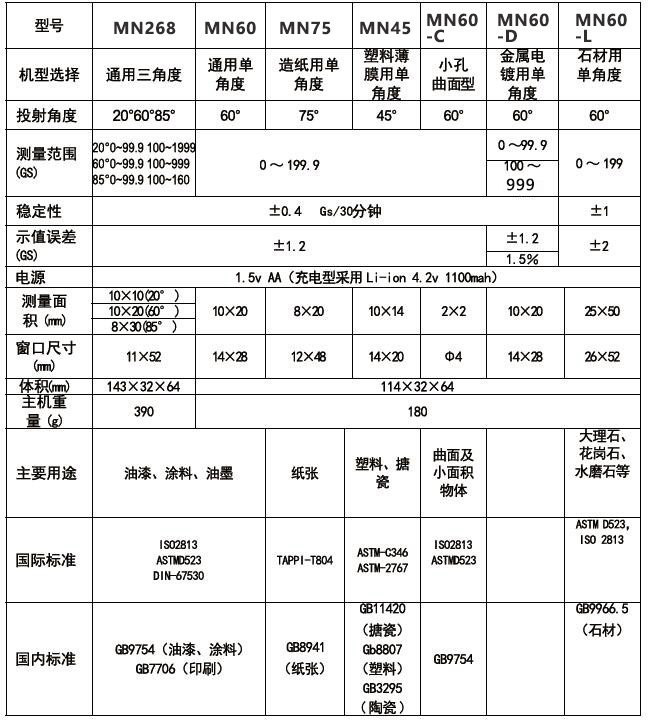

Comparison of the parameters of its vertical gloss meter

Host x1, Standard board x2, Plastic Encasement box x1, Instruction manual x1, Certificate x1, Wiping mirror cloth x1, External Encasement carton x1

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
