German IKA A10 Grinder basic type, suitable for dry grinding of brittle and flexible materials

Germany IKA A 10 Grinder is a basic type of Grinder, also known as ground testing machine, suitable for dry grinding of brittle and flexible materials, A10 provides 3 kinds of grinding heads interchangeable, motor input Power 180 W.

Brand

SKU: NB005560

IKA

Model

Get Quote

IKA

Information

Datasheet

What else did others buy

HuiNuo HN-22 Production Full Explosion-Proof Basket Grinder with 500L Stainless Steel Barrel

$ 10175.00
MODERNER LSM-370 Basket Sand Mill, Brushless DC 1.25L

Login
RONGHUA XA-1 Solid Sample Pulverizer

$ 192.00
MODERNER LSM-2.2D Basket Sand Mill, Brushless DC 20L

Login
HUXI HM5-2 Sample Homogenizer, Capacity 2 × 5ml

$ 1781.00

Genuinegoods

IKA A10 GrinderOverview
Specifications
Comments
FAQs

A10

Grinder

Introduction

It is suitable for dry grinding of brittle hard and flexible materials with low loss

- Built-in cooling grinding chamber

- Easy to disassemble and easy to clean, the grinding chamber is refined from high-grade steel

- 3 types of grinding heads are interchangeable

- Electronic overload protection

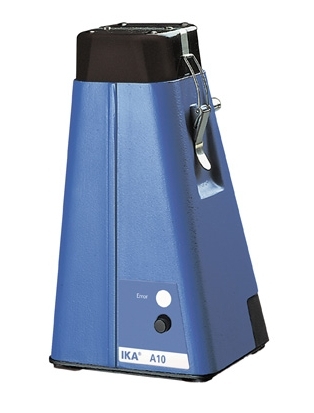

Illustration of the IKA A 10 Grinder in Germany

Technical parameters

The type of operation	Batching
Operating Principle	Shear/impact
Motor input power	180 W
Motor output power	80 W
Maximum rotational speed	20000 rpm
Maximum circumferential speed	57 m/s
Maximum usable volume	50 ml
Maximum feed hardness	5 Mohs
Maximum feed particles	6 mm
Impact/shear bit material	Stainless steel 1.4034
grinding chamber material	Stainless steel 1.4301
Operating Time are on	5 min
Operating Time off	10 min
Grinding chamber, which can be cooled with water	be
The abrasive material can be cooled with dry ice in the grinding chamber	be
The abrasive material can be cooled with liquid nitrogen in the grinding chamber	No
Dimensions	120 x 225 x 105 mm
weight	2.2 kg
Allowable ambient temperature	5 - 40 °C
Relative Humidity is allowed	80 %
DIN EN 60529 protection method	IP 21
RS 232 interface	No
Analog output	No
Voltage	220 - 240 / 115 / 100 V
frequency	50/60 Hz
Instrument input power	180 W
