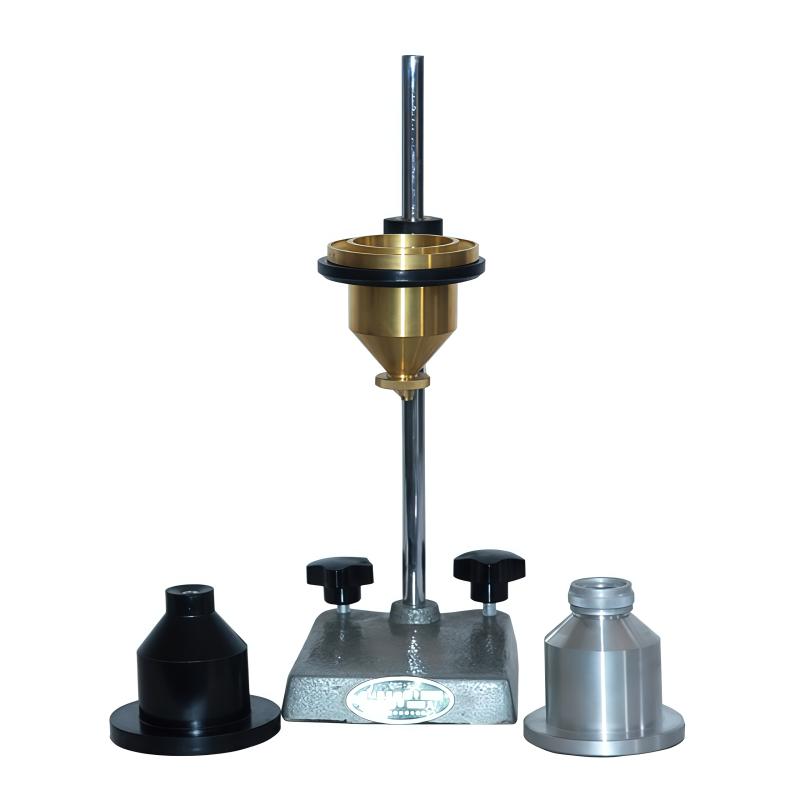

JingKeLian QND-4A Painted 4 ViscoMeters (Bakelite)

JINGKELIAN QND-4A Viscometer (Bakelite Cup) is suitable for measuring viscosity of Coating products under 150 seconds

Outflow time 0~150s, flow hole diameter 4mm, capacity 100ml, Total height 72.5mm, cup body material bakelite, filter material stainless steel, Applicable standard GB/T 1723, flow hole length 4 +/- 0.02mm.

Brand

SKU: NB000561

JingKeLian

Model

QND-4A

Price

$ 119.00

Promotion

Service

The delivery and service By NBchao.Com

Get Quote

JingKeLian shopSE

Information

Datasheet RFQ Contract Video Manual

What else did others buy

Genuinegoods

JingKeLian QND-4A Painted 4 ViscoMeters (Bakelite)Overview
Specifications
Comments
FAQs

QND-4A

Painted 4 ViscoMeters (Bakelite)

Overview of QND-4A Tu 4 Viscometer

JinKeLian QND-4A Tu 4 viscometer is a kind of Viscosity Cup made of Bakelite. The outflow time of the paint used for testing is not more than 150s. It is a Tu 4 cup with a diameter of 4mm. The volume of the cup of QND-4A Tu 4 viscometer is 100ml, and the Viscosity Cup holder can be purchased separately for testing, which has better stability.

QND-4A Tu 4 viscometer (bakelite cup) is manufactured in accordance with the relevant provisions of the national standard GB/T1723-93 "Measurement of Paint Viscosity" and combined with actual production conditions. QND-4B Tu 4 viscometer (aluminum cup) is used to measure the conditional viscosity of paint, and it is suitable for measuring paint products with viscosity below 150 seconds.

Detail image

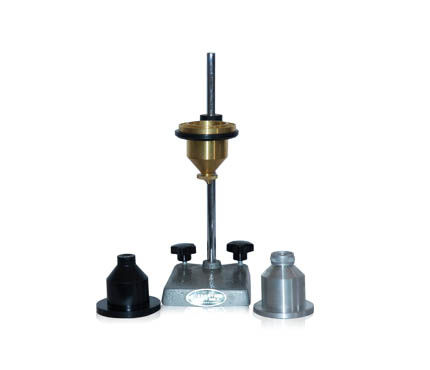

Real shot of QND-4A Viscosity Cup

JingKeLian QND-4A Painted 4 ViscoMeters (Bakelite)Specifications

LIST	VALUE
outflow time	0~150s
Flow hole diameter	4mm
Capacity	100ml
Total height	72.5mm
Cup body material	bakelite
Filter material	stainless steel
Applicable standard	GB/T 1723
Certificate	without
Outlet height	4±0.02mm

JingKeLian QND-4A Painted 4 ViscoMeters (Bakelite) Packing list

Viscosity cup x1, bracket x1

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.

FAQ

[Q]

Apply 4 cups, what's the difference between these?

[A]

4A is a bakelite cup, 4B is an aluminum cup, and 4C is a copper cup.

[Q]

Excuse me, the four-cup bakelite cup is actually plastic, right?

[A]

Bakelite cups are injection molded.

[Q]

Coating concentration is relatively strong, I don't know if the viscosity cup can be tested, the viscosity is about 8000?

[A]

Hello, applying 4 cups can only measure the viscosity of 200mPa.s at most. Such a high viscosity should use Viscometer.

[Q]

I want to do a test on the JT/T821.3 standard. Can this one be coated with 4 Viscometer (bakelite)?

[A]

Sure

[Q]

QND-4 copper viscosity cup and bakelite cup which is good?

[A]

Hello, all 4 cups can be used to test Coating viscosity, and the materials are different. You can enter the two product pages of/p/563 and/p/561 to compare.
