APPLENT AT5110 DC resistance Tester 10 channels, test range 1μΩ~ 30KΩ
APPLENT AT5110 DC resistance Tester is a newly designed multi-channel resistance Tester. Measurement range is 1μΩ~ 30KΩ. AT5110 can set the upper and lower limits of resistance, with temperature compensation function, and the number of scanning measurement channels is 10.
Applent
AT5110
Introduction

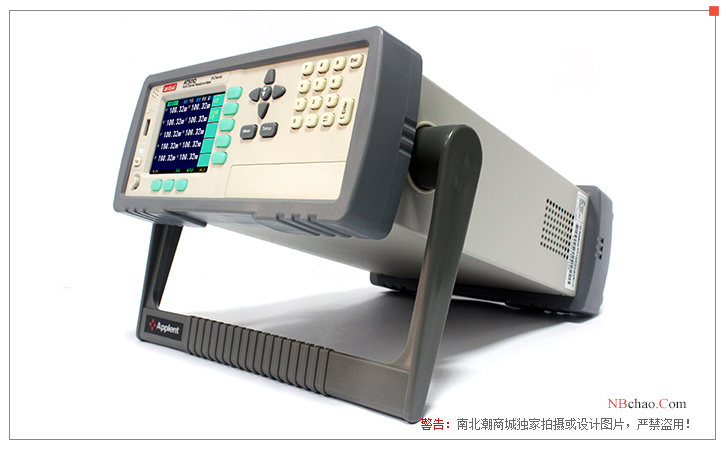

AMBER AT5110 DC Resistance TesterIt is a newly designed high-precision wide-range, multi-channel resistance Tester, which can scan test 10 channels of resistance. It is controlled by a high-performance ARM microprocessor. The true color 3.5-inch LCD can display 10 resistors at the same time, and each channel can be set separately comparator, AT5110 can test the resistance of 1μΩ~30KΩ, and the maximum display is 30,000 numbers. At the same time, it also has a standard temperature compensation function, which can be adapted to different requirements of the test. Applied to automation equipment, GD/NG signals can be output using RS232C and HANDLER interfaces to improve production automation testing capabilities!
Performance characteristics
● 10-channel resistance scanning measurement
● True color LCD display
● The upper and lower limits of resistance can be set
● It has the function of temperature compensation
● Keypad lock

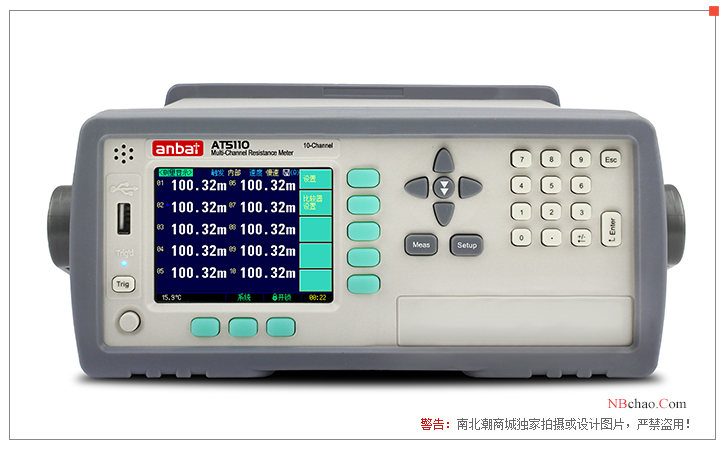

Display diagram
Application
● DC resistance measurement of multi-winding transformer
● Coil DC resistance measurement
● Multi-winding resistance measurement of motor
AMBE DC Resistance Tester Selection Table
Applent AT5110 DC resistance TesterSpecifications
| LIST | VALUE |
|---|---|
| number of ways | 10 channels (scanning measurement) |
| Measurement parameter | DC resistance |
| Basic Precision | 0.05% |
| Measurement range | 1μΩ~30KΩ |
| signal source | Current: < 1A |
| range | Automatic and manual |
| Test speed | Fast, slow speed adjustable |
| Show results | 10-Way direct reading display |
| Maximum reading | 30000 |
| correction | Short circuit clearing in full scale |
| comparator | 10 channels set individually |
| trigger method | Internal triggering and remote triggering |

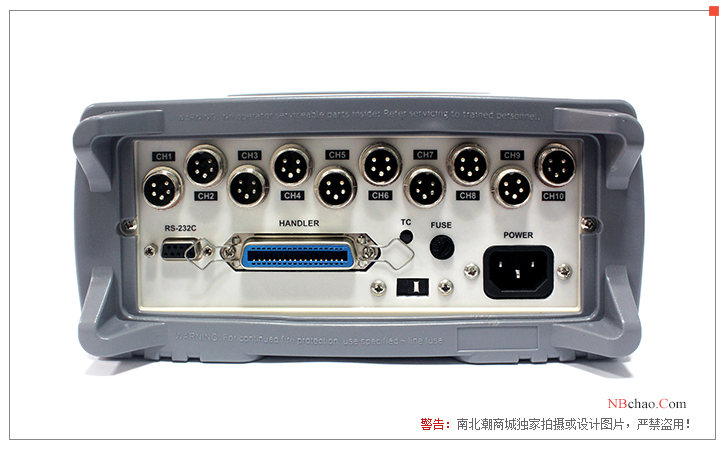

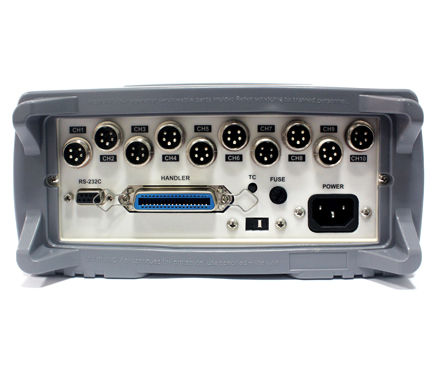

| standard interface | RS-232C interface (SCPI Instruction Set Architecture) HANDLER interface (PLC interface) |
| temperature compensation | Precision: 0.2 ℃ Temperature range: 0~80 ℃ |
| test side | 4-End Shielding per channel (including 2 detection terminals and 2 drive terminals) |
| other | True color LCD display, can set the Upper/Lower limits of resistance, with temperature compensation function keypad lock |
| power requirements | Voltage: 198VAC~ 250VAC Frequency: 50Hz Power: Maximum 15VA |
| Size and Weight | Outer Dimensions (mm): 264 (W) x107 (H) x350 (D) Inner Dimensions: 216 (W) x88 (H) x323 (D) Weight: 4kg |

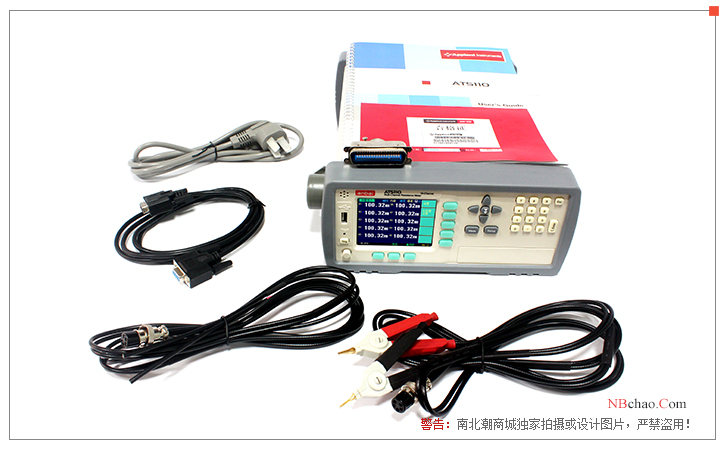

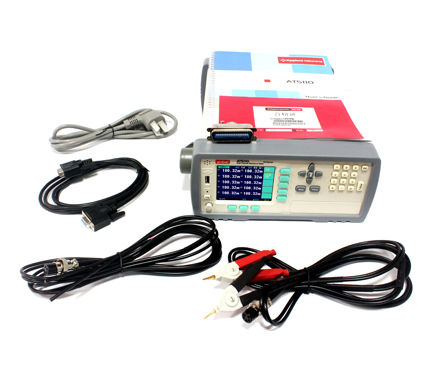

Applent AT5110 DC resistance Tester Packing list
Host x1, ATL501 Kelvin clip x10, ATL801 232c communication cable x1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
