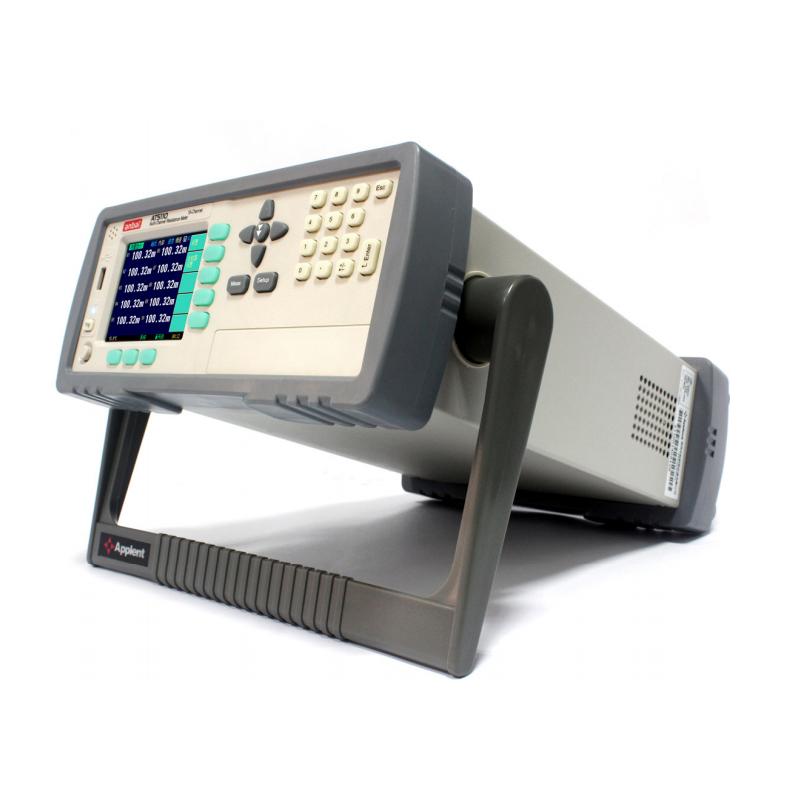

APPLENT AT5130 DC resistance Tester is a 30-channel multi-channel DC resistance Tester. Measurement range is 1μΩ~ 30KΩ. AT5130 has temperature compensation function.
Applent
AT5130
Introduction
AMBER AT5130 DC Resistance TesterIt is a newly designed high-precision wide-range, multi-channel resistance Tester that can perform scanning tests on 30 resistors. It is controlled by a high-performance ARM microprocessor. The true color 3.5-inch LCD can display 30 resistors at the same time, and each channel can be set with a comparator individually, AT5130 can test the resistance of 1μΩ~30KΩ, and the maximum display is 30,000 numbers. At the same time, it also has a standard temperature compensation function, which can be adapted to different requirements of the test. Applied to automation equipment, GD/NG signals can be output using RS232C and HANDLER interfaces to improve production automation testing capabilities!
Performance characteristics
● 30-channel resistance scanning measurement
● True color LCD display
● The upper and lower limits of resistance can be set
● It has the function of temperature compensation
● Keypad lock
Display diagram
Application
● DC resistance measurement of multi-winding transformer
● Coil DC resistance measurement
● Multi-winding resistance measurement of motor

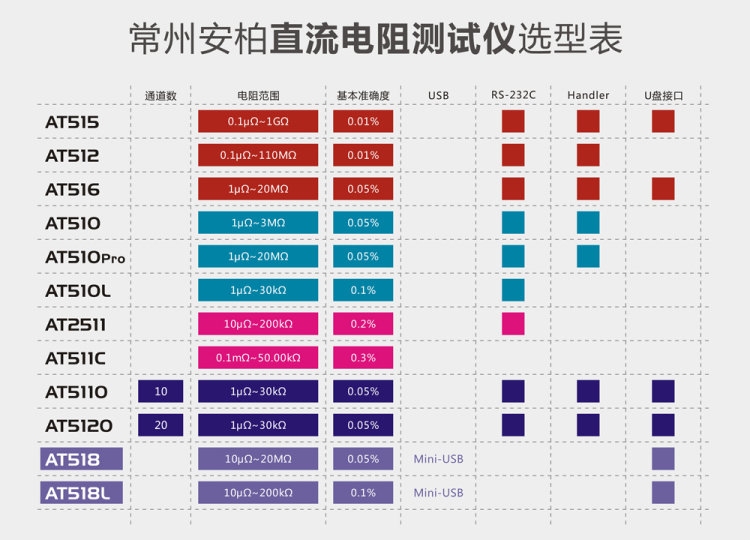

AMBE DC Resistance Tester Selection Table
Applent AT5130 DC resistance TesterSpecifications
| LIST | VALUE |
|---|---|
| number of ways | 30 channels (scanning measurement) |
| Measurement parameter | DC resistance |
| Basic Precision | 0.05% |
| Measurement range | 1μΩ~30KΩ |
| signal source | Current: < 1A |
| range | Automatic and manual |
| Test speed | 30ms channel |
| Show results | 30-Way direct reading display |
| Maximum reading | 30000 |
| correction | Short circuit clearing in full scale |
| comparator | 10 channels set individually |
| trigger method | Internal triggering and remote triggering |
| standard interface | RS-232C interface (SCPI Instruction Set Architecture) HANDLER interface (PLC interface) |
| temperature compensation | Precision: 0.2 ℃ Temperature range: 0~80 ℃ |
| test side | 4-End Shielding per channel (including 2 detection terminals and 2 drive terminals) |
| other | True color LCD display, can set the Upper/Lower limits of resistance, with temperature compensation function keypad lock |
| power requirements | Voltage: 198VAC~ 250VAC Frequency: 50Hz Power: Maximum 15VA |
| Size and Weight | Outer Dimensions (mm): 264 (W) x107 (H) x350 (D) Inner Dimensions: 216 (W) x88 (H) x323 (D) Weight: 4kg |
Applent AT5130 DC resistance Tester Packing list
Host x1, ATL501 Kelvin clip x30, ATL801 232c communication cable x1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
