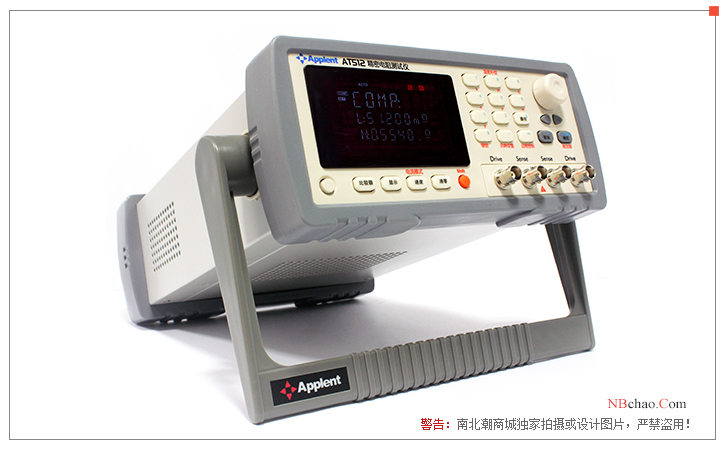

APPLENT AT512 Precision Resistance Tester 0.1μΩ~ 110MΩ Resistance Range
APPLENT precision resistance Tester, model AT512, is a high-precision wide-range resistance Tester. Measurement range is 0.1μΩ~ 110MΩ. AT512 precision resistance Tester is suitable for switches, connectors, relay wire packs, transformers and other contact resistors.
Applent
AT512
Introduction to AT512 Precision Resistance Tester
The AT512 is a high-precision, wide-range, high-performance microprocessor-controlled precision resistance Tester. It can measure the resistance of 0.1μΩ~110MΩ and display a maximum of 200,000 numbers. The maximum test speed is 150 times/sec and the accuracy is up to 0.01%. In 2010, the new upgraded version has a maximum output current of 3A and higher stability. The highly integrated design and scientific structural design of AMMG Instrument make the chassis of AT512 not only compact and lightweight, but also strong and shock-resistant, making it suitable for both laboratory and measurement room use, as well as field operation. Its wide range of tests can be adapted to a wide range of different requirements.
Features
● Comparator output: More detailed sorting results can be output through the built-in Handler interface and RS232C
● Signal: You can set the signal switch for all comparator results
● Users can set GD/NG signal and adjust the display brightness according to their own needs
● Keypad lock function

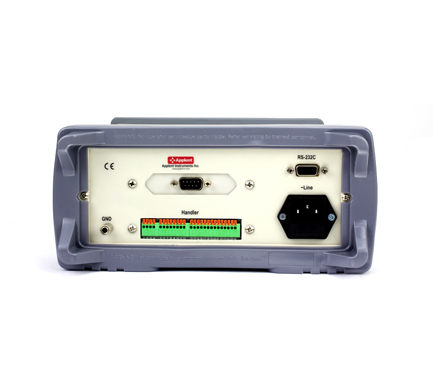

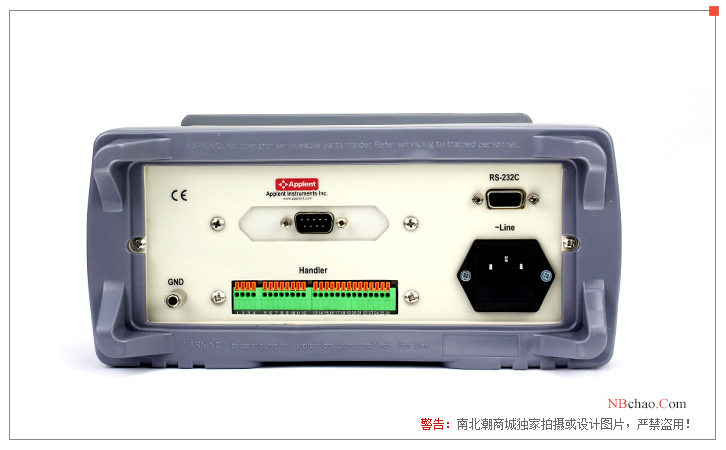

● Built-in interface: Handler interface, RS232C interface
● Compatible with SCPI instruction set, bus data and commands are transmitted using ASCII code to complete all instrument functions. Compatible with IEEE-488.1 and IEEE-488.2
● Multiple trigger modes: internal trigger, manual trigger, external trigger and remote trigger

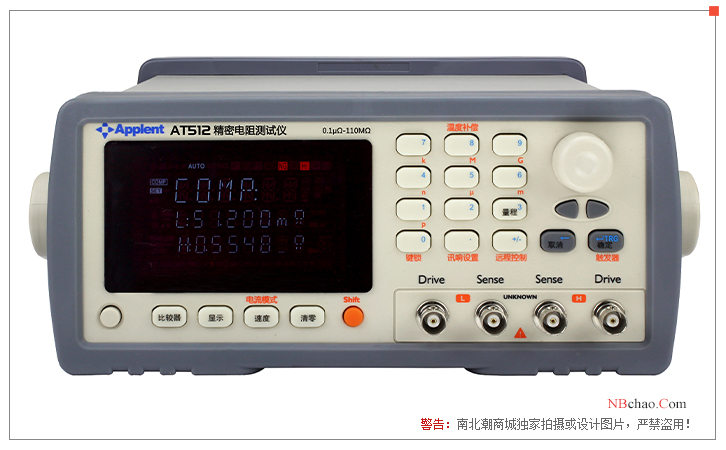

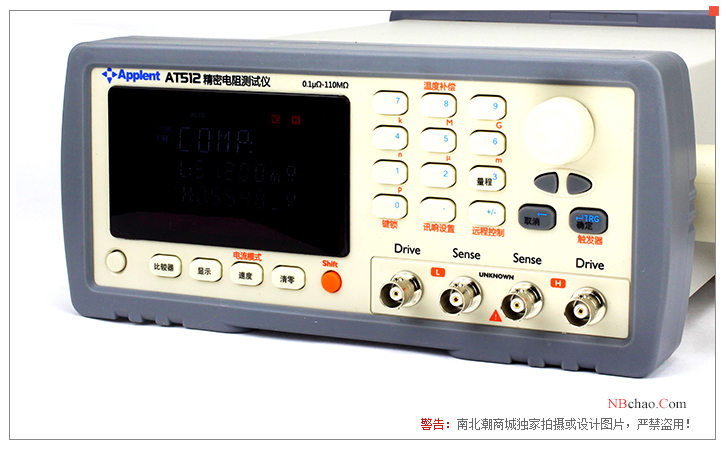

Display diagram
applyfield
● High-precision high, medium and low value resistors
● Various switching contact resistors
● Connector contact resistance
● Relay wire wrap and contact resistance
● Winding resistors for transformers, inductors, motors, and deflection coils
● Wire resistance; Metal riveting resistors for cars, boats, and airplanes
● Printed plate lines and porosity resistors

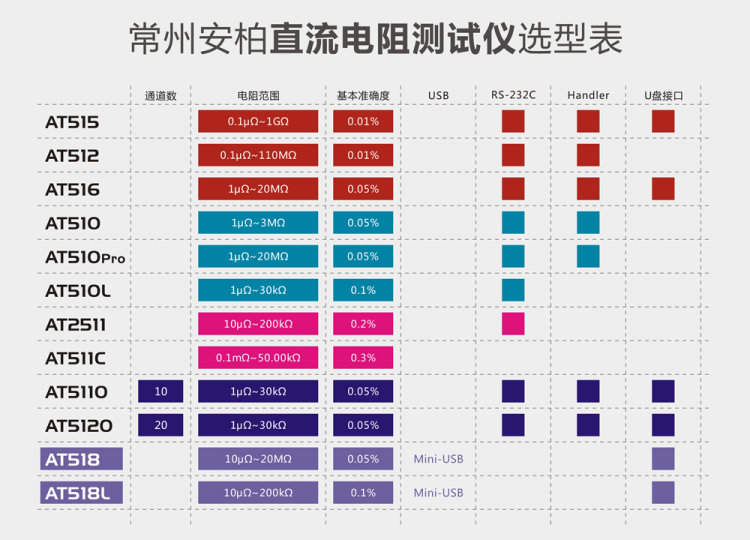

AMBE DC Resistance Tester Selection Table

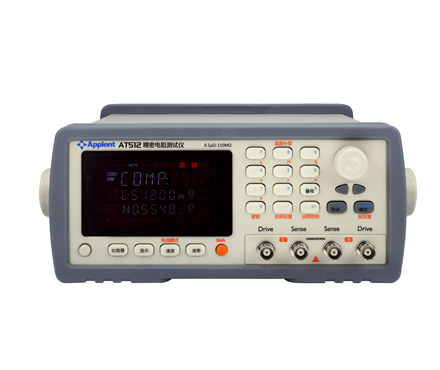

Applent AT512 DC resistance TesterSpecifications
| LIST | VALUE |
|---|---|
| Model | AT512 |
| Measurement parameter | DC resistance |
| Basic Precision | 0.01% |
| Measurement range | 0.1μΩ~110MΩ |
| signal source | Maximum current: 1uA~ 1A |
| range | 11 range automatic and manual |
| Measurement speed | 150 times/second, 10 times/second, 2 times/second |
| Show results | Direct reading, delta ABS, delta% and sorting results |
| Maximum reading | 104000 |
| correction | Open and short circuit clearing |
| comparator | 30 sets of comparators, display and output NG-LO, GD-IN, NG-HI sound and adjustable Volume |
| trigger method | Internal, manual, external, remote triggering |
| interface | RS232C, Handler interface (PLC interface) |
| temperature compensation | Temperature range: 0~80 ℃ Precision: 0.2 ℃ |
| test side | 4-Terminal Shielding (including 2 detection terminals and 2 drive terminals) and outer Shielding ground terminals |
| Miscellaneous | Four-color vacuum fluorescent screen VFD display, keypad lock and data retention function temperature compensation function |
| power requirements | Voltage: 198VAC~ 240VAC Frequency: 50Hz Power: Maximum 15VA |
| size | Outer Dimensions (mm): 264 (W) x107 (H) x350 (D) Inner Dimensions: 216 (W) x88 (H) x323 (D) |
| Weight | 4kg |

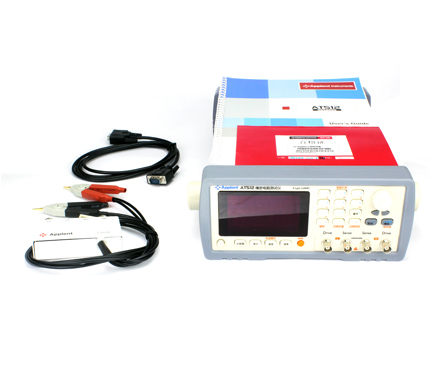

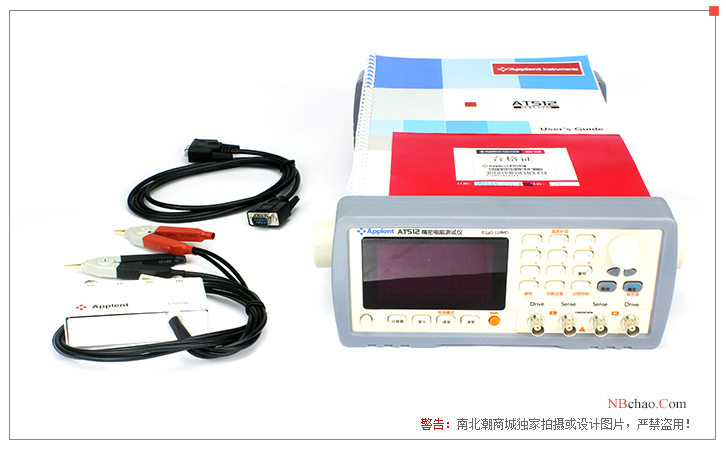

Applent AT512 DC resistance Tester Packing list
Host x1, ATL501: Four-terminal Kelvin clip test cable x1, ATL801:232 communication cable x1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
