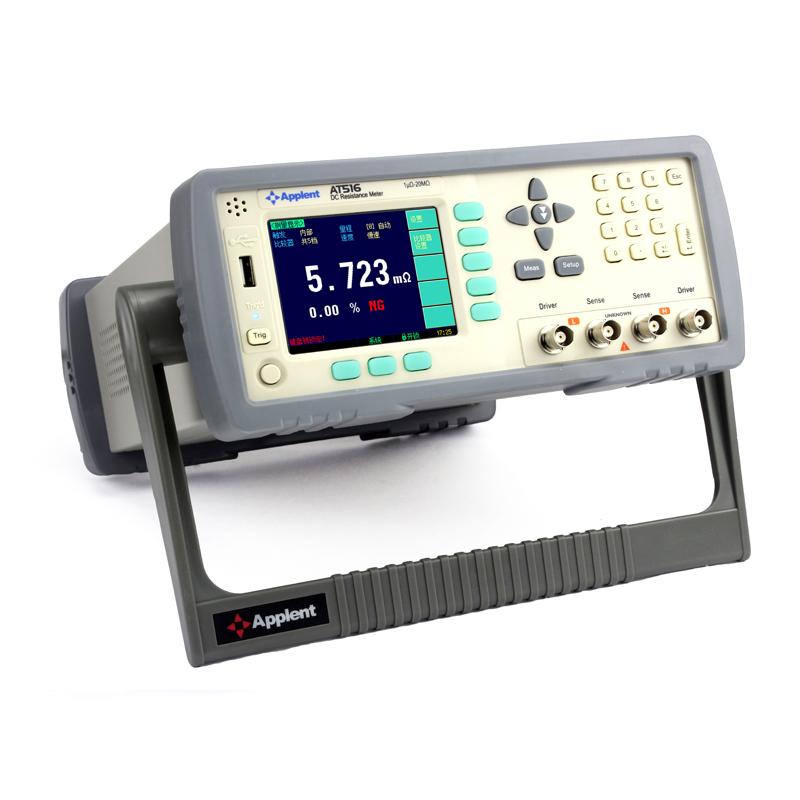

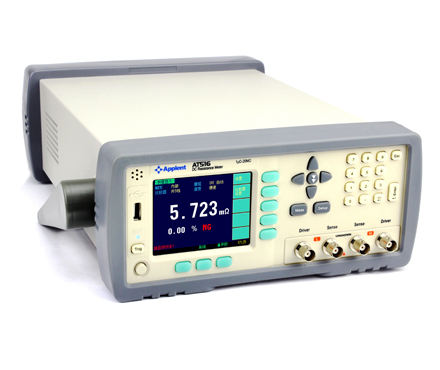

APPLENT AT516 DC Resistance Tester 1μΩ~ 20MΩ Resistance Range
APPLENT AT516 DC resistance Tester is a high-precision DC resistance Tester with a range of 1μΩ~ 20MΩ. It is controlled by a high-performance ARM microprocessor. AT516 is suitable for the measurement of various high, medium and low value resistors.
Applent
AT516
Introduction to AT516 DC Resistance Tester
The AT516 is a newly designed high-precision, high-stability DC resistance Tester controlled by a high-performance ARM microprocessor. True color 3.5-inch LCD display in Chinese and English, more convenient to operate. It is suitable for measuring all kinds of high, medium and low value resistors, various switch contact resistance, connector contact resistance, relay wire wrap and contact resistance, transformer, inductor, motor, deflection coil winding resistance, solder joint contact resistance, wire resistance, metal riveting resistance of vehicles, ships and aircraft, printing plate lines and hole resistance, metal flaw detection, etc.
Performance characteristics
●Temperature compensation function.
●High current test function (open circuit Voltage< 20mV).
● Signal and display adjustable.
●Compatible with SCPI instruction set.
● Keypad lock function.
● Data retention function.

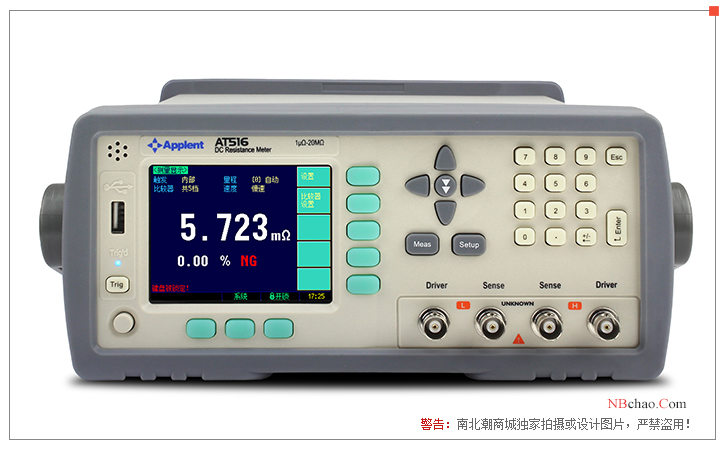

Display diagram
Application
●Measure a variety of high, medium and low value resistors
●Various switch contact resistors
●Enameled wire resistance
●Connector contact resistance
● Relay wire pack and contact resistor
●Winding resistors for transformers, inductors, motors, and deflection coils
●Solder joint contact resistance
●Wire resistance
●Metal riveting resistors for cars, ships, and airplanes
● Printed plate lines and porosity resistors
●Characterize the low-resistance characteristics of electromechanical components
●Metal flaw detection, etc

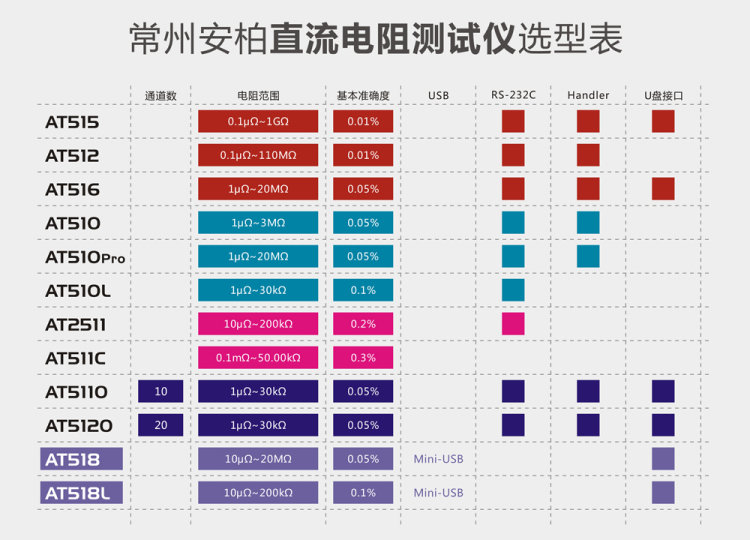

AMBE DC Resistance Tester Selection Table
Applent AT516 DC resistance TesterSpecifications
| LIST | VALUE |
|---|---|
| Model | AT512 |
| Measurement parameter | DC resistance |
| Basic Precision | 0.01% |
| Measurement range | 0.1μΩ~110MΩ |
| signal source | Maximum current: 1uA~ 1A |
| range | 11 range automatic and manual |
| Measurement speed | 150 times/second, 10 times/second, 2 times/second |
| Show results | Direct reading, delta ABS, delta% and sorting results |
| Maximum reading | 104000 |
| correction | Open and short circuit clearing |
| comparator | 30 sets of comparators, display and output NG-LO, GD-IN, NG-HI sound and adjustable Volume |
| trigger method | Internal, manual, external, remote triggering |

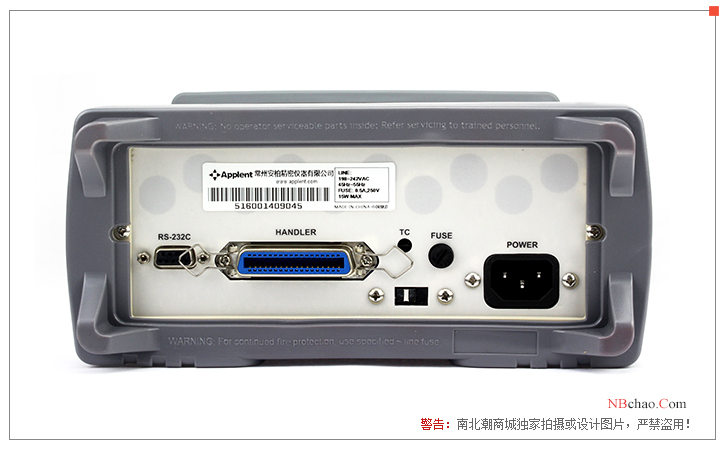

| interface | RS232C, Handler interface (PLC interface) |
| temperature compensation | Temperature range: 0~80 ℃ Precision: 0.2 ℃ |
| test side | 4-Terminal Shielding (including 2 detection terminals and 2 drive terminals) and outer Shielding ground terminals |
| Miscellaneous | Four-color vacuum fluorescent screen VFD display, keypad lock and data retention function temperature compensation function |
| power requirements | Voltage: 198VAC~ 240VAC Frequency: 50Hz Power: Maximum 15VA |
| size | Outer Dimensions (mm): 264 (W) x107 (H) x350 (D) Inner Dimensions: 216 (W) x88 (H) x323 (D) |
| Weight | 4kg |

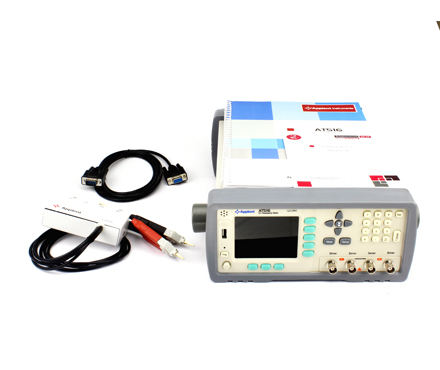

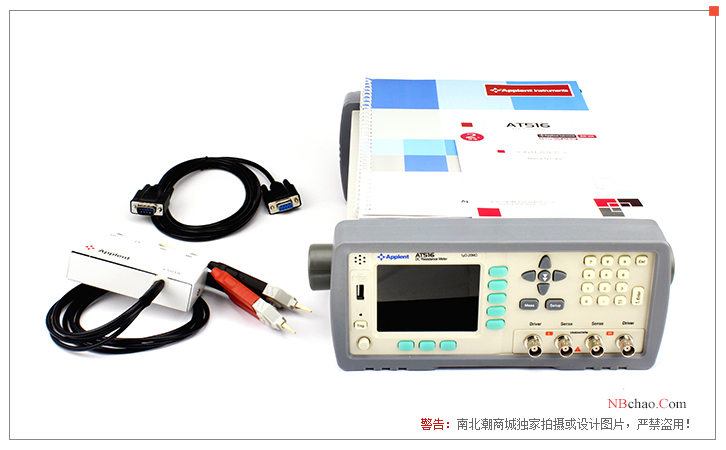

Applent AT516 DC resistance Tester Packing list
Host x1, ATL501: Four-terminal Kelvin clip test cable x1, ATL801:232 communication cable x1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
