APPLENT AT2511 DC low resistance Tester, practical 0.01mΩ~ 200kΩ range
The APPLENT AT2511 DC low resistance Tester is an upgraded version of the AT511A, with a wide range of 0.01mΩ to 200kΩ, which can display 5000 numbers. The AT2511 uses a 0.8-inch high-brightness digital tube and has a comparator function.
Applent
AT2511

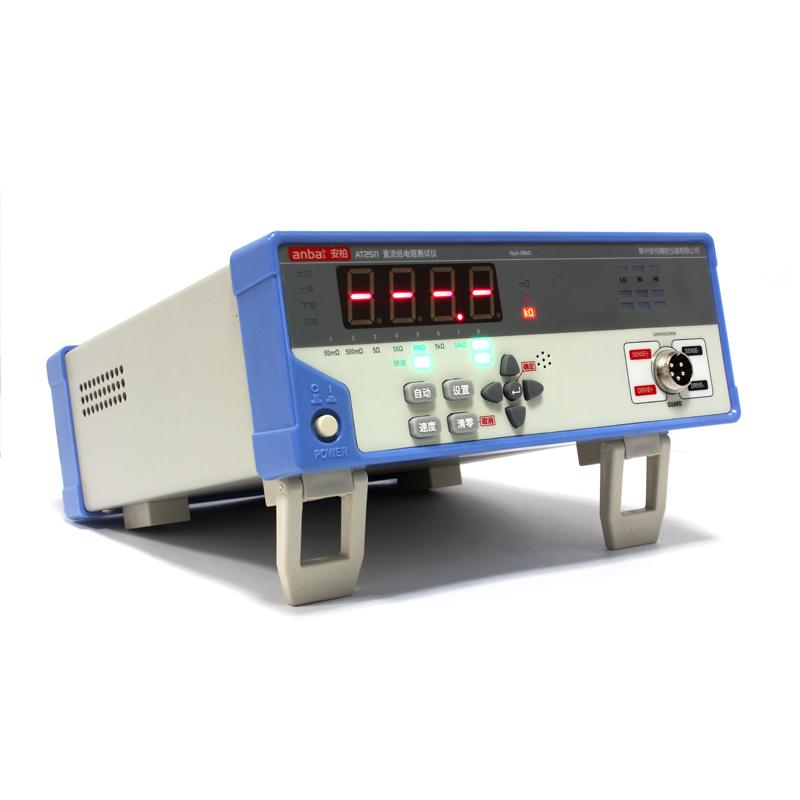

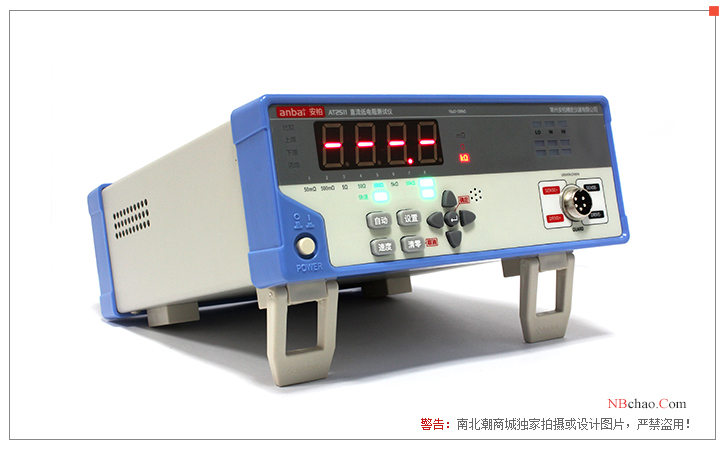

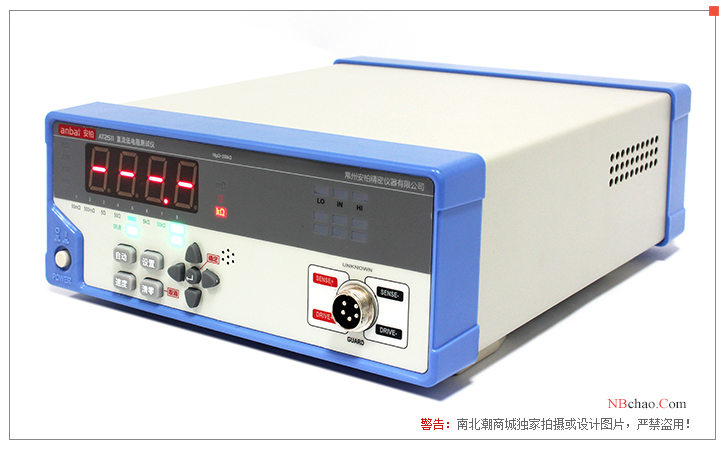

Introducing the AT2511 DC Low Resistance Tester
The AT2511 is an economical DC low resistance Tester that is an upgraded version of the AT511A.
Compared with its predecessor, AT511A, AT2511 has a wider test range: 0.01mΩ~200.0kΩ, and the maximum display number is 5000. At the same time, the test speed is improved: up to 10 times/sec and stable readings. The improved automatic range test circuit and the design of the all-electronic switch can switch from the highest range to the lowest range instantaneously.
AT2511 uses a 0.8-inch high-brightness digital tube display, full Chinese buttons and indicators, making the instrument display clearer, and the fool-style operation interface is also easy to use.
The AT2511 uses superior low current test characteristics, and is especially suitable for resistors that are sensitive to test current, such as platinum thermal resistance, copper thermal resistance, PTC ceramic thermal resistance, alloy wire DC resistance, DC resistance of current protection devices, etc.
The AT2511 is also suitable for measuring a wide range of contact resistances; Winding resistors for transformers, inductors, motors, and deflection coils; wire resistance; metal riveting resistors for vehicles, ships and aircraft; Printing plate lines and porosity resistors, etc.
Performance characteristics
● 0.8 inch large character highlight digital tube display
● Full Chinese keys and indicators
● Fully automatic test and manual ranging function
● Comparator function
● Full-scale short-circuit clearing function
● Basic accuracy: 0.2%
● Maximum 5000 digits are displayed
● Eight-range automatic or manual test
● Provide 0.01mΩ~200.0kΩ test range. Fully electronic switch control, no life limit, instantaneous range switching
● Test speed: fast: 10 times/sec Slow: 3 times/sec
● Enhance impact protection

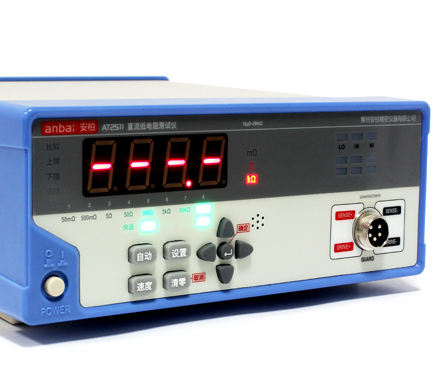

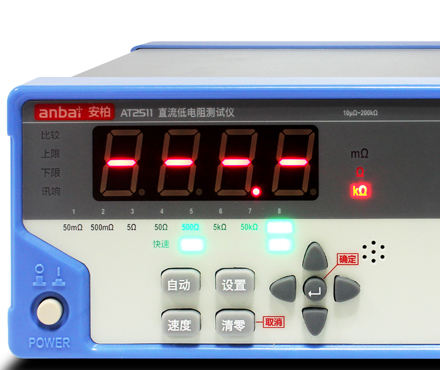

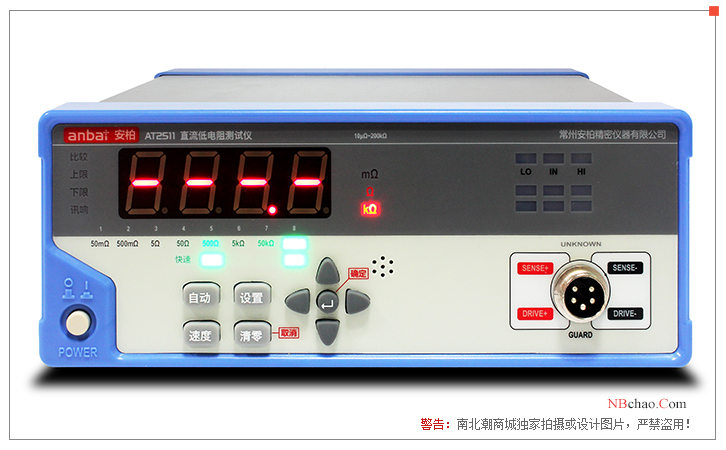

Display diagram
Application
● Measure the internal resistance of small Wire diameter coils (e.g. headphone coils)
● Resistance measurement of the sensor
● Measurement of resistance value of protection device
● Winding resistors for transformers, inductors, motors, and deflection coils
● Various contact resistances
● Solder joint contact resistance
● Metal flaw detection, etc

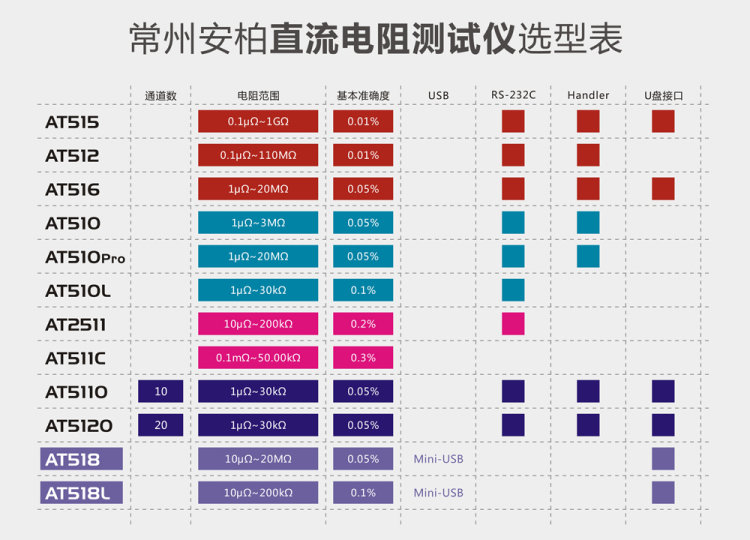

AMBE DC Resistance Tester Selection Table
Applent AT2511 DC resistance TesterSpecifications
| LIST | VALUE |
|---|---|
| Measurement parameter | DC resistance |
| Basic Precision | 0.2% |
| Measurement range | 10μΩ~200kΩ |
| signal source | Maximum current: < 100mA |
| range | Eight-range automatic and manual testing |
| Test speed | Slow speed: 3 times/second, fast speed: 10 times/second |
| Show results | direct reading |
| Maximum reading | 5000 |
| correction | Short circuit clearing in full scale |
| comparator | OFF (Off) PASS (Pass) HI (High) LO (Low) |
| sound | GD, NG, Off Settings |
| test side | 4-Terminal Shielding (including 2 detection terminals and 2 drive terminals) and outer Shielding ground terminals |
| other | 0.8-Inch LED display |
| application | Measurement of small Wire diameter coil internal resistance (such as earphone coil); Sensors resistance value measurement; protection device resistance value measurement; ordinary transformers, Inductance devices, motors, deflection coil winding resistance, various contact resistance; solder joint contact resistance; metal flaw detection, etc |
| power requirements | Voltage: 198VAC~ 240VAC Frequency: 50Hz Power: Maximum 15VA |
| size | 220 (W) x85 (H) x259 (D) |
| Weight | 2kg |

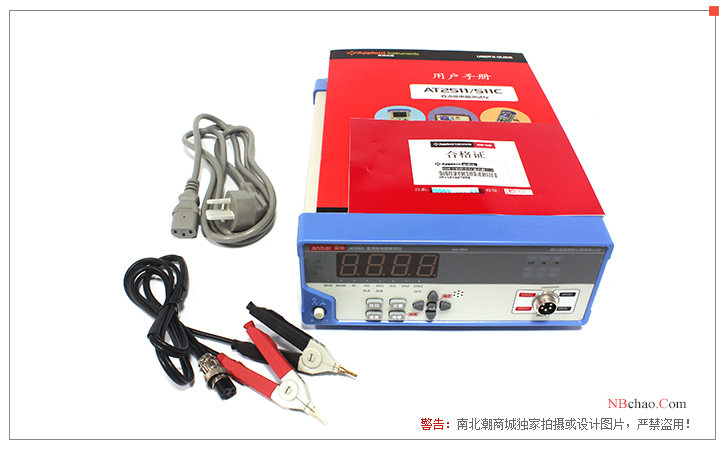

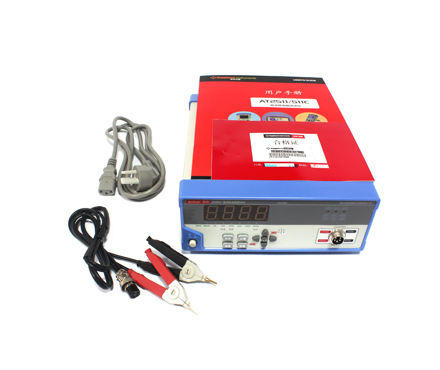

Applent AT2511 DC resistance Tester Packing list
Host x1, ATL503: Four-terminal Kelvin clip test line x1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
