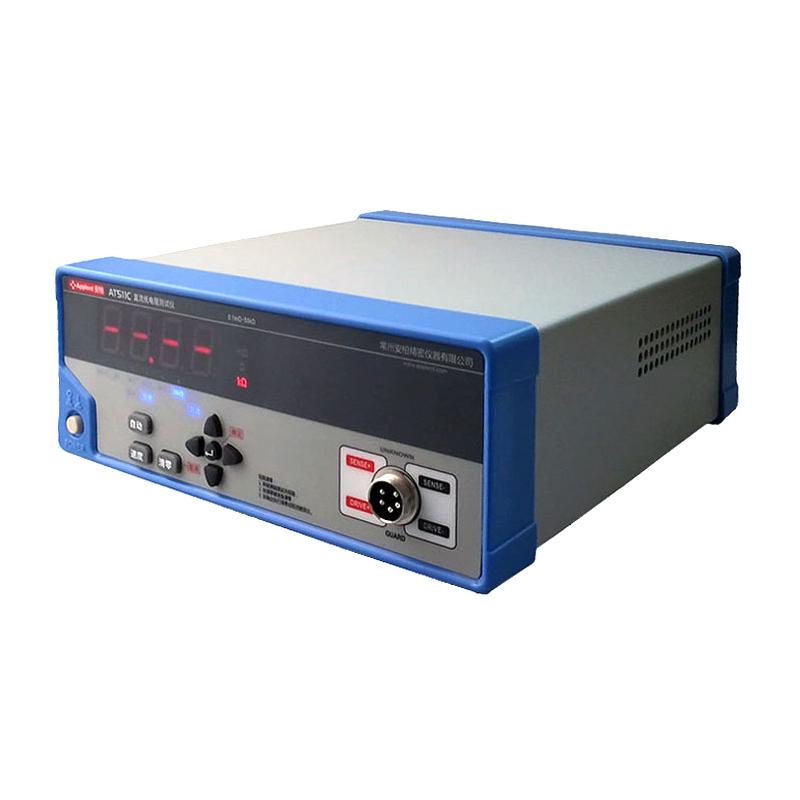

APPLENT AT511C DC low resistance Tester, economical 0.1mΩ~ 50.00kΩ range
APPLENT AT511C DC low resistance Tester is an upgraded version of AT511M, economical and practical, with a large range of 0.1mΩ~ 50.00kΩ, AT511C Test speed up to 10 times/second, using automatic range test circuit.
Applent
AT511C

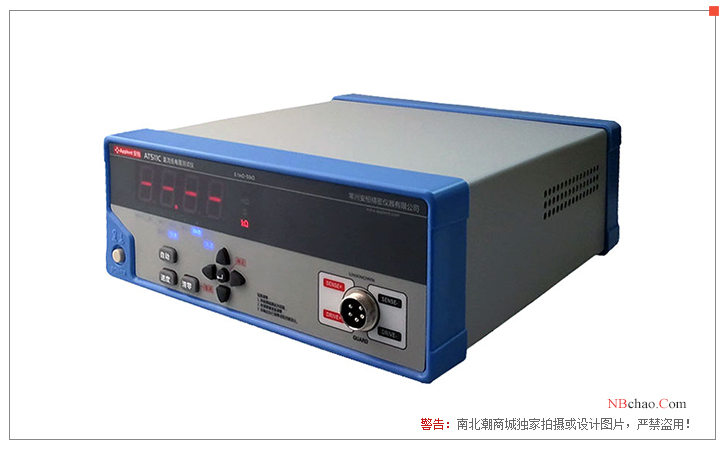

Introduction to the AT511C DC Low Resistance Tester
The AT511C is a cost-effective DC low resistance Tester that is an upgraded version of the AT511M.
Compared with its predecessor, AT511M, the AT511C has a wider test range: 0.1mΩ~50.00kΩ, and a maximum display of 5000 numbers. At the same time, the test speed is increased: up to 10 times/sec and stable readings. The improved automatic range test circuit and the design of the all-electronic switch can switch from the highest range to the lowest range instantaneously.
The AT511C uses a 0.8-inch high-brightness digital tube display, full Chinese buttons and indicators, making the instrument display clearer, and the point-and-shoot operation interface is also easy to use.
The AT511C uses superior low current test characteristics, which is especially suitable for resistors that are sensitive to test currents, such as platinum RTD, copper thermoresistor, PTC ceramic RTD, alloy wire DC resistor, DC resistance of current protection devices, etc.
The AT511C is also suitable for measuring a wide range of contact resistances; Winding resistors for transformers, inductors, motors, and deflection coils; wire resistance; metal riveting resistors for vehicles, ships and aircraft; Printing plate lines and porosity resistors, etc.
Performance characteristics
● Full-scale zero calibration
● Four-end test
● Range auto/hold function
● Moderately adjustable for testing

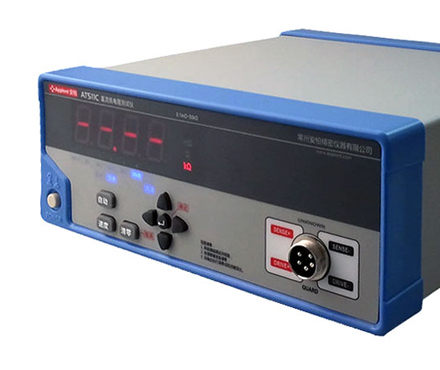

Display diagram
applyfield
● Measure the internal resistance of small Wire diameter coils (e.g. headphone coils)
● Resistance measurement of the sensor
● Measurement of resistance value of protection device
● Winding resistors for transformers, inductors, motors, and deflection coils
● Various contact resistances
● Solder joint contact resistance
● Metal flaw detection, etc

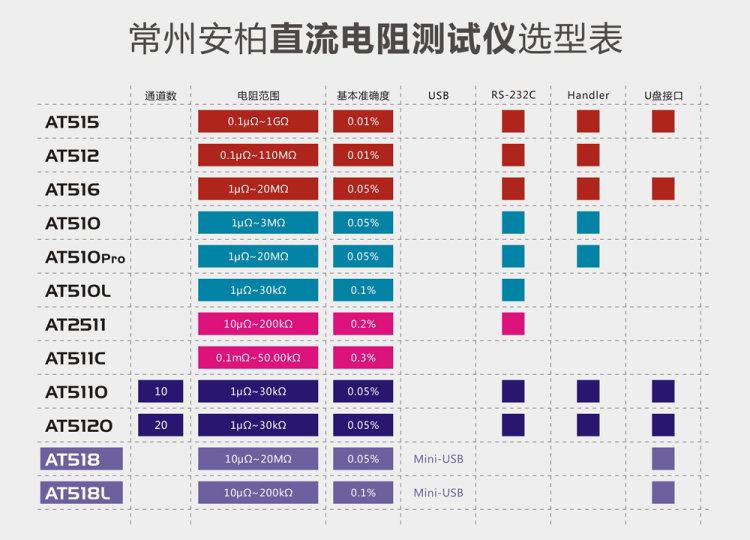

AMBE DC Resistance Tester Selection Table
Applent AT511C DC resistance TesterSpecifications
| LIST | VALUE |
|---|---|
| Measurement parameter | DC resistance |
| Basic Precision | 0.3% |
| Measurement range | 0.1mΩ-50kΩ |
| signal source | Maximum current: < 100mA |
| range | Six-range automatic and manual testing |
| Test speed | Slow speed: 3 times/second, fast speed: 10 times/second |
| Show results | direct reading |
| Maximum reading | 5000 |
| correction | Short circuit clearing in full scale |
| comparator | none |
| sound | none |
| test side | 4-End Shielding (including 2 detection terminals and 2 drive terminals) and outer Shielding ground terminals. |
| other | 0.8-Inch LED display |
| application | Measurement of small Wire diameter coil internal resistance (such as earphone coil); Sensors resistance value measurement; protection device resistance value measurement; ordinary transformers, Inductance devices, motors, deflection coil winding resistance, various contact resistance; solder joint contact resistance; metal flaw detection, etc |
| power requirements | Voltage: 198VAC~ 240VAC Frequency: 50Hz Power: Maximum 15VA |
| size | 220 (W) x85 (H) x259 (D) |
| Weight | 2kg |
Applent AT511C DC resistance Tester Packing list
Host x1, ATL503: Four-terminal Kelvin clip test line x1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
