APPLENT AT518 Handheld DC Resistance meter 10μΩ~ 20MΩ Range
APPLENT AT518 handheld DC Resistance meter has the characteristics of high-precision (0.05%), wide range (10μΩ~ 20MΩ), using ARM microprocessor control, AT518 can measure various high, medium and low value resistors, built-in temperature compensation module.
Applent
AT518

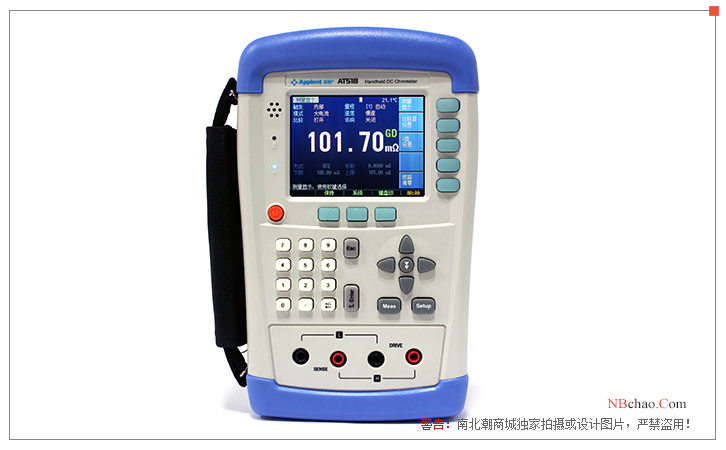

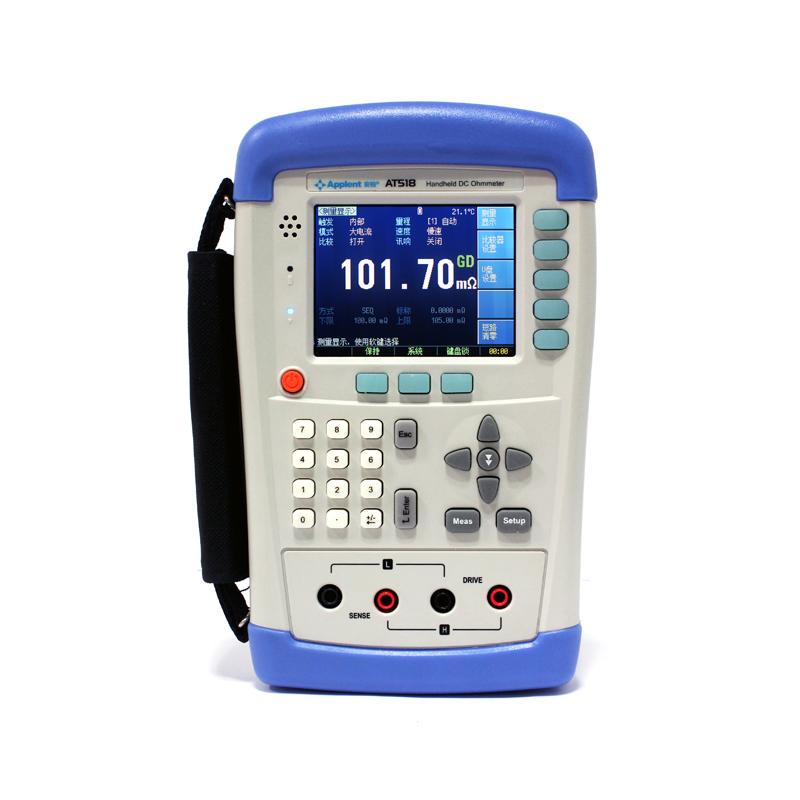

Introducing the AT518 Handheld DC Resistance Meter
AT518 handheld DC low resistance Tester is a high-precision wide-range, high-performance 32-bit ARM microprocessor control of fully automatic real-time detection of micro handheld instrument, in any occasion to achieve accurate and convenient measurement of passive components for a long time. The instrument can test the resistance of 10μΩ~20MΩ, and the maximum number of displays is 20000. It has a current test mode, which can be adapted to different requirements of the test. It is equipped with Mini-USB communication interface for remote control and data acquisition and analysis. AT518 adopts 3.5" high-definition LCD large screen display, large font display is more convenient for you to read data, and the built-in high-capacity lithium battery can be used for a long time standby, which is more convenient for you to take mobile measurements for a long time.
The AT518 handheld low resistance Tester can measure a variety of high, medium and low value resistors; The instrument has a built-in temperature compensation module, which can compensate the temperature of temperature-sensitive devices. The AT518 handheld low resistance Tester can easily measure various switch contact resistances; Connector plug-in resistor; relay wire wraps and shock resistors; Winding resistors for transformers, inductors, motors, and deflection coils; wire resistance; Metal riveting resistors, printed board lines and porosity resistors for cars, ships, and airplanes.
performancefeatures
● Fresh and dazzling two-color injection molded shell
● Battery and external power supply power supply
● Automatic shutdown function
● Built-in Mini-USB interface
● Compatible with SCPI instruction set
● Keypad lock function
● Switch between Chinese and English
● Backlight adjustment
● Auto shutdown setting
● Long continuous working time≥8h

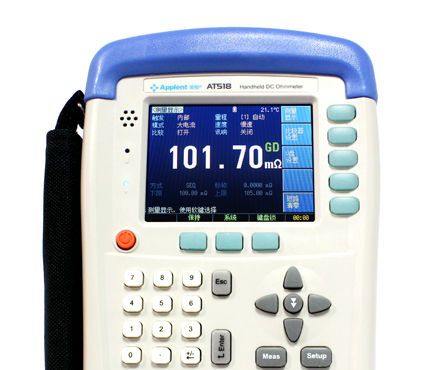

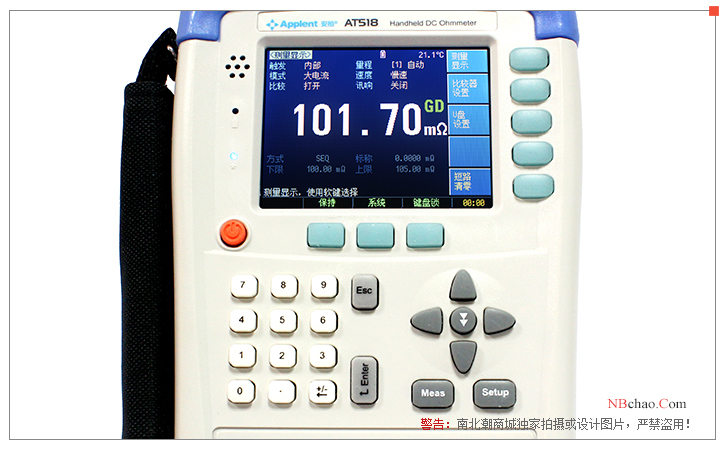

Display diagram
Application
● Measure all kinds of high, medium and low value resistors
● Various switching contact resistors
● Enameled wire resistor
● Connector contact resistance
● Relay wire wrap and contact resistance
● Winding resistors for transformers, inductors, motors, and deflection coils
● Solder joint contact resistance
● Wire resistance
● Metal riveting resistors for vehicles, ships and aircraft
● Printed plate lines and porosity resistors
● Characterize the low-resistance characteristics of electromechanical components

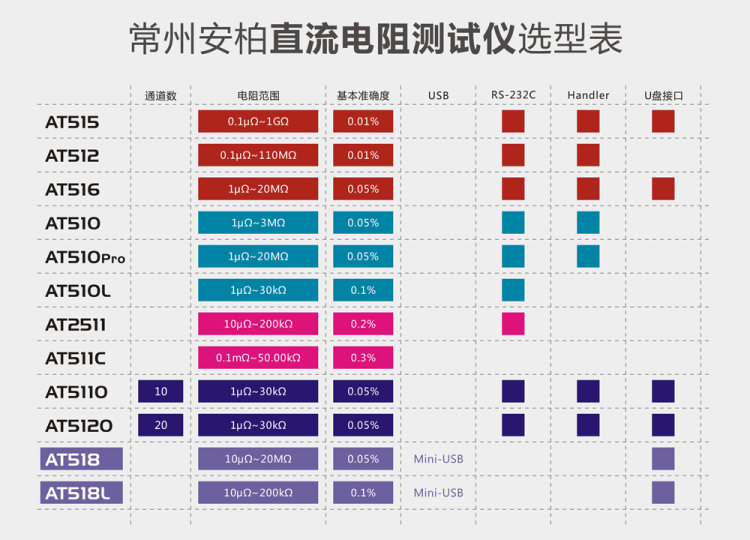

AMBE DC Resistance Tester Selection Table
Applent AT518 DC resistance TesterSpecifications
| LIST | VALUE |
|---|---|
| Measurement parameter | DC resistance |
| Basic Precision | 0.05% |
| Measurement range | 10μΩ~20MΩ |
| signal source | Maximum current: < 1A Current mode: high current, low current |
| range | Ten-scale automatic, manual, and nominal testing |
| Test speed | 30 times/second, 15 times/second, 3 times/second |
| Show results | Absolute deviation (ABS) comparison, relative deviation (PER) and sequential (SEQ) comparison |
| Maximum reading | 20000 |
| correction | Short circuit clearing in full scale |
| comparator | Built-in sorting record, GD/NG sorting result display |
| trigger method | Internal trigger, manual trigger, remote trigger |
| test side | 4-Terminal Shielding (including 2 detection terminals and 2 drive terminals) and outer Shielding ground terminals |
| temperature compensation | Precision: 0.2 ℃ Temperature range: 0~80 ℃ |

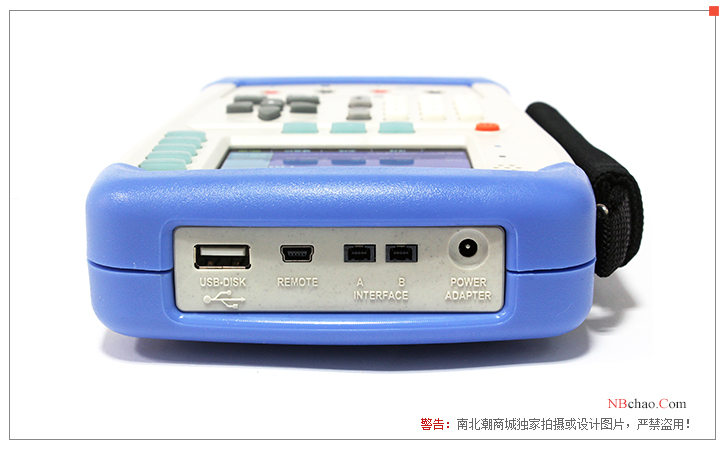

| standard interface | Built-in Mini-USB interface (virtual serial port) |
| other | 3.5-Inch true color 16M color TFT-LCD display; keypad lock, data retention function; compatible with SCPI Instruction Set Architecture; Chinese and English switching; backlight adjustment; automatic shutdown, U disk recording function |
| Power adapter | Input: 100-240V~ 50/60Hz 0.35A Output: 9V 1A DC |
| Battery parameters | 8.4V, Li, 2200mAh rechargeable battery |
| Charging time | Charging time: 300Min max. |
| Battery operating life | ≥ 8 hours |
| size | External Dimensions (mm): 130.23 (W) x 210.76 (H) x 37.88 (D) |
| Weight | 650g |

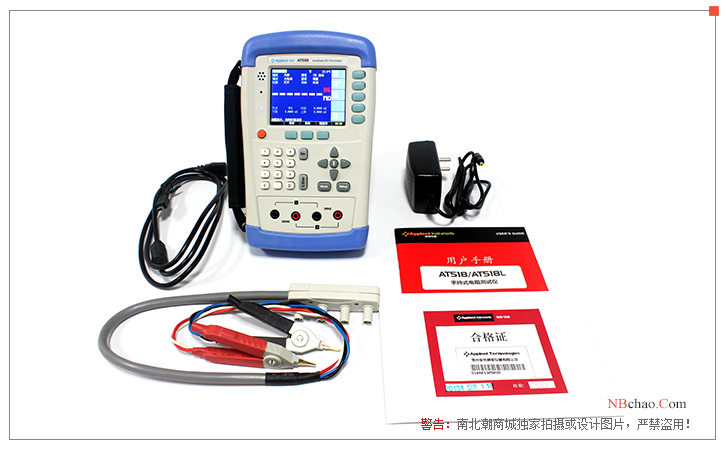

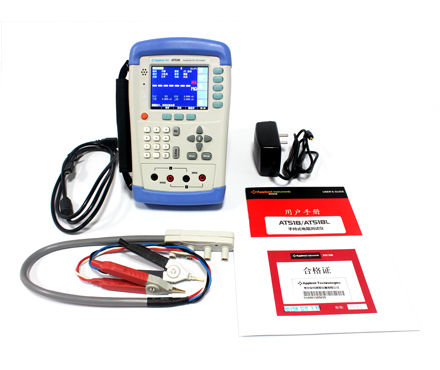

Applent AT518 DC resistance Tester Packing list
Host x1, four-terminal Kelvin test clip x1, DC power adapter x1, portable bag x1, lithium battery x1, Mini-USB communication cable x1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
