APPLENT AT526 battery Tester for measurement of any type of battery
APPLENT AT526 battery Tester is a professional battery Tester for the measurement of various battery resistance or life evaluation, etc. Measurement range of AT526:0.0005mΩ~ 33Ω (resistance), 0.00001mV~ 120.0000Vdc (Voltage).
Applent
AT526

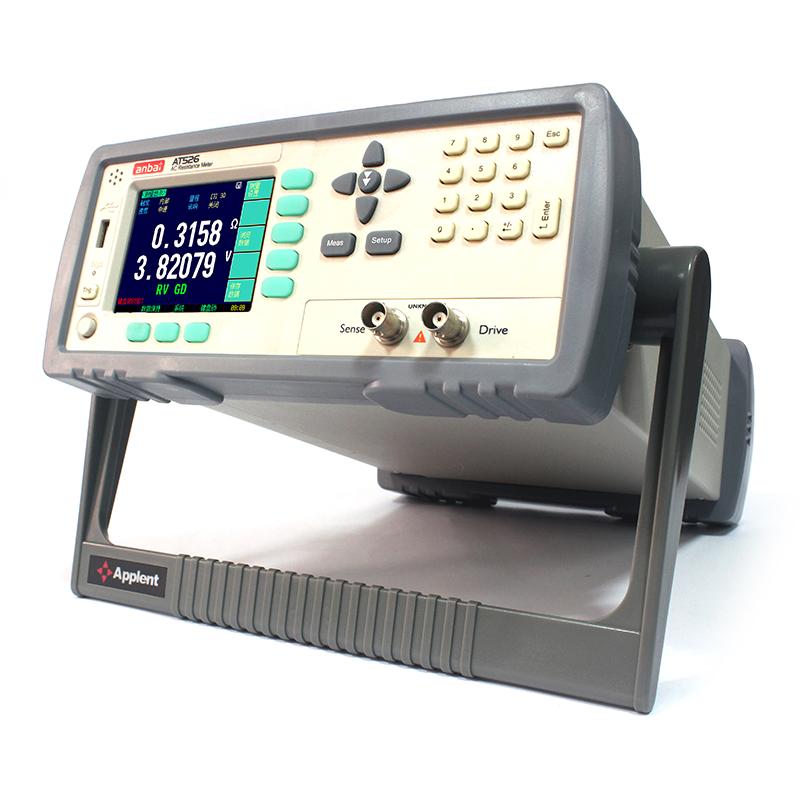

Introducing the AT526 Battery Tester
AT526 is a newly designed battery Tester with high precision and high stability. It is controlled by a high-performance ARM microprocessor. True color 3.5-inch LCD display in Chinese and English, more convenient to operate. It is an upgraded product of AT520. It is a high-performance, intelligent instrument widely used in contact resistance, battery Voltage and battery internal resistance testing. New and improved sampling circuitry that can measure any kind of battery. In addition, the instrument has a professional sorting function, sorting signal settings, and is applied to the automatic sorting system to complete the automatic assembly line test. It can also be equipped with a USB interface for remote control and data acquisition and analysis, which is very suitable for mass production of batteries.
Performance characteristics
● Vector method is used to measure, and a variety of parameters are measured at the same time
● Comparator (sorting) function
● Test line damage detection
● Compatible with SCPI instruction set
● New and improved sampling circuit
Display diagram
Application
● Test of various contact resistances
● Alkaline batteries, lead-acid batteries, lithium battery deterioration measurement and life assessment
● UPS online detection
● Battery factory inspection
● Supercapacitor equivalent resistance (ESR) measurement
Amber batteriesTester Selection Table
Applent AT526 Battery internal resistance TesterSpecifications
| LIST | VALUE |
|---|---|
| Measurement parameter | AC resistance, DC Voltage |
| Basic Precision | Resistance: 0.2% Voltage: 0.01% |
| Measurement range | Resistance: 0.001mΩ~ 33.000kΩ Voltage: 0.00001V~ 120.000VDC |
| signal source | AC 1kHz |
| range | Seven range automatic and manual |
| Test speed | 145 times/second, 30 times/second, 10 times/second, 1 time/second |
| Show results | Direct reading, sorting results |
| Maximum reading | Resistance: 33,000 Voltage: 1,200,000 |
| correction | Short circuit clearing in full scale |
| comparator | RHI/RNG/RLO output VHI/VNG/VLO output, absolute tolerance +/- TOL sorting, percentage tolerance TOL sorting, sequential comparison sorting |
| trigger method | Internal trigger, manual trigger, external trigger and remote trigger |
| standard interface | RS-232C interface USB interface Handler interface (PLC interface) RS-232C interface USB interface |
| other | True color TFT-LCD display, keylock and data retention function, internal flash memory and U disk data recording |
| power requirements | Voltage: 110VAC/240VAC Frequency: 50Hz Power: Maximum 15VA |
| size | External Dimensions (mm): 264 (W) x107 (H) x350 (D) |
| Weight | 4kg |
Applent AT526 Battery internal resistance Tester Packing list
Host x1, Kelvin clip x1, RS232C communication cable x1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
