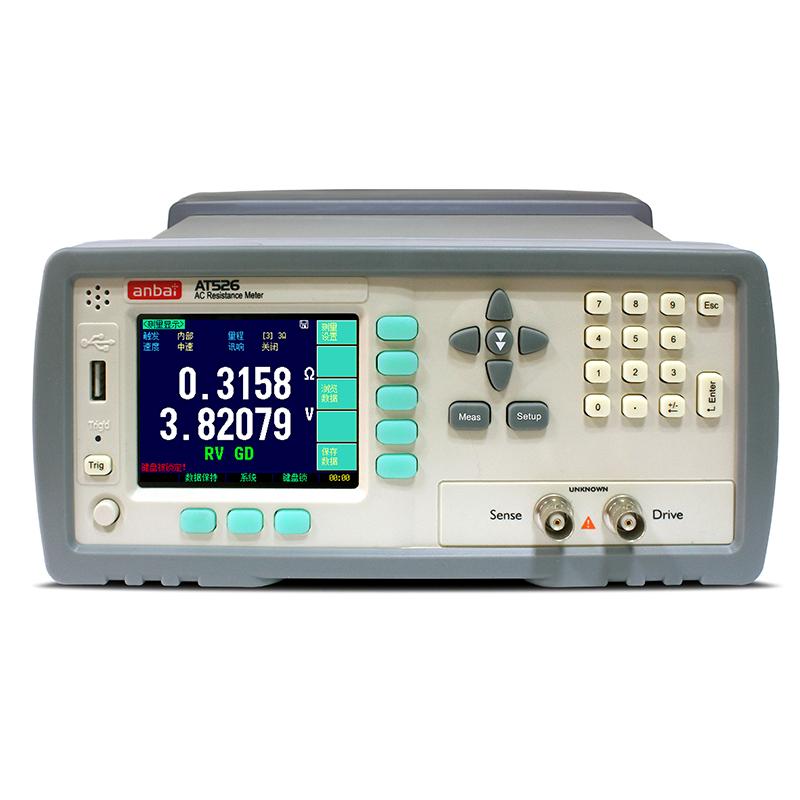

APPLENT AT526B AC Resistance Tester, Economical, Battery Internal Resistance Test
APPLENT AT526B AC resistance Tester is an economical battery internal resistance Tester, which can measure any kind of battery. Measurement range of AT526B is resistance: 0.001mΩ~ 33.00Ω, Voltage: 0.0001V~ 60.000VDC.
Applent
AT526B
Introduction

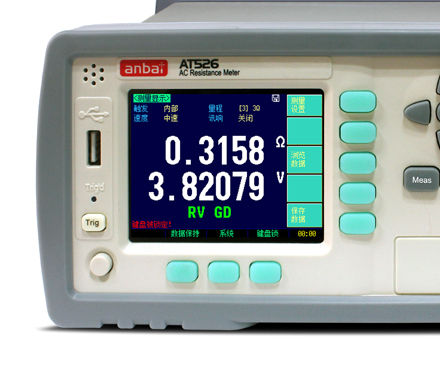

AMPLUS AT526B AC Resistance Tester is a newly designed high-precision, high-stability and economical battery Tester. It is controlled by a high-performance ARM microprocessor. True color 3.5-inch LCD display in Chinese and English, more convenient to operate. It is an upgraded product of AT520. It is a high-performance, intelligent instrument widely used in contact resistance, battery Voltage and battery internal resistance testing. New and improved sampling circuitry that can measure any kind of battery. The instrument has a professional sorting function, which is suitable for the rapid determination of battery Voltage and internal resistance!
Performance characteristics
●Vector method is used to measure, and a variety of parameters are measured at the same time.
●Comparator (sorting) function
●Test line damage detection.
●Compatible with SCPI instruction set.
● New and improved sampling circuitry
apply
●Tests of various contact resistances
●Alkaline batteries, lead-acid batteries, and lithium batteries deterioration measurement and life evaluation
●UPS on-line detection
●Battery factory inspection
●Supercapacitor equivalent resistance (ESR) measurement

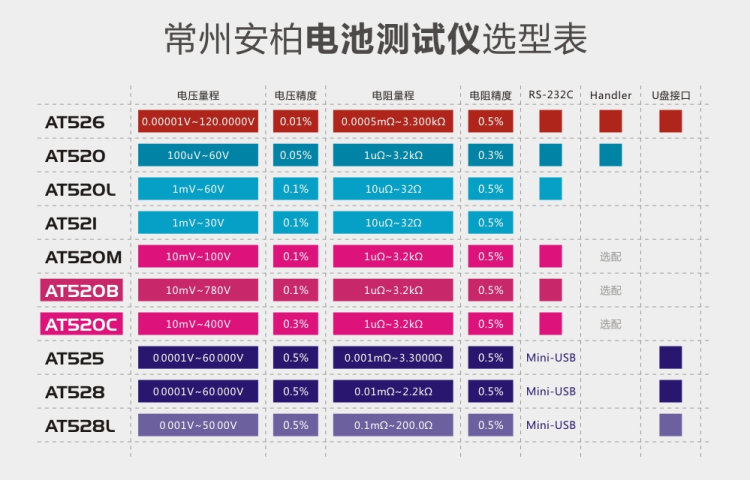

Amber Battery Tester Selection Table
Applent AT526B AC resistance TesterSpecifications
| LIST | VALUE |
|---|---|
| Measurement parameter | AC resistance, DC Voltage |
| Basic Precision | Resistance: 0.001mΩ~ 33.00Ω Voltage: 0.0001V~ 60.000VDC |
| signal source | AC 1kHz |
| range | Four-range automatic and manual |
| Test speed | 30 times/second, 10 times/second, 1 time/second |
| Show results | Direct reading, sorting results |
| Maximum reading | Resistance: 33,000 Voltage: 60,000 |
| correction | Short circuit clearing in full scale |
| comparator | RHI/RNG/RLO output VHI/VNG/VLO output, absolute tolerance +/- TOL sorting, percentage tolerance TOL sorting, sequential comparison sorting |
| trigger method | Internal trigger, manual trigger, external trigger and remote trigger |
| standard interface | RS-232C interface USB interface Handler interface (PLC interface) RS-232C interface USB interface |
| other | True color TFT-LCD display, keylock and data retention function, internal flash memory and U disk data recording |
| power requirements | Voltage: 110VAC/240VAC Frequency: 50Hz Power: Maximum 15VA |
| size | External Dimensions (mm): 264 (W) x107 (H) x350 (D) |
| Weight | 4kg |
Applent AT526B AC resistance Tester Packing list
Host x1, Kelvin clip x1, RS232 communication cable x1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
