YUEPING NDJ-1S Rotational Viscometer Measurement range: (mPa · s) 10~100000 Error range: +/- 3%

NDJ-1S Rotational Viscometer overview

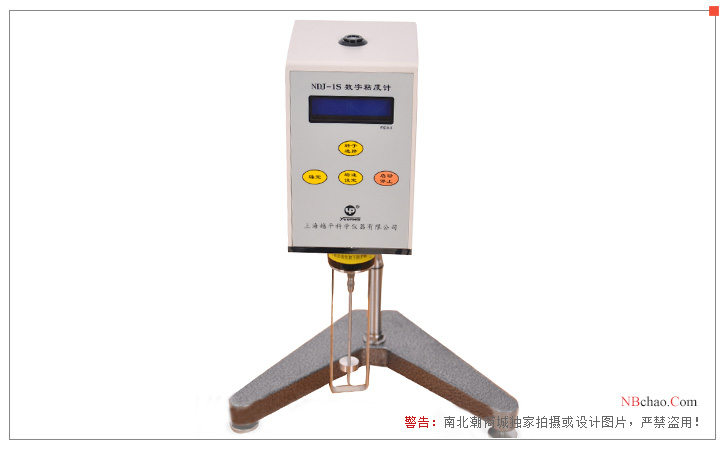

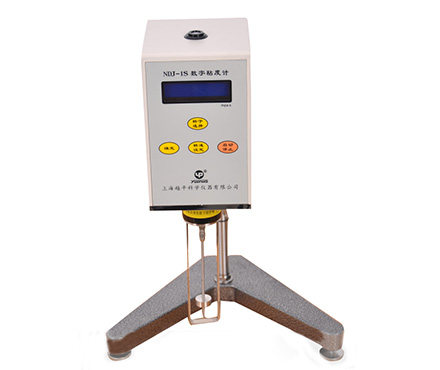

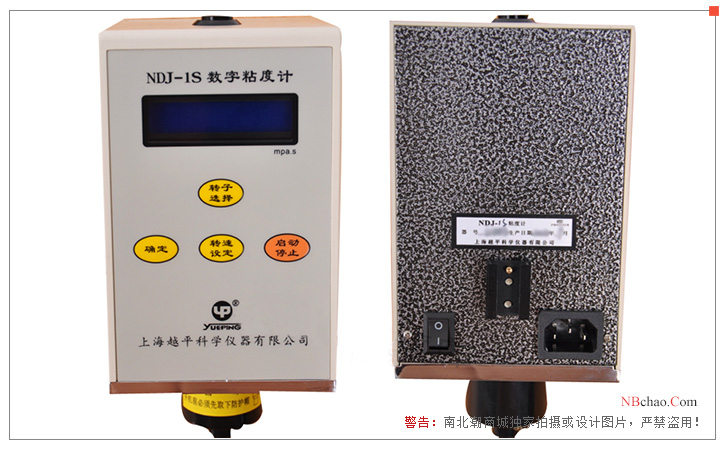

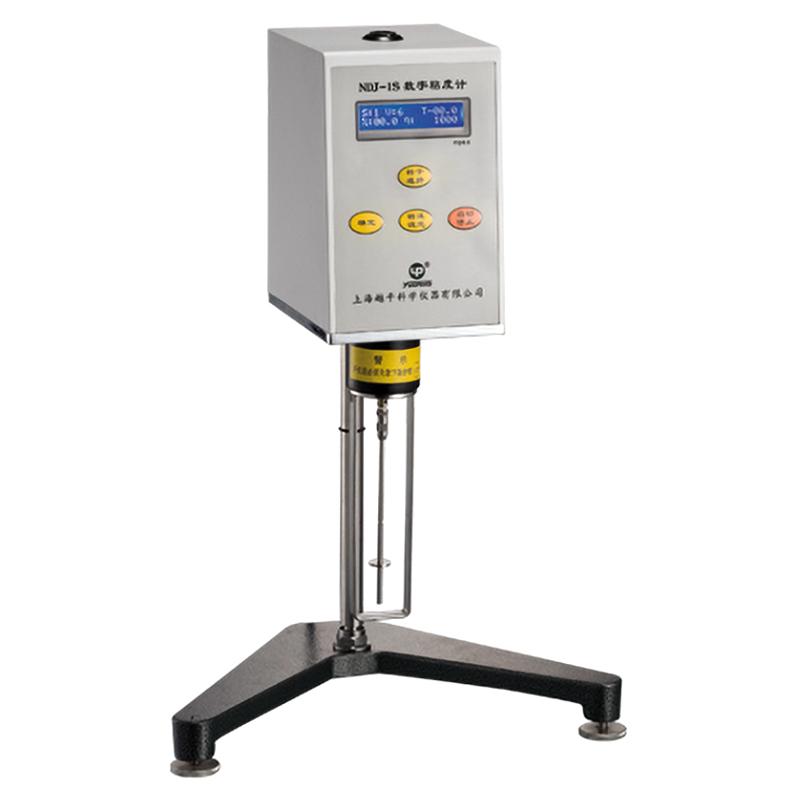

Yueping NDJ-1S Rotational Viscometer is a digital display Rotational Viscometer controlled by a 16-bit microcomputer. The measured data is displayed on the blue backlit display screen. There are "rotor selection", "confirmation" and "speed setting" on the operation panel. , "Start and stop" four buttons, equipped with 4 different standard rotors, which form different combinations with different speeds to measure liquids with different viscosity ranges, and have wide applicability. The measurable viscosity range of NDJ-1S Rotational Viscometer is 10-10 ⁵ mPa·s ^.

NDJ-1S rotary viscometer adopts 16-bit microcomputer processor as the core stepping electric high subdivision drive, LCD backlight display, with stable speed, good accuracy, programmed design, easy operation, error alarm and other functions, the screen directly Display information such as viscosity, rotational speed, percent torque, rotor number, and temperature of the measured liquid. The main control board and the subdivision driver board all adopt patch technology, and the circuit design adopts the current professional microcomputer processor, and the structure layout is reasonable and compact. NDJ-1S Rotational Viscometer full scale and linearity of each gear are all measured and corrected through the PC interface, and its measurement performance and functions have reached the professional level of the same type in CHINA.

NDJ-1S digital viscometer features

1. NDJ-1S Rotational Viscometer can provide the low viscosity option "No. 0 rotor" to accurately test the viscosity value in the range of 1~100mpa.s.

2. With 16-bit microcomputer processor as the core, stepping electronics with high subdivision drive and LCD backlight display.

3. The NDJ-1S rotary viscometer is controlled by a program-controlled motor, and the frequency change of the mains power does not affect the measurement accuracy.

4. The whole machine is designed in one machine, which is easy to operate.

5. The measurement data can be directly displayed on the LCD without secondary calculation.

plan

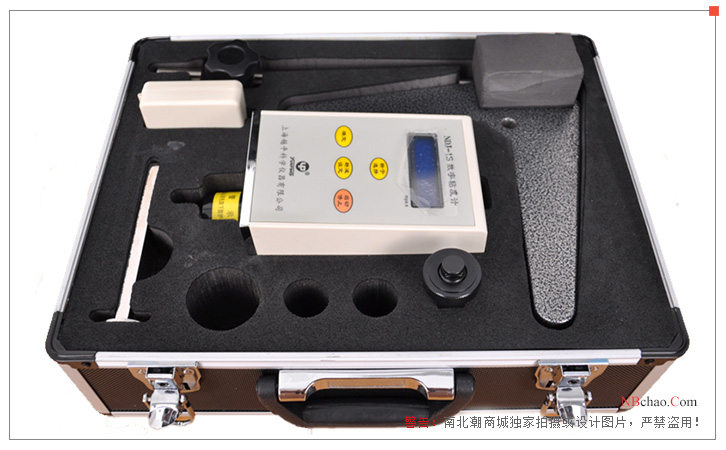

Host x1, (No. 1, 2, 3, 4) rotor x1, bracket x1, manual x1, certificate x1

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
