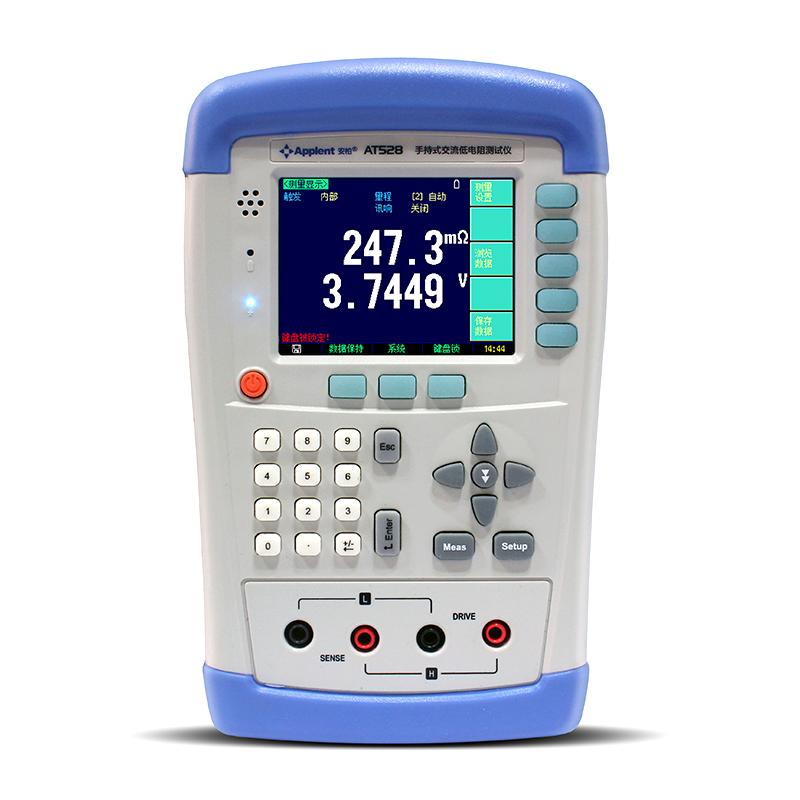

APPLENT AT528 handheld battery Tester, suitable for battery/lithium battery/mobile phone battery
APPLENT AT528 handheld battery Tester is an AC resistance Tester, which can simultaneously measure the internal resistance and Voltage of the battery. The resistance range of AT528 is 100uΩ~ 2.2kΩ, and the Voltage range is 0~50V. It is suitable for the measurement of various low-Voltage batteries, accumulators, lithium batteries, and mobile phone batteries.
Applent
AT528
Introducing the AT528 Handheld Battery Tester
The AMMG AT528 Handheld Battery Tester is a meter that can measure the internal resistance and Voltage of the battery at the same time, and is controlled by a high-performance 32-bit ARM microprocessor. Fully automatic real-time detection of micro handheld instrument, built-in large-capacity lithium battery to achieve ultra-long standby AT528 has both the portable and desktop performance of the handheld meter, the main performance is compatible with the Japanese 3554, the instrument can test 0.01mΩ ~ 2.000kΩ resistance, 0 ~ 50V DC Voltage, resistance up to 3200 display digits, Voltage up to 5000 display digits. The test speed is 10 times/second, and the accuracy of 0.5% can still be guaranteed, and the reading runout is controlled below 3 characters. The resistance measurement of the instrument adopts the vector test principle, and the Voltage measurement adopts the differential test principle, so that the open circuit Voltage can be accurately measured. In addition, the instrument has a professional sorting function, built-in sorting record, GD/NG sorting result display sorting signal setting, which is used in the automatic sorting system to complete the automatic assembly line test. The AT528 is equipped with 500 sets of data storage, which can save the measurement data with one click, saving you time in recording data. It can also be equipped with a USB interface for remote control and data acquisition and analysis, making it very suitable for assembly line inspection of all kinds of batteries.
Performanceattack
● Fresh and dazzling two-color cast plastic shell
● Battery and external power supply power supply
● Four-end test
● Switch between Chinese and English
● Backlight adjustment
● Auto shutdown setting
● Maximum power consumption≤5W
● Long continuous working time≥8h

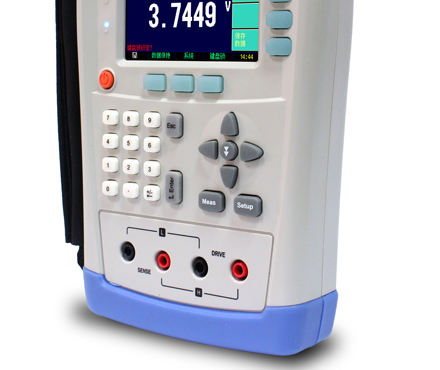

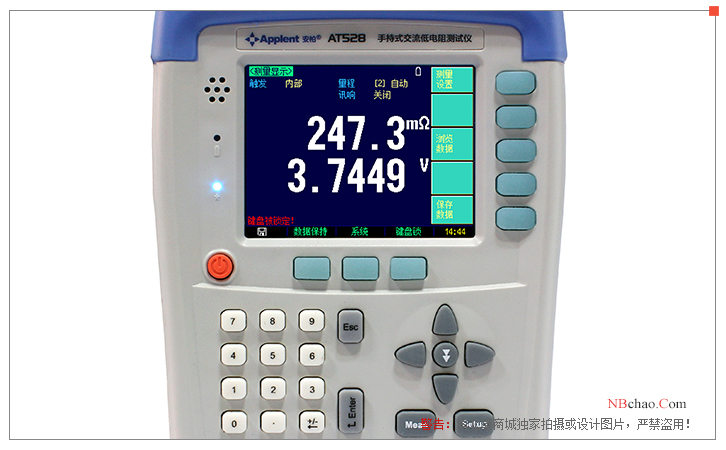

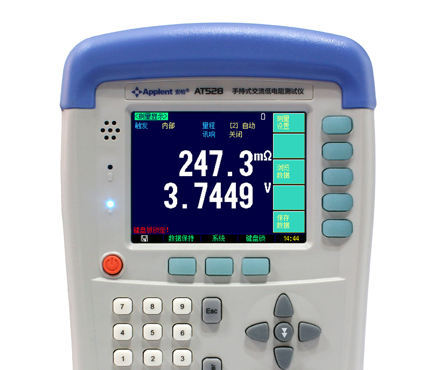

Display diagram
applyfield
● Measure all kinds of low-Voltage batteries, accumulators, lithium batteries, mobile phone batteries
● Contact resistance, internal resistance of the battery
● Battery Voltage

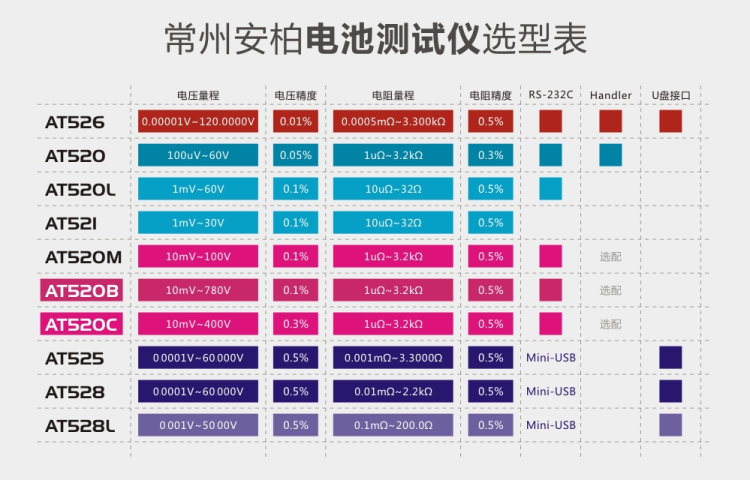

Amber Battery Tester Selection Table
Applent AT528 AC resistance TesterSpecifications
| LIST | VALUE |
|---|---|
| Measurement parameter | AC resistance, DC Voltage |
| Basic Precision | Resistance: 0.5% +/- 5dgt Voltage: 0.1% +/- 5dgt |
| Measurement range | Resistance: 0.01mΩ~ 2.2kΩ Voltage: 0.0001V~ 50.00V |
| signal source | AC: 1kHz open circuit Voltage: < 30mV (reduce damage to the battery under test) Test current: < 15mA |
| range | Six-range automatic, manual, nominal testing |
| Test speed | 20 times/10 times/3 times/second |
| Show results | Absolute deviation (ABS) comparison, relative deviation (PER) and sequential (SEQ) comparison |
| Maximum reading | Resistance: 2200 number, Voltage: 50000 number |
| Maximum resolution | Resistance: 0.1mΩ Voltage: 1mV |
| correction | Short circuit clearing in full scale |
| comparator | The Voltage is compared separately, the resistance is compared separately, and the Voltage-resistance combination is compared. The GD/NG sorting results show that the signal |
| trigger method | Internal trigger, manual trigger, remote trigger |
| test side | 4-Terminal Shielding (including 2 detection terminals and 2 drive terminals) and outer Shielding ground terminals |

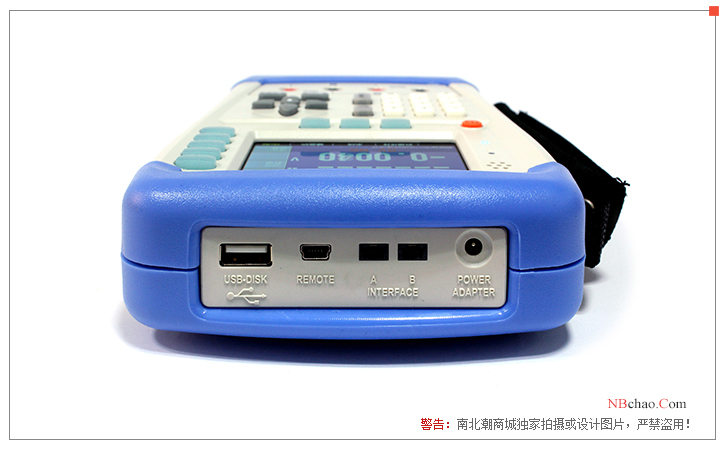

| standard interface | Built-in Mini-USB interface (virtual serial port) charging interface U disk interface |
| other | 3.5-Inch true color 16M color TFT-LCD display; keyboard lock, data retention function; compatible with SCPI Instruction Set Architecture; Chinese and English switching; backlight adjustment; automatic shutdown; 500 sets of measurement data saved with one click |
| Power adapter | Input: 100-240V~ 50/60Hz 0.35A Output: 9V 1A DC |
| Battery parameters | 8.4V, 2200mAh lithium battery |
| Charging time | Charging time: 300Min max. |
| Battery operating life | ≥ 8 hours |
| size | External Dimensions (mm): 130.23 (W) x 210.76 (H) x 37.88 (D) |
| Weight | 650g |

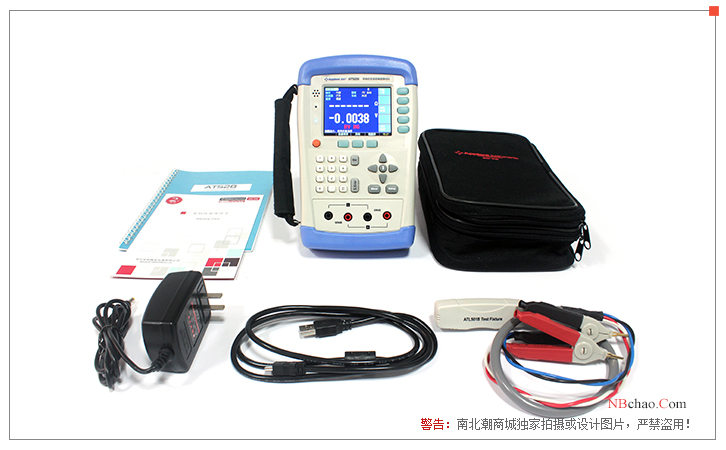

Applent AT528 AC resistance Tester Packing list
host x1, four-terminal Kelvin test clip x1, DC power adapter x1, portable bag x1, lithium battery x1.
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
